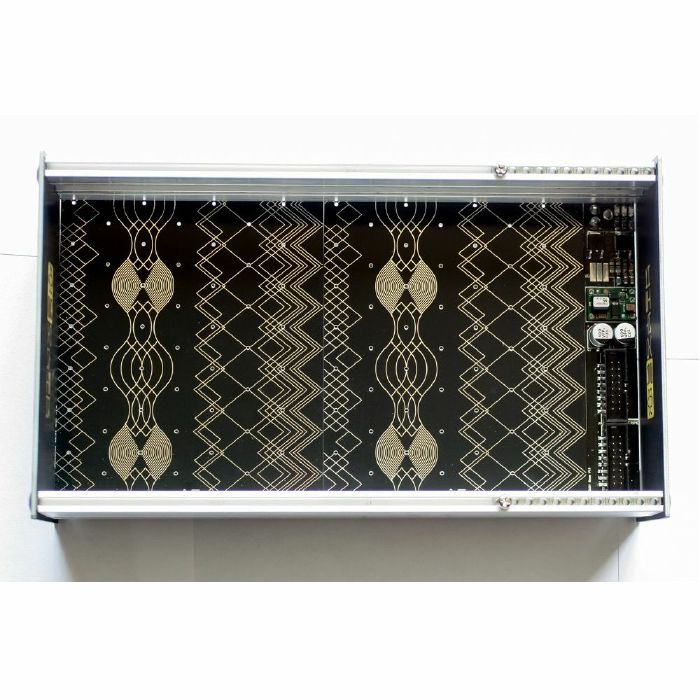

EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.
