***B-STOCK: Box opened, product in perfect working order***

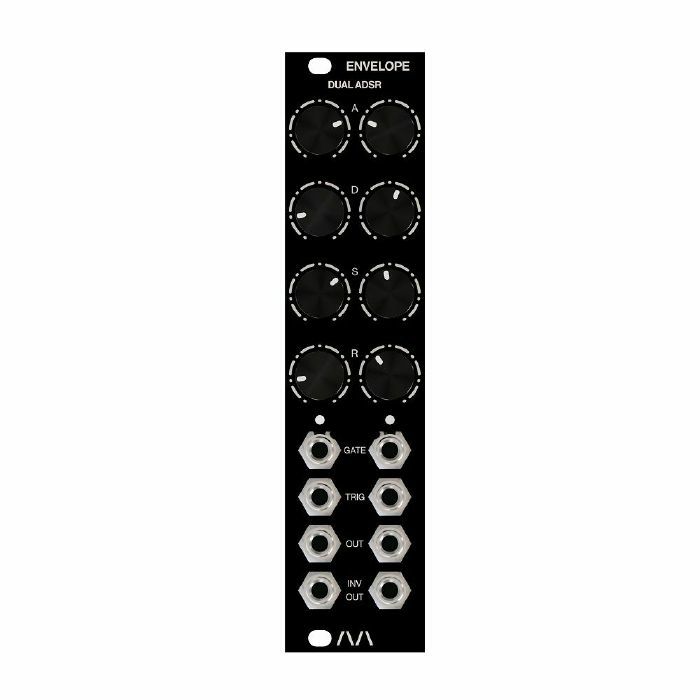

The Morphor Envelope - Dual ADSR is a slim (6 HP) dual envelope generator. Each channel features standard ADSR (Attack, Decay, Sustain, Release) analogue circuitry, providing the classic, rich envelope shaping tools essential for any modular enthusiast. It features separate control knobs for the attack, decay, sustain and release parameters, two independent channels for versatile envelope shaping and each channel comes equipped with gate, re-trigger, output, and an inverted output.

On the back of the module you can find tiny switches for each channel to change the overall length of the complete envelope:
Short: 5 ms - 30 s
Med: 25 ms - 60 s
Long: 60 ms - 200 s (=3.3 min)

Features

100% analogue
Dual channel
Attack length control
Decay length control
Sustain level control
Release length control
Inverted output
Re-trigger

Specifications

Panel width: 6 HP
Panel height: 3 U
Module depth: 40 mm
Current draw: 12 V : 32 mA | -12 V : 32 mA | +5 V : 0 mA
Dimensions: 128.5 x 30.3 x 40 mm
Weight: 111 g
Power Socket : 16-pin
