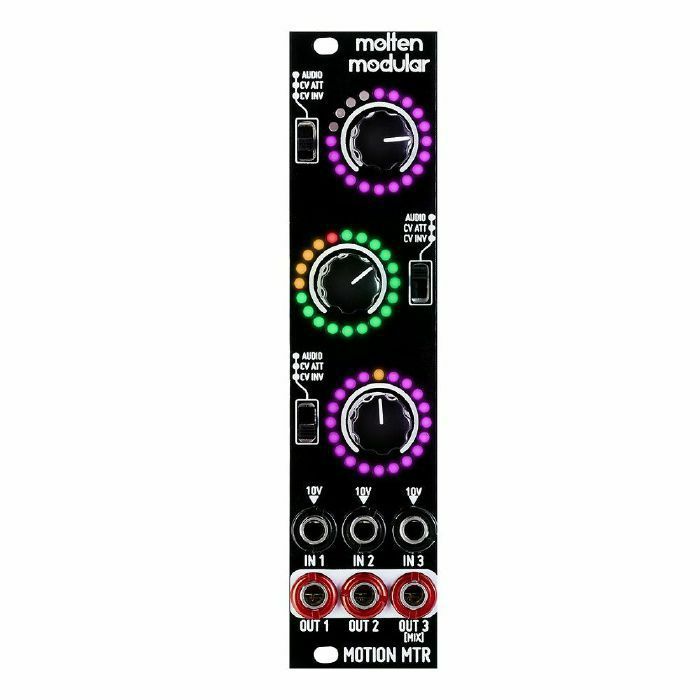

Motion MTR allow you to mix, attenuate and invert signals while having clear visual feedback of their levels.

Each channel can function as:

Audio level control with VU meter
CV attenuator with voltage meter
CV inverter with voltage meter
Each input is normalled to 10v, so you can
use each of them to generate fixed voltages.
Also, the outputs of channels 1 and 2 are summed into Out 3 to be used as a mixer.
Patch it wildly to make it work as an attenuverter with offset, as a mixer, a VU meter or a combination of them all!
This module is our first collaboration with Robin Vincent from Molten modular.

Specs

Current Draw: +12v: 110 mA -12v: 43 mA
Width: 6HP
Depth: 30mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.
Idea by Robin Vincent
