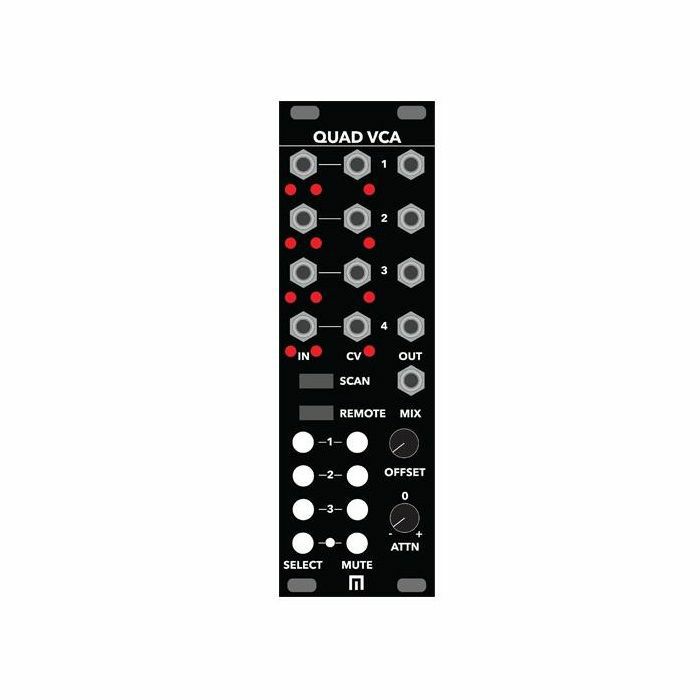

Malekko Quad VCA Quad Voltage Controlled Amplifier Module (black faceplate)
Click for better price or call
+44 20 7424 1960
(quote 818026)
Delivery
Features
Returns & refunds
Finance
- 4 individual inputs (audio and CV) and outputs and 1 mix output
- 4 bi-polar CV inputs, accepting up to +/- 10V
- Scan Mode (4:1 scanning and panning)
- Offset and Attenuvert controls per channel
- Remote switch on/off for saving multiple Quad VCA presets along with your Varigate 4+ and Varigate 8+ or stand-alone mode
- Mute buttons per channel output
If you decide a product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.
Malekko Quad VCA Quad Voltage Controlled Amplifier Module (black faceplate)
A powerful and versatile take on the quad VCA formula from the Portland brand, featuring scan mode, attenuverters and mute buttons. Pair with a Varigate 4+ or 8+ for multiple preset recall.
Supplier's Notes:
Quad VCA is a 4-channel, advanced voltage controlled amplifier with an analog signal path that can either be used stand-alone, or in tandem with the Varigate 4+ and 8+ for multiple preset recall over the power bus.
Input channels 2-4 are normalled to 1 and Scan Mode allows for complex level and modulation routing. Each channel includes a mute function and all outputs are summed to a mix output. To adjust level and CV modulation per channel, use the Select Channel buttons and then adjust the Offset and Attenuverter controls.
Scan Mode includes two functions. Scan: Insert 4 inputs, 1 CV and monitor Mix output for 4:1 scanning. Pan: Insert an input into Ch 1 and Ch 1 CV will route input to up to 4 different outputs. Offset and Attenuation can be adjusted to control how incoming CV is applied.
The Remote switch allows you to access saved presets when paired with Varigate 8+ (100 presets) or Varigate 4+ (16 presets). In stand-alone mode, all settings are auto-saved.
Quad VCA is a complete 4-channel VCA and mixing solution with preset recall capability, all in 8hp.
HP SIZE: 8hp
Supplier's Notes:
Quad VCA is a 4-channel, advanced voltage controlled amplifier with an analog signal path that can either be used stand-alone, or in tandem with the Varigate 4+ and 8+ for multiple preset recall over the power bus.
Input channels 2-4 are normalled to 1 and Scan Mode allows for complex level and modulation routing. Each channel includes a mute function and all outputs are summed to a mix output. To adjust level and CV modulation per channel, use the Select Channel buttons and then adjust the Offset and Attenuverter controls.
Scan Mode includes two functions. Scan: Insert 4 inputs, 1 CV and monitor Mix output for 4:1 scanning. Pan: Insert an input into Ch 1 and Ch 1 CV will route input to up to 4 different outputs. Offset and Attenuation can be adjusted to control how incoming CV is applied.
The Remote switch allows you to access saved presets when paired with Varigate 8+ (100 presets) or Varigate 4+ (16 presets). In stand-alone mode, all settings are auto-saved.
Quad VCA is a complete 4-channel VCA and mixing solution with preset recall capability, all in 8hp.
HP SIZE: 8hp
