- Universal Eurorack power cable tester - 10 and 16 pins 2.54mm.
- Mono and stereo patch cable compatibility - 3.5mm TS and TRS.
- Additional 20 pins 1.27mm / 2.00mm sockets.
- Power line indicators.
- Single board design - extremely skiff friendly.
- Whichever power connector you use should work fine with the polarity.
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

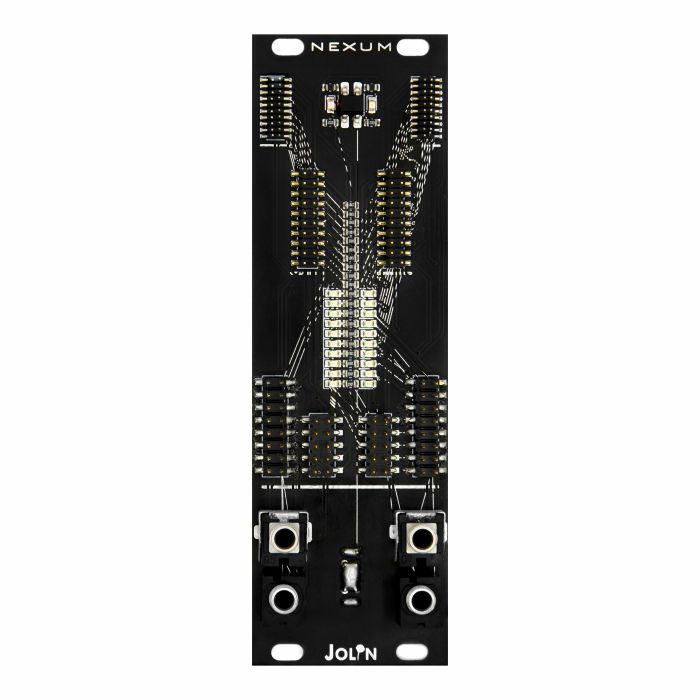

Jolin Nexum Smart Multi-Cable Tester Module
NEXUM is a smart multi-cable tester.
Why:
To test the unknown power cable of a fresh module.
To check if all the spaghetti is working before a gig.
To know if your power supply is well-mannered.
To mass produce cables and be sure that all of them are working.
With:
Eurorack 2.54mm cables - 10 pins and 16 pins ones.
Other 2.00mm connection cables - 20 pins headers.
JST 1.27mm cables - 20 pins headers.
Patch cables - 3.5mm TS & stereo - 3.5mm TRS.
How:
Plug a cable in one of the sockets and the other end specularly on the opposite side. Check if the blue LEDs light up steady in a number equal to the cores of the cable you are testing. Wiggle the wire back and forth just to be sure that all the individual cores are firmly connected.
Due to its configuration, the connection is considered true only if there is no continuity between the adjacent wires or discontinuity in that specific core. This smart feature will avoid false positives.
On top there are two LEDs indicators directly wired to the power lines to check if the -12V or +12V PSU power lines are misbehaving.
Dimensions:
8 HP
18 mm deep
Current Draw:
50 mA +12V
5 mA -12V
Why:
To test the unknown power cable of a fresh module.
To check if all the spaghetti is working before a gig.
To know if your power supply is well-mannered.
To mass produce cables and be sure that all of them are working.
With:
Eurorack 2.54mm cables - 10 pins and 16 pins ones.
Other 2.00mm connection cables - 20 pins headers.
JST 1.27mm cables - 20 pins headers.
Patch cables - 3.5mm TS & stereo - 3.5mm TRS.
How:
Plug a cable in one of the sockets and the other end specularly on the opposite side. Check if the blue LEDs light up steady in a number equal to the cores of the cable you are testing. Wiggle the wire back and forth just to be sure that all the individual cores are firmly connected.
Due to its configuration, the connection is considered true only if there is no continuity between the adjacent wires or discontinuity in that specific core. This smart feature will avoid false positives.
On top there are two LEDs indicators directly wired to the power lines to check if the -12V or +12V PSU power lines are misbehaving.
Dimensions:
8 HP
18 mm deep
Current Draw:
50 mA +12V
5 mA -12V
