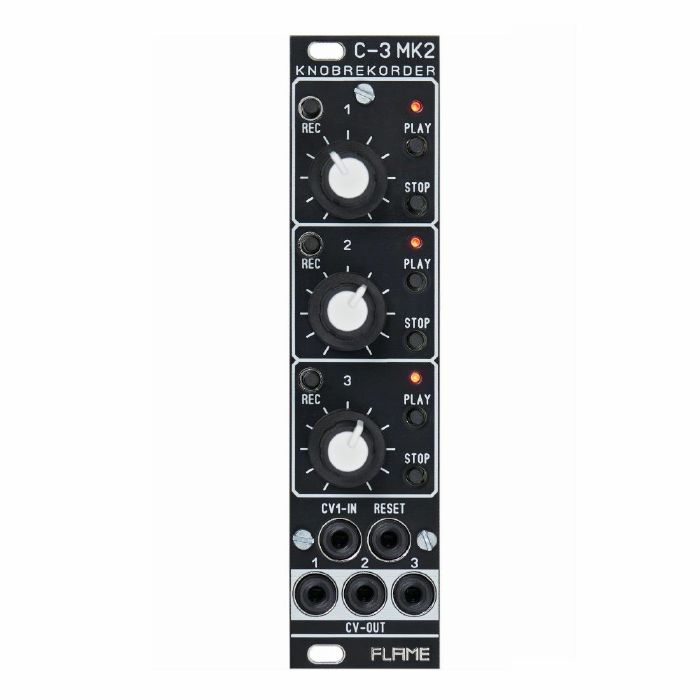

The FLAME "C-3 MK2" is a three-channel module for recording and playing back movements of controllers.

Those can be recorded with each channel's individual knob. The movements will be output as control voltages.

The recording time per track is over one minute. The playback speed is adjustable.

All three tracks have a common reset input. The track data remains permanently stored (battery-backed memory).

The module can be globally switched to bipolar or unipolar voltage range (switch on the PCB).

Inputs and outputs:

3 CV outputs bipolar + / -5v or unipolar 0-10v
additional CV input on track 1: bipolar + / -5v or unipolar 0-10v
common reset input for all three tracks
http: / / flame.fortschritt-musik.de / flame2 / instruments_modular.html#automix

Power consumption: 30mA at +12 V and 5mA at -12 V
Depth: 33mm
6 HP
