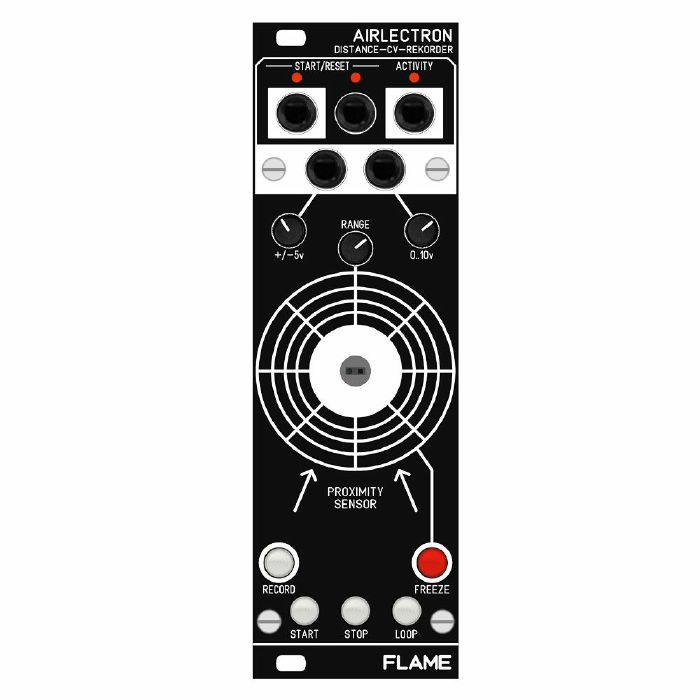

The Airlectron Sensor Recorder module is equipped with a sunlight independent distance sensor to generate CV output voltages.

A distance sensor reacts to hand movements and varies the CV output voltages (bipolar / max + / - 5 V, unipolar / max 0-+10 V). The range control adjusts the detection distance (2-50 cm). The freeze function keeps the voltage when there is no continuous movement.

The recorder / looper can be used to record motion sequences for up to two minutes. This recorded data can be played back in a loop or once and restarted at the START / RESET input. LEDs indicate the status of the gate inputs and outputs.

Features:

3x controller
1x Vishay distance sensor
3x gate / trigger in- and outputs
2x CV outputs unipolar / bipolar
Power supply via Doepfer connector

8 HP
