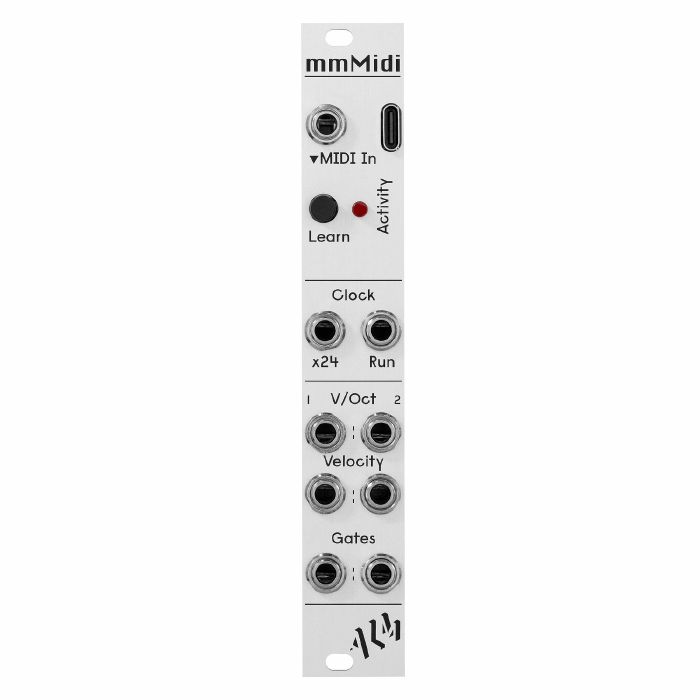

ALM mmMidi MKII MIDI To CV Interface Module
Click for better price or call
+44 20 7424 1960
(quote 1082818)
Delivery
Features
Manual/brochure
Returns & refunds
Finance
- Dual channel conversion of MIDI note, velocity and gate signals.
- Convert MIDI clock signals out into modular signals to sync Pam etc.
- Setup & configure in under a minute.
- Supports both DIN MIDI (includes type B adapter) and USB-C MIDI.
- Connect directly to Laptop, tablet and phone via class compliant USB-C.
- Quick and easy ''drag and drop'' firmware updates via USB.
- Optional mmT expander maps keys presses to 8 gate/trigger outputs.
- Skiff friendly with reverse power protection.
- 2 Year Warranty.
- Made in England.
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.
ALM mmMidi MKII MIDI To CV Interface Module
The mmMidi is a simple & compact MIDI interface for your Eurorack synthesiser. It translates two independent channels of MIDI note, velocity and gate information to corresponding control voltage signals via either a classic MIDI DIN type connection or as a driverless USB MIDI device.
The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.
Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.
(Note: New 2025 mkII version adds USB-C functionality.)
Technical Specifications
Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates
The mmMidi also converts MIDI Clock to analogue x24 fixed clock and run outputs (i.e DIN Sync). The optional mmT expander provides a third MIDI channel of 8 key mapped gate outputs.
Requiring minimal configuration and a pain free set up, the mmMidi makes it easy to sync Pam's clock to your DAW, control multiple synth voices, and trigger drum or sample modules with the optional mmT expander. The new USB-C connection makes it easy to drive your modular not just from your computer but also via your tablet, phone or any USB MIDI Host.
(Note: New 2025 mkII version adds USB-C functionality.)
Technical Specifications
Power: +12V 50mA / -12V 0mA
Size: 4HP
Depth: 38mm
MIDI response latency: 200-400 uSec
Resolution: Factory calibrated 12 bit 0-8V CV outputs. +5V gates
Read moreRead less
ALM mmMidi MKII MIDI To CV Interface Module
Click for better price or call
+44 20 7424 1960
(quote 1082818)
$189.04
in stock
$189.04
2 in stock
