Mosaic Modules

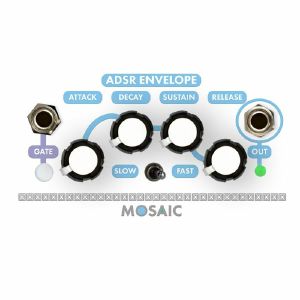

Notes: Shape sound sources and modulate parameters with the dedicated ADSR envelope. This four stage envelope gives individual control over each stage, allowing for complex, yet detailed modulation over filters, VCAs, effects, and more. Patch in punchy synth stabs, sweeping pads, and powerful sonic transformations with the ADSR.

Tech Specs:
Width: 14HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: This all analog voltage controlled oscillator revolves around the reissue of the legendary Curtis CEM3340 IC, which is found in synthesizers such as the Prophet 5, Roland Jupiter Series, and more.

CEM3340 based VCO (triangle core)
Waveforms: Sine, Triangle, Sawtooth, Square
Linear and Exponential FM
PWM
Sync capability
1V/Oct tracking over 10 octaves

Tech Specs:
Width 20HP
Depth: 38mm
Current Consumption: +12V = 27mA, -12V = 24mA

Notes: Bring the boom with the Mosaic Bass Drum. Bass Drum is a dedicated kick voice, and an essential piece of any percussive section. With v/oct tracking, Bass Drum can play the role of both rhythm and melody, rounding out the low end of your patch. With control over character and dampening, your kicks can shake the house, or sit in the pocket.

Tech Specs:
Width: 14HP
Depth: 28mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Keep your patch in sync with Mosaic's compact Clock. Clock is a configurable master clock source with knob and CV control over the clock rate, two range settings, and a pause feature via the Hold button / gate input. Take control of your composition, or just a portion of it, with Clock.

Tech Specs:
Width: 8HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Attenuate and amplify your signals with the Dual Linear VCA. This all-analog dual VCA gives you control over audio and modulation signals with an offset knob per channel and LED level indicators. As the old adage says, you can never have too many VCA's!

Tech Specs:
Width: 14HP
38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

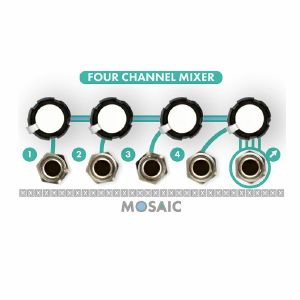

Notes: Blend your signals together with Mixer, our 4 input mixing solution! With DC coupled inputs, Mixer works well with both audio and CV signals, making it the perfect option for level controls across your system.

Tech Specs:
Width: 14HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

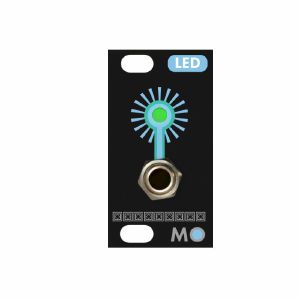

Notes: Sometimes visual feedback makes all the difference in the world. LED is a dedicated voltage response LED, perfect for testing signals and cables, visual clock pulse, or a friendly little blip to dance along with your music.

Tech Specs:
Width: 4HP
Depth: 23mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Take your patch down a notch with the Line Output 1U tile. Line Output is a modular level to line level adjustment module, with knob control over your output level to get it just right. Turning your modular system into an open-ended audio pathway has never been easier.

Tech Specs:
Width: 8HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: Analogue goodness awaits with the four-pole Low Pass Filter. Thanks to CV control over resonance and frequency, the Low Pass Filter can go from squelching leads to dynamic sweeps in an instant. In addition, 1V/Oct tracking allows it to double as a musical sine wave oscillator. Bring analog warmth to your system today in a compact, yet stand out package.

Tech Specs:
Width: 14HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

Notes: For Intellijel's 1U rack format, Mosaic serve up a handy quantiser with a clever built-in arpeggiator, meaning you can generate melodic sequences from within the module.

Supplier's Notes:
Craft melodic sequences out of random voltage, LFOs, and more with the Mosaic Quantizer. Don't have a voltage source? Enter Arpeggiator mode to create a sequence from your current scale or note pattern, and modify it on the fly using the chromatic note interface. Pull musicality out of the unknown with Quantizer!

Tech Specs:
Width: 20HP
Depth: 38mm
Front Panel: Intellijel format, Pulp Logic replacement panels available here.

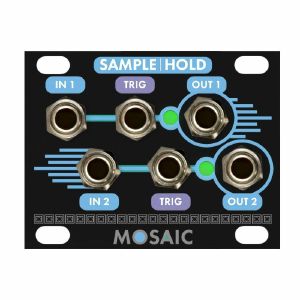

Notes: Sample | Hold is a two channel analog sample and hold circuit for the 1U format. S|H provides ultra low droop while maintaining an imperceptibly fast acquisition time. Generate perfect-pitch sequences from white noise, give your audio a lo-fi downsampling, and more with this handy utility circuit.

Two independent sample and hold circuits

Channel 1 is normalled to Channel 2

Ultra low droop, useful for perfect pitch sampling

LED voltage indicators

Ability to downsample audio signals

Input Range: +12V

Tech Specs

Width: 10HP

Depth: 38mm

Power Consumption: +12V=5mA, -12V=5mA, +5V=0mA

Front Panel: Ships in Intellijel format.

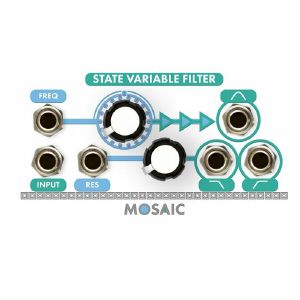

Notes: Shape your sound subtly, or intensely with the State Variable Filter! SVF is an all analog, tri-output 12db sloped OTA filter with voltage controlled resonance. With simultaneous outputs of lowpass, high pass, and bandpass outputs, any signal can be expanded and changed from smooth and creamy to squelching at a moment's patch. Bring the iconic analog sound shaping tool to your patch today!

all-analogue state variable filter

12db slope

Simultaneous Lowpass, Highpass, and Bandpass outputs

CV over cutoff frequency and resonance

Tech Specs

Width: 14HP

Depth: 38mm

Power Consumption: +12V=55mA, -12V=55mA, +5V=0mA

Front Panel: Ships in Intellijel format.

Notes: Stay in time with Tap, the tap tempo solution for the 1U format! Tap is a simple, yet performance focused utility that gets you playing modular in a live setting.

Simply tap along to the beat, and Tap will output an extremely accurate clock for your modular system. All this is possible using complex averaging algorithms designed with musical performance in mind. With an LED indicator onboard for visual tempo feedback, you can keep your mind on the music. Need to pause your clock? Hold the Tap button down for one second, and the clock will pause. Never lose the beat with Tap!

Tap tempo clock generator

50% duty cycle

LED clock rate indicator

Pause functionality

Tech Specs

Width: 4HP

Depth: 38mm

Power Consumption: +12V=38mA , -12V=7mA , +5V=0mA

Front Panel: Ships in Intellijel format.
