Laine Modular

Notes: Catena is a control voltage powerhouse, packing in four channels of attenuation and offsets, two VC slew engines, half and full wave rectification, input voltage doubling and switchable voltage reference sources with an external offset input. As well as the standard cascading offset and polarisation utilities, the module can act as a percussive envelope generator or sidechain ducker, slow lag or glide control, waveshaper and mixer. Four channels of attenuators or attenuvertors are chained together, running from left to right, with an additional alternative mode per channel. The channel functions are chosen using a three-way slide switch above each control pot. Alternative modes use attenuvertion at the preamp stage allowing the modified signal to be polarised.

Alternative Modes

CH 1: Percussive Slew

CH2: Lazy Slew

CH 3: Half Wave Rectification (with gain boost)

CH 4: Full Wave Rectification

VREF Control

With no CV input patched, each channel generates +-5V or +-10V depending on the attenuvertor and VREF Switch position. The switch toggles between +5V and +10V precision voltage references. All Inputs and outputs soft clip at +-10V.

Slew Controls

CH 1 & 2 in the alt (slew) modes can have the slew response switched between tight and loose. There is further CV control via the CV input jack.

Offset Control
The pot controls the additional VREF amount added to CH 2, 3 & 4. With a CV input patched the pot controls an external signal input amount.CH 1 can also be offset by shifting a jumper on the rear panel.

Signal Doubler

Instead of unity gain as per the other channels, CH 4 doubles the input gain of a patched signal, but keeps any chained or offset signals at unity gain.

Mixer

High quality OPA op amps are used throughout, and Catena will happily serve as a mixer for 1-4 channels of audio. A five channel mixer is also possible by adding an audio signal to the offset jack.

Specifications

Intellijel 1U format
Width 28HP
Depth 34mm
Power requirements ~80mA +12V/~80mA -12V
Control voltage range +-10V
Impedance Input 100K / Output 1K

Notes: Catena is a control voltage powerhouse, packing in four channels of attenuation and offsets, two VC slew engines, half and full wave rectification, input voltage doubling and switchable voltage reference sources with an external offset input. As well as the standard cascading offset and polarisation utilities, the module can act as a percussive envelope generator or sidechain ducker, slow lag or glide control, waveshaper and mixer. Four channels of attenuators or attenuvertors are chained together, running from left to right, with an additional alternative mode per channel. The channel functions are chosen using a three-way slide switch above each control pot. Alternative modes use attenuvertion at the preamp stage allowing the modified signal to be polarised.

Alternative Modes

CH 1: Percussive Slew

CH2: Lazy Slew

CH 3: Half Wave Rectification (with gain boost)

CH 4: Full Wave Rectification

VREF Control

With no CV input patched, each channel generates +-5V or +-10V depending on the attenuvertor and VREF Switch position. The switch toggles between +5V and +10V precision voltage references. All Inputs and outputs soft clip at +-10V.

Slew Controls

CH 1 & 2 in the alt (slew) modes can have the slew response switched between tight and loose. There is further CV control via the CV input jack.

Offset Control

The pot controls the additional VREF amount added to CH 2, 3 & 4. With a CV input patched the pot controls an external signal input amount.CH 1 can also be offset by shifting a jumper on the rear panel.

Signal Doubler

Instead of unity gain as per the other channels, CH 4 doubles the input gain of a patched signal, but keeps any chained or offset signals at unity gain.

Mixer

High quality OPA op amps are used throughout, and Catena will happily serve as a mixer for 1-4 channels of audio. A five channel mixer is also possible by adding an audio signal to the offset jack.

Specifications

Intellijel 1U format
Width 28HP
Depth 34mm
Power requirements ~80mA +12V/~80mA -12V
Control voltage range +-10V
Impedance Input 100K / Output 1K

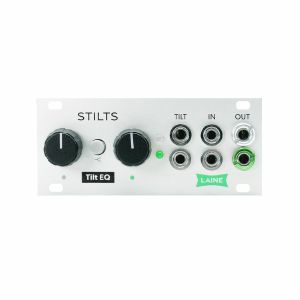

Notes: Lush analogue EQ switchable between tilt and Baxandall high-shelf configurations.

Perform a variety of mixing and sound design duties ranging from subtle brightness and clarity adjustments to low-end rumble removal, boosted low-pass filtering and sweep EQ.

In the default tilt mode, turning the control knob clockwise simultaneously boosts treble and cuts bass. Turning anti-clockwise boosts bass and cuts treble. These boosts and cuts are pivoted around the mid-range. With the control knob at 12 o'clock the frequency response is neutral.

With Baxandall high-shelf mode enabled, turning the control knob clockwise past 12 o'clock introduces and gentle high-shelf EQ weighted around the upper mid-range. Turning the control knob anti-clockwise results in a wide high-shelf cut with subtle bass and mid-range adjustments.

Patching the channels in series allows for radical sound shaping and band-pass responses. Each channel provides up to +/- 8db of low and high-frequency gain control, summing into a low noise output stage. Hot input signals over 15vpp are saturated by active Zener diode clipping.

Features

Precise voltage control of EQ tilt and shelf
Seamless switching between EQ modes
High-quality components used throughout

Specifications

Intellijel 1U format
Width 18HP
Depth 32mm
Power requirements ~60mA +12V/~58mA -12V
Control voltage range 0-8V
Impedance Input 100K / Output 1K

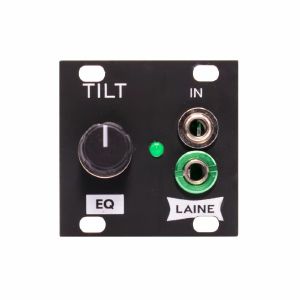

Notes: Tilt is the first in Laine's series of core modules, which will take cues from the main product line and strip back the features so both the module width and cost can be shrunk dramatically.

Comprising an 'Ambler' style tilt EQ network similar to the 'Stilts' topology, Tilt allows simultaneous cut and boost of low and high frequencies using a single control.

Tilt control circuits are known for the transparency of their cut and boost curves, coupled with the inherent emphasis gained from cutting one end of the frequency spectrum whilst boosting at the opposite end.

It sounds pretty good on all audio source material but is especially suited to tracking drums, guitar and lead, or manipulating effects sends and returns.

With the control knob at 12o'clock the sound passed is neutral. Turning the control knob clockwise will boost high and cut low frequencies pivoting from a fixed mid-range point. Turning the control anti-clockwise below 12 o clock will in turn boost low frequencies and cut the highs.

In addition to the EQ there is a soft clipping network which will begin to saturate signals over 15 volts peak to peak.

Tilt uses the same high quality OPA op amps, Alpha pots and ENIG PCBs as found in our main product line.

Features

Compact EQ tilt control in 1U
Soft clipping network
High-quality components used throughout

Specifications

Intellijel 1U format
Width 8HP
Depth 28mm
Power requirements ~10mA +12V/~10mA -12V
Impedance Input 100k / Output 1k

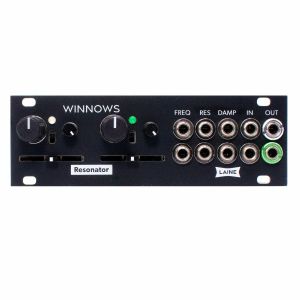

Notes: Winnows, a dual VC resonant filter with damping.

Winnows brings radical resonant filtering to the 1U row. Make your basslines growl like it's 1999. Create clean resonant tones and layers, tuned percussion, steep filtered peaks, vowel filters and more. Each filter channel comprises two state variable filter cores, the first producing a 2-Pole band-pass response, with resonance and self-oscillation amounts set by a 3-Pole feedback network. Signals are then routed through a 1-Pole low-pass damping stage to remove harshness if required. This can be routed to the channel output, or switched and routed through a second series of resonant SVF and 1-Pole LPF damping stages. This circuitry is identical per channel.

Features and uses

Steep and spiked or wide and smooth, resonant bandpass filters
Zone in on and reinforce a sound's dominant frequency, create overtones using both channels
Create sharp resonant peaks, dull or remove any harshness with VC damping
Use the resonator as a sound source by shaping and triggering tuned percussion tones or kick drums
Per channel: 2 x VCA based SVF, 2 x 1-pole damping LPF, 1 x 3-Pole resonance core
Identical circuitry per channel, CV and audio jacks are normalled between channels
Combine both channels in series for vowel filter responses and creative filtering

Specifications

Intellijel 1U format
Width 24 HP
Depth 34mm
Power requirements ~90mA +12V/~80mA -12V
Control voltage range 0-8V
Impedance Input 100K / Output 1K
