Electro-Harmonix

Notes: Produces volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects!

The circa-1980 Electro-Harmonix Attack Decay is a sought after prize among vintage pedal aficionados. Originally called a Tape Reverse Simulator, it's known for producing volume and reverse swells, backward tape sounds, artificially short staccato notes and bowed instrument effects. The freshly designed EHX Attack Decay reinterprets the classic and keeps its cool factor, but adds some modern features for convenience and enhanced functionality.

It can produce a single volume envelope like the original, or, with Poly engaged, put separate volume envelopes on each note you play. The built-in Harmonix fuzz is now a fully controllable distortion with gain, tone and volume controls. The effects loop allows the musician or sound designer to place the volume envelope onto whatever signal is present at the Return jack. Expression pedal/CV input and three user presets give the user total control over their Attack Decay!

Volume envelope manipulation with adjustable Attack and Decay times
Mono mode: one volume envelope at a time, the envelope resets when you play a new note
Poly mode: gives each note you play its own envelope
Built-in, fully adjustable, Harmonix fuzz enhances the volume envelope effect and produces bowed instrument sounds
Built-in effects loop allows for your own pedals to be inserted onto the volume envelope
Expression pedal or CV control over every knob on the Attack Decay
Save and recall up to three presets
Power adapter included

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Effects Loop: Yes
Power Supply: 9.6VDC-200mA power adapter included
Dimensions (in): 4.75 x 4.13 x 2.25
Current Draw: 140mA
Year Released: 2019

Notes: Fuzz wah with two filters and adjustable fuzz circuit for a bold, expressive tone!

The EHX Cock Fight Plus offers up the award-winning tone of the original Cock Fight in a rugged, lightweight pedal and with a traditional rack and pinion style operating mechanism. It contains two different expressive filters: a traditional wah pedal filter and a formant filter used for vowel sounds. The Cock Fight also features a lively fuzz section that can be added before or after the filter section, or taken out of the signal path completely.

Specifications:
Circuit: Analogue with Digital Control
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 9.92 x 4.25 x 3.0
Current Draw: 30mA
Year Released: 2017

Notes: The J Mascis Ram's Head Big Muff Pi fuzz pedal pays homage to the sonic centre of the alt-rock legend's iconic tone of equal parts thickness and clarity in a special edition white and violet finish.

"That's my sound. The Muff is always on," J says. "All distorted sounds begin with the Muff. That's what I grew up playing so it's kind of amazing to have my own signature one."

Based on the highly coveted 1973 Electro-Harmonix V2 Violet Ram's Head Big Muff, J's signature Big Muff produces the indulgent fuzz and exceptional sustain used as his sonic centre for decades.

The fuzz is sonically more articulate than other Big Muffs with excellent string separation and dynamics, which make it one of the most versatile Big Muffs. The pedal's response feels smooth and aggressive making your leads scream and chords thunder.

Feel the fuzz of a guitar giant: the J Mascis Ram's Head Big Muff Pi fuzz pedal from Electro-Harmonix.

Authentic V2 Violet Ram's Head Big Muff in a nano-sized chassis
Special-edition artist graphics
True bypass
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 2mA
Year Released: 2022

Notes: Designed in collaboration with JHS, the Lizard King is an octave fuzz pedal for bass which builds on the success of the guitar-focussed Lizard Queen. Dynamically responsive fixed gain fuzz can be blended from fully wet to dry, while octave tone can be blended separately.

Supplier's Notes:
Octave Fuzz for bass and beyond!

Make way for the new heir to the octave fuzz throne, the Lizard King from Electro-Harmonix. Directly inspired by the EHX x JHS collaboration released in 2023, the Lizard King takes the gnarly and responsive octave fuzz circuit from the Lizard Queen and optimizes it for bass and beyond. With updated tone controls and a new Blend knob, the bass's fundamental tone and low-end is preserved while the top-end of the fuzz tone is shaped to fit or dominate any mix!

The EHX Lizard King is a fixed-gain fuzz that is dynamically responsive. Adjustments to your instruments volume affects the amount of fuzz. Lower instrument volumes create a clear, fuzzy overdrive, while full instrument volume sends the gain over the top for ripping riff and searing solo tones. The familiar VOLUME and OCTAVE knobs control overall output and octave blend volume respectively. New to the Lizard King, the BLEND knob sets the mix between your clean and fuzz tones to create the perfect balance of fuzz while retaining your bass's attack and low-end. The TONE knob is a low pass filter that rolls off the highs, while the SUN/SHADOW switch further enhances the tone of the octave fuzz and clean tones. SUN boosts the octave fuzz with a more driving midrange, and the clean tone accessed by the BLEND knob has more treble and bass frequencies. When the switch is set to SHADOW, the clean tone is unchanged, and fuzz tone is tighter.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply:9V battery included
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 8mA
Year Released: 2024

Notes: Originally designed by Josh Scott of JHS Pedals and graphic designer, Daniel Danger as a homage to Electro-Harmonix in what Josh and Daniel consider the company's design heyday of the 1970s, the EHX Lizard Queen Octave Fuzz is a nano-sized version of the pedal brought to life by the engineers at Electro-Harmonix that has all of the tones and vibes of the original circuit design by Josh. The tone is inspired by EHX's fuzz pedigree with a unique analog octave up circuit that has all the vibe of the original design first featured on the JHS Show in 2022. This creates a completely new and unique EHX fuzz sound we've never heard before. To further tell the tale, the pedal is adorned with vintage EHX-inspired graphics designed by Daniel.

Housed in EHX's Nano-sized chassis, the EHX Lizard Queen is a fixed gain fuzz pedal which features Volume, Octave, and Balance knobs. Volume controls the overall output volume level. The Octave control adjusts the level of the octave-up signal from zero to full octave chaos. Perfect for dialing in a crushing rhythm sound or a chimey, clanging lead sound. The Balance knob sets the tone balance between the smoother Shadow setting and the raspy, biting Sun setting. The effect of the Balance control is especially apparent with the octave set high.

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 5mA

Notes: We took the Big Muff Pi circuit and simply shrunk it without changing its rich, creamy, violin-like sustain and sound!

The EHX Nano Big Muff Pi works and sounds identical in every way to our classic NYC Big Muff Pi. Get a piece of the pi for yourself!

Crushing distortion
Singing sustain with attitude
Compact, rugged nano enclosure
True bypass
Adjustable tone
9V battery included

Specifications:
Circuit
Analog
Bypass
True Bypass
Audio
Mono
Power Supply
9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in)
4.5 x 2.75 x 2.1
Current Draw
3mA
Year Released
2013

Notes: Get that late 1960's fuzzed out, octave up sound!

The EHX Octavix Octave Fuzz delivers the definitive late 1960's fuzzed out, octave up sound together with modern enhancements that update the classic concept. Housed in EHX's rugged nano package, the Octavix features Volume, Boost and Octave knobs. Volume regulates the output level of the pedal. Boost controls the amount of fuzztone and Octave adjusts the volume of the octave above. A mini-toggle lets the player select between 9 or 24 volt power rails and determines the power supply voltage for the entire circuit. At 9V the pedals behaves like the classic, saggy fuzz box. At 24V the Octavix delivers a tighter sound and a richer octave tone. True bypass ensures maximum signal path integrity.

A period-evocative, psychedelic design and blue LED contribute to the pedal's vintage vibe.

Classic octave up + fuzztone effect pedal
Switchable 9 and 24 volt power rails give a saggy or tight sound
True bypass
Blue LED
9V battery included

Specifications

Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 65mA
Year Released: 2015

Notes: A modern fuzz with old school roots and pays homage to one of the ways that early, distorted guitar and bass sounds were made!

The Ripped Speaker is a modern fuzz with old school roots and pays homage to one of the ways that early, distorted guitar and bass sounds were made. At low fuzz settings the pedal emulates the lo-fi distortion sounds of yesteryear, the kinds of sounds created by a razor blade applied to a speaker cone, a loose tube or a faulty channel on a recording console. When you crank the fuzz up the sound is transformed. It's modern and monumental with a searing, fully saturated, fuzz tone.

The Ripped Speaker's RIP knob is a bias control which sets the amount of clipping at the top and bottom of the signal wave form. It adds a lot of versatility and lets you tailor the character of the fuzz. Noon is neutral, a position where the fuzz is perfectly biased... fat, with a great low end and top end bite without being harsh. As you turn the knob clockwise the pedal produces a hard gating effect and the signal sputters and chokes. It's great for creating a dying battery effect. Turning the knob CCW produces yet a different style of fuzz with a smoother gating effect where the signal fades out quickly.

The Ripped Speaker's TONE control is active and delivers a tilt-shift type EQ. That means at noon the EQ is flat. As you turn the knob counter-clockwise the frequency response gets darker with more pronounced lows and less highs. Going clockwise yields a brighter tone with more highs and rolled back lows.

The Ripped Speaker features true bypass switching, comes equipped with a 9 Volt battery and accepts a standard EHX 9 Volt power supply.

Versatile pedal delivers fuzz that goes from old school to modern
Bias control
Active tone control
True bypass switching
Pedalboard-friendly size
9V battery included

Specifications:
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 10mA
Year Released: 2021

Notes: Classic fuzz reimagined and redefined!

Expanding on Electro Harmonix's first homage to the tone that launched a thousand riffs, the EHX Satisfaction Plus delivers a wide palette of tones from classic '60s snarl to creamy lead tone to thick, earth-shaking sludge!

Where the original Satisfaction Fuzz circuit was a focused tribute, the Satisfaction Plus Fuzz treats the classic tone to a modern control set that includes a FAT/NORM mode switch, Bias control, and Tone knob. The added FAT mode features a tone that is bigger and warmer than the NORM mode for woolly leads and giant wall-of-thunder riffs. The Tone control is an active tilt-shift EQ that inversely controls both the treble and bass of the fuzz for broad tonal shifting. Set the Bias control to dial in the fuzz character from balanced and open to gated and snarly.

Fuzz circuit inspired by early '60s fuzz pedals
FAT mode adds bigger, warmer tones
BIAS adjusts from sweet spot smooth to voltage-sag snarl
TONE is a tilt-shift EQ adjusts treble and bass
ATTACK and VOLUME control gain and output
True Bypass
9V battery included (9V adapter optional)

Specifications
Circuit: Analogue
Bypass: True Bypass
Audio: Mono
Power Supply: 9V battery included (optional 9.6VDC-200mA power adapter not included)
Dimensions (inches): 4.5 x 2.75 x 2.1
Current Draw: 5mA
Year Released: 2023

Notes: Transparent overdrive with great touch and response!

Tone aficionados kept telling Mike Matthews about a pedal that had achieved a lot of buzz because it was only obtainable at an exorbitant price. That pedal was the Klon Centaur.

A believer in bringing great tools to starving musicians, Mike tasked his trusty team to create an affordable alternative, and that is how the EHX Soul Food Transparent Overdrive was cooked up.

Its circuitry features boosted power rails to provide abundant headroom and increased definition. Best of all, you don't have to be a rock star to own one!

Transparent overdrive
Boosted power rails for extended headroom and definition
Super responsive
Compact, rugged design
Selectable true bypass or buffered bypass modes
Power adapter included

Specifications

Circuit: Analogue
Bypass: Selectable True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 22mA
Year Released: 2013

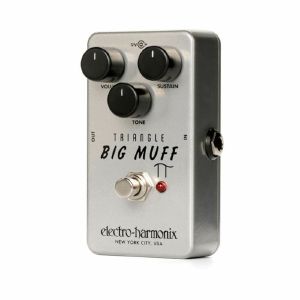

Notes: We have reissued the original Version 1 Big Muff and it's dripping with vintage Electro-Harmonix DNA and tone. Dubbed the Triangle Big Muff because of the layout of its Volume, Sustain and Tone controls, this is the one that started it all. The new Triangle Big Muff is a faithful re-creation of the original circa 1969 circuit now housed in a pedalboard friendly, die cast chassis.

Electro-Harmonix founder, Mike Matthews, stated: "The Big Muff Pi is the pedal we are best known for so I wanted to commemorate EHX's 50th Anniversary (1968-2018) by re-releasing V1, the very first Big Muff. Original pedals are now selling for hundreds of dollars and this reissue absolutely nails that creamy, violin-like sustain and musical tone at a price a working musician can afford.
