DivKid

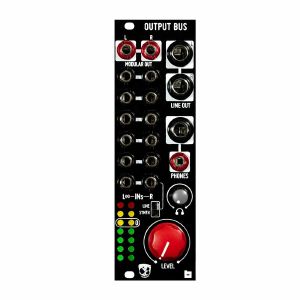

Notes: The Output Bus is your ultimate output module: Presented by DivKid and Befaco, meant to be the last link in your modular chain!

Inspired by pro audio and studio summing units the Output Bus allows for summing style mixing, external gear integration, soft clip limiting, flexible output types, headphone monitoring and level visualization.

The module works great mixing all your other mixers in your setup, to return mono or stereo FX into the master bus and for bringing in external stereo line level gear with ease. All of this in just 8HP while also being able to visualize your final levels, output appropriate signals on the right cable type and monitor in headphones.

Features:

Six stereo inputs.
Line/synth selector in input six.
Modular level minijack out.
6,5" Jack balanced out.
Minijack and 6,5" phones out.
Led Vu-meter.
Soft clipping circuit at main output.

Speculations:

Current needs: +12V: 70mA, -12V: 68mA
Width: 8 HP
Depth: 30mm including power connector
Designed, kits prepared and assembled in Barcelona.

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


The Output Bus is your ultimate output module: Presented by DivKid and Befaco, meant to be the last link in your modular chain!

Inspired by pro audio and studio summing units the Output Bus allows for summing style mixing, external gear integration, soft clip limiting, flexible output types, headphone monitoring and level visualization.

The module works great mixing all your other mixers in your setup, to return mono or stereo FX into the master bus and for bringing in external stereo line level gear with ease. All of this in just 8HP while also being able to visualize your final levels, output appropriate signals on the right cable type and monitor in headphones.

Features:

Six stereo inputs.
Line/synth selector in input six.
Modular level minijack out.
6,5" Jack balanced out.
Minijack and 6,5" phones out.
Led Vu-meter.
Soft clipping circuit at main output.

Speculations:

Current needs: +12V: 70mA, -12V: 68mA
Width: 8 HP
Depth: 30mm including power connector
Designed, kits prepared and assembled in Barcelona.

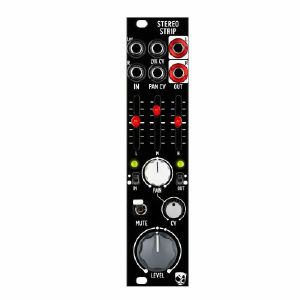

Notes: Stereo Strip takes the idea of a channel strip and makes it modular. By bringing this long-established component of the audio engineering world into the Eurorack environment and by adding CV control over its key parameters, you will find new, creative ways to use it in your patches!

It features stereo inputs and outputs for audio or CV with EQ, voltage controlled panning, stereo VCA, performable mute and input/output level switching for Eurorack or line level uses. Abusing the input level switching allows for some musical, modulate-able and highly shapeable distortion sounds too.

Stereo Strip was designed to be a creative part of a modular patch. Creating stereo images from mono sources, shaping and modulating existing stereo images, synthesising stereo pseudo ring modulation, sweetening FX with EQ or drastically wave shaping your oscillators, creating send FX routings with benefits or it can simply be used as a channel strip at the end of chain in a patch.

The addition of line level gain boosting (for the input) or reduction (for the output) allow it to work as a stereo input or output interface for external gear with the advantage of the VCA, panning and the EQ to shape the sound. Experiment with bringing external gear into the Eurorack format and then shape and modulate those sounds them on the way in!

Try patching Stereo Strip anywhere you would place a VCA in a system and/or explore its EQ and voltage controlled panning, which are rarer additions to the sound sculpting options for the Eurorack format.

Specs

Current Draw: +12: 63mA -12: 63mA 5v:0
Width: 6HP
Depth: 33mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Stereo Strip takes the idea of a channel strip and makes it modular. By bringing this long-established component of the audio engineering world into the Eurorack environment and by adding CV control over its key parameters, you will find new, creative ways to use it in your patches!

It features stereo inputs and outputs for audio or CV with EQ, voltage controlled panning, stereo VCA, performable mute and input/output level switching for Eurorack or line level uses. Abusing the input level switching allows for some musical, modulate-able and highly shapeable distortion sounds too.

Stereo Strip was designed to be a creative part of a modular patch. Creating stereo images from mono sources, shaping and modulating existing stereo images, synthesising stereo pseudo ring modulation, sweetening FX with EQ or drastically wave shaping your oscillators, creating send FX routings with benefits or it can simply be used as a channel strip at the end of chain in a patch.

The addition of line level gain boosting (for the input) or reduction (for the output) allow it to work as a stereo input or output interface for external gear with the advantage of the VCA, panning and the EQ to shape the sound. Experiment with bringing external gear into the Eurorack format and then shape and modulate those sounds them on the way in!

Try patching Stereo Strip anywhere you would place a VCA in a system and/or explore its EQ and voltage controlled panning, which are rarer additions to the sound sculpting options for the Eurorack format.

Specs

Current Draw: +12: 63mA -12: 63mA 5v:0
Width: 6HP
Depth: 33mm including power connector
Aluminium, heat-treated front panel.
Designed and assembled in Barcelona.
