Acid Rain Technology

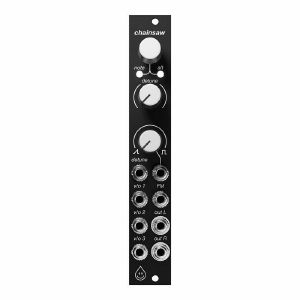

Notes: Small but very powerful, the Chainsaw is a polyphonic digital oscillator based around the classic supersaw approach. Sizzling pads, tough leads and deep bass sounds by the bucketload.

Supplier's Notes:
Chainsaw is a powerful digital oscillator designed to bring polyphony to your rack in a compact and playable interface. We were inspired by the super-saw; a mainstay of electronic music production, and a waveform rich with harmonics for filters and effects to chew on. Chainsaw features 3 voices of 7 waves, with individual pitch control per voice. All waves morph from super saw to super square for giant hollow basslines and more.

Details:

4hp

35mm deep

110 mA on +12V, 10 mA on -12V, 0 mA on +5V

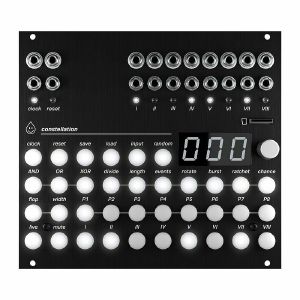

Notes: A serious trigger sequencer for generating complex, multi-layered rhythms. Eight channels of Euclidean pattern generation meet probability, modulation and CV control for real depth and power.

Supplier's Notes:
Constellation is all about rhythm. It is an 8 channel pattern generator that works by combining multiple dense and sparse patterns to create long, complex and musically interesting trigger and gate rhythms. Constellation takes a "parametric" approach to rhythm - there is no explicit step sequencing on the module, rather the rhythms are defined by euclidean (and more) parameters that build the rhythm mathematically.

Constellation aims to evolve the concept of euclidean rhythms far beyond the useful but repetitive patterns we often think of when we hear the term "euclidean rhythm". This is accomplished by by combining up to 8 individual euclidean patterns of different lengths and density. Each pattern may provide only a small component of the final output, but together create immensely musical and varied rhythmic material over a very long time frame - up to 999 steps! If each of those steps are 1/16 note in length at 120 bpm, that's a full 2 minutes of explicitly defined, yet non repeating rhythmic material.

In addition, Constellation's parametric approach allows any of these parameters to be modulated with CV through one of 8 freely assignable CV inputs. CV modulation introduces further ability for Constellation's rhythmic output to vary over time. Paired with a Maestro or Navigators, hours of interesting morphing rhythms are possible without the need for tons of step programming or the uncontrollable chaos of a purely generative approach.

When writing music, rhythmic interest is often built through the combination of repeating and non repeating elements that work together to anchor the overall feel but also keep the ear free from boredom over the duration of the piece. Constellation provides a unique set of tools to accomplish this goal and achieve rhythms that are intentional, unexpected and exciting to use as the foundation of your compositions.

28hp, 25mm deep
75mA +12, 18mA -12

Notes: ***B-STOCK: Light marks on the screen***


A serious trigger sequencer for generating complex, multi-layered rhythms. Eight channels of Euclidean pattern generation meet probability, modulation and CV control for real depth and power.

Supplier's Notes:
Constellation is all about rhythm. It is an 8 channel pattern generator that works by combining multiple dense and sparse patterns to create long, complex and musically interesting trigger and gate rhythms. Constellation takes a "parametric" approach to rhythm - there is no explicit step sequencing on the module, rather the rhythms are defined by euclidean (and more) parameters that build the rhythm mathematically.

Constellation aims to evolve the concept of euclidean rhythms far beyond the useful but repetitive patterns we often think of when we hear the term "euclidean rhythm". This is accomplished by by combining up to 8 individual euclidean patterns of different lengths and density. Each pattern may provide only a small component of the final output, but together create immensely musical and varied rhythmic material over a very long time frame - up to 999 steps! If each of those steps are 1/16 note in length at 120 bpm, that's a full 2 minutes of explicitly defined, yet non repeating rhythmic material.

In addition, Constellation's parametric approach allows any of these parameters to be modulated with CV through one of 8 freely assignable CV inputs. CV modulation introduces further ability for Constellation's rhythmic output to vary over time. Paired with a Maestro or Navigators, hours of interesting morphing rhythms are possible without the need for tons of step programming or the uncontrollable chaos of a purely generative approach.

When writing music, rhythmic interest is often built through the combination of repeating and non repeating elements that work together to anchor the overall feel but also keep the ear free from boredom over the duration of the piece. Constellation provides a unique set of tools to accomplish this goal and achieve rhythms that are intentional, unexpected and exciting to use as the foundation of your compositions.

28hp, 25mm deep
75mA +12, 18mA -12

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


A serious trigger sequencer for generating complex, multi-layered rhythms. Eight channels of Euclidean pattern generation meet probability, modulation and CV control for real depth and power.

Supplier's Notes:
Constellation is all about rhythm. It is an 8 channel pattern generator that works by combining multiple dense and sparse patterns to create long, complex and musically interesting trigger and gate rhythms. Constellation takes a "parametric" approach to rhythm - there is no explicit step sequencing on the module, rather the rhythms are defined by euclidean (and more) parameters that build the rhythm mathematically.

Constellation aims to evolve the concept of euclidean rhythms far beyond the useful but repetitive patterns we often think of when we hear the term "euclidean rhythm". This is accomplished by by combining up to 8 individual euclidean patterns of different lengths and density. Each pattern may provide only a small component of the final output, but together create immensely musical and varied rhythmic material over a very long time frame - up to 999 steps! If each of those steps are 1/16 note in length at 120 bpm, that's a full 2 minutes of explicitly defined, yet non repeating rhythmic material.

In addition, Constellation's parametric approach allows any of these parameters to be modulated with CV through one of 8 freely assignable CV inputs. CV modulation introduces further ability for Constellation's rhythmic output to vary over time. Paired with a Maestro or Navigators, hours of interesting morphing rhythms are possible without the need for tons of step programming or the uncontrollable chaos of a purely generative approach.

When writing music, rhythmic interest is often built through the combination of repeating and non repeating elements that work together to anchor the overall feel but also keep the ear free from boredom over the duration of the piece. Constellation provides a unique set of tools to accomplish this goal and achieve rhythms that are intentional, unexpected and exciting to use as the foundation of your compositions.

28hp, 25mm deep
75mA +12, 18mA -12

Notes: Junction requires a +12V / -12v power supply with a 2x5 pin ribbon cable (included). The red line of the ribbon cable must be aligned with the -12V marking next to the module's power header and on your case's power distribution board. Junction draws 23mA from the +12 rail and 20mA from the -12 rail. Please ensure you have
enough power available before installing.

About Junction

Junction is a compact, 4 channel attenuverter, cascading mixer and multiple designed to fine tune the control voltages in your rack to the perfect range for their destinations. Junction can be used as a source of fixed voltage, offset another voltage, or mix multiple voltages together to create complex and dynamic modulation.

Features

Each channel on Junction has a knob (1) that acts as a manual control for the attenuverter. Center position (12 o clock) is 0V. The first channel input (2) is normalized to +5V when no cable is plugged into it.

A buffered copy of the input signal of the first channel is present on all of the other inputs from from the first (2) to the last (8). This duplication is "cascading" as shown by the arrow graphics on the panel - if a cable is patched into any input, it "breaks" the cascading multiple - all unpatched inputs carry the signal present at the uppermost patched input (or +5V if no inputs are patched). For example, if a signal is patched into the second channel's input (4) the third (6) and fourth (8) channel inputs would carry a copy of the second channel's input instead of the first channel input.

Junction's channels are mixed on the outputs. The output mixer is also "cascading" - when a cable is patched into an output, it carries a mix of it's own output and all unpatched channel outputs above it. For example, if only the last channel output (9) is patched, this output will carry a mix of all of the outputs. Patching the first channel output (3) would remove it from this mix.

Even though Junction's inputs cascade and outputs mix, Junction's output will clip at the Eurorack power rail voltages of +12 and -12V. It is not possible to output a voltage outside of this range, regardless of the signals patched into Junction.

23mA +12 / 20mA -12 4 HP / 25mm
Deep Reverse Power Protection

Notes: Maestro is a 6 channel clocked modulation controller inspired by the automation lanes found in digital audio workstation software, brought into eurorack and made playable and performable. Maestro will push and pull the parameters of your other modules with rapid or slowly evolving voltages, always in perfect sync with eachother and the rest of your system.

Details:

20hp

25mm deep

65mA on +12, 18mA on -12, 0mA on 5V

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Maestro is a 6 channel clocked modulation controller inspired by the automation lanes found in digital audio workstation software, brought into eurorack and made playable and performable. Maestro will push and pull the parameters of your other modules with rapid or slowly evolving voltages, always in perfect sync with eachother and the rest of your system.

Details:

20hp

25mm deep

65mA on +12, 18mA on -12, 0mA on 5V

Notes: Navigator is a compact, multi-use voltage utility designed to bring playable control to CV sources in your rack. The combination of normalled voltages and mixing allows you to attenuate, polarize and offset signals to modulate parameters exactly within the sweet spot of another module's CV input. Navigator is a compact, multi-use voltage utility designed to bring playable control to CV sources in your rack. The combination of normalled voltages and mixing allows you to attenuate, polarize and offset signals to modulate parameters exactly within the sweet spot of another module's CV input.

Details:

4hp

25mm deep

11 mA on +12V, 8 mA on -12V, 0 mA on +5V

Notes: Ripsaw is a 6hp stereo super saw/square oscillator just like chainsaw with a few extra additions:

- 4x voices of 7 detunable saw/square waves to allow for more complex chords

- unique "display" built from 77 blue LEDs

- manual and CV control over wave shape and spread like chainsaw

- a new "shift" parameter that offsets the frequency of a second oscillator that hard syncs each waveform for a unique "supersync" sound

- waves panned across stereo outputs like chainsaw

- fine tune adjustment and optional onboard semitone quantization selectable on the encoder/display
