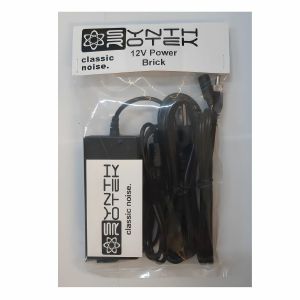

Notes: This AC Power Adapter comes with a locking DC extension cable. The connector of the DC extension cable screws down to the DC jack, preventing noise interference when the cable is bumped.

There are two voltage options:
12V: used with original 5A Power Supply and newer Five Amp Power.
19V: used with Deluxe Power, Super Power, Case Power Mini and Case Power.
Note: If you are replacing a power brick on a Synthrotek power supply, use the same voltage as was originally sent (unless the brick is 15V, then change to it to 19V).

AC input: 100-240V, 1.6A, 50-60Hz

DC output:
12V at 5A
19V at 4.74A

Center positive 2.1mm pin

Comes with a 3-prong power cable, which will work in the US and some other countries. If you are in Europe, etc. you can get a separate volex connector that will work in your country. We don't carry international connecting cables, but you can find them easily on the web.

Notes: ***B-STOCK: Box opened, product in perfect working order***


This AC Power Adapter comes with a locking DC extension cable. The connector of the DC extension cable screws down to the DC jack, preventing noise interference when the cable is bumped.

There are two voltage options:
12V: used with original 5A Power Supply and newer Five Amp Power.
19V: used with Deluxe Power, Super Power, Case Power Mini and Case Power.
Note: If you are replacing a power brick on a Synthrotek power supply, use the same voltage as was originally sent (unless the brick is 15V, then change to it to 19V).

AC input: 100-240V, 1.6A, 50-60Hz

DC output:
12V at 5A
19V at 4.74A

Center positive 2.1mm pin

Comes with a 3-prong power cable, which will work in the US and some other countries. If you are in Europe, etc. you can get a separate volex connector that will work in your country. We don't carry international connecting cables, but you can find them easily on the web.

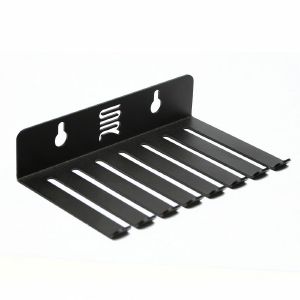

Notes: Synthrotek's Cable Holder 7 is sized to perfectly fit on the side of a Eurorack case.

Seven slots, each slot holds eight 3.5mm cables
16 gauge steel with industrial matte powdercoat
Fits 3.5mm cables and TTS Bantam cables
Dimensions: 5 x 3.5 x 1.25 inches (127 x 89 x 32mm)
Wall mounting screws not included.

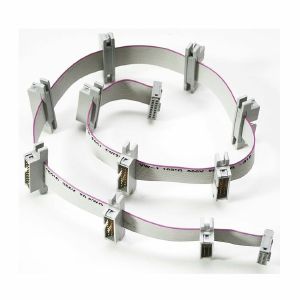

Notes: The Deluxe 10 Connection Flying Bus Cable makes connecting power to your module a snap and a reality, especially if you have 10-pin powered module that has little room around the power pins. There are 10 Male Shrouded and Keyed Eurorack connectors for distributing power to your modules. There are also two keyed 16-pin female connectors for powering the cable and for daisy-chaining another flying bus cable (although you could connect this end directly to a module that takes 16-pin power (or 10 if there is room).

Length: 20 inches (50.8 cm)

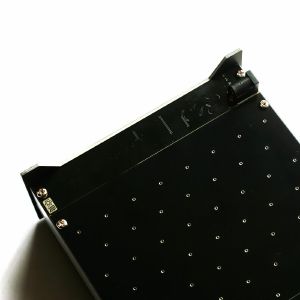

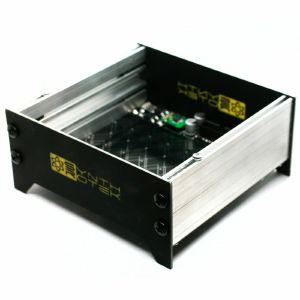

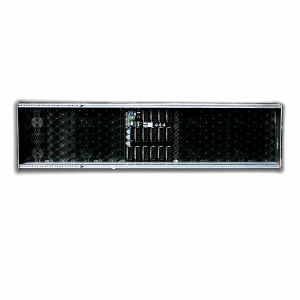

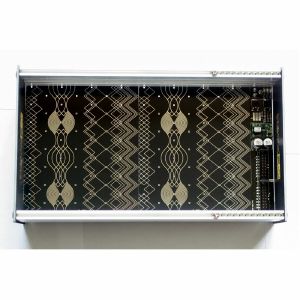

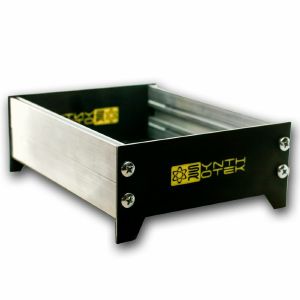

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:
Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:

Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.

Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:
Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: EcoSynth is a small, portable Eurorack modular case solution, designed for your desktop! It's a practical solution designed to save your hard-earned cash for modules. If you're looking for a small desktop solution to augment other desktop electronic hardware, this is for you. If you need a larger case, EcoSkiff passes on the savings for more traditional size racks like 84HP and 104HP.

Save on money and space: get just as much HP as you need!

Available in the following sizes:
24HP
44HP
64HP
84HP
104HP

Features and specifications:

Over-current protection: shuts off each power rail automatically if modules use too much current on that rail
The skiff goes together with just a Phillips head screwdriver!
Comes with 3mm slide nuts
Max module depth: 44mm
Max module depth above power supply: 33mm

Specifications, 24HP-44HP:
Power output:
+12V @ 1A
-12V @300mA
5V@ 150mA
Power connectors: 2 (plus optional flying bus cable)

Specifications, 64HP-104HP:
Power output:
+12V @ 2A
-12V @750mA
5V@ 1.5A
Power connectors: 15
Daisy chains to another EcoSkiff, Skiff Power, Five Amp Power, or Schottkey DC

Requires a 12V 5A center positive power brick with a 5.5mm x 2.1mm tip.
Assembly required, but no soldering needed.

Notes: Have you experienced the long, frustrating nights of smoke-filled rooms, patch cables strewn about like spaghetti, unable to find the right cable when the muse is singing softly in your ear?

Take back control and Hold It! Hold It puts your patch cables IN your Eurorack case, not beside it!

It comes in two versions: Eurorack-mounted and desktop.

The Eurorack patch cable holder mounts directly into your Eurorack system like a module. The rear panel allows the tip of the cable to protrude through, without the cable falling inside your case. The standoffs we include allow you to choose a plug housing depth of 25mm or 35mm, which will fit most 3.5mm cables. Our Synthrotek patch cables fit perfectly in the 25mm standoffs.

The Desktop version includes wood screws so that you can mount it to your desk, Eurorack case, etc.

Desktop Version Features:
Made for 3.5mm cables
Seven slots, each 5mm wide
Two wood screws included

Please note: Patch cables not included. Assembly required. It is not recommended to put Hold It next to a module with a circuit board perpendicular to the panel.

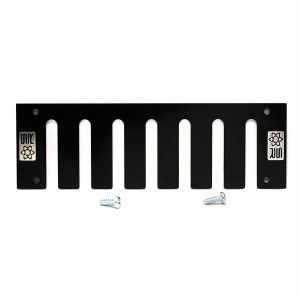

Notes: Have you experienced the long, frustrating nights of smoke-filled rooms, patch cables strewn about like spaghetti, unable to find the right cable when the muse is singing softly in your ear?

Take back control and Hold It! Hold It puts your patch cables IN your Eurorack case, not beside it!

It comes in two versions: Eurorack-mounted and desktop.

The Eurorack patch cable holder mounts directly into your Eurorack system like a module. The rear panel allows the tip of the cable to protrude through, without the cable falling inside your case. The standoffs we include allow you to choose a plug housing depth of 25mm or 35mm, which will fit most 3.5mm cables. Our Synthrotek patch cables fit perfectly in the 25mm standoffs.

The Desktop version includes wood screws so that you can mount it to your desk, Eurorack case, etc.

Eurorack Version Features:
Made for 3.5mm cables
Seven slots, each 5mm wide
Can be flipped 180 degrees, so it works for lefties and righties
Plug housing depth of 25mm or 35mm
8HP

Please note: Patch cables not included. Assembly required. It is not recommended to put Hold It next to a module with a circuit board perpendicular to the panel.

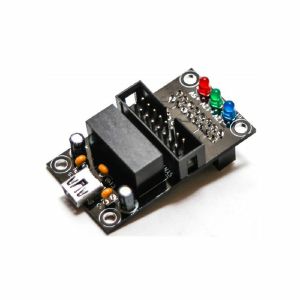

Notes: USB Power is a light-duty Eurorack power supply designed for mini systems, for testing, and for portability. Plug in a single module, a flying bus cable for multiple modules, or plug it directly into a bus board header. The small PCB footprint was specifically designed to fit our Bus Cheeks systems, but it can easily fit a small enclosure and won't take much space on your workbench. If you plan using this supply to power the 5V rail on your modules, keep in mind that the 5V rail will sag as you increase your current draw on either or both of the +12 and -12 volt rails.

Specifications:

Power output:
Cincon
+12V: 125mA
-12V: 125mA
+5V: 0-125mA*

Recom
+12V: 250mA
-12V: 250mA
+5V: 0-125mA*

PCB dimensions: 50mm x 28mm
PCB standoff hole size: 3mm
*The amount of 5V current available will vary depending upon the current draw on the +/-12V rails.
