Tags: USB C audio interface

Notes: For Solo Musicians

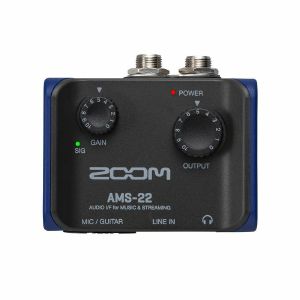

AMS-22 | 2-In, 2-Out

Perfect for mobile recording or streaming, the AMS-22 includes an XLR/TRS combo input, plus a stereo line in. It also includes a headphone output and 2 TRS outputs for external monitors.

Quick Control

With onboard hardware switches, the AMS-22 is designed to simplify common streaming challenges without the need for additional software.

Onboard Monitoring

Use the Direct Monitor Switch to directly send the input signal to your headphones while routing the same signal to your DAW or streaming software.

Loop It Back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Power Options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-22 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specifications

Input and Output Channels

Number of input channels - Mono (MIC/GUITAR): 1
Stereo (LINE IN): 1
Number of output channels - Stereo (TRS): 1
Stereo (PHONES): 1

Connectors

MIC/GUITAR - Type: XLR/TRS combo jack
(XLR: 2 HOT, TRS: TIP HOT)
Input Gain: +8 - +54 dB (MIC) / +8 - +54 dB (GUITAR)
Input impedance: XLR: 2 kO (MIC)
TS: 1 MO (GUITAR)
Maximum input level: XLR: +0.6 dBu (MIC)
TS: +11 dBu (GUITAR)
Phantom power: +48 V

OUTPUT (standard phone jacks - Type: TRS phone jacks (impedance balanced)
Maximum output level: -2 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT (headphone jack) - Type: 3.5mm stereo mini jack
20 mW + 20 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
LINE IN Type: 3.5mm stereo mini jack
Input impedance: 20 kO
Maximum input level: +1.5 dBu
Frequency Response: 44.1 kHz: +0/-2 dB (20 Hz - 20 kHz) - 96 kHz: +0/-3 dB (20 Hz - 40 kHz)
Equivalent Input Noise: -120 dBu or less (IHF-A) at +54dB/150O input

Audio Interface

Input and output channels: Recording: 2 channels
Playback: 2 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit Depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power: AC adapter (ZOOM AD-17): DC 5 V/1A - USB bus power is supported.
Rated Current: USB bus power / DC 5 V power supply: 170 mA
Power Consumption: 1.8 W maximum
Dimensions: 68.0 mm (W) × 57.7 mm (D) × 46.0 mm (H)
Weight (unit only): 85 g
Note: 0 dBu = 0.775 Vrms

Notes: Great value little 4-in/4-out interface, designed for portability when making music or streaming. Dual headphone outputs and four XLR/TRS combo inputs with pre-amps give you plenty of versatility.

Supplier's Notes:
AMS-44 For One or More Musicians

AMS-44 | 4-In, 4-Out

Whether you're recording or streaming, the AMS-44 keeps your setup simple. It features four XLR/TRS combo inputs along with Zoom's high-performance, low-noise preamps. The interface also includes two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big Streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic/line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Additionally, the AMS-24 and AMS-44 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-44 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specification

Input and Output Channels
Number of input channels: Mono (MIC/LINE): 4
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

INPUT 1-4 - Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT) Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom power: +48 V
OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT A-B (headphone jacks): Type: 3.5mm stereo mini jacks - 30 mW + 30 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
Frequency Response: 44.1 kHz: 1 dB (20 Hz - 20 kHz) - 96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent input noise: -120 dBu or less (IHF-A) at +58 dB/150O input

Audio interface

Input and output channels: Recording: 4 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power

2 AA batteries (alkaline, lithium, or rechargeable NiMH), AC adapter (ZOOM AD-17): DC 5 V/1 A -USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 350 mA
Batteries (2.4 V): 560 mA
Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 8.5 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 129.0 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 177 g
Weight (including batteries): 223 g

Notes: AMS-24 - For One or More Musicians

Flip the switch

The AMS-24 and AMS-44 feature our innovative Music / Streaming Switch.

When switched to Music mode, you can record into your DAW with expanded input and output routing options.

When switched to Streaming mode, all inputs are combined into a single signal so you can easily stream without needing additional complicated software.

Record & stream with ease

AMS Audio Interfaces are designed for musicians who want to record music with their DAW or easily livestream on platforms like YouTube and Twitch, without all the typical complications.

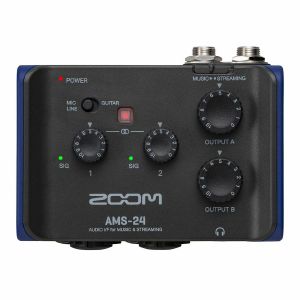

AMS-24 | 2-In, 4-Out

The AMS-24 is perfect for solo streams and multi-instrument sessions. It features two XLR/TRS combo inputs along with Zoom's low-noise preamps. Also included are two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic/line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.
Additionally, the AMS-24 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-24 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specifications

Input and Output Channels

Number of input channels: Mono (MIC/LINE): 2
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

Input 1-2 - Type: XLR/TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT)
Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom: +48 V

OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O

OUTPUT A-B (headphone jacks) - Type: 3.5mm stereo mini jacks
30 mW + 30 mW (32 O load)
Output impedance: 10 O

USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V - USB Type-C (for power supply)

Frequency Response

44.1 kHz: 1 dB (20 Hz - 20 kHz)
96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent Input Noise: -120 dBu or less (IHF-A) at +58dB/150O input

Audio Interface
Input and output channels
Recording: 2 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power:
2 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5 V/1A
USB bus power is supported.
Rated Current
USB/AC adapter (5 V): 380 mA
Batteries (2.4 V): 470 mA

Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 4 hours
NiMH batteries (1900 mAh): about 5.5 hours
Lithium batteries: about 11 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 94.5 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 134 g
Weight (including batteries): 180 g

Notes: ESI's 4-in, 4-out audio interface offers clear sound quality, flexible connectivity and versatile monitoring. More advanced than the smaller Amber i2, the i4 includes MIDI in and out and two headphone outputs.

Supplier's Notes:
This professional 24-bit/192kHz USB-C audio interface boasts 4 inputs and 4 outputs with excellent quality, making it the ideal choice for anyone seeking exceptional audio quality and versatility. Positioned right at the pinnacle of ESI's Amber lineup and a step above Amber i2, the Amber i4 offers unparalleled performance and affordability without quality compromises.

Flexible Monitoring with ADM (Advanced Direct Monitoring): Tailor your monitoring experience to your needs with various configurations and enjoy real-time, zero-latency monitoring for flawless recording sessions.

Professional Mixer: Easily mix the input sources and playback signals directly on the interface.

Bidirectional MIDI Ports: Connect your MIDI devices seamlessly and use the 2 ports as either inputs or outputs.

Modern, Eye-Catching Design: Featuring a sleek look with a functional LCD display and an amber-colored volume knob that stands out against the green sand main body color.

Ultra Low Latency Drivers: Experience high-performance audio with exceptional stability.

More Inputs and Outputs: Equipped with 4 inputs (including 2 line inputs on the back), 4 outputs, and 2 independent headphone outputs, providing great flexibility for various recording and playback needs, as well as A/B comparison of mixes.

The Amber i4 combines top-notch features with an unbeatable price, delivering above-average quality and performance. Whether you're a seasoned professional or just starting your audio journey, the Amber i4 is your go-to interface for creating stunning audio.

Notes: This professional 24-bit/192kHz USB-C audio interface boasts 2 inputs and 2 outputs with excellent quality, making it the ideal choice for anyone seeking exceptional audio quality and versatility. Positioned right inbetween the Amber i1 and the larger Amber i4, the Amber i2 offers a balanced blend of performance and affordability without quality compromises.

Flexible Monitoring with ADM (Advanced Direct Monitoring): Tailor your monitoring experience to your needs with various configurations and enjoy real-time, zero-latency monitoring for flawless recording sessions.

Professional Mixer: Easily mix the input sources and playback signals directly on the interface.

Bidirectional MIDI Ports: Connect your MIDI devices seamlessly and use the 2 ports as either inputs or outputs.

Modern, Eye-Catching Design: Featuring a sleek look with a functional LCD display and an amber-colored volume knob that stands out against the green sand main body color.

Ultra Low Latency Drivers: Experience high-performance audio with exceptional stability.

The Amber i2 combines top-notch features with an unbeatable price, delivering above-average quality and performance. Whether you're a seasoned professional or just starting your audio journey, the Amber i2 is your go-to interface for creating stunning audio.
