One Small Stomp For Man - One Giant Leap For Chorus, Delays & Reverbs

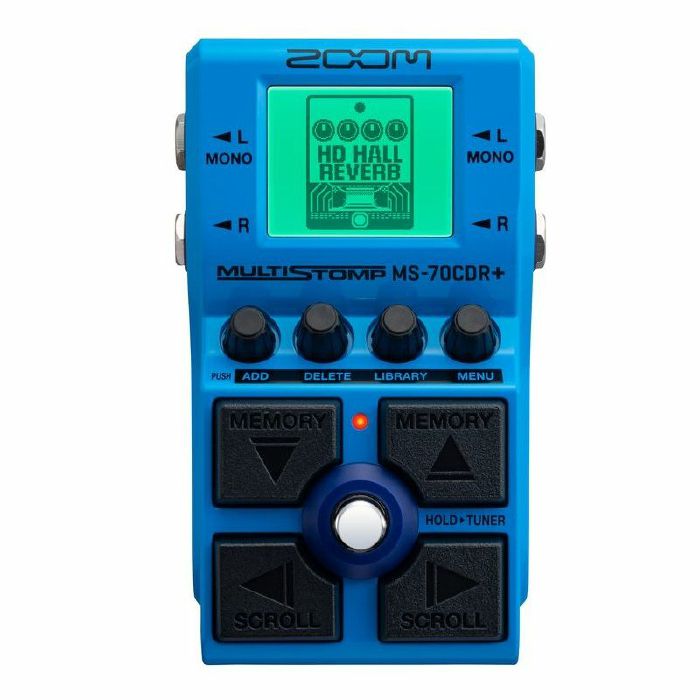

The Zoom MS-70CDR+: Your New Modulation Station

The MS-70CDR+ gives musicians 149 spatial effects ranging from lush choruses to crystal-clear delays to atmospheric reverbs. This single stompbox can shape your tone and provide endless depth and textures.

A Deep Dive into Chorus, Delays, Reverbs & More

Chorus - 43 different chorus and modulation effects that add depth and motion to your sound including phasing, flanging, tremolo, vibrato, detuning, and pitch shifting.

Delays - Featuring 29 mono and stereo delays, with delay times of up to 4 seconds. Everything from reverse and multi-tap to pitch-shifted and self-oscillating delays.

Reverbs - 33 sophisticated studio-quality effects. From spring and plate reverbs to giant hall and arena reverbs.

Dynamics / Filters - Round out your sound with 44 dynamics and filters such as EQ's, compression, noise reduction, and special effects.

Expanded Controls

The MS-70CDR+ offers expansive parameters for each effect, allowing you to dive deep into tweaking your tone.

Define Your Sound
Use a singular effect or up to 6 simultaneously to create unique tones. Save your creations in one of the 100 patch slots or use the 80 preset patches as inspiration to get you started.

Next Generation Circuitry

Newly designed analogue circuits provide more fidelity for improved sound quality. The flat phase response provides sharp attacks and clean low end.

Everything's Better in Stereo.

The MS-70CDR+ has stereo input jacks that accept signals from passive and active guitars, as well as line-level devices such as synthesizers. Its dual line-level output jacks enable you to record and perform with the MS-70CDR+'s 58 stereo effects.

Soundscapes Are Key

For musicians looking to add lush layers to their synths or keyboards, the MS-70CDR+ provides high-quality effects that are perfect for adding atmosphere and character to your sound.

Change Patches With MIDI

With USB MIDI, you can connect the MS-70CDR+ to other MIDI gear to remotely trigger patch changes.

Enhanced Navigation

Cross Key Switches

The Cross Key switches allow you to instantly switch between effects and patches with a tap of your foot.

Control Knobs

Adjusting and tweaking parameters for each effect can be done with the four encoder knobs.

Colour Coded LCD Screen

The LCD backlight changes colour to make it easier to distinguish each category of effects while scrolling.

Sturdy Build

The MS-70CDR+ is built around a metal frame designed to withstand the rigors of live performances.

Power Options

The MS-70CDR+ runs on 2 AA batteries, USB power or AC power.

Tune-Up

The onboard chromatic tuner uses the colour backlight to give visual feedback to help you tune quickly and accurately. It supports all standard guitar tunings as well as open & drop tunings.

Handy Guitar Lab

With a growing library of patches and effects, guitarists can continue to expand their sound with the Handy Guitar Lab for MS-70CDR+ app for iOS. *Coming Soon to the App Store.

Technical Specifications

Maximum number of simultaneous effects: 6 effects
User patch memories: 100
Sampling frequency: 44.1 kHz
A / D conversion: 24-bit 128× oversampling
D / A conversion: 24-bit 128× oversampling
Signal processing: 32-bit
Frequency response: 20 Hz - 20 kHz (+0.5 dB / -0.5 dB) (when 10kO load)
Display: 160×128 dot-matrix LCD

Inputs L / R
Standard mono phone jacks
Rated input level: -20 dBu
Input impedance (line): 470 kO
Input S / N: 122 dB

Outputs L / R
Standard mono phone jacks
Maximum output level: +7.2 dBu (when output impedance 10 kO or higher)
Noise floor (residual noise) L / R: -100 dBu

Power
AC adapter: 9V DC 500mA centre negative (ZOOM AD-16 optional)
2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Estimated operation time using batteries
These values are approximate. Battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Alkaline batteries: about 7 hours (about 5 hours using stereo input)
NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input)
Lithium batteries: about 14 hours (about 10 hours using stereo input)

USB Port:
USB 2.0 Type-C / Supported cable type: Type-C
Handy Guitar Lab: USB 1.1 Full Speed
Use a USB cable that supports data transfer. USB bus power is supported.

Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
Weight: 368 g (excluding batteries) / 415 g (including batteries)
Note: 0 dBu = 0.775 V
