Great value little 4-in / 4-out interface, designed for portability when making music or streaming. Dual headphone outputs and four XLR / TRS combo inputs with pre-amps give you plenty of versatility.

Supplier's Notes:

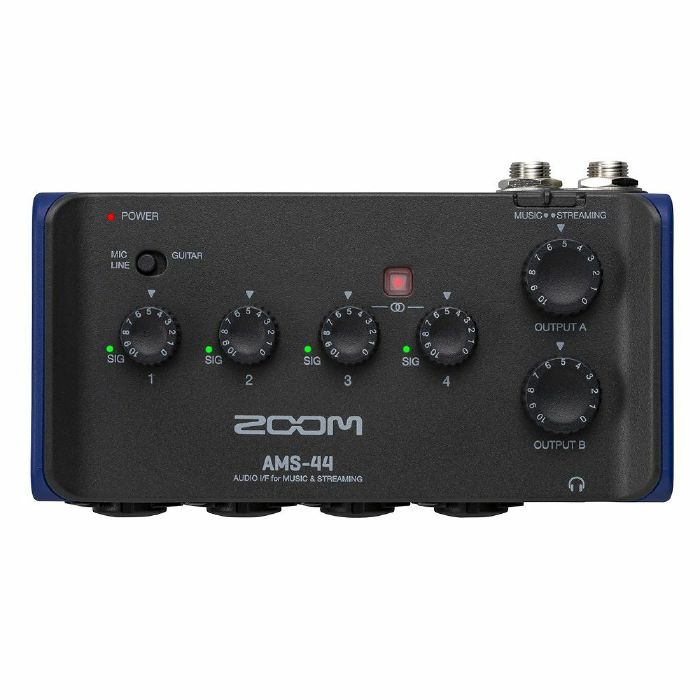

AMS-44 For One or More Musicians

AMS-44 | 4-In, 4-Out

Whether you're recording or streaming, the AMS-44 keeps your setup simple. It features four XLR / TRS combo inputs along with Zoom's high-performance, low-noise preamps. The interface also includes two headphone outputs and two TRS outputs for external monitors.

Quick control

With their onboard hardware switches, the AMS-24 and AMS-44 are designed to simplify common streaming challenges without the need for additional software.

Little switch, big Streams

Toggle from recording to livestreaming with the Music / Streaming Switch. When in Music mode, each input acts independently with individual gain control. It also sends separate mixes to each headphone output.

When in Streaming mode all inputs are combined into one signal to work seamlessly with your streaming software.

Onboard monitoring

Use the Direct Monitor Switch to send the input signal directly to your headphones while routing the same signal to your DAW or streaming software.

Loop it back

The Loopback Switch combines the input audio with playback from your computer and routes it to your streaming software. This is perfect for adding background music to your stream or singing live with an instrumental track.

Mic / line guitar

Switch Input 1 from mic or line level to guitar level (Hi-Z).

Stereo link

Links two inputs for stereo recording or streaming and allows you to control both inputs with one gain knob.

Phantom power

Provides +48V phantom power for condenser microphones.

Power options

All three AMS interfaces can be powered from your PC or Mac via USB-C. Use external power when working from a tablet or mobile phone.

Additionally, the AMS-24 and AMS-44 can also use two AA batteries.

Plug it in...

Use the AMS Series on any device thanks to its support for Mac and PC, along with iOS and Android devices.

...And perform

The AMS Series is designed to integrate seamlessly with commonly used software, apps and platforms.

In Streaming mode, connect with your audience by streaming to popular platforms like YouTube, Facebook, Twitch, Instagram and Patreon.

In Music mode, record with software like Adobe Audition, Pro Tools, Cubase and GarageBand.

What's in the box

AMS-44 USB Audio Interface
USB-C Cable
Quick Tour

Technical Specification

Input and Output Channels
Number of input channels: Mono (MIC / LINE): 4
Number of output channels: Stereo (TRS): 1
Stereo (PHONES): 2

Connectors

INPUT 1-4 - Type: XLR / TRS combo jacks
(XLR: 2 HOT, TRS: TIP HOT) Input gain: -8 - +58 dB / -8 - +50 dB (when set to GUITAR)
Input impedance: XLR: 2.7 kO
TRS: 18 kO / 330 kO (when set to GUITAR)
Maximum input level: XLR: +6 dBu
TRS: +22 dBu / +8.5 dBu (when set to GUITAR)
Phantom power: +48 V
OUTPUT A (standard phone jacks)
Type: TRS phone jacks (impedance balanced)
Maximum output level: +10 dBu (at 0 dBFS)
Output impedance: 100 O
OUTPUT A-B (headphone jacks): Type: 3.5mm stereo mini jacks - 30 mW + 30 mW (32 O load)
Output impedance: 10 O
USB: USB Type-C (audio interface function)
Use a USB cable that supports data transfer. USB bus power is supported.
DC 5V: USB Type-C (for power supply)
Frequency Response: 44.1 kHz: 1 dB (20 Hz - 20 kHz) - 96 kHz: 1.5 dB (20 Hz - 40 kHz)
Equivalent input noise: -120 dBu or less (IHF-A) at +58 dB / 150O input

Audio interface

Input and output channels: Recording: 4 channels
Playback: 4 channels
Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz
Bit depth: 24-bit
Interface: USB 2.0
Class: USB Audio Class 2.0

Power

2 AA batteries (alkaline, lithium, or rechargeable NiMH), AC adapter (ZOOM AD-17): DC 5 V / 1 A -USB bus power is supported.
Rated Current
USB / AC adapter (5 V): 350 mA
Batteries (2.4 V): 560 mA
Estimated continuous operation time using batteries
44.1 kHz, 48 V off, with 32O headphone load
Alkaline batteries: about 3 hours
NiMH batteries (1900 mAh): about 4.5 hours
Lithium batteries: about 8.5 hours
The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They could vary greatly according to use conditions.
Power Consumption: 5 W maximum

Dimensions: 129.0 mm (W) × 74.0 mm (D) × 46.0 mm (H)
Weight (unit only): 177 g
Weight (including batteries): 223 g
