***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


The classic diode ladder filter circuit gets a filthy update here from Winterbloom. Separate low-pass and high-pass circuits combine with a feedback-modulated distortion circuit to create bags of nasty character.

Supplier's Notes:
An embrace from the deep, salty ocean, a jetstream of resonance bliss, a chaotic interplanetary voyage to the sounds of our most distant world.

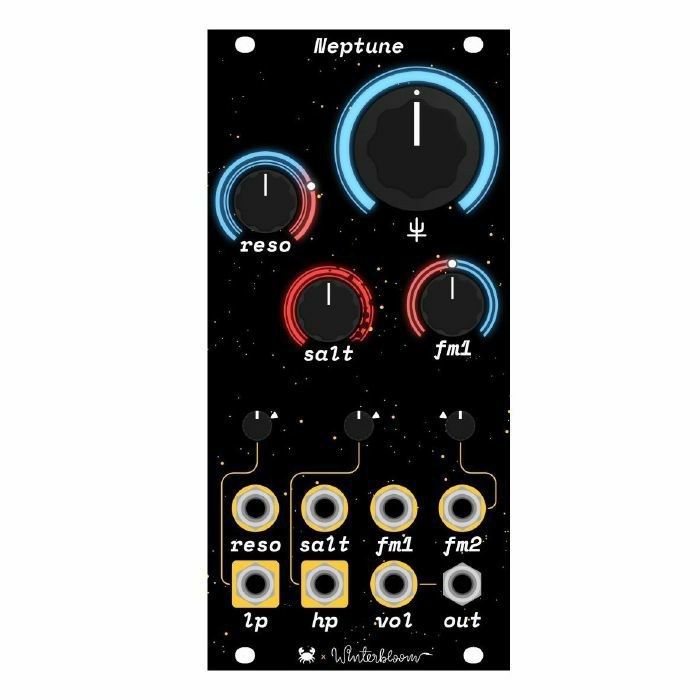

Neptune is a resonant diode ladder filter designed in collaboration with Carson Walls. It's intended to bring together sound and modulation into a complete, distinct synthesizer voice. Unlike typical multi-mode filters with separate modes or outputs, Neptune instead has separate low-pass and high-pass inputs into a single filter core. It's coupled with a feedback-modulated distortion circuit called salt that opens up a wide range of tonal possibilities from tame to dirty to outright chaotic.

Neptune is not like its silky-smooth cousins- it's a wild, out of this world filter that exhibits delightfully strange behavior as you push its parameters to their limits.

Specifications

Available assembled or as a kit
12 HP
+12v @ 60 mA, -12v @ 50 mA
25mm deep
Separate low pass & high pass inputs
Self-oscillating at high resonance levels
Salt feedback circuit
DC-coupled signal path
