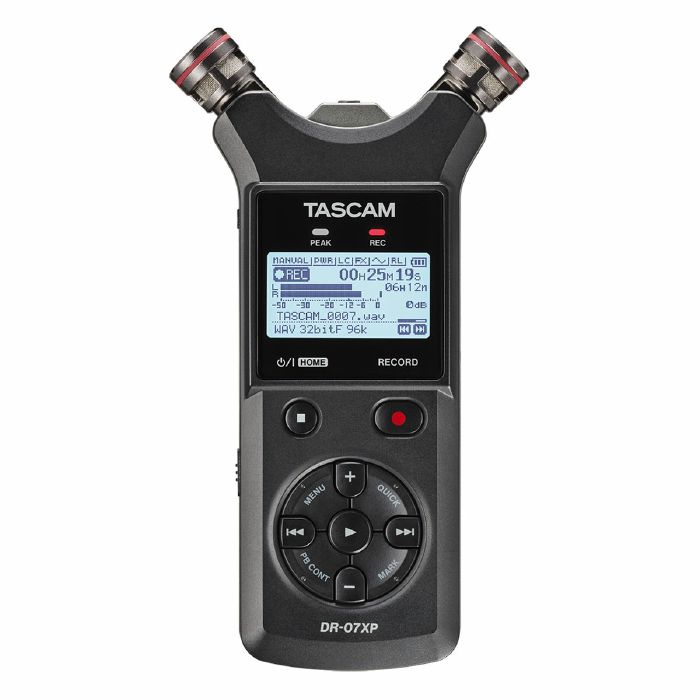

DR-07XP

2-Channel 32-Bit Float Handheld Recorder With USB-C Interface and Adjustable Mics

Pro-Quality Portable Recording, Simplified

The TASCAM DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation, and more. With 32-bit float recording mode, you'll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound. With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.

Capture Pro-Level Recordings Every Time

With its 32-bit float recording mode, the DR-07XP ensures your audio recordings will always be clear, distinct, and free of distortion that could ruin your recording - and you'll never need to worry about setting input levels.

Adjustable Stereo Condenser Microphones

The DR-07XP features unidirectional stereo condenser microphones with adjustable A / B or X / Y configurations, allowing you to capture incredibly vivid stereo recordings in any setting.

Simplicity in Your Palm

With the DR-07XP, the complexities of audio recording are a thing of the past. Easily access every feature from the palm of your hand. Plus, the backlit LCD screen means no squinting; just clear and concise navigation any time of day, in any environment.

Your Portable Recording Studio

The DR-07XP isn't only a powerful portable recorder - it's also a 2-in / 2-out USB-C audio interface you can use to record anywhere, directly to audio recording software on your Mac or PC.

Ideal for Musicians

The DR-07XP is a fantastic portable recording solution for musicians with its high-quality microphones, 32-bit float recording, built-in tuner, reverb, overdubbing and more.

On Location

With its compact size, the DR-07XP can travel anywhere for exceptional field recording. Choose from three different low cut filter options for getting rid of unwanted noises. As a companion for video, the DR-07XP can attach easily to tripods and the Auto Tone output for cameras makes post-production a simple task.

Record Anything, Anywhere

From dialogue to vlogs, whether you're in an alley or a recording booth, the DR-07XP captures clear, crisp audio with ease. In addition to the built-in mics, use the stereo mini jack to add microphones with plug-in power or external line inputs to capture audio from any source in mono or stereo. Connect the unit to a computer via USB-C for use as a USB microphone.

Features

2-channel portable handheld audio recorder with microSDXC card storage
32-bit float recording mode ensures low-noise, distortion-free recordings
Stereo AB / XY condenser microphones handle loud environments and sources (up to 125dB SPL)
2-in / 2-out USB-C audio interface for recording directly to your computer
Up to 17.5 hours operation with 2 x AA alkaline batteries
Recording modes include 32-bit float / 24-bit / 16-bit, 96kHz / 48kHz / 44.1kHz
microSDXC (up to 512GB) cards can be used as recording media
USB Type-C port
Stereo mini jack for external stereo microphones (provides plug-in power) / External line input
Support multiple menu languages (ENG / FRA / DEU / ITA / ESP / RUS / PRT / JPN / CHI / KOR)
Long recordings as MP3 files possible
Various recording function (Auto rec, Self timer, Pre rec)
Overdubbing function
Limiter and Peak reduction
Three low-cut filter levels (40 / 80 / 120Hz)
Auto Tone output for use with DSLR camera
Reverb effect for vocal and instrument resonance
Mark function
128×64 pixel graphic LCD with backlight
Tripod mounting point attaches to any standard tripod
Stereo mini line output and headphone output
Speed change (VSA) function for adjusting the speed from 0.5 to 2.0 times (in 0.1 increments)
Playlist function
Built-in monaural speaker makes it easy to check your recordings
Chromatic tuner for tuning musical instruments before recording

* WS-11 Windscreen sold separately
* SD card not included



Recorder specifications

Recording media / file systems: microSD cards, microSDHC cards, microSDXC cards (up to 512 GB)
Recording / playback formats

WAV (BWF)
Sampling frequency: 44.1 kHz, 48 kHz, 96 kHz
Quantization bit depth: 16-bit / 24-bit / 32-bit float

MP3
Sampling frequency: 32 / 64 / 96 / 128 / 192 / 256 / 320 kbps
Quantization bit depth: 24-bit / 32-bit float
Maximum number of input channels: 2
Maximum number of recordable tracks: 2

Analogue audio input / output ratings
MIC / EXT IN jack (can provide plug-in power)

Connector: 3.5mm (1 / 8") stereo mini jack

Input Impedance: 18 kO or more (when plug-in power is turned off)
2 kO or more (when plug-in power is turned on)
Nominal input level: - 20 dBV
Maximum input level : -4 dBV
PHONES / LINE OUT jack

Connector: 3.5mm (1 / 8") stereo mini jack
Output impedance: 12 O
Nominal output level : - 14 dBV (10kO loaded)
Maximum output level: +2 dBV (10kO loaded)
Maximum output: 20 mW + 20 mW (32 ? load)
Working impedance: 16 - 250O

Built-in Speaker

Output: 0.3W (monaural)

USB
Connector: USB Type-C
Format:USB 2.0 High Speed Mass Storage Class
USB 1.1 Full Speed Audio Class

USB Audio

Sampling rate : 44.1 / 48 kHz
Quantization bit depth: 24-bit
Number of inputs: 2 channels (output from this unit)
Number of outputs: 2 channels (input to this unit)

General

Power 2AA batteries (alkaline or NiMH)
USB bus power (5V / 0.5A) from a computer, etc.
TASCAM PS-P520U AC adapter (sold separately)
Power consumption: 1.7 W (maximum)

Weight: 184 g / 0.406 lb (including batteries)
136 g / 0.30 lb (not including batteries)
Operating temperature range: 0 - 40 -C / 32 - 104 -F

Dimensions
Mic closed: 68 x 159.6 x 27.0 mm
2.68 x 6.28 x 1.06 inch
Mic opened: 90.3 x 159.6 x 27.0 mm
3.56 x 6.28 x 1.06 inch

Included items:
DR-07XP x1
Safety guide (including warranty) x1
TASCAM ID registration guide x1
*Note:0 dBV=1 Vrms, 0 dBu=0.775 Vrms
