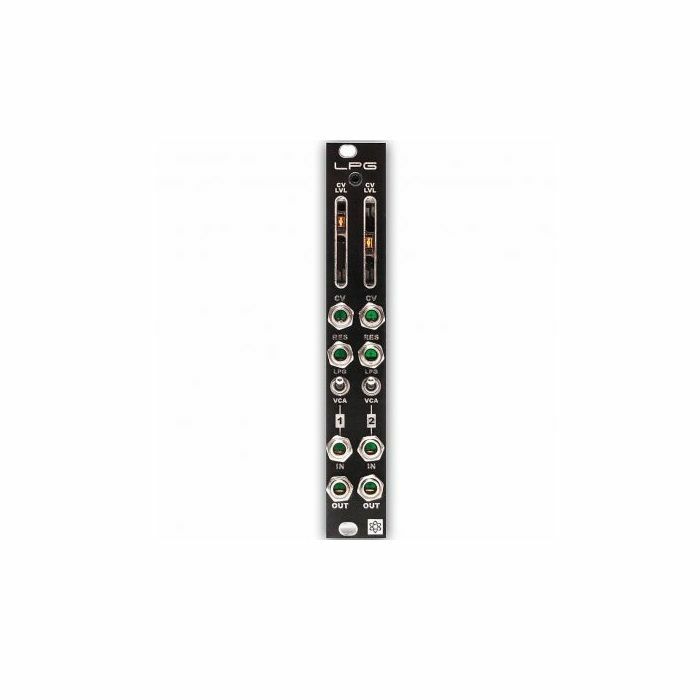

The LPG is a West Coast Synthesis staple! The dual Low Pass Gate creates organic percussion timbres, paving the way for sonic exploration with a Buchla / Subotnick vibe.

The LPG has two low pass gates in one module. Its unique non-linear qualities emulate percussion timbres like congas, bongos, plucks, etc. The LPG is vactrol based, which creates natural-sounding decays. When the CV input is pinged by short / fast envelopes, it results in more organic sounds like bongos. The slide pot functions in two ways: when the the CV input is not patched, it attenuates / mixes the audio signal. When the CV jack is patched, it attenuates the output level and changes the timbre of the audio signal.

Each LPG channel can be used as a VCA. VCA mode bypasses the low pass filter and resonance and doesn't color the sound of your input audio. The vactrol gives the VCA a living, breathing, non-linear response.

A number of vactrols were tested for this module, and the pre-tested NSL-7053 yielded the most positive results. The NSL-7053 has a slower response and a more exponential response curve. The VTL5C4 has a slightly faster response and a more linear response curve. Vactrols have a lot of variance, so even if you use the same vactrols for both channels, each channel may sound a little different. But the LPG will work with a number of different types / brands, including dual vactrols. In fact, each channel can be built with a different set of vactrols. (Note: VTL5C3 and VTL5C3 / 2 vactrols are not recommended in the LPG.)

Specifications:
Width: 4HP
Depth: 57mm
Current draw:
+12V: 45mA
-12V: 45mA
