The UR28M interface delivers high-resolution audio with striking clarity. Connecting via USB 2.0, the DSP-powered console features digital and analog I / O with D-Pre mic preamps.

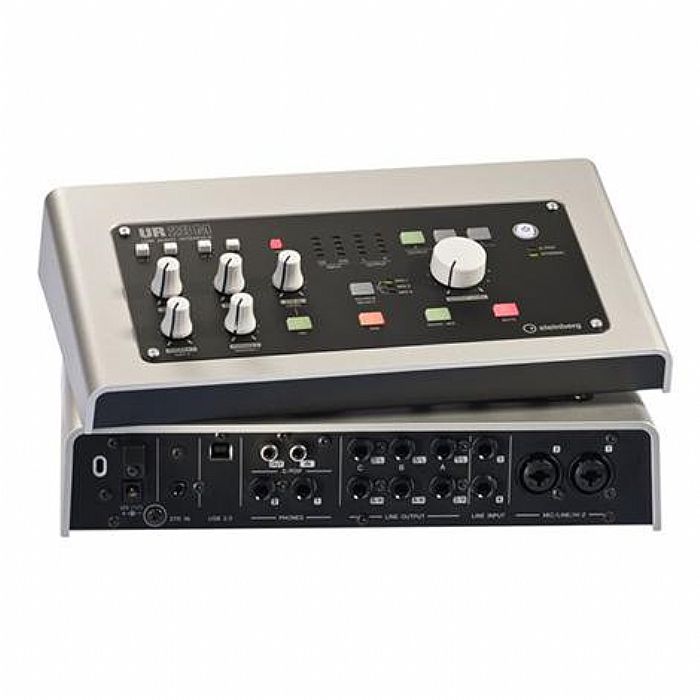

Designed for easy access to controls and connectors, the UR28M's console comes with a single prominent output volume knob for individually controlling the levels of one of three stereo output pairs or the levels of six outputs simultaneously. You can also select between three monitoring mixes set up in the dspMixFx mixer or Cubase which is routed to the selected outputs. Several smaller rotary knobs to control signal levels of inputs 1 and 2 and the levels of the two headphone outputs. While further dedicated switches for inputs 1 and 2 allow you to employ 48 volt phantom power, 26 dB signal attenuation and connecting high-impedance instruments. Other controls include the Dim button for attenuating all line output signals by 20 dB, the Mono button and the Mute button for muting the selected output signal. Four-segment LED meterings for the inputs and the output are also available on the UR28M console.

The rear panel provides two TRS line inputs and 2 Neutrik combo TRS / XLR mic / line inputs alongside six analog balanced TRS outputs plus a coaxial S / PDIF input and output connector. Also included is a 1 / 8" stereo input jack for connecting to a portable audio player or other devices as a reference source.

The UR28M represents a top-notch recording system with plenty of inputs and outputs to connect to microphones, instruments, studio monitors and headphones. There's a USB connector to hook up to either your Mac or PC that lets you record and mix your productions with the included Cubase AI workstation or other audio software.
