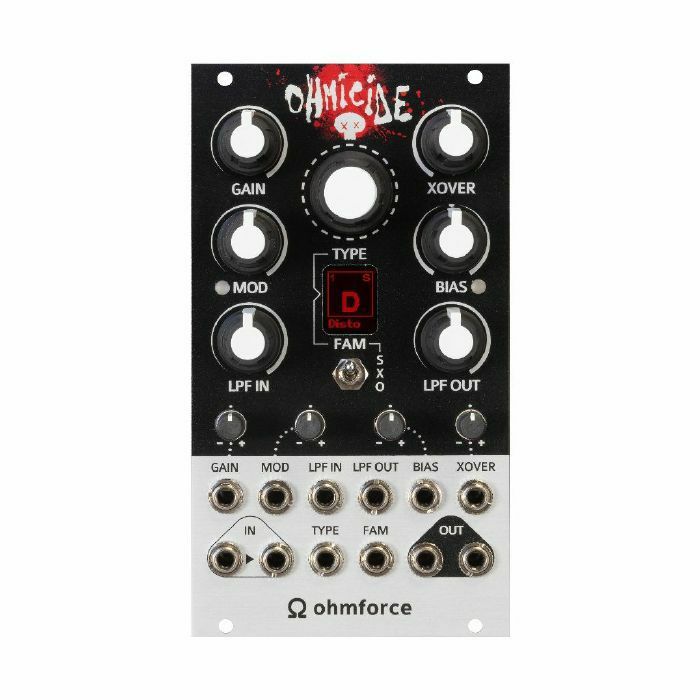

Ohm Force's genre-defining 'shaper' distortion plugin comes to Eurorack in this neatly designed module. Over 100 distortion programs in full stereo, with plenty of hands-on control and extensive CV modulation options.

Supplier's Notes:
Time to get away with murder

From the plugin that redefined distortions forever

111 different distortions and shapers in one single 14hp module

Full stereo

Advanced performer modes

Back on Eurorack

Ohmicide Eurorack is an adaptation of the legendary distortion plugin that defined the now well populated category of "shaper" effects. Amongst the numerous things that made it a hallmark plugin was the carefully crafted distortion library covering all things known and many more unknown. All of those 111 distortions are now ready to burn your finger tips in a remarkably versatile module delivering huge sonic possibilities. ant let you change the texture of your VCOs, drums and samples in subtle or brutally unsubtle ways. Use all sorts of distortions, including bitcrusher, freezer, filtering and jellyfish variety.

Wiggle. Listen. Drool.

With a routing redesigned for Eurorack you'll need little learning to go straight to soundscape heaven (or hell, preference may vary). Shape the frequencies you want with the XOVER and the two Low Pass Filters. Explore the impact on all of your sounds, from mono VCO to stereo drums loops. Cycle through TYPE to find a fit or get nice surprises then tweak BIAS and MOD to explore new forms of madness.

It's alive

Ohmicide Eurorack features CV for all of its parameters including four with attenuverters. It also has automatic gain staging that is essential to the distortion delivering texture, not just loudness. And for your live experience we incorporated a performer mode that let you store and even automate preset switching. Ohmicide is lovingly crafted based on decades of experience in distortions. It's a module to lose yourself in for long sessions of sound exploration - or simply to get uniquely aggressive leads and drones.

Specifications:

Width: 14HP
Depth: 26mm
+12V: 120mA
-12V: 10mA
+5V: 0mA

Audio

Sample Rate: 48kHz
Hardware audio converters bit-depth: 24-bit
Internal processing bit-depth: 32-bit floating point
True Stereo Audio
High fidelity Texas Instruments Burr-Brown audio converters

Controls

Knob resolution: 16-bit (65536 distinct values)
CV inputs
Voltage: +5V (0..5V compatible)
Resolution: 16-bit (65536 distinct values)

Memory

Current distortion type, screen contrast and saver mode, TYPE and FAM CV +5V or 0..5V options
16 sequences
8 steps, each step being a snapshot of all knobs and switches
All knob options
Sequence length
Step reset mode

USB Port

Type: Micro-B
The USB port is only used to update the module firmware.
