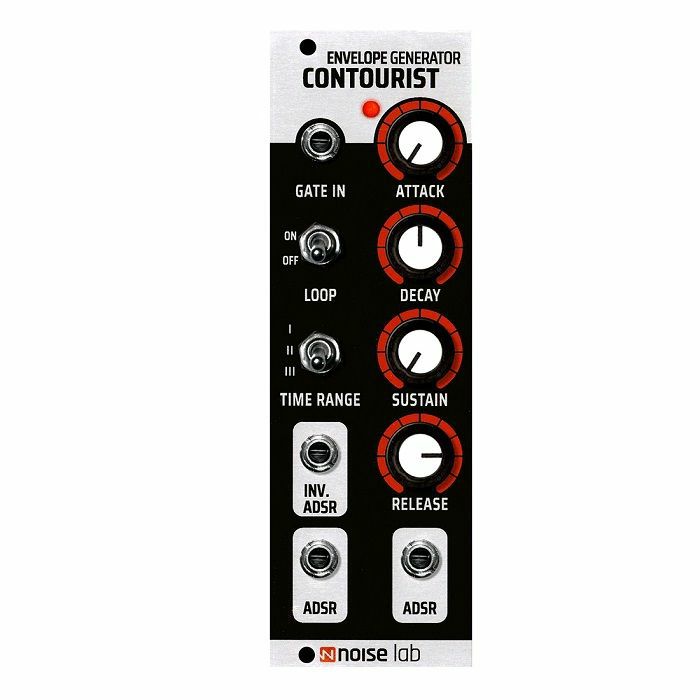

A general purpose Envelope Generator with three outputs (one inverted ) and three time ranges. From short and snappy (50 msec) to several minutes long contour curves. Four knobs control the ADSR behaviour which also can be re-triggered / looped simply by the flip of a switch. In LOOP mode, Attack and Decay knobs determine the CV contour. Input requires a GATE signal of +5V. Voltage outputs range from 0 to +10V, inverted +10 to 0V.

20 mA +12V
5 mA -12V
0 mA 5V
26 mm deep
