- Multi-platform audio interface with dual inputs and outputs
- Supports up to 24bit/192kHz high-resolution audio
- Microphone, line-in, and high-impedance value instrument support
- 48V phantom power available for condenser microphone
- Zero-latency direct monitor and DAW monitor can be adjusted individually or mixed
- Switchable stereo/mono direct monitor provides more possibilities for input signal monitor
- Individual adjustment of monitor volume level and headphone output volume level
- Can be powered by via USB port or USB power supply
| Connection | USB |
| Outputs | Line Output - Output Jack: 1/4" TRS jack*2 (support balanced signal), Headphone Output - Output Jack: 1/4" TRS jack*1 |
| MIDI | No |
| Power Supply | USB Bus Powered |
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

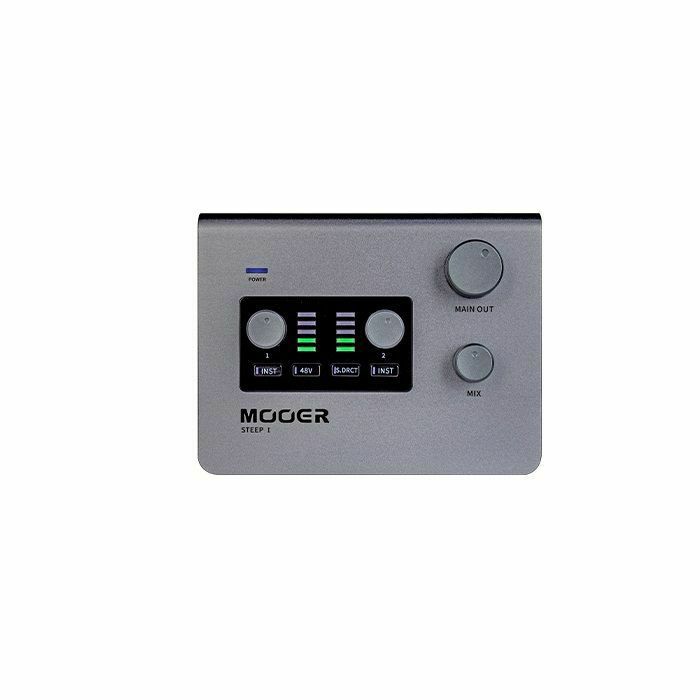

Mooer Audio Steep I USB Audio Interface (B-STOCK)
***B-STOCK: Box opened, product in perfect working order***
A multi-platform audio interface with support for high-resolution audio up to 24bit / 192 KHz and combination microphone, line-in, and high-impedance value instrument support. Dual-channel outputs are also included as well as one USB-C port for power and one USB-C port for data transfer, that can also be used for power when connected to a PC. Both the Steep I and II include dual LED input level indicators, support for 48v phantom power, a stereo direct monitor button, and knobs to control main output volume, mix, and input gain levels.
Specifications
Frequency Response: 20 Hz to 20kHz: 0.07dB
THD+N: 0.0094%
Minimum gain: -1 dBFS input with 22 Hz / 22 kHz bandpass filter
Maximum Input Level (minimum gain level):L +11 dBu
Gain Range: 50dB
Input impedance: 1.5M ohm
Line Outputs
Output Jack: 1 / 4" TRS jack*2 (support balanced signal)
Dynamic Range: 108dB (A-weighted)
Maximum Input Level (minimum gain level) : +5.746 dBu
THD+N: 0.019% (minimum gain, -1 dBFS input with 22 Hz / 22 kHz bandpass filter)
Input impedance 430 ohm
Headphone Outputs
Output Jack: 1 / 4" TRS jack*1
Dynamic Range: 104.9dB
Maximum Input Level (minimum gain level): +9.738 dBu
THD+N: <0.002% (minimum gain, -1 dBFS input with 22 Hz / 22 kHz bandpass filter)
Output impedance: <1 ohm
A multi-platform audio interface with support for high-resolution audio up to 24bit / 192 KHz and combination microphone, line-in, and high-impedance value instrument support. Dual-channel outputs are also included as well as one USB-C port for power and one USB-C port for data transfer, that can also be used for power when connected to a PC. Both the Steep I and II include dual LED input level indicators, support for 48v phantom power, a stereo direct monitor button, and knobs to control main output volume, mix, and input gain levels.
Specifications
Frequency Response: 20 Hz to 20kHz: 0.07dB
THD+N: 0.0094%
Minimum gain: -1 dBFS input with 22 Hz / 22 kHz bandpass filter
Maximum Input Level (minimum gain level):L +11 dBu
Gain Range: 50dB
Input impedance: 1.5M ohm
Line Outputs
Output Jack: 1 / 4" TRS jack*2 (support balanced signal)
Dynamic Range: 108dB (A-weighted)
Maximum Input Level (minimum gain level) : +5.746 dBu
THD+N: 0.019% (minimum gain, -1 dBFS input with 22 Hz / 22 kHz bandpass filter)
Input impedance 430 ohm
Headphone Outputs
Output Jack: 1 / 4" TRS jack*1
Dynamic Range: 104.9dB
Maximum Input Level (minimum gain level): +9.738 dBu
THD+N: <0.002% (minimum gain, -1 dBFS input with 22 Hz / 22 kHz bandpass filter)
Output impedance: <1 ohm
Read moreRead less
Specifications
| Connection | USB |
| Outputs | Line Output - Output Jack: 1/4" TRS jack*2 (support balanced signal), Headphone Output - Output Jack: 1/4" TRS jack*1 |
| MIDI | No |
| Power Supply | USB Bus Powered |
