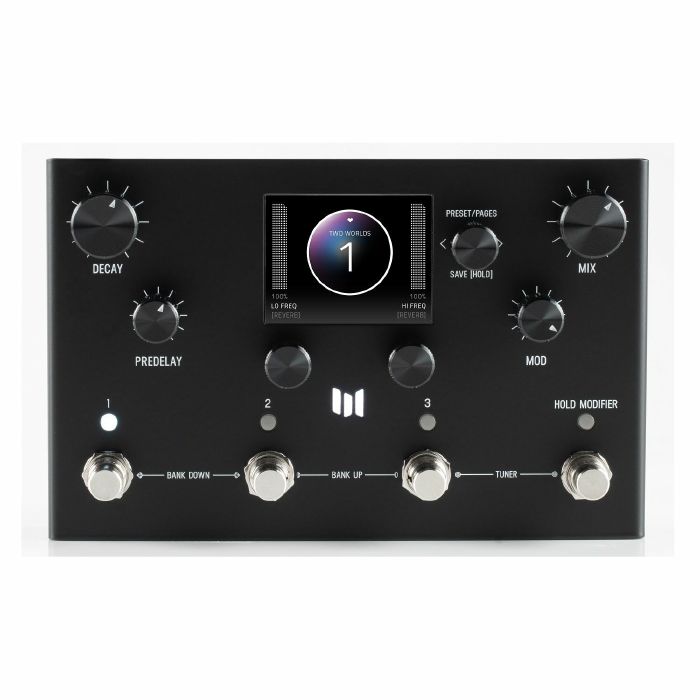

Meris Mercury X 10th Anniversary Modular Reverb System Pedal (black limited edition)
Click 'email me when available'.
Delivery
Features
Specs
Manual/brochure
Returns & refunds
Finance
- Modular Reverb System architecture
- 8 Custom Meris Reverbs: Ultraplate, Cathedra, 78 Room, 78 Plate, 78 Hall, Spring, Prism and Gravity
- Expanded 2.54 secs of Stereo Predelay with modular Feedback Routing Location
- Advanced ARM Processor
- Configurable Reverb Structures, Types, and Processing Elements for the ultimate customization in reverb processing
- Intuitive Colour Screen based User Interface
- Expressive Hold Modifier Switch for on the fly control
- 99 Preset Locations in 33 Banks
- Favourite Preset Bank for instant access to your 3 favourite presets
- Instant Access Tuner with configurable Reference and Output mode
- Deep Modifier Section lets you route control signals to processing parameters
- New Independent Stereo Freeze alongside reverb
- Gate Envelope Controls for every reverb type
- All New Processing Elements including 79 Chorus, Vibrato, Vowel Mod, Tremolo, Hazy Lo-Fi and more
- Selectable Note Divisions for each side of the stereo Predelay
- Digitally controlled Analogue mix bus
- Stereo input and output with separate jacks for each
- Switchable input/output headroom level for Instrument or Synthesizer / Line levels
- MIDI In and Out over standard MIDI Din Jacks
- Assignable Expression Pedal control for multiple parameters simultaneously
- Dedicated Expression Pedal Jack
- MIDI implementation for Continuous Control Parameters
- MIDI Preset Send and Receive
- MIDI beat clock synchronization
- Premium analogue signal path and 24-bit AD/DA w/32 bit floating point DSP
- Premium Analog Devices JFET input section
- Dimmable screen and logo light
- Colour - Smooth Matte Black
- Designed and built in California, U.S.A.
| Type | Reverb |
| Inputs | 1/4" jack, MIDI DIN |
| Outputs | 1/4" jack, MIDI DIN |
| Power Supply | Mains Adapter |
| Input Impedance (ohms) | 1000000 |
| Dimensions (mm) | 114 x 81 x 184 |
| Weight (g) | 680 |
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.
Meris Mercury X 10th Anniversary Modular Reverb System Pedal (black limited edition)
Celebrating Meris' 10th Anniversary in 2024, Meris are releasing their 1st in-house limited edition for the award winning pedal, MercuryX.
MercuryX is a Modular Reverb System with pro audio & studio rack heritage, advanced processing, and high performance signal path.
Infinite Voyage
Discovery System
MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format.
All the passion for pro audio has made it into both the algorithms and hardware performance of this pedal.
A new awakening
8 Custom Meris Reverbs
MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI / architecture that we first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.
Specs
Conversion: 24 bit A / D and D / A
DSP: 32 bit floating point
Sample Rate: 48000 Hz
Input Impedance: 1 Meg Ohm
SNR: 115 dB Typical
Frequency Response: 20Hz-20kHz
Max Input Level: +9 dBu (instrument level setting) +12.5 dBu (line / synth level setting)
Power: 9V DC center-negative, 300mA, 2.1mm jack
Bypass: Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions: 7.25" wide, 4.5" long, 2" tall. (Same depth and height as all other pedals.)
Weight: 24 ounces
MercuryX is a Modular Reverb System with pro audio & studio rack heritage, advanced processing, and high performance signal path.
Infinite Voyage
Discovery System
MercuryX takes the heart and soul of Mercury7 and expands it far beyond sci-fi into the highest quality and most flexible studio reverb ever created in a pedal format.
All the passion for pro audio has made it into both the algorithms and hardware performance of this pedal.
A new awakening
8 Custom Meris Reverbs
MercuryX combines 8 custom Meris reverb algorithms and incorporates those into a modular system UI / architecture that we first introduced with the award winning LVX pedal. Ultraplate and Cathedra are from Mercury7 and are inspired by the moody sci-fi reverbs featured in Blade Runner. The 78 Room, Plate and Hall structures are inspired by the venerable sounds of a studio classic. Spring, Prism, and Gravity are brand new structures unique to MercuryX.
Specs
Conversion: 24 bit A / D and D / A
DSP: 32 bit floating point
Sample Rate: 48000 Hz
Input Impedance: 1 Meg Ohm
SNR: 115 dB Typical
Frequency Response: 20Hz-20kHz
Max Input Level: +9 dBu (instrument level setting) +12.5 dBu (line / synth level setting)
Power: 9V DC center-negative, 300mA, 2.1mm jack
Bypass: Selectable True Bypass (Relay) or Analog Buffered Bypass
Dimensions: 7.25" wide, 4.5" long, 2" tall. (Same depth and height as all other pedals.)
Weight: 24 ounces
Read moreRead less
Specifications
| Type | Reverb |
| Inputs | 1/4" jack, MIDI DIN |
| Outputs | 1/4" jack, MIDI DIN |
| Power Supply | Mains Adapter |
| Input Impedance (ohms) | 1000000 |
| Dimensions (mm) | 114 x 81 x 184 |
| Weight (g) | 680 |
