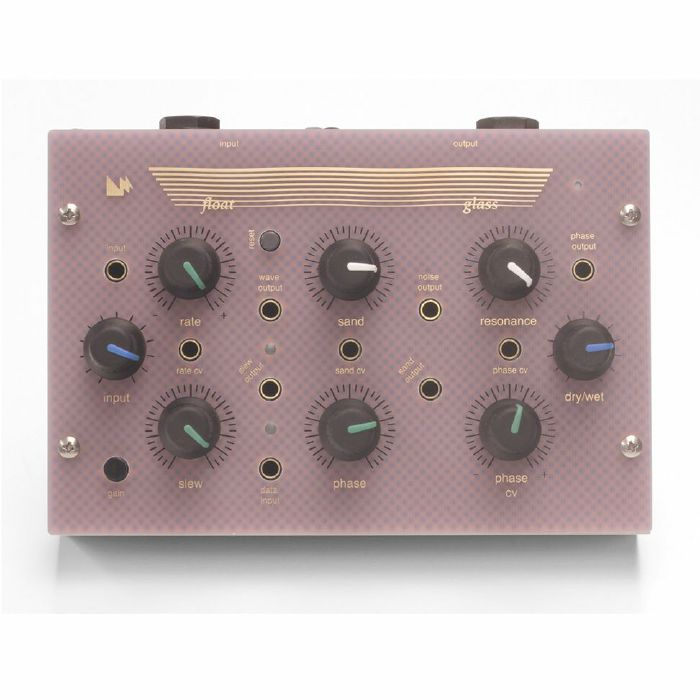

Float Glass is an 8 stage voltage-controlled phaser processor with a complex modulation source. It has the potential to be used as a phaser for signals coming into the input connections as well as a generative noise instrument. The modulation source normally makes a stepped sine waveform which can be smoothed out with the slew control. A smooth sine wave is a classic modulation shape for a phaser. Float Glass also has a noise source and clipped noise source labeled sand. These signals can be used as inputs for the phaser to make this device a self contained sound source. It should be noted from the block diagram that the sand control and associated connections are not wired in to the rest of the system. In order to use the noise or sand signals, banana patch cables are needed to make connections.

Specs

Banana Patch Points
Banana CV inputs max voltage + / - 8v.
Banana Signal Inputs and Outputs are AC Coupled.

Audio Inputs
1 / 4" TS instrument input, gain of 2x or 12x
1 / 8" TRS line input summed to mono

Power Input
Standard 12v DC 5.5mm x 2.1mm supplying at least 500mA of current

Audio Outputs
1 / 4" TS line or instrument output (selected with push-pin switch)
1 / 8" TRS line output dual mono
