*** Firmware 2.32 Update- August 2024 ***

Automatic Backup

All settings are saved when the module is turned off.

Skippy then restarts directly with these same active settings. However, it is possible to revert to the default configuration at startup with the NEW function or even return to the "factory settings" by pressing buttons 2 and 4 simultaneously at startup.

New Patterns in JAZZY

New patterns are regularly added to JAZZY, based on customer requests.

New "polystep"

Input Clock is added to the two existing clocks "poly" and "matrix".

It acts as a clock divider within the limits of time division possibilities (for example, the Gaussian function will always act progressively based on an average clock, as with the "poly" clock). Thus, it falls between "poly", which produces an average of the received beats (and for example, will not account for small variations like external swing), and "matrix", which strictly applies the received beats identically to all tracks.

"Polystep" will strictly use the beats from track 1 and adapt the timing of the other tracks according to their parameters.

The "polystep" and "matrix" clocks are only useful if you want to control Skippy with an external clock. Leave it on "poly" for internal use or to use Skippy's clock as the Master for your system (in fact, Skippy performs best in the GAUSS and POLYR functions with this clock selected).

New TILES

Kaona have added the following divisions: 2 / 1, 3 / 1, 3 / 2, 4 / 3.

New ROLL Function

Beats can now be divided by two (2 "gates" instead of one) or by three (3 "gates" instead of one).

It is possible to choose a "roll" randomly: "1 / ??" and "2 / ??" add respectively 1 or 2 extra beats, randomly. You can also choose to add these "rolls" every 2, 3, 4, 6, 8, 12, or 16 "steps". It is also possible to add a "roll" with each screen rotation. To synchronize the start of "rolls" on all tracks, use the Reset function (or with Skippy Live), otherwise, each "roll" starts when the option is set (for example, to avoid setting "rolls" per turn all at the same time).

The beat times of the "rolls" depend on the duration of each gate. It is therefore recommended to take a slightly longer gate for the effect to start being noticeable (from 60-70 and up).

The new "proportional gate" function is also taken into account (thus divided by 2 or by 3).

New Proportional GATE

The function that allows choosing the gate length for each track has been extended.

It is now possible to choose it in proportion to the existing time between two beats. This can be very useful for melodic sequences (with Zazou for example).

You can thus alternate between quarter notes and half notes, or eighth notes and whole notes, etc.

Each of Skippy's four tracks can have a different setting, including with variable time functions (GAUSS, POLYR...), which promises infinite explorations.

Access proportional gates by turning the encoder in GATE mode to the left: instead of stopping at 10 as in the previous version, the percentage of active gate time is displayed. You can choose the percentage in steps of 10, from 10% to 90%.

Description:

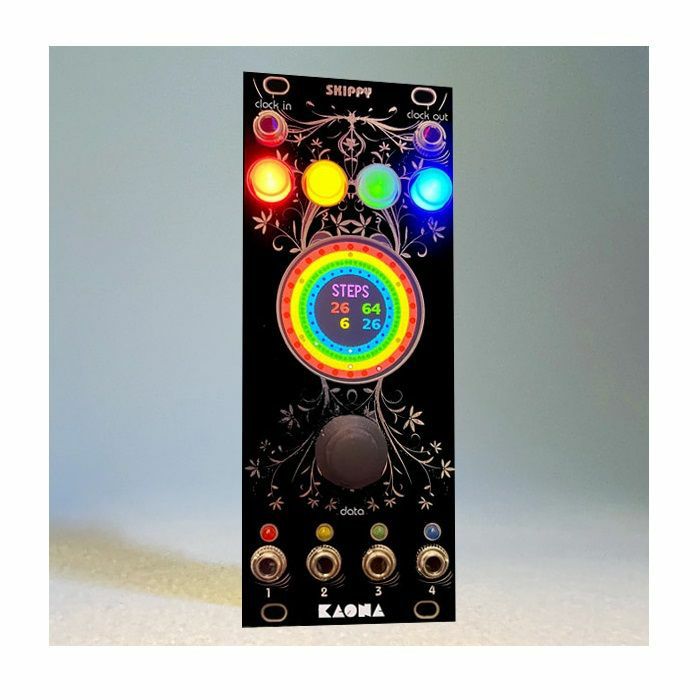

Skippy is a matrix and non-matrix polyrhythmic sequencer (linear and logarithmic) which offers four completely independent tracks with a very simple interface: one button per track, one function per screen, no sub-menus.

Possible saving of 64 configurations.

Internal connection with expander module (coming soon) and with Zazou, generative composition module (coming end of 2023).

Functions per track

- BPM (10 to 400)
- Number of steps (1 to 64)
- Linear or log
- Random function
- Chaotic function
- Direction: clockwise, counterclockwise, ping-pong, pause
- Number of steps before the start of the sequence
- Number of steps before the end of the sequence
- Gate duration

Specific algorithms

- Euclidean (Bjorklund)
- Matrix Patterns
- microtiming patterns
- matrix rotation

Clock

- External clock input or Reset
- Clock output
- 1 / 1, 1 / 4, etc.

Menus

- BPM
- STEP
- BEGIN
- END
- GATES
- PROBA
- CHAOS
- WAY
- SWING
- GAUSS
- EUCLID
- TILES
- POLYR
- JAZZY
- SPIN
- PAUSE
- RESET
- SYS: save, load, new, clk / rst, clk

Tech Specs

Width: 10 HP
Depth: 32 mm

Current Draw:
+12 V 0 mA
-12 V 0 mA
