Two VCOs (oscillators) are input to the VCF (filter) and output through DELAY (can be turned off).

The VCO can be a 4LFO module, which is a mix of 4 LFOs, a noisegenerator, an LFO, and a SUB OSCILLATOR, and the VCF can be an LFO.

With a variety of tones, you can create various sounds even with a subtle knob position.

It can be used with a single 9V battery or a 9V DC center negative adapter.

CV IN can be used with CV input to the filter. (VCO1.2,VCF)

INPUT is capable of audio input. The input sound goes to the filter- delay (can be turned on and off) in parallel with the built-in VCO.

CV IN can be input from +8 volts to -8 volts.

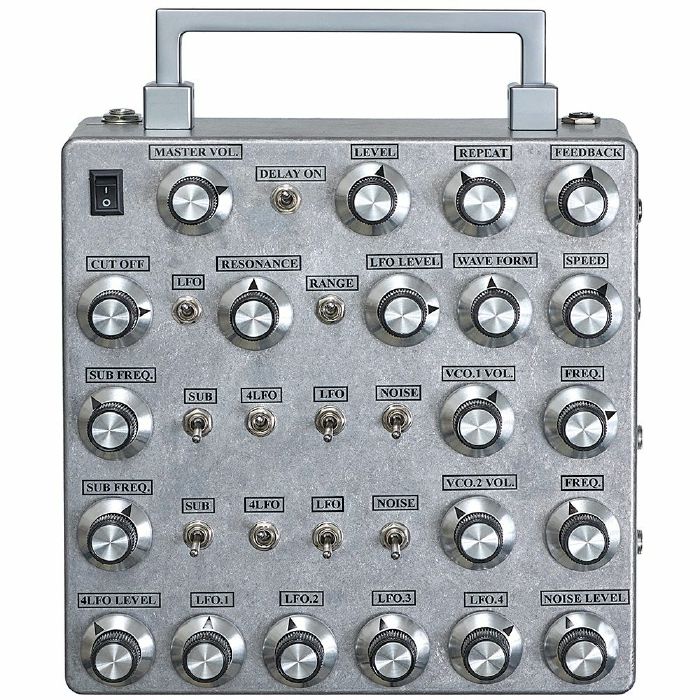

This analogue synth runs on DC9V negativecenter or a 9V battery. 2 VCOs go to VCF and Delay. VCO receives 4 modulations inside. NOISE GENERATOR,4 mixed LFO and SUB OSC. VCF receives CV of LFO.It becomes the wave filter with it. ? Delay section has the on / bypass switch. INPUT goes to VCF and DELAY with internal VCOs.
