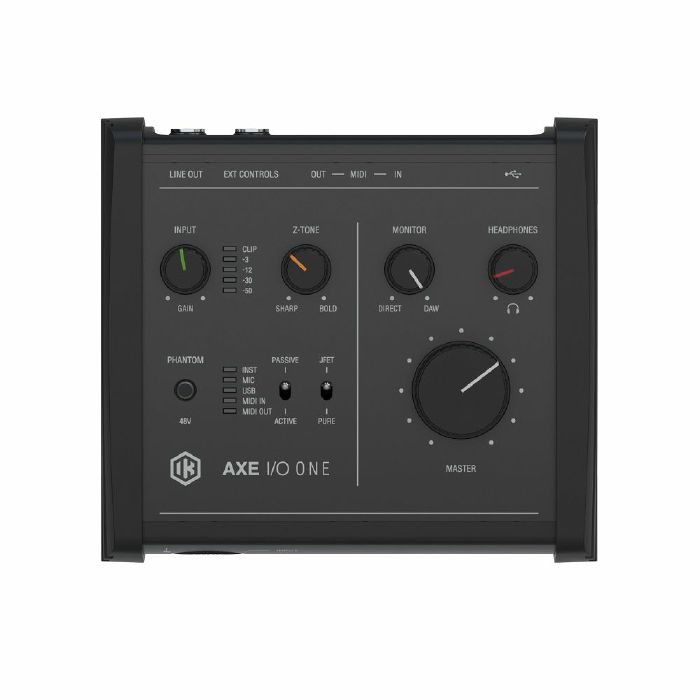

AXE I / O ONE is the ultimate compact and affordable 1-in / 3-out audio interface designed for guitarists, musicians and engineers who want the best sound possible for recording guitar or bass. It combines IK's patent-pending Z-Tone impedance control, an Amp Out for Tone Modeling, multiple circuit topologies, and award-winning AmpliTube and TONEX software for a complete digital studio rig.

AXE I / O ONE delivers professional audio with sample rates up to 192 kHz, 108 dB dynamic range, and 9 Hz-45 kHz frequency response.

AXE I / O ONE offers a simple, streamlined setup for Tone Modeling and re-amplification. Use the Amp Out to create a virtual Tone Model of your amp, cab or pedals including distortion, overdrive, EQ, Fuzz and boost. The Amp Out can also be used as a standard re-amping output for even more creative options.

AXE I / O ONE's main channel offers 3 different circuit topologies. This gives you three different options to dial in the perfect tone for any type of guitar pickup or style.

The PURE setting offers a completely transparent and ultra-accurate instrument preamp that won't colour your sound in any way.

Switching to the Class A JFET input buffer adds midrange focus, warmth and harmonic enhancement, giving you more tonal options from the same instrument.

ACTIVE pickups don't require a Hi-Z input, so this setting bypasses unnecessary gain stages to keep your signal path as direct, transparent and clean as possible.

AXE I / O ONE's patent-pending Z-Tone circuit lets you go from a tighter / sharper tone to a thicker bolder tone with a simple twist of a dial. Z-Tone changes the impedance from 1 MO ("sharp") down to 2.2 kO ("bold") giving you ultimate freedom to dial in the perfect feel and tone from electric guitar and bass pickups.

AXE I / O ONE offers a PURE mic preamp designed for transparent and clean recording. The mic preamp offers a wide, flat frequency response: 9 Hz to 45 kHz, + / - 0.5 dB (at 96 kHz) to avoid unwanted coloration and perfectly preserve the sonic character of your voice, acoustic guitar, piano or other instrument.

It's also ideal for capturing your rig with IK's groundbreaking TONEX AI-based Tone Modeling software. With both AmpliTube 5 SE and TONEX SE included, you'll have everything you need to record, model and play right out of the box, plus AXE I / O ONE works with all your favourite recording applications.

AXE I / O ONE offers a range of useful features including dedicated controller inputs that let you connect up to two expression pedals or two single / double switches to control AmpliTube, or any other software, in real-time without putting your hands down. You can also use AXE I / O ONE's MIDI input and output to connect floor controllers or iRig Stomp I / O to add even more real-time controls - or use it with regular keyboards and other standard MIDI gear.

Best-in-class guitar tone

Selectable Active / Passive / discrete JFET / PURE instrument preamp
Patent-pending Z-Tone input for a tonal palette never heard before
Amp Out for Tone Modeling or re-amplification
Connect up to 2 expression pedals, single and double-switches
Lightweight compact design for recording on the go
Includes AmpliTube SE, TONEX SE, and Ableton Live Lite

Premium studio sound

High-resolution, ultra-low-noise Class A microphone preamp
Best-in-class conversion and superior analog design
USB-C bus powered
108 dB dynamic range
Includes control software
High definition 24-bit / 192kHz audio

Connections

1 in / 3 out (one low-noise Amp Out)
1 ultra-low noise mic in / instrument in
2 balanced monitor outs
Reference headphones out
2 fully configurable external control inputs
MIDI input / output
USB 2.0 compatible with Mac / PC

Unit Width (mm): 160
Unit Height (mm): 52
Unit Depth (mm): 130
Unit Weight (kg): 0.37
