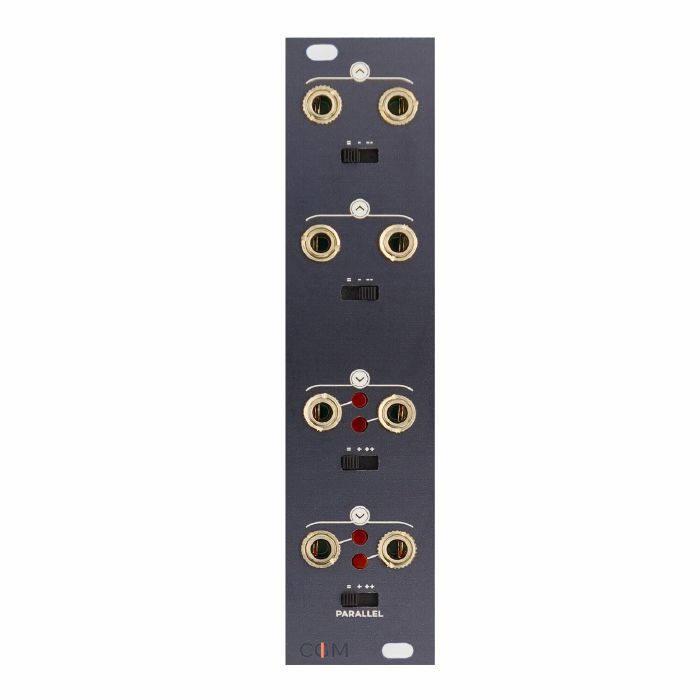

The insert module allows you to connect stereo effects to your CGM setup, either by inserting them between two points of the internal summing bus or by placing them in parallel, as in a rudimentary stereo send-and-return.

It consists of two couples of outputs and inputs with dedicated gain switches. The first O / I stereo couple is the insert circuit, while the second is the parallel circuit.

The Insert module can be used:

between a group and a master;
between a group and a group;
between a channel and a group;
between a channel and a channel;
between a channel and a master (without a group).
The Insert module ships with two Insert cables compatible with every member of the CGM family, including the discontinued ones.

Flexible placement

The insert can effortlessly sit between every CGM module. Use it between a group and a master as an end-of-chain bus, or between two series of channels of the same group to create a channel subgroup with independent solo-in-place controls.

Stereo insert circuit

This circuit overrides the internal summing bus and allows you to route whatever sum goes into the insert module through your favourite stereo effects.

Stereo parallel circuit

A second out-in circuit remains parallel to the main one, excellent for adding stereo ambiance effects to the main sum.

Gain switches

The outputs and inputs provide three degrees of attenuation and matching amplification to scale the signal to most of the audio equipment out there.

Specifications:

Size: 6 HP
Depth: 38 mm
Current draw: 35 mA @ +12 V / 35 mA @ -12 V

Recommended warmup time: 30 min
Audio input impedance: > 30 KO (mono)
Audio output impedance: =100 O
Maximum output level before clipping: = 17 dBu
Frequency response: 0.01 to 40 KHz
Harmonic distortion: < 0.3 %
