- Digital input: coaxial S/PDIF, standard rates up to 192kHz
- Digital output: coaxial S/PDIF
- Indicators: LED for S/PDIF sync lock
- Expansion - 5 headers for connecting ESX series modules, Digital audio I/O header (I2S format) for input expansion (e.g. ES-7)
- Current draw: 26mA on the +12V rail only (rises with sample rate; 26mA at 48kHz, 32mA at 96kHz etc.)
| Module Type | Input/Output Module |
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

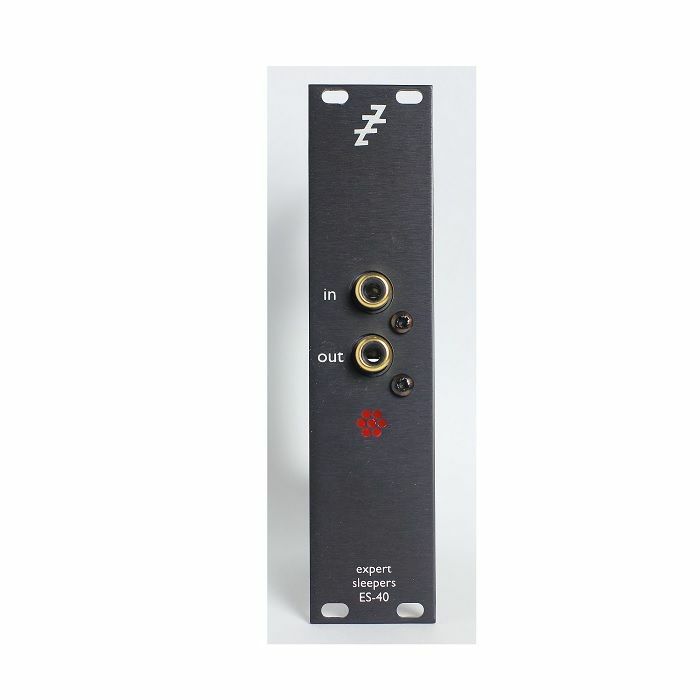

Expert Sleepers ES40 SPDIF Interface Module
The ES-40 is a Eurorack format module which converts a standard S / PDIF input to five channels of expansion headers, which are used in conjunction with the Expert Sleepers ESX range of expanders (currently including the ESX-8GT, the ESX-4CV, the ESX-8CV and the ESX-8MD).
The ES-40 will connect to any audio device using the S / PDIF standard. This includes the digital audio output provided as standard on many recent Macs (more info here on the Mac connection).
The ES-40 also includes an S / PDIF output for sending data back to the computer. This output is used by expansion modules connected to the ES-40; currenty, the only such module is the ES-7 CV Input Expander.
The ES-40 is essentially an ES-4 with the DACs and CV outputs removed. Much of what has been written about the ES-4, and many tutorial videos etc., still apply to the ES-40.
Suggested combinations
The ES-40 does nothing by itself, but forms the basis of a very configurable system. Simply add the expansion modules you need. Here are some ideas:
- 8 general purpose CVs - an ES-40 plus an ESX-8CV gives you a flexible, general purpose modular controller.
- 8 CV / gate pairs - an ES-40, an ESX-8CV and an ESX-8GT gives you enough outputs for 8 classic monosynths - or to realise that 8 voice polyphonic modular you've been dreaming of.
- 8 drum triggers - an ES-40 and an ESX-8GT gives you 8 triggers for your rack of drum modules, for the ultimate in sample-accurate rhythm. Add up to four more ESX-8GTs for up to 40 triggers / gates / clocks!
- MIDI & DINsync - an ES-40 and an ESX-8MD form a sample-accurate, jitter-free, multi-port MIDI interface.
- Digital audio - an ES-40 and an ES-7 gives you two channels of 24 bit analogue-to-digital conversion to get your modular audio into your DAW.
*User manual - http: / / www.expert-sleepers.co.uk / es40usermanual.html
The ES-40 will connect to any audio device using the S / PDIF standard. This includes the digital audio output provided as standard on many recent Macs (more info here on the Mac connection).
The ES-40 also includes an S / PDIF output for sending data back to the computer. This output is used by expansion modules connected to the ES-40; currenty, the only such module is the ES-7 CV Input Expander.
The ES-40 is essentially an ES-4 with the DACs and CV outputs removed. Much of what has been written about the ES-4, and many tutorial videos etc., still apply to the ES-40.
Suggested combinations
The ES-40 does nothing by itself, but forms the basis of a very configurable system. Simply add the expansion modules you need. Here are some ideas:
- 8 general purpose CVs - an ES-40 plus an ESX-8CV gives you a flexible, general purpose modular controller.
- 8 CV / gate pairs - an ES-40, an ESX-8CV and an ESX-8GT gives you enough outputs for 8 classic monosynths - or to realise that 8 voice polyphonic modular you've been dreaming of.
- 8 drum triggers - an ES-40 and an ESX-8GT gives you 8 triggers for your rack of drum modules, for the ultimate in sample-accurate rhythm. Add up to four more ESX-8GTs for up to 40 triggers / gates / clocks!
- MIDI & DINsync - an ES-40 and an ESX-8MD form a sample-accurate, jitter-free, multi-port MIDI interface.
- Digital audio - an ES-40 and an ES-7 gives you two channels of 24 bit analogue-to-digital conversion to get your modular audio into your DAW.
*User manual - http: / / www.expert-sleepers.co.uk / es40usermanual.html
