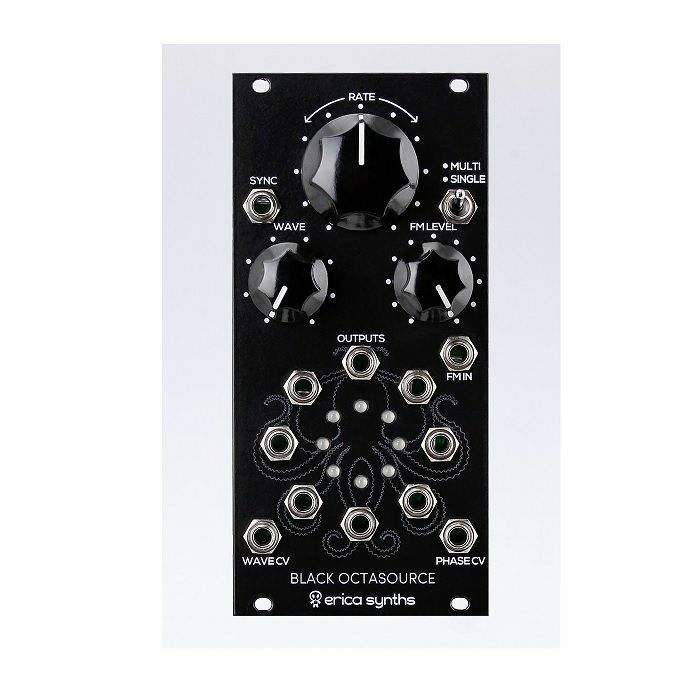

Erica Black OCTASOURCE is, what we want to believe, the LFO carried to it's extremes. It features one of 8 waveforms available on 8 outputs phase shifted by 45 degrees OR all 8 waveforms simultaneously on all outputs. Futuremore, waveform selection, phase shift and LFO rate are CV controlled, and the rate can be synched to an external clock signal.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, design and usability was prioritsed over module width. Big knobs are assigned to functions that make difference in sound. The Erica Black series are a range of modules that together make an entire synthesizer.

LFO rate: 0.03Hz- 30HZ
Output signal amplitude: 10Vptp
CV input (full sweep): -5V- +5V
Power consumption: +82mA, -44mA
Module width: 12HP

82 mA +12V
44 mA -12V
25 mm deep
