Reach Infinity

Let's dive into a Black Hole!

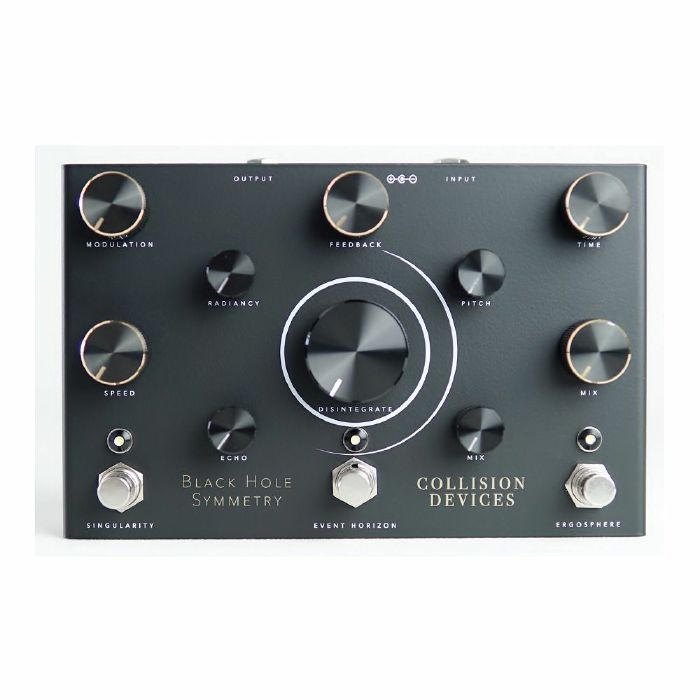

The Black Hole Symmetry is a Modulated Delay / Pitch shifted Reverb / Destruction Fuzz pedal.

Travel through the Ergosphere, the Event Horizon and the Singularity. The 3 parts of the pedal which can be played together or separetely.

Each pedal is designed, assembled, tested and numbered by hand in the Collision Devices workshop in France.

The B.H.S. has a lifetime warranty.

3 effects, one pedal

Singularity

Destruction Fuzz
The single setting "Disintegrate" allows you to raise your sound.
Forget the fact that your drummer plays loudly.
Settings :
Desintegrate : Volume setting with a huge fuzz.
Protect your ears please.

Event horizon
Pitch shifted Reverb
Long reverb based on the FV1 chip.
Harmonizes the reverb signal with a pitch shifter.

Settings:
Mix: Proportion of wet signal in the mix
Echo: Echo time (max 15s)
Radiancy: Proportion of pitch shifter in the echo signal
Pitch: Shifts the pitch of the note

Ergosphere
Modulated Delay
Based on the PT2399 chip to have a warm echo.
The echo signal is modulated by two oscillators.

Settings:
Mix: Proportion of wet signal in the mix
Time: Time between each repetition (From 0s to 1s)
Feedback: Number of repetitions
Modulation: Proportion of modulation in the delay signal
Speed: Speed of the main oscillator
Trimmer: Speed of the triangle oscillator

Specifications

Maximum current draw: 250 mA
Input Impedance: 1 MOhm
Size: 186 x 119 x 56mm

The use of an isolated power supply is recommended for powering all Collision devices Pedals.

Power supply not included.

The pedal is true bypass

Lifetime warranty

Voltage: +9V DC (negative center)
Output Impedance: 1 KOhm
Weight: 200 grams
