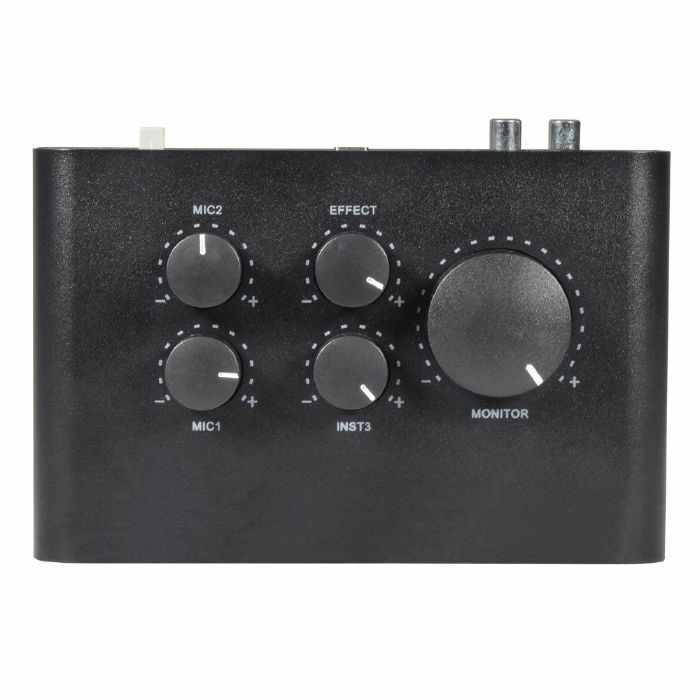

Desktop USB soundcard for a computer-based recording studio. Featuring 2 independent microphone inputs on XLR / jack sockets and a separate 6.3mm instrument input. Each input has a gain control and there is an optional echo effect with separate control. Monitoring is via a stereo 6.3mm headphone jack or L+R RCA line output on the rear of the unit for connecting monitor speakers. Power to the interface and two-way digital audio is connected via a USB type-C socket at the rear. Simple yet versatile operation for project studios and DAW recording setups.

Power supply: 5Vdc (from USB)
Connection: USB type-C
Controls: Mic1, Mic2, Inst3, Effect, Monitor
Input connections: 2 x mic XLR / Jack, 1 x 6.3mm instrument jack
Phantom power: +48V switchable to XLR inputs
Frequency response: 10Hz - 30kHz (-0.5dB)
Input impedance: instrument1M Ohm
Input impedance: mic3k Ohm
Max. input sound level: Mic or Instrument +2dBu, Line +22dBu
Dynamic range: 100dB (A-weighted)
Sampling format: 48kHz, 16-bit
Monitor outputs: Headphones (stereo 6.3mm jack), Line out (L+R RCA)
Dimensions: 160 x 110 x 57mm
Weight: 529g

In the box

The box for this item contains:

USB2+1 Audio Interface
1.5m USB C to A lead
