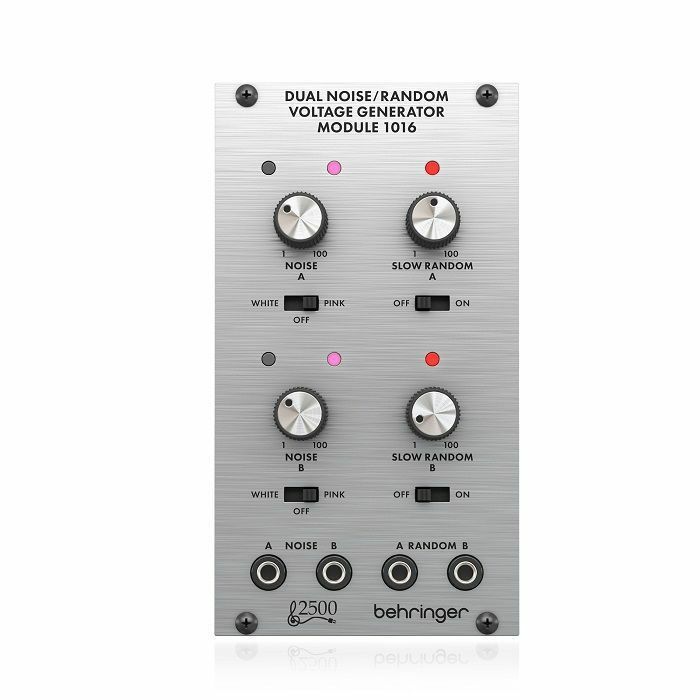

Behringer Dual Noise / Random Voltage Generator Module 1016
Click for better price or call
+44 20 7424 1960
(quote 799852)
Delivery
Features
Manual/brochure
Returns & refunds
Finance
- Classic 1016 analog dual noise and random voltage generator module from the ''70s
- Authentic reproduction of the circuitry from the "2500" Series
- The module consists of 2 identical white/pink noise and Random Voltage generators
- The noise outputs are generated from 2 independent transistor noise sources
- Filtering of the white noise is used to transform into pink noise and finally a slow random voltage
- 2 output attenuators enable the outputs to be reduced in volume
- White or Pink Noise are selectable via slide switch and LED indication
- Random Voltage can be switched on and off via slide switch with LED indication
- White noise is generated from 5 Hz to 20 kHz and Pink noise is filtered to attenuate the highs and boost the low frequencies resulting in equal energy per octave
- Slow random voltages feature peak signal power between 1 Hz and 10 Hz
- Eurorack specs: 14 HP, XX mA +12 V, XX mA -12 V
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.
Behringer Dual Noise / Random Voltage Generator Module 1016
Legendary 2500 series dual noise source module for Eurorack.
This is the Behringer 2500 series DUAL NOISE / RANDOM VOLTAGE MODULE 1016. An authentic reproduction of the original "System 2500" circuitry from the 70's that can fit in a standard Eurorack case. The best part? It's at a very affordable price. Mix the DUAL NOISE / RANDOM VOLTAGE MODULE 1016 in with your existing rig or start your modular synth journey from here. Either way you're sure to have a lot of fun.
The DUAL NOISE / RANDOM VOLTAGE MODULE 1016 is a classic discrete transistor white / pink / random noise source with independent attenuators for the white / pink noise level, a white / pink selector switch with color coded LED's. The slow random voltage generator produces random CV voltages and the maximum level can be controlled via the attenuators as well as an on / off switch with LED indicators for each channel. The 2 channels are completely independent of each other for even more creative possibilities.
The 1016 gives you comprehensive connectivity, each channel has a separate white / pink noise output and separate outputs for the random voltages, the outputs are all available simultaneously to feed multiple noise and CV signals to other modules.
Installing the DUAL NOISE / RANDOM VOLTAGE MODULE 1016 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for the 1016 to be mixed with other synth modules for a truly unique set up.
Specification:
Outputs
Noise
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
1 kO, unbalanced
Max output level
i5 V
Random
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
1 kO, unbalanced
Max output level
i5 V
Controls
Noise
Attenuates noise generator output
Random
Attenuates voltage output
White / pink / of
Selects white or pink noise, or of
Random on / of
Engages or disengages voltage generator
Power
Power supply
Eurorack
Current draw
45 mA (+12 V), 15 mA (-12 V)
Physical
Dimensions
42 x 71 x 129 mm (1.7 x 2.8 x 5.1")
Rack units
14 HP
Weight
0.13 kg (0.29 lbs)
This is the Behringer 2500 series DUAL NOISE / RANDOM VOLTAGE MODULE 1016. An authentic reproduction of the original "System 2500" circuitry from the 70's that can fit in a standard Eurorack case. The best part? It's at a very affordable price. Mix the DUAL NOISE / RANDOM VOLTAGE MODULE 1016 in with your existing rig or start your modular synth journey from here. Either way you're sure to have a lot of fun.
The DUAL NOISE / RANDOM VOLTAGE MODULE 1016 is a classic discrete transistor white / pink / random noise source with independent attenuators for the white / pink noise level, a white / pink selector switch with color coded LED's. The slow random voltage generator produces random CV voltages and the maximum level can be controlled via the attenuators as well as an on / off switch with LED indicators for each channel. The 2 channels are completely independent of each other for even more creative possibilities.
The 1016 gives you comprehensive connectivity, each channel has a separate white / pink noise output and separate outputs for the random voltages, the outputs are all available simultaneously to feed multiple noise and CV signals to other modules.
Installing the DUAL NOISE / RANDOM VOLTAGE MODULE 1016 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for the 1016 to be mixed with other synth modules for a truly unique set up.
Specification:
Outputs
Noise
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
1 kO, unbalanced
Max output level
i5 V
Random
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
1 kO, unbalanced
Max output level
i5 V
Controls
Noise
Attenuates noise generator output
Random
Attenuates voltage output
White / pink / of
Selects white or pink noise, or of
Random on / of
Engages or disengages voltage generator
Power
Power supply
Eurorack
Current draw
45 mA (+12 V), 15 mA (-12 V)
Physical
Dimensions
42 x 71 x 129 mm (1.7 x 2.8 x 5.1")
Rack units
14 HP
Weight
0.13 kg (0.29 lbs)
