Very nice old-school vocoder for Eurorack, featuring a built-in mic pre-amp and full 10-band patch bay. Internal VCO and straightforward control setup help simplify operation.

Supplier's Notes:

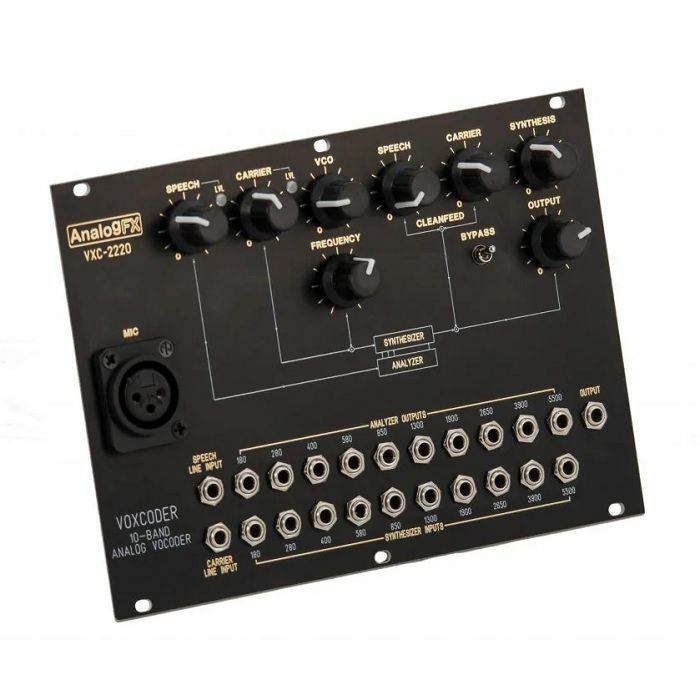

The VXC-2220 is an 10-band analogue vocoder with patch-bay for each individual filter section. VXC-2220 vocoder is based on the iconic classics 222 vocoder. For stand alone usage the VXC-2220 is equipped with an internal oscillator generating saw and pulse waves form C1 to C6. A simple and efficient vocoder.

Specifications

Microphone input for speech signal
Line input for speech signal
Line input for carrier signal
Input level control for speech and carrier signal
Output level control
Line output
10-Band analyzer outputs
10-Band synthesizer input
Internal VCO (1 semi-nut step size);
* Saw wave (C1 - C6)
* 3x 10% Pulse wave (C1+C2+C3 - C4+C5+C6 )
* White noise
- Synthesis for 's' and 't' sounds
- Feed-trough level control for speech and carrier channel
- Bypass switch
- 10pin power connector (+ / -12V)

Dimensions:
(36HP) 128,5×182.5mm (depth: ca. 35mm incl. power connector)

Power Consumption:
+12V = 125mA
-12V = -125mA
