Alpha Recording System MODEL9500B 4-Channel Rotary DJ Mixer
Click 'email me when available'.
Delivery
Specs
Returns & refunds
Finance
| Dimensions (mm) | 250 x 100 x 366 |
| Weight (g) | 5400 |
| Channels | 4 |
| Inputs | 3 x Phono |
| Outputs | RCA unbalanced |
| Send/Return | Yes |
| Power Supply | Mains Adapter |
| Voltage (v) | 230 |
If you decide a product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

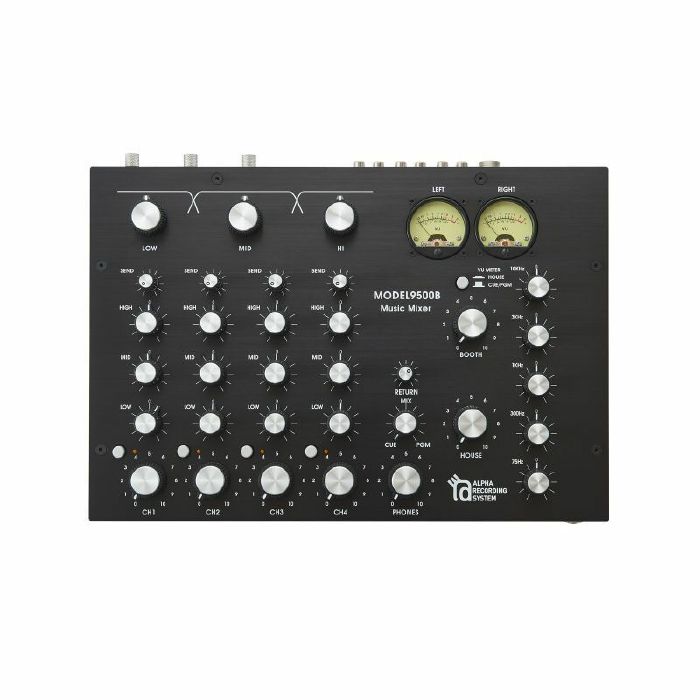

Alpha Recording System MODEL9500B 4-Channel Rotary DJ Mixer
Hand built in Japan to exacting audiophile standards, the Model9500 is a thing of beauty. Four-channel rotary design with five-band master EQ. Also available with wooden side panels.
Supplier's Notes:
MODEL9500B Music Mixer
4-channel table top mixer
MODEL9500B (broadcast mixer) Music Mixer STD
ARS MODEL 9500B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.
This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5BandPotentiometer and Switch are All ALPS .
A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship. Highly recommended.
It is designed with purist ideals with only essential features.
ARS 9500 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso and 5band EQ on the master.
The Master Isolators can be boost of cut from +18db ~.
The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~.
Each channel has Post Fader Send. also Return and Effect Loop.
* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.
* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.
Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.
Specs
Frequency Response: + / -1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop: Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch / Low-ISO / MID-EQ / HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -?.
5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band
Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V / EU-230V(Selectable)
Dimensions: (W)366 x (H)250 x (D)100 mm
Model: 9500BW
Unit weight: 5400g
ACBOX:1100g
Front Panel Colour: Black
Supplier's Notes:
MODEL9500B Music Mixer
4-channel table top mixer
MODEL9500B (broadcast mixer) Music Mixer STD
ARS MODEL 9500B DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-EQ Mid-EQ Low -Iso on each channel.
This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5BandPotentiometer and Switch are All ALPS .
A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship. Highly recommended.
It is designed with purist ideals with only essential features.
ARS 9500 has 3 band hybrid iso-EQ hi-EQ mid-EQ low-iso on each channel and 3band Iso and 5band EQ on the master.
The Master Isolators can be boost of cut from +18db ~.
The Ch hi-EQ mid-EQ can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~.
Each channel has Post Fader Send. also Return and Effect Loop.
* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.
* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.
Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.
Specs
Frequency Response: + / -1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop: Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch / Low-ISO / MID-EQ / HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -?.
5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band
Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V / EU-230V(Selectable)
Dimensions: (W)366 x (H)250 x (D)100 mm
Model: 9500BW
Unit weight: 5400g
ACBOX:1100g
Front Panel Colour: Black
