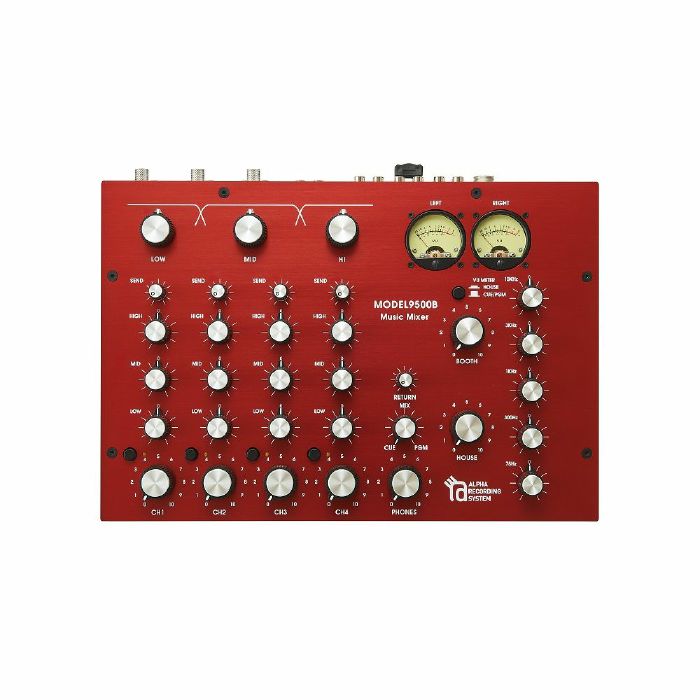

For Alpha Recording Systems' 25th birthday, the Model 9500 gets a limited-edition red paint job. Classic four-channel design with three-band EQ and world-class sound. Limited to 100 units worldwide.

Supplier's Notes:
MODEL9500 Music Mixer

4 channel table top mixer

MODEL9500 (broadcast mixer) Music Mixer STD

ARS MODEL 9500 DJ Mixer is a Japanese made, 4ch. rotary mixer with world's first 3band hybrid isoeq Hi-eq Mid-eq Low -Iso on each channel.

This 4 channel High Quality Rotary DJ Mixer has a 3 band Isolator and 5Band Equalizer on the master.

5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Potentiometer and Switch are All ALPS. A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.

It is designed with purist ideals with only essential features.

ARS 9500 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel and 3band Iso and 5band EQ on the master.

The Master Isolators can be boost of cut from +18db ~ -8.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db ~ -8.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-9500 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.

Wood is a natural material, so there may be unevenness in the wood grain. Thank you for your understanding.

Specs

Frequency Response: + / -1dB 20Hz-20Khz
Input: 3 x Phono: 47K Ohm / 5 x Line: 20K Ohm
House Output: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm
Booth Output: RCA Unbalanced Impedance 600 Ohm / XLR Balanced Impedance 50 Ohm
Effect Loop: RCA Unbalanced Impedance 20K Ohm
Effect Loop Output: RCA Unbalanced Impedance 600 Ohm
Send Output: RCA Unbalanced Impedance 600 Ohm
Return: RCA Unbalanced Impedance 20K Ohm
Isolator Frequency Response:
3band hybrid isoeq 1-4Ch / Low-ISO / MID-EQ / HI-EQ
Master 3Band Iso: 10 - 300 Hz / 300 - 3000 Hz / 3000 - 20000Hz boost of cut from +18db ~ -8.
5Band Equalizer Control: 75Hz 300Hz 1Khz 3Khz 10Khz 5Band

Headphone Monitor Trim: Cue-Mix-Pgm
Power Consumption: 30w
Power Requirement: US-115V / EU-230V(Selectable)
Dimensions: (W)366 x (H)250 x (D)100 mm
model9500BW Unit weight:5400g
AC BOX:1100g
Front Panel Colour: Red
