***B-STOCK: Box opened, product in perfect working order***


Brand new for 2021, premium rotary mixer from Japanese audiophile specialists ARS. Two-channel design with three-band EQs and three-band master isolator.

Supplier's Notes:

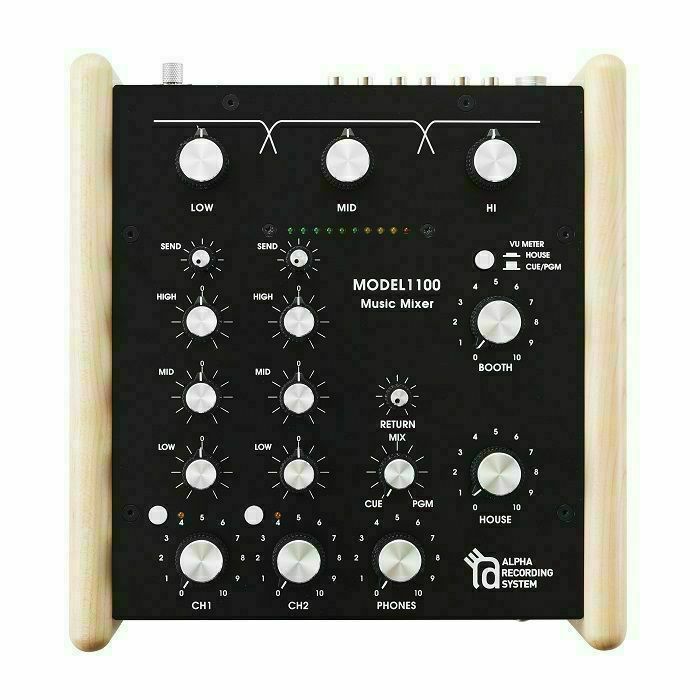

ARS MODEL 1100 DJ Mixer is a Japanese made, 2ch. rotary mixer with a 3-band hybrid isoeq: Hi-eq Mid-eq Low -Iso on each channel.

This 2 channel High Quality Rotary DJ Mixer has a 3 band Isolator on the master.

Potentiometer and Switch are All ALPS .

A long time in the development phase, this mixer is a beautiful example of Japanese hand made precision workmanship.

Highly recommended.


It is designed with purist ideals with only essential features.

ARS 1100 has 3 band hybrid iso-eq hi-eq mid-eq low-iso on each channel, aand 3band Iso on the master.

The Master Isolators can be boost of cut from +18db.

The Ch hi-eq mid-eq can boost or cut from +12db ~ -12db. LOW-ISO boost of cut from +6db.

Each channel has Post Fader Send. also Return and Effect Loop.

* Due to the Model-1100 is designed for a professional use, The body is no power switch to avoid accidentally power off while playing.

* Minimizing the power noise by designing the All circuit board and the power circuit board independently and setting them apart.


Frequency Response: +-1dB 20Hz-20Khz


Input: 2 x Phono : 47K Ohm / 2x Line: 20K Ohm


House Output: RCA Unbalanced Impedance 1K Ohm / XLR Balanced Impedance 100 Ohm


Booth Output: RCA Unbalanced Impedance 1K Ohm / XLR Balanced Impedance 100 Ohm


Tape Output: RCA Unbalanced Impedance 1K Ohm


Effect Loop: RCA Unbalanced Impedance 600 Ohm


Effect Return: RCA Unbalanced Impedance 600 Ohm


Send Output: RCA Unbalanced Impedance 600 Ohm


Retrun: RCA Unbalanced Impedance 20K Ohm


Headphone Monitor Trim: Cue-Mix-Pgm Trim


Power Consumption: 25w


Power Requirements: US-115V / EU-230V(Selectable) 50 / 60Hz


Dimensions : (W)260 x (H)250 x (D)100 mm


Front Panel Colour: Black
