AJH Synth Low Fat VCF Switchable 6dB & 12dB Slope High Pass Voltage Controlled Filter Module (black)

Click for better price or call
+44 20 7424 1960
(quote 959005)
AJH SYNTH - AJH Synth Low Fat VCF Switchable 6dB & 12dB Slope High Pass Voltage Controlled Filter Module (black)
Product image
Delivery
bestselling studio preorders
Specs
Returns & refunds
Finance
Module TypeVoltage Controlled Filter (VCF)

If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.

Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth

To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

AJH Synth Low Fat VCF Switchable 6dB & 12dB Slope High Pass Voltage Controlled Filter Module (black)

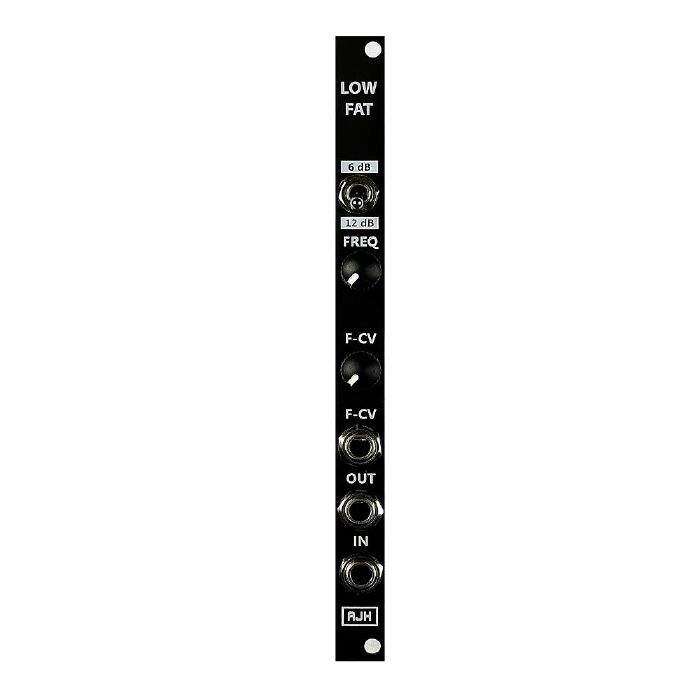

The Low Fat is a new 2hp Eurorack module by AJH Synth, it's a High Pass filter, with frequency control by either manual pot, and / or external CV with attenuator. It's intended to compliment other filters, particularly low pass VCF modules, in practical tasks such as removing excessive low frequencies, for example when the bass is swamping a mix. It can be switched between 6dB (1 pole) response and 12dB (2 pole) response.

By patching a CV signal to the FCV input it can be voltage-controlled and used musically as with any other VCF. When used in conjunction with a LP filter it forms a fully customisable band pass filter, allowing the range of passbands to be cherry-picked. Feeding in a 1V / Oct pitch CV and setting the FCV pot to a suitable level allows it to track an incoming pitch CV, so the amount of High Pass filtering remains constant as the pitch of the incoming VCOs traverse up and down the frequency range. This can be particularly useful in creating percussive sounds, such as snares and hats, but also on sequenced bass lines. Since it is only 2HP it's a great way to occupy one of those frustrating gaps in your eurorack modular case with something that is deceptively useful, and adds another dimension to the classic bass monster that is the Transistor Ladder Filter.

Dimensions:
2 HP
26 mm deep

Current Draw:
9 mA +12V
12 mA -12V
0 mA 5V
Read moreRead less
Specifications
Module TypeVoltage Controlled Filter (VCF)
