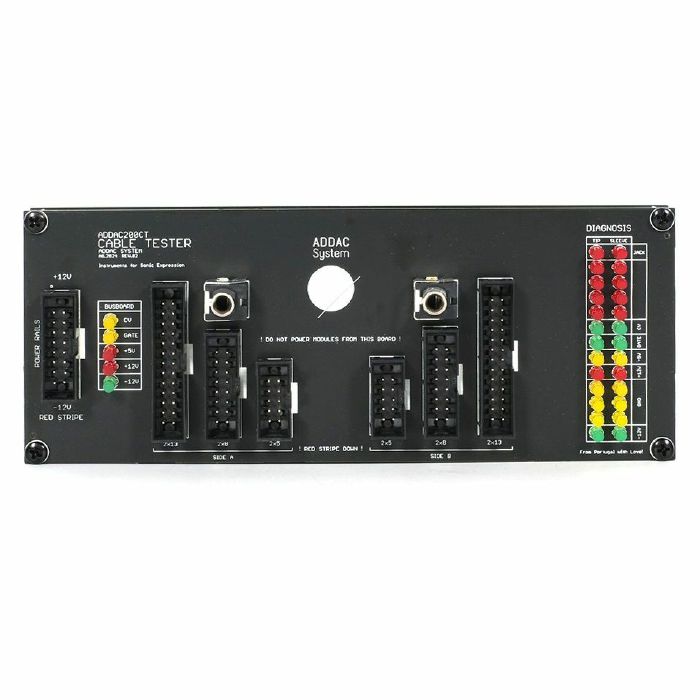

Introducing ADDAC's Cable Tester, a desktop utility that provides a reliable means to test the integrity of both mono jacks and ribbon cables, ensuring that every connection is secure and electrically sound.

Individual Wire Testing - Featuring the ability to test each wire within the ribbon cables independently with dedicated LEDs for every wire, providing a clear visual indication of the status of each connection, wires are also tested against their neighbouring wires to detect shorts.

Busboard monitor

The busboard monitor LEDs allows the user to check the state of the busboard power lines as well as the special CV / Gate functions. If the busboard has no +5v supply the led will be off likewise for the CV / Gate functions if not in use.

This is a desktop device, ADDAC provide a long power cable so that it can still be plugged into your rack.

As a safety precaution only power this board when you need to test a cable. Leaving it ON at all times can lead to unintended problematic misuses which, in a worst case scenario, can shorten your Eurorack PSU,

! WARNING !
DO NOT POWER MODULES FROM THE TEST SOCKETS!!

Compatible with all ADDAC System ribbon cables (power, expansions and interconnectivity: 112, 213, 807).

Also compatible with any standard Eurorack power ribbon cable (2x5 to 2x8 or 2x8 to 2x8).

! WARNING !
NOT ALL MANUFACTURERS FOLLOW THESE STANDARDS!
ALLWAYS NOTICE THE ORIENTATION OF THE HEADERS IF YOUR CABLE DO NOT FOLLOW THE STANDARD THEN MOST PROBABLY IS NOT COMPATIBLE.

Tech Specs:
30mA +12V
30mA -12V
