Synamodec

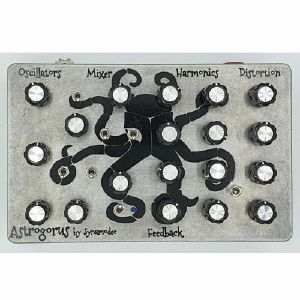

Notes: Astrogorus is an standalone compact synthesizer focused to harsh noise and drones. Huge sound with infinte possibilities. Easy to operate and built into alluminium case.

Compact synthesizer ideal for harsh noise and drones, three independent oscillators with rate control -a fourth oscillator is the sum of the three previous ones plus noise mixer of the four oscillators + noise

Six controls to select the type of noise on the fourth oscillator

Harmonics

Six band filter/eq
Feedback and level control

Distortion

Distortion level
Feedback
Two band tone control

Power supply

Transformer 24 v positive to the center (included with the device)
1/4" mono jack output

Notes: You've heard of parametric EQ, now meet the paranormal filter. Filter on steroids with experimental six-band EQ, delay and loads of LFO modulation. A powerful, creative take on a filter box.

Supplier's Notes:
Dementor Paranormal Filter is a powerful analogue filter with infinitive of option to modulate the sound, it's perfect to create field soundlandscape and introduce in the dark side of the sound with noise and harmonics feedback sounds.

The Dementor is a unique filter, EQ and delay that takes your signals and makes sure to add spice and character to your sound.

You send one or two signals through the machine by using the two independent signal inputs with level control. The special filter features cutoff and resonance control is LFO controlled - in fact, it's three LFOs for cut-off, resonance and time modulation. You also get an experimental six-band EQ called Nuances (not a usual EQ!) with level control and feedback. The echo/delay, is also LFO controlled.

Dimensions: 20 × 30 × 10 cm

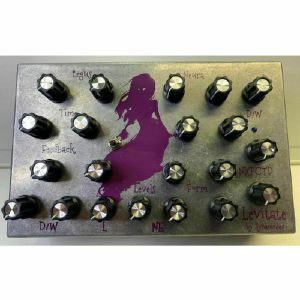

Notes: Creative little desktop noise synth based on some unique ideas. Generate tones with conventional oscillator, noise source and oscillating delay feedback, then mix it all through a final delay.

Supplier's Notes:
Synamodecs Levitate is a desktop synthesizer that is made for noise and experimental music making.

It's divided into three blocks Legus, Neura and Nxpctd. Legus consists of two delays in series. Those delays offer time, level, feedback and dry/wet parameters. Due to it's layout it is capable of generating sounds without any input signals. The ouput of the first delay can modulate the delay time of both or just the other one. The Neura section is a sound and noise generator with frequency, texture and waveform controls and outputs on two different independent outputs. Last but not least the NXPCTD block is a third delay through which the Legus ad Neura pass through. It gives control over dry/wet, time and feedback control.

Additionally the Levitate offers an external audio input for extra fun.

All in all a fun little box for weird and crazy sound exploration. Dc power adapter included.

Dimensions: 20 × 30 × 10 cm

Notes: The ultimate expansion of the original Levitate tabletop synthesizer with a huge collection of NEW Features and Eurorack patch points.

These include:

Three full signal generators - "Legus", "Neura", and "Crazy"
Mixer and lever for all stages + audio outputs per section
Phaser/Delay
VCF
Fuzz
Distortion
6 LFOs

The Levitate Expansion is presented in a Limited & Numbered edition of 3 and brought to you by the mind, passion and work of Synamodec. Manufactured the old school way by hand in Spain in the year of 2023. This is a Sound Art Machine for the times!

Dimensions: 19" x 12" x 4"

Specs

Legus

* 1 Extra out exterior
* 2 LFO included
* 1 Exterior input
* 2 Exterior CV in

Neura

* Triple oscilator
* 1 Exterior output

Crazy

* 1 Extra out exterior
* 1 LFO included
* 1 Exterior CV in
* EQ control included

VCF(2)

* Exterior signal input with level control each.
* Exterior CV in
* 2 Extra output (HP, BP)
* 2 LFO included

Phaser/Delay

* 1 Exterior CV in for delay
* 1 Exterior CV in for phaser (FB)
* 1 Extra out phaser (4P)
* 1 CV LFO for delay included
* 1 LFO included ( for modulate the CV LFO of the delay)

Mixer
Fuzz
6 band EQ/filter
Distortion

VCA
1 Exterior CV in
1 Gate/Trigg out (Sync)

Envelope

Outputs (4)

Direct out from the mixer
Out from mixer + fuzz + 6B equ
Out from mixer + distortion
Out from VCA (We can select with a switch which of the three previous outputs we introduce to the VCA)

* The four outputs are simultaneous.

Notes: Process and generate synth sounds with the unique Magnetar distortion synth, based around distortion and fuzz circuits in series. Adjustable feedback and LFO modulation give super distinctive tones.

Supplier's Notes:
Magnetar is a dual distortion synthesizer featuring distortion, fuzz (connected in series), equalization/feedback, delay, and LFO. However, the capabilities of this synth go far beyond a simple sound processor. It can generate incredible sounds without any input, simply by tweaking the controls to create unpredictable sounds, perfect for drone, ambient, noise, and more. You can see it in action in the video. It's highly recommended to read the manual carefully, as the synth is very sensitive to input level changes. The level pots not only control the levels but also produce unique textures and intriguing sound variations.

Signal Chain: IN + DISTORTION + FUZZ + DELAY + OUT EQ + FB LFO MAGNETAR

Controls:

Distortion Module: (From left to right and top to bottom) In
Input level to the distortion Dist 1
Distortion level Hue
Distortion tone (the associated switch changes the tone) Tone
Equalisation In
Input jack Mod
LFO frequency (modulates GIG) Level
LFO level (modulates GIG) Takes DC 28V Feedback
From the distortion module Out - Output NXPTD
Feedback delay D/W
Delay effect level On/Off switch BP
Unit bypass

Fuzz Module: Level
Input level (linked to the distortion input) Gain
Gain Dist 2
Fuzz distortion level Fog
Changes the fuzz tone

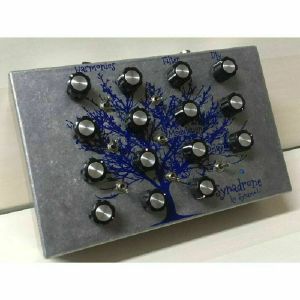

Notes: The Synadrone consists in four combined oscillators that create powerful and organic sounds.

The mix of the four oscillators as well as their arrangement can be varied by acting on the switches. Oscillators modulate each other in a complex way, but you can control the results of this modulation manually with the pots.

The oscillation section includes after the oscillation section a low pass filter with cutoff and resonance controls.

Cutoff and resonance allow to change from very powerful and "full" bass sounds to delicate and very refined highs.

It has the option to send the filter output signal to a delay, with repeat and level controls.

The Synadrone also incorporates a built-in LFO with rate and level controls to modulate the delay time.

Specifications:
Power supply +9v (center Positive)
4 oscimodulations
Filter - cutoff - resonance
LFO
Analogue delay
