Soma Laboratory

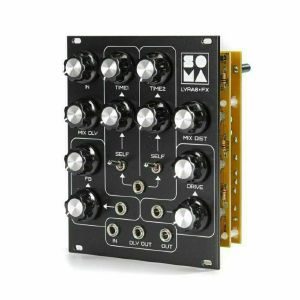

Notes: LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality - no SMD, no twisted plastic shafts.

Pots:
IN volume
Stage 1 delay time
Stage 2 delay time
Stage 1 delay time modulation depth
Stage 2 delay time modulation depth
Delay feedback
Delay feedback CV amount
Delay mix
Distortion drive
Distortion mix
Distortion drive CV amount

Switches:
- Stage 1 delay time modulation source
Stage 2 delay time modulation source

Ins:
Audio in
Delay time CV
Delay feedback CV
Distortion drive CV

Outs:
Main audio out
Delay only out

Dimensions:
Width: 20HP
Depth:40mm

Power consumption:
+12V - 90ma
-12V - 20ma

Notes: ***B-STOCK: Box damaged, product in perfect working order***


LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality - no SMD, no twisted plastic shafts.

Pots:
IN volume
Stage 1 delay time
Stage 2 delay time
Stage 1 delay time modulation depth
Stage 2 delay time modulation depth
Delay feedback
Delay feedback CV amount
Delay mix
Distortion drive
Distortion mix
Distortion drive CV amount

Switches:
- Stage 1 delay time modulation source
Stage 2 delay time modulation source

Ins:
Audio in
Delay time CV
Delay feedback CV
Distortion drive CV

Outs:
Main audio out
Delay only out

Dimensions:
Width: 20HP
Depth:40mm

Power consumption:
+12V - 90ma
-12V - 20ma

Notes: LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality - no SMD, no twisted plastic shafts.

Pots:
IN volume
Stage 1 delay time
Stage 2 delay time
Stage 1 delay time modulation depth
Stage 2 delay time modulation depth
Delay feedback
Delay feedback CV amount
Delay mix
Distortion drive
Distortion mix
Distortion drive CV amount

Switches:
- Stage 1 delay time modulation source
Stage 2 delay time modulation source

Ins:
Audio in
Delay time CV
Delay feedback CV
Distortion drive CV

Outs:
Main audio out
Delay only out

Dimensions:
Width: 20HP
Depth:40mm

Power consumption:
+12V - 90ma
-12V - 20ma

Notes: ***B-STOCK: Product has light surface marks/scratches, but otherwise in perfect working condition***


LYRA8-FX is a processor that can give you a significant part of the mysterious LYRA-8 sound thanks to the FX section from the LYRA-8, expanded with CV controls and packed into a Eurorack module.

It contains a double modulated lo-fi delay with cross-feedback and the unique possibility of self-modulation, where the delay output signal modulates its own sample rate. Also, it packs a parallel distortion with CV control of the drive. The distortion is after the delay. It's much more than a delay - you can get a simple reverb, comb filter, chorus and much more cool FXs which are hard to describe.

It has a famous LYRA-8 build quality - no SMD, no twisted plastic shafts.

Pots:
IN volume
Stage 1 delay time
Stage 2 delay time
Stage 1 delay time modulation depth
Stage 2 delay time modulation depth
Delay feedback
Delay feedback CV amount
Delay mix
Distortion drive
Distortion mix
Distortion drive CV amount

Switches:
- Stage 1 delay time modulation source
Stage 2 delay time modulation source

Ins:
Audio in
Delay time CV
Delay feedback CV
Distortion drive CV

Outs:
Main audio out
Delay only out

Dimensions:
Width: 20HP
Depth:40mm

Power consumption:
+12V - 90ma
-12V - 20ma
