Home  Labels

Feedback Modules

Receive new release alerts for Feedback Modules

Filter

Feedback Modules
Release Date
Featured
Options
Items 1 to 7 of 7 on page 1 of 1
Feedback +/- 18dB Signal & CV Amplifier/Attenuator Module
Cat: 1019353 Rel: 12 Jun 24

Signal & CV amplifier or attenuator module - 4HP
Notes: +/-18dB is an active amplifier module, capable to amplify or attenuate signals up to +/-18 decibels.

The circuit is highly optimized to work well both with audio and CV signals.

It is useful in the following situations:

- to amplify audio signals from various external sources like IPODs IPADs, portable recorders, desktop synths or drum machines to eurorack levels.

- to amplify CV signals to produce stronger modulations. For example applying a slew limiter with long attack and decay times to noise, will reduce the amplitude of the resulted signal so in many cases you may need to amplify it to produce the right modulations.

- to clip signals. For example transform a triangle signal to a trapezoid signal.

- to change the shape of an ADSR. You can clip the point where the Attack meets the Decay and modulate the audio VCA to produce a more impactful sound.

- and many more applications.

Unity amplification (what goes in equals what goes out) is when the potentiometer is at the 0 position.

+/-18dB is for line level signals so it is not optimal for microphone level signals.

CMS-LAB module

Tech specs:

-Width: 4HP
-35mm depth behind the panel
-Standard 10 pin euro power (+12V / -12V)
-Power consumption: e+12V 10mA , -12V 10mA
Read more
 1 in stock $86.30
Click for better price!
or call +44 20 7424 1960
quote 1019353
Feedback LFO-10 Low Frequency Oscillator Module
Cat: 923565 Rel: 04 Apr 23

Low frequency oscillator module - 4HP.
Notes: This little module is an evolution of the LFO of the famous MS monophonic synth from the seventies, adapted to eurorack format.

Tech specs:

4HP width
35mm depth behind front panel including the power connector
2X control pots for FREQUENCY and WAVEFORM

1X FREQUENCY RANGE switch: LOW and HIGH
LOW - 18mHz (55sec) - 0,7Hz (1.4sec)
HIGH - 0,63Hz (1.6sec) - 24Hz (42msec)

2X outputs : SQUARE 0/10V Vpp and TRIANGLE -5V/5V Vpp
standard 10 pin euro power +12V / -12V
power consumption +12V 20mA , -12V 15mA
Read more
Tags: LFO module
 1 in stock $63.05
Click for better price!
or call +44 20 7424 1960
quote 923565
Feedback Magic Ring Ring Modulator Module
Cat: 1019372 Rel: 12 Jun 24

Ring modulator module - 4HP
Notes: A ring modulator based on logic chip but with a twist.

Magic Ring will produce sounds ranging from familiar ring mod sounds to complex evolving modulated timbres.

This ring modulator is really magic because it will work with sine, triangle, saw, ramp, etc. waves, but that is not everything.

The real magic is that it will change its timbre (spectral content) depending on the position of the two SHAPE pots and/or by modulating the CV inputs.

CMS-LAB module

Tech specs:

-Width: 4HP
-35mm depth behind the panel
-Standard 10 pin euro power (+12V / -12V)
-Power consumption: +12V 20mA , -12V 15mA
Read more
 1 in stock $104.00
Click for better price!
or call +44 20 7424 1960
quote 1019372
Feedback MIX mix Stereo Bus Mixer Module
Feedback MIX mix Stereo Bus Mixer Module (dual/stereo/external/mixer synth module)
Cat: 923574 Rel: 04 Apr 23

Stereo bus mixer module - 16HP.
Notes: Premium quality stereo bus mixer module with balanced and unbalanced output drivers, high end headphone amp and level meters.

Tech specs:

- Panel width 16HP
- 45mm depth behind the panel, including the power connector
- 6 control pots : In 1,2,3,4, Master, Phones Level
- 8 input jacks
- 1 stereo output jack for phones
- 2 unbalanced 6.35mm jack ouputs
- 2 balanced XLR outputs
- standard 10 pin euro power +12V/-12V
- power consumption +12V 150mA , -12V 50mA
Read more
 1 in stock $274.38
Click for better price!
or call +44 20 7424 1960
quote 923574
Feedback Static Noise Generator Module
Feedback Static Noise Generator Module (noise/random synth module)
Cat: 923610 Rel: 04 Apr 23

Noise generator module - 10HP.
Notes: The STATIC module is a comprehensive collection of noise sources generated with different methods.

Tech specs:

-width 10HP
-38mm depth behind the panel, including the power connector
-2 control pots : MORPH, SPECTRUM
-1 switch : spectrum type TR/CHIP
-8 outputs : MSWHITE, MSPINK, ZNWHITE, ZNPINK,
DARK, MORPH, TROUT, RNDVOLT
-standard 10 pin euro power +12V / -12V
-power consumption +12V 35mA , -12V 30mA
Read more
 1 in stock $85.74
Click for better price!
or call +44 20 7424 1960
quote 923610

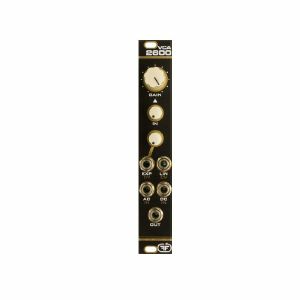

Feedback VCA2600 Voltage Controlled Amplifier Module
Cat: 923612 Rel: 04 Apr 23

Voltage controlled amplifier module - 4HP.
Notes: VCA2600 needs no introduction. The best sounding VCA in 4HP with matched and thermo coupled transistors.

Tech specs:

-width 4HP
-35mm depth behind the panel, including the power connector
-standard 10 pin euro power +12V / -12V
-power consumption +12V 25mA -12V 25mA
Read more
Tags: VCA module
 1 in stock $91.84
Click for better price!
or call +44 20 7424 1960
quote 923612
Feedback VCZIII A VCO Premium Voltage Controlled Oscillator Module
Cat: 1004970 Rel: 10 May 24

Voltage controlled oscillator module - 12HP
Notes: The VCZIII voltage controlled oscillator modules are Feedback's latest creation and are based on the VCOs of one of the most revered analogue instruments, the famous British pin matrix synth released in 1969.

The VCZIII series VCO is a result of the collaboration of Feedback modules and CMS-LAB and is a modern re-creation of those temperamental, organic and beautiful sounding VCOs from 1969 but with enhancements and adaptations to the Eurorack needs of 21st century.

There are two type of VCOs, VCZIII A based on VCO1 with variable shape SINE & SAW waveforms, VCZIII B based on VCO2 & VCO3 with variable TRIANGLE & PULSE waveforms.

Also, each VCO comes in two versions, one with normal fine tune potentiometers and one with precision multiturn potentiometer.

THIS VERSION IS WITH BOURNS MULTITURN FINE TUNE POTENTIOMETER.

Tech specs:

- 12HP width
- 35mm depth behind front panel including the power connector
- standard 10 pin euro power +12V / -12V
- power consumption +12V 50mA , -12V 30mA
Read more
 1 in stock $256.68
Click for better price!
or call +44 20 7424 1960
quote 1004970
Items 1 to 7 of 7 on page 1 of 1
