Digitech

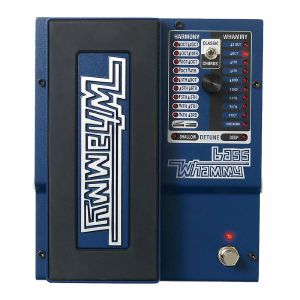

Notes: The next generation Bass Whammy uses the most advanced pitch detection and polyphonic note tracking technology to create the world's best pitch shifting effect pedal optimized for bass. The Bass Whammy maintains the classic settings from the original with many modern upgrades. With two different tracking modes, Classic and Chord, the Bass Whammy gives players the ability to recreate the shift glitch effects from the original or get the smooth pitch shift effect. Chord mode uses advanced polyphonic tracking algorithms for a more exact and smooth pitch shift effect while Classic maintains the tracking artifacts of the original Whammy. The Bass Whammy is true bypass, MIDI controllable, and uses a 9V DC power supply to easily integrate into your existing pedalboard.

What's in the box

1 x Bass Whammy
1 x Power Supply
1 x Safety Instructions & Compliance Sheet
1 x Warranty Registration Info Card
1 x DigiTech Sticker
1 x Quick Start Guide

General Specifications

Sample rate: 44.1 kHz
Frequency response: 20Hz-20kHz
Signal to noise ratio: > -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D Conversion: 24 bit
D/A Conversion: 24 bit
Power consumption: 2.4 Watts (< 265 mA @ 9 VDC)
Power requirements: 9 VDC External Adapter
True bypass: Yes. True Bypass circuitry preserves your tone when the pedal is not in use.

Dimensions

Length: 7.75" (197mm)
Height: 2.5" (64mm)
Width: 6.5" (165mm)

Audio Output

Output type: 1/4" Unbalanced TS
Max output level: +10 dBu
Output impedance: 1 kO

Audio Input

Instrument input type: 1/4" Unbalanced TS
Max input level: +5 dBu
Input impedance: 1 MO
MIDI input: 5-Pin Din

Notes: The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: ***B-STOCK: Box opened, product in perfect working order***


The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: ***B-STOCK: Box opened, product in perfect working order***


The DigiTech FreqOut Natural Feedback Creator allows you to get sweet, natural feedback at any volume, with or without distortion. The FreqOut is perfect for situations where volume must be controlled like in the studio, with in ear monitors, or low-volume performance and practice. However, the FreqOut can also be used at gig volume to focus out-of-control feedback on a preferred harmonic at any stage position. The FreqOut uses a 9VDC power supply to easily integrate into your existing pedalboard.

General Specifications
ControlsFeedback, Momentary On/Off, Dry On/Off, Gain, Onset, Type, Effect On/Off
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A Conversion24-bit
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power Adapter (Sold Separately)PS0913DC-04 (US, JA, EU, AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output Type1/4" Unbalanced TS (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input Type1/4" Unbalanced TS (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) ; True Bypass (Effect bypassed w/ Momentary switch off)

Notes: A fresh, original take on pitch shifting, the HammerOn generates hammer-on pitch shifts which alternate between two different intervals. Seven modes provide a range of effects, from simple hammer-ons to automatic techno guitar sequencing with trills.

Supplier's Notes:
Hands-free Hammer-Ons

Hammer-on notes in conjunction with your hands to create never-before-heard licks and riffs - the only limit is your imagination.

7 pedals in 1

Seven modes range from pitch jumps and harmony effects to pitch sequences and drop/capo tunings - HammerOn is like seven pedals in one.

Play the Impossible

Impossible Mode allows you to hammer-on pitch shifts that alternate between two selectable pitch amounts.

The DigiTech HammerOn is a versatile effects pedal with an amazing amount of flexibility and options to create and channel your musical ideas. Take the time to get to know the many options and see if it sparks new creative ideas.

The PITCH 1 footswitch is dedicated to always be a hammer-on selectable momentary pitch shift above or below what you are playing. PITCH 2 footswitch has 3 different modes of operation selectable using the MODE button. There is a button called DRY+ that can turn on the dry signal and a button called TRILL that can mimic rapid presses of the footswitches.

With all these options it's like having 7 pedals in one:

1. HAMMER-ON: An instantaneous momentary pitch shifter pedal
2. HAMMER-ON with TRILL: A rapid fire hammer-on action pedal
3. HARMONY-ON: An instantaneous harmony creation pedal
4. The IMPOSSIBLE Pedal: A dual alternating momentary pitch shift pedal
5. DROP/CAPO SEQUENCE: A multi-setting pitch transposition pedal
6. SEQUENCE with TRILL: An automatic guitar riff sequencer
7. SEQUENCE with DRY and TRILL: An automatic techno guitar sequencer

Specifications

Electronics
Sample Rate: 44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response: 20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio: > -106dB (A weighted); ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1kHz; ref= 1 dBu w/ unity gain
A/D/A Conversion: 24-bit

Input / Output
Input Type: 1/4" Unbalanced TS
Max Input Level: +5 dBu
Input Impedance: 1MO
Output Type: 1/4" Unbalanced TS
Max Output Level: +10 dBu
Output Impedance: 1kO (Effect enabled or effect bypassed), True Bypass

Physical

Dimensions: 5.12"(13.00cm) x 3.57"(9.06cm) x 1.84"(4.67cm) (L x W x H)
Weight: 1.12 lbs. (508g)

Power

Power Consumption: 2.3 Watts (258 mA @ 9VDC) typical
Power Requirements: External Adapter (included), 9 VDC 1300 mA

Notes: The JamMan Solo HD has all the same great features as the JamMan Solo XT including stereo looping, Micro SD/SDHC compatible memory card support, Auto Record, selectable Stop Modes, and the revolutionary JamSync feature which allows for syncing of multiple JamSync compatible devices. Even better, as its name suggests, the JamMan Solo HD features improved High-Definition audio performance with its Next-Gen HD A-D/D-A Audio Converter!

The JamMan Solo HD features 200 internal memory locations that can hold up to 35 minutes of loops. Installing a Micro SD/SDHC card into the memory card slot adds another 200 memory locations which can store over 32 hours of loops! (Compatible with Micro SD/SDHC cards up to 32Gb)

The JamMan Solo HD has USB connectivity for syncing to DigiTech's free JamManager HD software. JamManager HD organizes and saves your loops to a computer (PC) and lets you quickly create JamLists to take to your gig. The JamMan Solo HD is the perfect stereo looper/phrase sampler for practicing, composing, and performing.

Use the JamMan Solo HD to:

Record rhythm loops, then solo over them on the fly, completely Hands-Free.
Slow down or speed up the tempo of any loop without changing pitch.
Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.
Seamlessly transition between recorded loops during playback.

Next-Gen HD Audio Performance

Sound better than ever with improved high definition, low-noise, low-distortion A-D/D-A audio converter.

32 Hours of Looping Time

Compact stereo looper with 35 minutes of on-board memory, PLUS up to 32 hours of looping time with a MicroSD card. (MicroSD card not included)

Professional Drum Loops

Includes 10 carefully mastered drum loops from Pat Mastelotto (King Crimson, Stick Man, Mr. Mister).

Glitch-Free Time Stretching

Adjust the tempo of your loops anyway you like, completely glitch-free.

JamSync Enabled

Sync multiple JamSync compatible JamMan devices for multi-track looping capabilities.

JamManager HD

Connect via USB to transfer loops to and from your PC using JamManager HD.

Notes: Make your music Hypersonic

Send your tone soaring with the HyperSonic 3-octave pitch rise.

New octaver blend modes

Create never-before-heard sonic textures with new octaver blend modes.

MIDI-capable

Ready to integrate with advanced performance rigs with support for 5-pin MIDI control.

Artist-inspired design

Unique artwork and signature style make the MonoNeon Signature Whammy a bold addition to your pedalboard.

The DigiTech MonoNeon Whammy pedal goes where no whammy pedal has gone before, with new octave blend modes and up to 3 octaves of HyperSonic pitch shifting. Developed in collaboration with trailblazing bassist MonoNeon, the MonoNeon Whammy delivers mind-blowing pitch manipulation for guitar and bass alike.

Included in the box:
MonoNeon Whammy Pedal
Power Supply
User's Manual
2 Guitar Case Stickers
Warranty Registration Information Card
Special MonoNeon Customizing Kit

> Gaffer's Tape - Neon Yellow & Neon Orange
> Mini Permanent Marker

Specifications

Input / Output
Instrument Input Type: Unbalanced 1/4" TS phone jack
Max Input Level: +5 dBu
Input Impedance: 1 MO
MIDI Input: 5-Pin DIN
Output Type: Unbalanced 1/4" TS phone jack
Max Output Level: +10 dBu
Output Impedance: 1 kO

Electronics

Frequency Response: 20 Hz to 20 kHz
Signal to Noise Ratio: >105 dB (A-weighted): ref = max level, 22 kHz bandwidth
THD: 0.004% @ 1 kHz; ref =1 dBu w/ unity gain
Sample Rate: 44.1 kHz
A/D Conversion: 24-bit
D/A Conversion: 24-bit

Physical

Dimensions: 6.5" (16.51cm) x 7.75" (19.68cm) x 2.5" (6.35cm) (WxDxH)
Shipping Weight: 3.8 lbs. (1720g)

Power
Power Consumption: 2.4 W (265 mA @ 9VDC)
Power Requirements: 9 VDC External Adapter (center negative)
Included Power Adapter: PS0913DC (9V DC @ 1.3 A) center negative

Notes: The DigiTechr Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic's balanced low-end response with crisp octave shimmer produces a tone that's lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic's sound with the independent Level and Tone controls. Level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


General Specifications
SAMPLE RATE

44.1 kHz
FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)
SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A CONVERSION

24-bit
INPUT

1/4" Unbalanced (Tip-Sleeve)
OUTPUT

1/4" Unbalanced (Tip-Sleeve)
CONTROLS

Level, Tone
TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions
LENGTH

4.75" (120mm)
HEIGHT

1.75" (44mm)
WIDTH

2.875" (73mm)
WEIGHT

0.36 lb. (163g)

Notes: ***B-STOCK: Box opened, product in perfect working order***


The DigiTechr Mosaic Polyphonic 12-String effect pedal sets you upon the path of creating lush 12-string sounds with either 6-string electric or amplified acoustic guitars. Immediately identifiable 12-string tones are now yours with octave low strings and doubled high strings. Single notes and full chordal strums shine with polyphonic richness and celestial movement that will inspire you. The Mosaic's balanced low-end response with crisp octave shimmer produces a tone that's lush and articulate, just as with a 12-string guitar.

Tailor the Mosaic's sound with the independent Level and Tone controls. Level will control the 12-string effect intensity while Tone shapes the overall brightness of the effect. The Mosaic will give you a richer, more resonant and full tone than a standard six-string guitar. It is true bypass and uses a 9V DC power supply to easily integrate into your existing pedalboard.


General Specifications
SAMPLE RATE

44.1 kHz
FREQUENCY RESPONSE

20 Hz-11 kHz (Effect Enabled)
SIGNAL TO NOISE RATIO

> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD

0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D/A CONVERSION

24-bit
INPUT

1/4" Unbalanced (Tip-Sleeve)
OUTPUT

1/4" Unbalanced (Tip-Sleeve)
CONTROLS

Level, Tone
TRUE BYPASS

Yes. True bypass circuitry preserves your tone when the pedal is not in use.
Dimensions
LENGTH

4.75" (120mm)
HEIGHT

1.75" (44mm)
WIDTH

2.875" (73mm)
WEIGHT

0.36 lb. (163g)

Notes: DigiTech announces SDRUM Strummable Drums, the first-ever intelligent drum machine for guitarists and bassists. Boasting studio-quality samples and five professional sounding drum kits and BeatScratch technology, SDRUM allows users to create drum patterns by simply strumming strings.

As a player scratches across guitar or bass strings, he or she "teaches" SDRUM a kick/snare pattern that defines a desired beat. Once that pattern is established, SDRUM then enhances and enriches the beat, resulting in a realistic accompanying drum part. From the five different kits, users are able to choose sounds appropriate to a broad variety of musical styles. Via the KICK and SNARE Pads, players can audition the various kits and tap in specific beats, while the GUITAR AUDITION Button enables the user to turn the drum output on or off while strumming.

Up to 36 songs can be stored in SDRUM, and the unit supports three different components - e.g. verse, chorus, bridge - for each that can be switched on in real-time to easily facilitate live performance and aid in composition and creativity. Additionally, JamSync functionality facilitates compatibility with JamMan loopers, further boosting SDRUM's capacity in concert, practice, and studio settings.

The compact SDRUM (5.25" x 3.15" x 2.3") is similar in size to most compact effects units and fits easily on standard pedalboards. A sturdy metal chassis, robust footswitch, and four knobs (GROOVE/KIT, LEVEL, TEMPO, and HAT/RIDES) ensure that SDRUM is stage- and road-ready.

Eliminating the need to sift through libraries of rhythm patterns in search of an appropriate match for individual songs and styles, SDRUM is the fastest way to go from a beat idea to a working drum track.

BeatScratch Technology
JamSync Support
Studio-quality samples
Five drum kits
Verse/Chorus/Bridge parts
Alternate instruments/voicings
External FS3X support
Kick/Snare pads
Controls: Tap Tempo, Verse/, Chorus, Bridge, Song, Groove/Kit, Hats/Rides, Level, Temp, Alt Kit, Alt Hats/Rides, Guitar Audition, Kick Snare, Footswitch
5.25" (L) x 3.15"(W) x 2.3" (H)/ 133mm (L) x 80mm (W) x 58mm (H)
1.12 lb./.51 kg
Power Supply (external - included): PS0913DC-04 (US, JA, EU, AU, UK)
Warranty: 1 Year

Notes: The DigiTechr Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. Get down-tuned chunk without having to change guitars! The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal. Fast trills and roller-coaster pitch dips are at the tip of your toes.

General Specifications
Input1/4" Unbalanced (Tip-Sleeve)
Output1/4" Unbalanced (Tip-Sleeve)
ControlsAmount, Momentary On/Off
A/D/A Converter24-bit
Sampling Rate44.1 kHz
Power SupplyPS0913DC-01 (US, JA); PS0913DC-02 (EU, AU, UK)
Drop Tune Range1-7 Semitones Down, Octave Down, Octave Down + Dry
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.36 lbs.

Notes: ***B-STOCK: Original box damaged, product in different packagaing but in perfect working order***

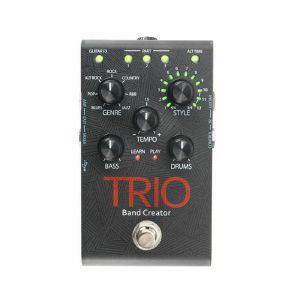

The TRIO listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into TRIO, press the footswitch to teach TRIO your chords and rhythm, then press the footswitch again to start playing with your own personal band!

The TRIO provides seven music genres to choose from including: Blues, Pop, Alternative Rock, Rock, Country, R&B, and Jazz. Up to twelve song styles are available for each genre and you can select between 3/4 and 4/4 time signatures.

The TRIO can learn up to 3 different song parts which can then be recalled on-the-fly as the song plays back. An optional DigiTech FS3X Footswitch can be connected to the TRIO for easier, hands-free selection of song parts and styles.

The TRIO offers independent Genre, Style, Tempo, Bass and Drums controls; Guitar and Control Inputs; Amplifier, Mixer and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.

*UK 3-pin power supply included

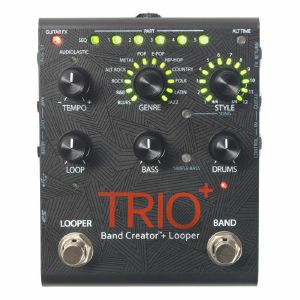

Notes: The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band! Bass and drum levels can be adjusted for the perfect mix using the TRIO+'s Bass and Drums knobs. The TRIO+ also features a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly. Press the TRIO+'s Looper footswitch to record a loop along with an unlimited number of overdubs. The Loop level can be individually controlled using the TRIO+'s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+'s Guitar FX button, or connect your favorite effects to the TRIO+'s FX Send and FX Return jacks. The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+'s Style encoder, including selection between 3/4 and 4/4 time signatures. Multi-colored LEDs around the TRIO+'s Style encoder indicate which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+'s Control In jack for additional handsfree control with 3 modes of operation to select from. Up to 12 songs along with loops can be stored to the TRIO+'s Micro SD Card (included). Need to create more songs? No problem. Just insert a new SD Card and you're ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windowsr and Macr. The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.

General Specifications
ControlsTempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
Backlit ButtonsGuitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
FootswitchesLooper, Band
LEDsGenre types, Style 1-12, Audiolastic, Looper, Band
JacksPower, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
OtherMini USB port, microSD card slot
Bit Depth24-bit
Sample Rate44.1 kHz
Signal-To-Noise Ratio110dB, A-weighted
Maximum Recording Time230 seconds per song part i based on a minimum 50 BPM and 48 bars per part
USB TypeMini-B
SD Card TypemicroSDHC, Class 10
SD Min/Max Storage Size8 GB/32 GB
Power Requirements9 VDC external power adapter
Power Consumption7.2 W
Current Draw800 mA
Dimensions
Length5.4"
Width4.25"
Height2.5"
Weight1.46 lbs.
Audio Output
Amp Output TypeUnbalanced, 1/4" TS
Amp Output Impedance1 kO
Mixer Output TypeUnbalanced, 1/4" TS
Mixer Output Impedance1 kO
FX Send Output TypeUnbalanced, 1/4" TS
FX Send Impedance1 kO
Headphone Output Type1/8" (3.5 mm) Stereo Mini Jack
Headphone Output Impedance120 O
Audio Input
Guitar Input TypeUnbalanced, 1/4" TS
Guitar Input Impedance1 MO
FX Return Input TypeUnbalanced, 1/4" TS
FX Return Impedance1 MO
Control Input Type1/4" TRS (compatible with DigiTech FS3X)

Notes: ***B-STOCK: Original box damaged, product in different packagaing but in perfect working order***


The TRIO+ is a simple-to-use guitar pedal that listens to the way you play and automatically generates bass and drum parts that match your song. Just plug your guitar into the TRIO+, press the Band footswitch to teach the TRIO+ your chords and rhythm, then press the Band footswitch again to start playing with your own personal band! Bass and drum levels can be adjusted for the perfect mix using the TRIO+'s Bass and Drums knobs. The TRIO+ also features a Simple Bass button lets you select between 3 bass line modes for busy or simple bass lines. Pushing the Band Creator™ paradigm further, the TRIO+ also allows you to loop and custom sequence your looped guitar parts to create full songs on the fly. Press the TRIO+'s Looper footswitch to record a loop along with an unlimited number of overdubs. The Loop level can be individually controlled using the TRIO+'s Loop knob. Loops can be recorded by themselves, operating just like a traditional looper, or along with the band. You can also apply built-in effects to your guitar signal by enabling the TRIO+'s Guitar FX button, or connect your favorite effects to the TRIO+'s FX Send and FX Return jacks. The TRIO+ provides 12 music genres to choose from including Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz. 12 song styles are available for each genre and can be selected using the TRIO+'s Style encoder, including selection between 3/4 and 4/4 time signatures. Multi-colored LEDs around the TRIO+'s Style encoder indicate which styles best match your song. The TRIO+ can learn up to 5 different song parts, perfect for creating an intro, verse, chorus, bridge and outro. Song parts can be recalled on-the-fly as the song plays back or pre-programmed as a sequence for automated playback. An optional DigiTech FS3X Footswitch can be connected to the TRIO+'s Control In jack for additional handsfree control with 3 modes of operation to select from. Up to 12 songs along with loops can be stored to the TRIO+'s Micro SD Card (included). Need to create more songs? No problem. Just insert a new SD Card and you're ready to start teaching the band your new songs. To manage all your songs and loops on a computer, download the free Librarian Manager software from digitech.com, available for Windowsr and Macr. The TRIO+ offers independent Tempo, Genre, Style, Loop Level, Bass Level, Drums Level, Headphone Output Level controls; Guitar, FX Return and Control Inputs; Amplifier, Mixer, FX Send and Headphone Outputs; Built-in Guitar Effects (relative to music genre); a Soft Click Footswitch and includes a 9V DC adapter.

General Specifications
ControlsTempo, Genre, Style, Loop, Bass, Drums, Headphone Volume
Backlit ButtonsGuitar FX, Seq, Part 1-5, Alt Time, Song, Simple Bass
FootswitchesLooper, Band
LEDsGenre types, Style 1-12, Audiolastic, Looper, Band
JacksPower, Control In, Guitar In, FX Return, FX Send, Amp Out, Mixer Out, Headphone
OtherMini USB port, microSD card slot
Bit Depth24-bit
Sample Rate44.1 kHz
Signal-To-Noise Ratio110dB, A-weighted
Maximum Recording Time230 seconds per song part i based on a minimum 50 BPM and 48 bars per part
USB TypeMini-B
SD Card TypemicroSDHC, Class 10
SD Min/Max Storage Size8 GB/32 GB
Power Requirements9 VDC external power adapter
Power Consumption7.2 W
Current Draw800 mA
Dimensions
Length5.4"
Width4.25"
Height2.5"
Weight1.46 lbs.
Audio Output
Amp Output TypeUnbalanced, 1/4" TS
Amp Output Impedance1 kO
Mixer Output TypeUnbalanced, 1/4" TS
Mixer Output Impedance1 kO
FX Send Output TypeUnbalanced, 1/4" TS
FX Send Impedance1 kO
Headphone Output Type1/8" (3.5 mm) Stereo Mini Jack
Headphone Output Impedance120 O
Audio Input
Guitar Input TypeUnbalanced, 1/4" TS
Guitar Input Impedance1 MO
FX Return Input TypeUnbalanced, 1/4" TS
FX Return Impedance1 MO
Control Input Type1/4" TRS (compatible with DigiTech FS3X)

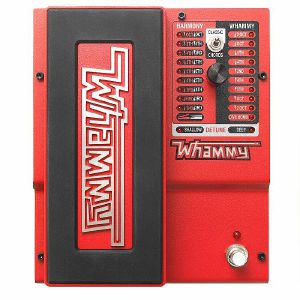

Notes: The legendary Whammy pedal is the premier pitch-shifting pedal for any guitarist's board, and it only gets better with time. In addition to the classic Whammy sound, we've added chordal Whammy pitch-shifting and true bypass.

Whammy artists have won over 60 Grammysr using its unique pitch-shifting sound to enhance their music. Its songs echo the hallways of the Rock & Roll Hall of Famer and generate acclaim on over 700 million albums around the world. There is no doubt why Whammy is one of the most common sights on guitarists' pedalboards.

The Whammy can bring new depth to your artistry. Turn your solo into raging, rebellious screams of tone or tame your crowd with highly expressive, ambient chordal bends. Energize your audience with a scratchy note frenzy, bring them in and out of the sound tunnel with musical bursts, or carry them through an existential exploration of full-fretboard pitch translation. The Whammy puts expression into the expression pedal.

Don't be the last guitarist without a Whammy! The iPB-10 unleashes the ability to create and control guitar effects like never before.

General Specifications
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D Conversion24 bit
D/A Conversion24 bit
Power Consumption2.4 Watts (< 265 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Dimensions
Height2.5"
Width6.5"
Depth7.75"
Audio Output
Output Type1/4" Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kO
Audio Input
Instrument Input Type1/4" Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MO
MIDI Input5-Pin Din

Notes: ***B-STOCK: Box damaged, product in perfect working order***


The legendary Whammy pedal is the premier pitch-shifting pedal for any guitarist's board, and it only gets better with time. In addition to the classic Whammy sound, we've added chordal Whammy pitch-shifting and true bypass.

Whammy artists have won over 60 Grammysr using its unique pitch-shifting sound to enhance their music. Its songs echo the hallways of the Rock & Roll Hall of Famer and generate acclaim on over 700 million albums around the world. There is no doubt why Whammy is one of the most common sights on guitarists' pedalboards.

The Whammy can bring new depth to your artistry. Turn your solo into raging, rebellious screams of tone or tame your crowd with highly expressive, ambient chordal bends. Energize your audience with a scratchy note frenzy, bring them in and out of the sound tunnel with musical bursts, or carry them through an existential exploration of full-fretboard pitch translation. The Whammy puts expression into the expression pedal.

Don't be the last guitarist without a Whammy! The iPB-10 unleashes the ability to create and control guitar effects like never before.

General Specifications
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D Conversion24 bit
D/A Conversion24 bit
Power Consumption2.4 Watts (< 265 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Dimensions
Height2.5"
Width6.5"
Depth7.75"
Audio Output
Output Type1/4" Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kO
Audio Input
Instrument Input Type1/4" Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MO
MIDI Input5-Pin Din

Notes: Introducing a new addition to the DigiTech Whammy Family -- Whammy DT! We've taken the premier pitch shifting effects pedal added drop tuning and true bypass to bring you the ultimate Whammy pedal, the Whammy DT. With the Whammy DT, you can modify your tuning without having to change guitars or pause awkwardly to make adjustments for the next song. Key changes are at the tips of your toes and take just moments, which is crucial when the audience is feeling your vibe. Pitch shifting effects really help your guitar performance stand out and the Whammy pedal has been the core pitch shifting effect for famous artists for over 20 years. Now add full drop and raised tuning in addition to classic Whammy shifting to your effects arsenal and find out why the Whammy DT is the premiere pitch shifting effects pedal for every guitarist.

General Specifications
D/A Conversion24 bit
Pitch Bend Range+2/-3 Octaves
Detune Range-4 to -30 cents
Drop Tune Range1-7 Semitones, Octave, Octave + Dry
Power Consumption2.6 Watts (< 288 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Dimensions
Height2.36"
Width8.2"
Depth7.73"
Audio Output
Output Type1/4" Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kO
Audio Input
Instrument Input Type1/4" Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MO
MIDI Input5-Pin Din
Footswitch Input1/4" TRS - for use with optional FS3X Footpedal

What's in the box?
1 x Whammy DT Pedal
1 x Power Supply

Notes: The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections - 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

General Specifications
ControlsBallistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
Sample Rate44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A Converter24-bit
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power SupplyPS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output1/4" Unbalanced (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input1/4" Unbalanced (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)

Notes: ***B-STOCK: Box opened, product in perfect working order***


The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections - 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.

General Specifications
ControlsBallistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
Sample Rate44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response20 Hz-16 kHz (classic mode), 20 Hz-11 kHz (chords mode)
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A Converter24-bit
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power SupplyPS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output1/4" Unbalanced (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input1/4" Unbalanced (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MO (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
