Notes: Great value multi-effects pedal based on all of Zoom's extensive experience. Chain up to nine effects including amp emulation and cabinet simulation. A proper all-rounder offering a huge range of tones.

Supplier's Notes:
Jaw dropping effects combined with powerful amp modeling, the G6 is in a class of its own.

The culmination of 30 years of Zoom's engineering know-how, passion for audio and love of guitar. The G6 is brimming with some of the best sounds you'll ever hear.

Your sounds may be complex but building them shouldn't be. With easy-to-use, application driven technology, the G6's 4.3-inch color touchscreen lets you drag, drop and swipe your way to new sounds.

All the best amps in amp history are in here (and a few new ones, too), along with 70 pre-loaded, precisely recorded impulse responses (IR) and room to add more than 100 of your own.

The G6 also delivers the ultimate collection of Zoom's legendary guitar effects and tones, including brand new Distortion and Modulation effects.

The G6 has room for 240 patches, including 100 presets so you can build patches for each song in your repertoire and easily cycle through your setlist. Create patches of up to nine effects.

The four Play Modes on the G6 will change the touchscreen and footswitch layout to give you quick access to the controls you need.

In addition to the internal 45-second looper, you can insert an SD card and record a loop up to 2 hours long. Choose the groove you want from 68 internal rhythm patterns, styles and measures.

Portable, versatile, and packed with tonal possibilities, the G6 can be tucked into a guitar bag or backpack, and off you go.

The G6 has a mono input, stereo outputs with output volume control, a mono fx loop, aux in, control in and headphone out. Using the USB port, the G6 also functions as a 2in/2out audio interface for Mac and PC.

Wirelessly connect the G6 directly to the Handy Guitar Lab app via Bluetooth. Using the optional BTA-1 adaptor, you can browse and upload/download an endless assortment of amps, effects and artists patches as provided on Guitar Lab software. Guitar Lab is also available for both PC and Mac.

What's in the Box:

G6 Multi-Effects Processor
Zoom AD-16 AC adapter
Quick guide
Steinberg Cubase LE Software

Optional Accessories:

FP02M Expression Pedal
BTA-1 Bluetooth Adapter

Specs:

MAXIMUM NUMBER OF SIMULTANEOUS EFFECTS: 7
USER PATCHES: 240
SAMPLING FREQUENCY: 44.1 kHz
A/D CONVERSION:24-bit 128x oversampling
D/A CONVERSION: 24-bit 128x oversampling
SIGNAL PROCESSING: 32-bit
FREQUENCY CHARACTERISTICS: 20 Hz - 20kHz (+0.5 db/-0.5 dB) (10k load)
DISPLAY: 4.3" TFT color LCD (480x272)

Notes: For podcasters, videographers, bloggers, journalists and more, the F2 is the perfect audio solution for creators on the move.

The F2 is incredibly small, but its audio quality will amaze you.

The F2 features 32-bit float recording technology, allowing you to record the loudest audio signals without worrying about clipping. It will also record the quietest signals in beautiful detail. And the best part is you don't have to worry about setting the gain. Just plug in the lav and hit record.

Once you start your recording, use the F2's HOLD switch to ensure you don't accidentally stop recording.

Screw-lock connectors keep your lav plugged-in securely no matter the situation.

With the F2 actors can record and playback their lines to perfect their delivery.

The F2-BT comes with built-in Bluetooth. And with the free Zoom F2 Control app the F2-BT can wirelessly start/stop recordings, display battery levels, adjust output volume, control lo-cut and more.

You can also pair the F2-BT with a Bluetooth timecode synchronization device to receive and write timecode to recorded files. See Bluetooth Control features here.

The F2 Editor for PC and Mac allows you to adjust settings, format SD cards and more. Simply connect your F2 or F2-BT via a USB cable and launch the editor. The USB connection also makes it easy to transfer files to your computer. See the F2 Editor features here.

Whether a stroll through your garden, or the whispers and shouts of a dramatic reading, the F2 provides crystal clear recordings.

The F2 can record up to 15 hours (14 hours on the F2-BT) with two AAA batteries.

Record on microSD, microSDHC, and microSDXC cards up to 512GB.

The LMF-2 omnidirectional lavalier microphone has a low-profiled design, captures high-quality audio, and includes a windscreen and lapel mic clip.

The F2 Field Recorder gives you the option to choose the recording format that works best for your projects. Choose from 44.1 kHz/32-bit float or 48 kHz/32-bit float mono WAV files.

The F2 Is Perfect For Recording Interviews Anywhere.

TECHNICAL SPECIFICATIONS

LMF-2
Lavalier mic
Connector: 3,5 mm stereo mini (with screw lock)
Directionality: Omnidirectional
Sensitivity: -32 dB/Pa at 1 kHz
Maximum sound pressure input: 115 dB SPL
Cable length: 160 cm

F2 / F2-BT
Input
Connector: 3,5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
Input impedance: 2 k? or more
Maximum input level: -5,5 dBu
Output
Connector: 3,5 mm stereo mini (with screw lock)
Maximum output level: 20 mW + 20 mW (into 32 O load)
Recording media
Cards compatible with microSD/microSDHC/microSDXC specifications (Class 4 or higher, 512 GB maximum)
Recording formats
WAV, 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported WAV
USB
USB Typ-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.
Mass storage operation: USB 2.0 High Speed
PC app operation: USB 2.0 High Speed
Power
2 AAA batteries (alkaline, lithium or rechargeable NiMH batteries)
AC adaptor
Bluetooth
Bluetooth Ver4.2

The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

External dimensions: 57,5 mm (w) x 46,4 mm (D) x 22,4 mm (H)
Weight (main unit only): 32 g

Notes: Whether you're a game developer, filmmaker or musician, virtual reality is the undeniable future of content creation. While 360-video is exploding in popularity, the ability to easily create 360-audio has lagged behind...until now.

The Zoom H3-VR virtual reality audio recorder is the complete solution for capturing and processing spatial audio for VR, AR and mixed-reality content. With a built-in Ambisonic mic, recorder and decoder, the H3-VR puts 360-audio in the palm of your hand.

In the past, capturing VR audio required a dedicated Ambisonic mic, a separate recorder and a computer for encoding the audio from raw Ambisonics A format to VR-ready Ambisonics B format. Now, with the H3-VR, all of the encoding and decoding is done on board, saving time, money and effort at every step.

Ambisonics Audio for VR:

The H3-VR's 4-capsule Ambisonic mic captures precise 360-degree VR audio recordings up to 24 bit/96 kHz. And without ever connecting to a computer, the onboard decoder allows you to export Ambisonics B-format files directly.

Binaural 3D Stereo:

The H3-VR also records stereo binaural WAV files up to 24 bit/48 kHz. Stereo binaural provides a hyper-realistic spatial recording that enhances 2D productions with 3D audio.

Standard Stereo:

The H3-VR even offers standard stereo recording for recordings that will be played out of speakers rather than headphones.

5.1ch Surround for Video:

Free to download, ZOOM Ambisonics Player software can easily convert Ambisonics audio to a 5.1ch surround file that is pre-aligned to the proper speakers, and is exported to your video or audio editor for syncing with standard video.

Live Streaming 360:

The H3-VR also enables you to live stream events in 360 degrees so that wherever your fans are, they'll have access to the best seats in the house.

Notes: A tiny but powerful field recorder capable of recording two channels in extremely high resolution. Records directly to microSD via a pair of mic/line inputs, with up to 8 hours recording time from a pair of AA batteries.

Supplier's Notes:
The small and mighty field recorder

Small design, big sound

With 32-bit float recording, the F3 effortlessly captures the quietest raindrops and the loudest explosions. Its small footprint allows for this recorder to be placed anywhere, as you capture and monitor up to 192 kHz of high-quality audio.

Focus on the scene

When you're working in the field or on set, sound levels can fluctuate often and quickly. The F3 allows you to adapt to your scene without having to set the gain or worry about clipping. In post, you'll be able to work with your capture, regardless of extremely low or high levels.

Award winning audio

Featuring the dual A/D converters and low-noise preamps found in our professional F-Series recorders, the F3 guarantees high-quality recordings in any setting or situation.

Battle tested

The F3 is built with durable side bars, standard tripod mount and slide-resistant rubber feet ensuring that you can mount it on your gear or hide it in any scene. It's sturdy metal casing and locking XLR connectors is designed for use in a variety of environments.

Wav watching

Monitor your recordings with seamless accuracy as the F3 displays your audio as real-time waveforms.

Record & listen

The headphone output allows you to keep an ear on your recordings, plus a line output enables you to go to your camera or other gear.

The F3 is well-equipped for long location shoots or remote fieldwork, with a variety of power options and massive storage.

With two alkaline AA batteries, take advantage of over eight hours of battery life.

Set yourself up for an unlimited charge via the AD-17 AC adapter or USB power supply.

Use a micro SD card up to 1TB to record over 180 hours of audio at the highest possible sample rate/bit-depth.

30' of control

Versatile control options give your production more flexibility than ever. Stay out of the shot and record from a distance of up to 30-feet (10m) using the F3 control app for iOS and Android*.
*F3 control app for Android available Spring 2022.
BTA-1 Bluetooth adapter sold separately.

Audio interface & streaming

Connect your F3 to a computer or iOS device via USB as an audio interface and record or stream up to two channels in crystal-clear 24-bit/96 kHz resolution. The loopback function allows you to combine your computer's audio with the F3 inputs to complete the sound for your stream.
*Available in 32-bit float/ 96 kHz with a firmware update in Spring 2022.

What's in the box

F3 Field Recorder
AA Batteries (x2)
Quick Tour

Specifications

Input and output channels
Inputs - MIC/LINE (mono): 2
Outputs - LINE OUT: 1, PHONE OUT: 1
Inputs
MIC/LINE (MONO)

Connectors: 2 XLR (2: HOT)

Input gain: Adjustment unnecessary (dual AD converter circuits used)
Input impedance: MIC: 3 kO or more, LINE: 3 kO or more
Maximum input level: MIC: +4 dBu,
LINE: +24 dBu

Phantom power: +24/48 V, Combined channel total of 10 mA or less

Equivalent input noise: ?127 dBu or less (IHF-A) when waveform magnification is ×1024 with 150 ? input
Outputs

Line out

Connector: 1 stereo mini jack

Maximum output level: +1 dBu

Output impedance: 100O or less
Phone out
Connector: 1 stereo mini jack
Maximum output level: 50 mW + 50 mW (into 32 O load)

Output impedance: 15O or less
Recorder

Maximum simultaneous recording tracks: 2

Maximum simultaneous playback tracks: 2

Recording format: WAV - 44.1/48/ 88.2/96/192 kHz, , 32-bit float mono/stereo,
BWF and iXML formats supported
Recording media: 4 - 32 GB cards compatible with the microSDHC specification

64 GB - 1 TB cards compatible with the microSDXC specification

Display: LCD with backlight (96×64 resolution)

USB
Connector: USB Type-C - Use a USB cable that supports data transfer. USB bus power is supported.

Audio interface operation:
USB 2.0 High Speed, 44.1/48/88.2/96 kHz, 24-bit, 2-in/2-out
Mass storage operation: USB 2.0 High Speed
Remote

Dedicated wireless adapter (ZOOM BTA-1)

Power:
2 AA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5 V/1 A
USB bus power is supported

Notes: Top quality recordings anywhere you want from Zoom's smartly designed M4, incorporating a 32-bit recording unit into a microphone format. Built-in timecode generator makes life easy for filmmakers.

Supplier's Notes:
The first portable recorder to feature both 32-bit recording and a built-in timecode generator for easy synchronisation with video. This innovative and compact recorder offers 4 tracks and is the perfect solution for musicians and filmmakers.

X/Y microphone with honeycomb protective grille
4-track recording (L+R and 2 XLR/combo inputs)
Colour LCD display (waveform display)
Time code generator (in-out) for synchronisation with video applications
4x AA battery operation (up to 18 hours)
32-bit float USB mic function for Mac/Windows and iOS/Android
Improved coating to reduce grip noise during recording

Perfect tracks. In one take.

The M4 MicTrak is the first portable recorder with 32-bit float recording and built-in timecode generator, providing everything filmmakers and musicians need for outstanding audio recording.

Audio without clipping

On set, you can't risk working with audio that is overdriven or too quiet. The M4 records with 32-bit float, which allows you to record audio perfectly in any situation, even without clipping.

Attention... And... Action!

Filmmakers can use the two XLR inputs to record dialogue, while you record atmosphere via the X/Y microphones. In post-production, the M4's built-in timecode generator makes it easy to synchronise recordings to a video.

Create great sounding music videos

Combine the audio recorded with the internal X/Y microphones with two external microphones to give your videos studio-quality sound regardless of the environment.

Wav-watching
Keep track of your tracks at all times via the M4's proprietary colour LCD display with real-time waveform display.

Extremely low hand noise

The goal in designing the M4 was to create the quietest handheld recorder ever. The unique, resiliently suspended X/Y microphones and high-gloss finish minimise hand noise, ensuring clean, clear audio at all times.

Timecode on board

Serious videographers use timecode to perfectly synchronise audio and video. The M4's built-in timecode generator provides professional accuracy of 0.2 ppm.

Powerful inputs

The M4 features two XLR/TRS inputs equipped with the same professional, low-noise preamps as the flagship F-Series recorders.

Perfect outputs

Connect the line output to your camera to record a backup or sync track to your video. Listen to recordings via the built-in headphone output.

Normalisation in one step

Save time in post-production by automatically raising or lowering the volume of your recordings to the optimum level, even without audio compression, using the built-in NORMALIZE function.

Listening options

Use the headphone output to listen to your recording, or use the built-in speaker for quick reference playback.

Six seconds for safety

The PRERECORD function captures and stores audio six seconds at a time before you press the RECORD button - perfect for any surprise recording start.

Record all day

With 18 hours of battery life, the M4 can record all day if needed.

RC4 remote control

Control your M4 from up to 5 metres away using the Zoom RC4 (sold separately).

32-bit float audio interface

The M4 can be used as an audio interface with 32-bit float technology and 4 inputs and 2 outputs.

Tech Specs

USB-C connector (2.0)
USB bus power supported
2x XLR/jack combo sockets with 48V phantom power
Recording media
4GB-32GB microSDHC cards
64GB-1TB microSDXC cards
Built-in loudspeaker
Headphone jack
Line-out
Time code in/out
Connection for Zoom RC4 remote control (not included)
Recording format: 44.1/47.952/48/48.048/96/192kHz (48kHz in audio interface mode), 32-bit float mono/stereo BWF and iXML

Whats in the box

Quick Guide
Windscreen

Optional accessories

Power supply Zoom AD-17
Zoom RC4 remote control

Notes: Great value from this compact, portable multi-track recorder. Record instruments or vocals anywhere. Pre-loaded drum loops and built-in synth instruments help you get started.

Supplier's Notes:
The R12 Multitrak - Live to make music.

The R12 is made for musicians who live to make music. And they want the freedom to make music wherever they go.

All you need on-board

Compact and mobile, you can record and mix songs without a computer. Use the R12's full-colour LCD touchscreen to cut, copy, loop, and edit your tracks.

Amazing sound

The R12 has super-clean preamps and you'll love the way they sound. With two XLR/TRS inputs, and 8 tracks of audio, the R12 is perfect for recording everything from demos to release-ready songs.

Fully loaded

The R12 includes a send effects channel offering reverb, chorus and delay with a ddedicated effects return fader. For advanced tones, you can use presets and effects from Zoom's Guitar Lab.

Take it everywhere

The R12 provides up to 5 hours on four AA batteries allowing you to bring your production anywhere. Additionally, you can use the R12 with the included AD-17 power adapter, or a USB battery.

The R12 also has pan and a 3-channel EQ for each track and a compressor on inputs 1 and 2.

Playback. Play along.

Use Sequence Play to create a playlist of your projects. Then use them as backing tracks, whether you're playing live or rehearsing a set.

It starts with a groove

With 150 preloaded drum loops in a variety of patterns and genres, the R12 provides a versatile rhythm section for any project.

Import audio files

Add additional audio samples by importing files into your R12 via Micro SD card or USB thumb drive.

From headphones to monitors

The R12 includes an 1/8" stereo headphone jack as well as dedicated 14" monitor outputs.

Interface + control surface

Use the R12 as a stereo audio interface with your favorite DAW or streaming platform, via USB-C. As a control surface, the transport controls and faders make it easy to adjust and control your software during production.

Attention to detail

Connections

Connect microphones, instruments or line level devices like keyboards, mixers and more.

Hi-Z

Input 1 on the R12 has a Hi-Z switch, allowing you to plug your guitar directly into the recorder.

Phantom Power

Both inputs on the R12 offer 48V Phantom Power for condenser microphones.

Stay in time. Every time.

Activate the fully customizable click track with the press of a button. Click balance blends the metronome with your playback audio and routes it to your headphones and/or the main outputs.

Add some synth

The R12 has 18 FM synth instruments built in. They can be played by plugging in a MIDI keyboard via USB-C or programmed using the touchscreen.

What's in the box:
R12 MultiTrak
AD-17 AC Adapter
USB Cable

Specs

INPUTS / OUTPUTS
INPUTS - MIC/LINE (mono): 2
OUTPUTS - MASTER OUT: 1
PHONES: 1

INPUTS
MIC/LINE (MONO) Connectors: 2 XLR/TRS combo jacks (Balanced, XLR: 2 HOT / TRS: TIP HOT)
Input gain: +6 ~ +50 dB
Input impedance: XLR: 3.9 kO TRS: 3.9 kO/1 MO (when Hi-Z ON, INPUT 1 only)
Phantom power: +48 V (switchable separately for INPUTS 1 and 2)
Equivalent input noise: -121 dBu or less (IHF-A) at +50 dB/150 O input
Frequency response: -1.0/+0.5 dB: 20 Hz - 20 kHz

OUTPUTS
MASTER OUT - Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +14 dBu
Output impedance: 200 O
PHONES Connectors: 1 stereo 3.5mm mini jack
Maximum output level: 45 mW + 45 mW (into 32 O load)
Output impedance: 10 O

RECORDER
Maximum simultaneous recording tracks: 2
Maximum simultaneous playback tracks: 8
Recording format: 44.1kHz, 16/24-bit, mono/stereo WAV
Recording media: Cards compatible with microSDHC specifications 4 GB - 32 GB

TRACK SETTINGS
EQ
High: 10 kHz, 12 dB, shelving
Middle: 2.5 kHz, 12 dB, peaking
Low: 100 Hz, 2 dB, shelving
Pan: L100 - R100

EFFECTS
Input Dynamics: Comp/Limiter/Gate
Patch memory effects: 3 types can be used simultaneously
50 patch memories
Guitar Lab supported
Can be assigned and used as an insert (input) or send effect
Dedicated send effects: 10 types of spatial effects

TUNER: Chromatic/Guitar/Bass/Open A/Open D/Open E/Open G/DADGAD

CLICK (METRONOME)
Time signatures: 3/4, 4/4, 6/8
Tempo range: 40.0 - 250.0 BPM

POWER
Batteries: 4 AA (alkaline, lithium, or rechargeable NiMH)
AC adapter: ZOOM AD-17 (5V/1.0A)

RHYTHM LOOPS
Sound source format: PCM
Number of loops: 150

SYNTH
Sound source format: FM
Polyphony: 8
Number of sound types: 18 (and a PCM drum kit)

DISPLAY: 2.4" (320×240) full-color touchscreen LCD

USB
CONNECTOR: USB Type-C
Note: Use a USB cable that supports data transfer. USB bus power is supported.

AUDIO INTERFACE FUNCTION:
2-in/2-out or 2-in/2-out (iPad): USB 2.0 Full Speed - 44.1 kHz, 16/24-bit
2-in/4-out: USB 2.0 High Speed - 44.1 kHz, 16/24-bit

MASS STORAGE FUNCTION
Device: USB 2.0 High Speed (5 V/200 mA power supplied when host)
GUITAR LAB CONNECTION: USB 1.1 Full Speed
DAW CONNECTION (CONTROL SURFACE): USB 1.1 Full Speed

MASS STORAGE FUNCTION
Host: USB 2.0 High Speed (5V/200 mA power supplied)

USB MIDI KEYBOARD CONNECTION: USB 1.1 Full Speed (5 V/200 mA power supplied)

ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES
During playback with +48V off and 32O headphone load
Alkaline batteries: about 5 hours
NiMH batteries (1900 mAh): about 5 hours
Lithium batteries: about 11 hours
* The above values are approximate. Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.

POWER CONSUMPTION: 5 W maximum
DIMENSIONS: 256 mm (W) × 158 mm (D) × 61 mm (H)
WEIGHT (including batteries): 827 g
NOTE: 0 DBU = 0.775 VRMS

Notes: With the Zomo Flightcase D-Live-2 NSE, you expand your DJ gear with a reliable partner that securely houses and stylishly showcases your Denon DJ SC Live 2 DJ controller. This high-quality flight case stands out for its robustness and elegance, and it belongs to the trendy NSE series - Night Style Edition, which is known for its unique aesthetics and durability.

As the ultimate protector for your DJ controller, the D-Live-2 NSE flight case takes on any challenge, whether you're traveling by car or flying. These resilient cases are ready to face any challenge and keep your valuable equipment safe from the harshest stage conditions.

Constructed from 9mm thick laminated plywood, this flight case offers an extra dose of stability. It withstands shocks, scratches, and effortlessly meets the demands of touring life. Sturdy ball corners and particularly robust, black lacquered aluminium profiles complete the durable construction and give the case an attractive and long-lasting aesthetic.

The handling of the D-Live-2 NSE flight case is incredibly easy. Before every performance, you can quickly and effortlessly remove the lid and front panel, even when the DJ controller is still inside the case. You'll always be ready to go and can fully focus on your performance.

The Zomo flight case not only excels in terms of practicality but also boasts an attractive appearance. The elegant NSE edition in black immediately catches the eye and enhances your professionalism. The convenient butterfly latches ensure secure handling by enabling easy opening and closing of the lid.

You can rely on high durability and optimal fit, providing your DJ controller with the space it deserves - safe, protected, and stylish.

Features of Zomo Flightcase D-Live-2 NSE:

Perfect fit: The Zomo Flightcase D-Live-2 NSE is tailor-made for the Denon SC Live 2 to ensure optimal protection and precision fit. Your DJ controller is always safe and well-protected.

High-quality construction: The flight case is made of laminated 9mm plywood, guaranteeing a robust and durable structure. It withstands both shocks and scratches.

Additional protection with interior padding: Interior padding protects your DJ controller from damage and unwanted influences, providing a secure and protected storage space.

Quick and easy access: The lid and front panel of the flight case can be quickly and easily removed, even when the DJ device is still inside the case. Ideal for quick access before and after performances.

Elegant and eye-catching design: The Zomo flight case captivates with its elegant design in the black NSE edition, drawing all attention and emphasizing your professionalism as a DJ.

Robust butterfly latches: They ensure a secure closure of the flight case while remaining easy to use. They also offer the option to attach an optional lock for additional security.

Transport-friendly: Integrated handles make it easy and comfortable to transport the flight case.

High lifespan: The flight case's sturdy ball corners provide additional protection against shocks and vibrations, contributing to its high lifespan.

Technical Specifications:

Suitable devices: 1x Denon DJ SC Live 2
Exterior material: 9mm plywood
Colour: Black (NSE)
Weight: 11.3 kg
Exterior dimensions: 716 (width) x 483 (depth) x 206 (height) mm
** The devices shown and/or mentioned in the photos are NOT included!

Suitable devices: Denon DJ SC Live 2
Suitable brands: Denon
Laptop shelf included: No

Notes: With the Zomo Flightcase D-Live-4 NSE, you can expand your DJ gear with a reliable partner that securely accommodates and stylishly showcases your Denon DJ SC Live 4 DJ controller. This high-quality flight case stands out for its robustness and elegance and belongs to the trendy NSE Series - Night Style Edition, which is renowned for its unique aesthetics and durability.

The Flightcase D-Live-4 NSE is the perfect shield for your DJ controller, whether you're traveling by car or air. These resilient cases are ready to face any challenge and protect your valuable equipment from the toughest stage conditions.

The flight case is made from 9mm thick laminated plywood, providing extra stability. This material safeguards against impacts and scratches, effortlessly withstanding the demands of touring. The sturdy construction is further enhanced by robust ball corners and specially reinforced, black lacquered aluminum profiles that ensure long-lasting durability while adding an attractive appearance to the case.

The Zomo Flightcase D-Live-4 NSE is incredibly user-friendly. The lid and front panel can be quickly and easily removed before each gig, even with the DJ controller still inside the case. This allows you to be ready for action at any time and focus entirely on your performance.

Not only does the Zomo Flightcase excel in practicality, but it also boasts an impressive visual appeal. Its elegant NSE Edition in black is a true eye-catcher that commands attention and emphasizes your professionalism. The case features convenient butterfly latches for secure handling, allowing for easy opening and closing of the lid.

You can rely on its high durability and optimal fit, ensuring your DJ controller receives the placement it deserves-secure, protected, and stylish.

Zomo Flightcase D-Live-4 NSE Features

Perfect fit: Custom-made for the Denon SC Live 4, the Zomo Flightcase D-Live-4 NSE provides optimal protection and a snug fit, keeping your DJ controller safe and well-protected.
Premium construction: Crafted from laminated 9mm plywood, the flight case offers a robust and durable structure that withstands both impacts and scratches.
Additional protection through interior padding: Soft interior padding safeguards your DJ controller from damage and unwanted influences, providing a secure and protected storage space.
Quick and easy access: The lid and front panel of the flight case can be quickly and easily removed, even with the DJ device still inside the case. This is ideal for fast access before and after performances.
Elegant and eye-catching design: With its sleek design in the black NSE Edition, the Zomo Flightcase captures attention and highlights your professionalism as a DJ.
Sturdy butterfly latches: These ensure a secure closure of the flight case while remaining easy to use. They also provide the option to attach an optional lock for additional security.
Transport-friendly: Integrated handles make the flight case easy and comfortable to transport.
Long lifespan: The flight case's sturdy ball corners offer additional protection against impacts and vibrations, contributing to its extended lifespan.

Technical Specifications

Compatible devices: 1x Denon DJ SC Live 4
Exterior material: 9mm plywood
Colour: Black (NSE)
Weight: 13.7 kg
Exterior dimensions: 716 (width) x 501 (depth) x 206 (height) mm

Notes: The Zomo Flightcase N-Mixstream NSE is a perfect addition for your Numark Mixstream PRO DJ controller, impressing with its robust construction and elegant appearance. This case, part of the trendy NSE series (Night Style Edition), not only offers aesthetic appeal but also demonstrates the durability of the material.

Whether you're on the road or traveling through the air, Zomo equipment cases are ready to withstand any scenario. They are built to withstand the toughest stage conditions and protect your DJ controller from any damage, scratches, or other negative influences. The Mixstream Flightcase features interior padding that provides a safe and secure home for your DJ controller.

Thanks to its 9mm thick laminated plywood construction, the Flightcase N-Mixstream NSE is immune to shocks and scratches. Its sturdy ball corners and extra strong, black lacquered aluminium profiles promise a long lifespan while giving it an appealing and attractive aesthetic.

You can simply leave the DJ device in the flightcase because the lid and front bar can be easily and quickly removed before each gig.

With its high quality and refined design in the black NSE edition, the Numark equipment case catches the eye. Its comfortable butterfly latches keep the lid securely closed but are still easy to open and close.

Features of Zomo Flightcase N-Mixstream NSE

Perfect fit: The Zomo Flightcase N-Mixstream NSE is tailored for the Numark Mixstream DJ controller series to ensure optimal fit and protection.

High-quality construction: The flightcase is made of laminated 9mm plywood, capable of withstanding both shocks and scratches. Additionally, the extra strong, black lacquered aluminum profiles enhance the durability of the flightcase.

Interior padding: An additional interior padding protects the DJ controller from damage and unwanted influences, providing a safe and secure storage location.

Easy access: The lid and front bar of the flightcase can be quickly and easily removed, even with the DJ device still inside - ideal for quick access before and after performances.

Stylish design: With its elegant design in the black NSE edition, the Numark equipment case attracts attention and underscores the DJ's professionalism.

Robust latches: The butterfly latches ensure a secure closure of the flightcase while being easy to operate. They also provide the option to attach an optional lock for further security.

Transportable: Integrated handles make it easy to transport the flightcase.

Long lifespan: The flightcase's sturdy ball corners offer additional protection against shocks and vibrations, contributing to its long lifespan.

Technical Specifications

Compatible devices: 1x Numark Mixstream Pro series
Exterior material: 9mm plywood
Colour: Black (NSE)
Weight: 9.8 kg
Exterior dimensions: 628 (width) x 426 (depth) x 203 (height) mm
** The devices shown and/or mentioned in the photos are NOT included!

Suitable devices:
Numark Mixstream Pro
Numark Mixstream Pro Go
Numark Mixstream Pro Plus

Suitable brands: Numark
Laptop shelf included: No

Notes: The Zomo Flightcase PM-A9 Plus NSE is the ideal case for your Pioneer DJ DJM-A9 mixer. The unique Night Style Edition (NSE) gives this flight case an impressive, jet-black appearance that convinces not only with its robust quality but also with its stylish look.

As a renowned manufacturer of DJ cases, Zomo ensures that its products are suitable for both road and air transport. Therefore, the DJM-A9 equipment flight case is well-equipped to handle all DJ gigs effortlessly. Excellent internal padding reliably protects your equipment from damage, scratches, or external harm and also prevents the mixer from slipping.

The PM-A9 Plus NSE flight case is made of solid, laminated 9mm plywood, giving it high shock and scratch resistance. The extra-wide, black lacquered aluminum profiles and the sturdy ball corners ensure high durability, which is essential for professional use.

In case you need access to the mixer's inputs during your performance, the front panel can be quickly and easily removed even when the DJ gear is still inside the DJ case. A special feature of the PLUS version of this flight case is the integrated, pull-out laptop shelf. It provides a secure hold for your notebook during the performance, enhancing the case's practicality.

The Pioneer DJ equipment case in the dark NSE edition not only offers professional quality but also captivates with a classic appearance that is guaranteed to catch everyone's attention. The butterfly latches ensure a secure hold of the lid and allow for easy opening and closing. For additional protection, all NSE flight cases can be secured with an optional padlock.

With the Zomo Flightcase PM-A9 Plus NSE, you'll get a professional DJ case that leaves nothing to be desired in terms of quality, design, and functionality.

Features of Zomo Flightcase PM-A9 Plus NSE

Protects your equipment from negative influences
Premium quality and craftsmanship
Most stable construction
Contemporary design
Brilliant shelf for laptops
Well-crafted internal padding
Genius ball corners for optimal shock protection
High-quality butterfly latches
Convenient carrying handles
Removable lid

Technical Specifications

Suitable devices: 1x Pioneer DJ DJM-A9
Integrated pull-out shelf for 1x notebook up to 17 inches
Outer material: 9mm plywood
Color: Black (NSE)
Weight: 15.2 kg
External dimensions: 497 (Width) x 563 (Depth) x 220 (Height) mm
** The devices depicted and/or mentioned in the photos are NOT included in the delivery!

Suitable devices: Pioneer DJ DJM-A9
Suitable brands: Pioneer DJ
Laptop shelf included: Yes

Notes: Loosely inspired by the look of the classic NS10 studio monitors, Yamaha's HS range offers much more modern sound. Punchy low end and clear highs from this 6.5-inch model.

Supplier's notes:
This second generation of 'HS' nearfield reference monitors, like their predecessors, share the same design philosophy as the legendary NS-10M studio monitors - Providing accurate signal reproduction and superior sonic performance.

The Yamaha HS7 employ a new, highly efficient tweeter providing an extended high frequency range up to 30KHz. The matching HS8S 150W powered subwoofer provides an extend bass when a well defined bottom end is required.

A low resonance enclosure built using a three way mitre joint technique ensures that the corners of the speaker are firmly anchored leading to dramatically improved durability and the elimination of unwanted resonances that can colour the original sound. Yamaha's 'Vortex Sound Control' technology is deployed to decrease unwanted airflows around the speaker ports. This in turn reduces audible noise by up to 6dB.

Product video: http://www.youtube.com/watch?feature=player_embedded&v=Dvj3StP4fVE

Notes: Everyone loves a white speaker cone, right? Firm favourites since their release in 2013, the HS7s are ideal for entry-level production use or as a monitor for home DJ setups.

Supplier notes:
Ever since the 1970's the iconic white woofer and signature sound of Yamaha's nearfield reference monitors have become a genuine industry standard for a reason - their accuracy. Unlike studio monitors with added bass or treble frequencies which may sound more flattering at first, HS Series speakers were designed to give you the most honest, precise reference possible, providing an ideal sonic platform to build on throughout the mixing process.

By combining acquired knowledge and expertise with state-of-the-art sound technologies, Yamaha's speaker engineering team have examined, then optimized, every aspect that has contributed to making these monitors the most trusted in the business. The second generation HS Series also adds a new 6.5" model to the lineup, bringing its exceptional accuracy to an even greater variety of recording environments.

Notes: The 3rd generation of the Yamaha MG Mixer brings with it some neat updated features, great build quality and the same great sound and flexibility that we have come to expect from a Yamaha mixing console. Built with a sturdy metal chassis, the MG III series mixers are designed to last.

The MG-06X is a 6 channel mixer with 2 D-Pre Mic inputs for super-quiet operation. The MG-06X has +48v phantom power for condenser mics and XLR balanced outputs to ensure that no matter how big or small your operation is, the MG06X will act as the lynch-pin mixing desk that you can depend upon.

Also on the MG06X are a bank of Yamaha SPX effects to further enhance your sound with no need to add in additional processors.

Notes: The ultimate finger drum pad

With ultra-sensitive Pads in an ergonomic layout perfect for finger drumming, the FGDP features a Tone Generator, internal speaker, and rechargeable battery that make it a true all-in-one instrument that you can play anywhere. Let your fingers make the rhythm!

Made for finger drumming

Thoughtfully designed layout and Pads for the ultimate finger drumming performance. From sampled acoustic drums that sound like they're right in front of you to powerful electronic sounds, beloved and curated by top professional artists, covering a wide range of genres. Yamaha promises uncompromising performance.

Optimised layout

Introducing a distinctive Pad layout meticulously designed for optimal finger drumming by prioritizing ergonomic comfort.

With the FGDP, you have the freedom to assign Voices to Pads according to your creative vision, but at Yamaha, we recommend the 3-finger style. Harness the power of your thumb for the kick drum, rely on the enduring middle finger for precise hi-hat control, and let your dexterous index finger bring to life the delicate nuances and intricate phrases of the snare.

The home position enables you to effortlessly execute fundamental rhythms, like 8th notes using just one hand. You can use your other hand to play on the other symmetrically laid out pads to unleash captivating back beats in 16th note or double kick styles.

Equipped with an ample number of Pads perfectly suited for finger drumming, the FGDP empowers you to deliver your finest performances, setting itself apart from conventional Samplers and MIDI Pads.

Expressive precision

Featuring cutting-edge Pads designed to capture every subtle nuance, the FGDP ensures that no detail goes unnoticed. With the powerful combination of the internal Tone Generator, you can deliver delicate performances encompassing ghost notes, impactful accents, flams, and lightning-fast rolls. Moreover, the Pads support Aftertouch, allowing for enhanced expression and enabling unique drumming techniques such as cymbal choking by applying pressure to a Pad while holding it pressed. With the FGDP, your drumming possibilities are almost limitless.

Specifications

Size/Weight

Dimensions

Width: 223 mm (8-3/4 in)
Height: 51 mm (2 in)
Depth: 223 mm (8-3/4 in)
Weight: 1.1 kg (2 lbs. 7oz)

Packing Box

Width: 282 mm (11-1/16 in)
Height: 110 mm (4-11/32 in)
Depth: 272 mm (10-3/4 in)

Pad section

Drum Pads: 18 pads
RGB square pads: 8 pads

Number of Trigger Settings:
Preset: 12
User: 50
After Touch: Polyphonic, Channel
Assignable Functions: Yes

Control Interface
Display: LCD with backlight

Tone generator
Tone Generator AWM2

Maximum Polyphony: 64 notes
Drum kits: Preset: 48 Kits, User: 50 Kits
Voices: 1,500
Kit Edit: Yes
Effects: Reverb: 11, Chorus: 10, Variation: 23, Speaker EQ: 5

Audio Files
Import limit: 100 files
sample format: WAV, AIFF (44.1 kHz, 16-bit, mono/stereo)
Maximum loadable sample time approx. 600 seconds (44.1 kHz, 16-bit, mono), approx. 300 seconds (44.1 kHz, 16-bit, stereo), approx. 20 seconds per file

Click
Tempo: 30 to 300 BPM, Tap Tempo supported.
Beat: 1 - 16
Others: Patterns (1/4, 1/4T, 1/8, 1/8T, 1/16, 1/16T, Clave)

Session Creator

Number of Session Creators: 23
Sections: Intro, Main × 4, Ending
Parts: Drum, Bass, Other × 4

Recorder
Recording time: USB flash drive approx. 80 minutes per file
Format: WAV (44.1 kHz, 16 bit, stereo)

Functions

Voices
Note Repeat: Each Pad
Humanize: Each Pad

Registration Memory
Number of Buttons: 4
Preset: 5 Banks, User: 50 Banks

Amplifiers and Speakers

Amplifiers: 2.5 W
Speakers: 4 cm × 1

Other

Connectors

Headphones: Headphones/Output (Stereo mini jack x 1)
AUX IN: AUX IN (stereo mini jack × 1)
USB: USB TO DEVICE (Type A), USB TO HOST (Micro B)

Power Supply
Power Supply: USB power adaptor 5 V/1.5 A or greater USB BC specification compatible products (Sold separately)
Internal Battery: 1,400 mAh, 4.5 Wh 3 hours
Power Consumption: 7 W

Accessories
Included Accessories: Owner's Manual, USB cable

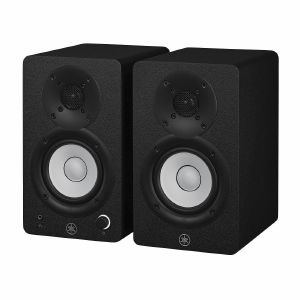

Notes: Small but serious monitors from Yamaha's wildly popular HS series. With bass all the way down to an impressively low 70 Hz, these little speakers punch above their weight.

Supplier's Notes:
High-quality compact studio monitors for the uncompromising creator

HS Series speakers have become the standard in studio monitors, trusted for many years by the world's top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS3 and HS4 are powerful tools to help create a wide range of audio content-from music production to video editing-that meets the expectations of creators who have limited space and need to keep the volume down but do not want to compromise on monitoring quality.

Sound that is always true to the original

The HS3 and HS4 continue the design philosophy and know-how of previous Yamaha studio monitors. No effort has been spared in the pursuit of the optimal product, and the resulting speakers comprise carefully selecting parts such as a high-performance class-D amp, a highly resilient MDF cabinet, and woofers and soft dome tweeters that deliver a sound that is faithful to the source despite their small size. They also feature proprietary "Twisted Flare Port" technology that reduces air turbulence noise in the bass reflex port, providing clear and accurate bass. That's the secret to why the HS3 and HS4 deliver outstanding resolution, sound image, and depth, with a flat response across all bandwidths without any colouring of the original sound.

Optimal sound tailored to your environment

The sound produced by speakers is sometimes affected by the surrounding environment.

The rear panels of the HS3 and HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.

Inputs and controls to fit any use case

The rear panel of the HS3 and HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini connectors, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features-power button, volume knob, and headphone connector-are located in the front for easy access.

Compact and portable

The compact size of the HS3 and HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

General specifications

Speaker type: 2-way powered speaker, Bass-reflex type
Frequency response (-10dB): 70 Hz - 22 kHz
Frequency response (-3dB): 85 Hz - 20 kHz
Crossover: 3.2 kHz
Maximum Output Level (Measured peak, IEC noise@1m): 100 dB SPL
Components: HF: 0.75" Dome, LF: 3.5" Cone
Nominal impedance: 6 O
I/O connectors: [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
Output power: 26 W + 26 W (Dynamic, RL=6 O), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 O)
Input sensitivity: LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
Input Level: LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
Input impedance: LINE 1 (COMBO): 20 kO, LINE 2 (RCA, ST Mini): 10 kO
Controls: Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
Indicators: Power ON (White LED)
Power requirements: Depending on area of purchase; 100-240 V, 50/60 Hz (*)
Power consumption: 15 W
Cabinet material: MDF

Dimensions

Width: L Side: 132 mm (5.2"), R Side: 132 mm (5.2")
Height: L Side: 223 mm (8.8"), R Side: 223 mm (8.8")
Depth: Side: 189 mm (7.4"), R Side: 177 mm (7.0")

Net weight: L Side: 2.8 kg (6.2 lb), R Side: 2.1 kg (4.6 lb)

Accessories: Stereo Mini - RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide
Packaging: Pair

* While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product.

Notes: High-quality compact studio monitors for the uncompromising creator

HS Series speakers have become the standard in studio monitors, trusted for many years by the world's top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS3 and HS4 are powerful tools to help create a wide range of audio content-from music production to video editing-that meets the expectations of creators who have limited space and need to keep the volume down but do not want to compromise on monitoring quality.

Sound that is always true to the original

The HS3 and HS4 continue the design philosophy and know-how of previous Yamaha studio monitors. No effort has been spared in the pursuit of the optimal product, and the resulting speakers comprise carefully selecting parts such as a high-performance class-D amp, a highly resilient MDF cabinet, and woofers and soft dome tweeters that deliver a sound that is faithful to the source despite their small size. They also feature proprietary "Twisted Flare Port" technology that reduces air turbulence noise in the bass reflex port, providing clear and accurate bass. That's the secret to why the HS3 and HS4 deliver outstanding resolution, sound image, and depth, with a flat response across all bandwidths without any colouring of the original sound.

Optimal sound tailored to your environment

The sound produced by speakers is sometimes affected by the surrounding environment.

The rear panels of the HS3 and HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.

Inputs and controls to fit any use case

The rear panel of the HS3 and HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini connectors, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features-power button, volume knob, and headphone connector-are located in the front for easy access.

Compact and portable

The compact size of the HS3 and HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.

General specifications

Speaker type: 2-way powered speaker, Bass-reflex type
Frequency response (-10dB): 60 Hz - 22 kHz
Frequency response (-3dB): 83 Hz - 20 kHz
Crossover: 2.3 kHz
Maximum Output Level (Measured peak, IEC noise@1m): 102 dB SPL
Components: HF: " Dome, LF: 4.5" Cone
Nominal impedance: 6 O
I/O connectors: [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
Output power: 26 W + 26 W (Dynamic, RL=6 O), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 O)
Input sensitivity: LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
Input Level: LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
Input impedance: LINE 1 (COMBO): 20 kO, LINE 2 (RCA, ST Mini): 10 kO
Controls: Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
Indicators: Power ON (White LED)
Power requirements: Depending on area of purchase; 100-240 V, 50/60 Hz (*)
Power consumption: 15 W
Cabinet material: MDF

Dimensions

Width: L Side: 150 mm (5.9"), R Side: 150 mm (5.9")
Height: L Side: 240 mm (9.4"), R Side: 240 mm (9.4")
Depth: L Side: 213 mm (8.4"), R Side: 203 mm (8.0")

Net weight: L Side: 3.7 kg (8.2 lb), R Side: 3.1 kg (6.8 lb)

Accessories: Stereo Mini - RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide
Packaging: Pair

* While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product.

Notes: Three-band isolator with stereo inputs and outputs, splitting the signal into highs, mids and lows then allowing you to control level and frequency via CV for some clever sound sculpting and modulation.

Supplier's Notes:
Katowice is a stereo variable-band isolator that allows the user to manipulate a selected range of frequencies. It is the first module in a series of upcoming Xaoc Devices products designed specifically for processing stereo signals.

Katowice splits the stereo input signal into three bands: low, middle, and high. While the knobs and CV inputs define the center frequency and bandwidth of the mid band, the low and high bands are automatically adjusted so that the sum of all three is a complete signal. All three bands are passed through high quality VCAs and their stereo outputs are available separately for further processing. A stereo mixdown signal is also available.

Katowice may be used as a crossover network, a parametric EQ, DJ-style kill filter, or other band-selective applications, including multiband compression and stereo enhancement.

TECHNICAL DETAILS:
Eurorack synth compatible
10hp, skiff friendly
Current draw: +100mA / -100mA
Reverse power protection

Notes: A seriously versatile filter here, much more than meets the eye. Stereo, state-variable, multi-mode design gives you huge control over frequency response and stereo image.

Supplier's Notes:
Zagrzeb is a stereo multimode 4-pole (24dB/oct) state variable voltage-controlled filter (SV VCF). It offers five distinct frequency responses, three of which are available simultaneously. Spread control allows for animation of the stereo image by moving the left and right filter cutoff frequencies in opposite directions. Zagrzeb is designed to sound smooth and clean unless it is overdriven with a hot signal- however, it does not lack character! We believe it will be appreciated by fans of old Japanese synthesizers, but bear in mind that Zagrzeb is not a clone of any existing design. The four-pole state variable structure is a new development and offers unique sonic characteristics. While Zagrzeb is designed for filtering stereo signals (e.g. samples or stereo oscillators like Xaoc Devices Odessa), it can easily handle mono signals and is capable of creating a faux stereo pair thanks to a special phase shifting network at the input.

Dimensions:
8 HP

Current Draw:
70 mA +12V
60 mA -12V
0 mA 5V

Notes: Part of Xaoc's range of modular mixing tools, the Bohumin 1966 is a commander module for Ostrawa stereo mixer modules, adding a second stereo aux bus, voltage control and manual attenuators with clickless mutes

Supplier's notes:
Bohumin [bo'xumin] is an expander for Xoac Deives' Ostrawa full stereo mixer module. By connecting to Bohumin, Ostrawa gains a second full stereo AUX bus with voltage control over the amount of the effect on each channel. Bohumin features manual attenuators for stereo returns of both AUX A and AUX B, as well as four gate inputs for automated clickless muting of each stereo input channel. Please note that Bohumin is not compatible with Ostrawa's sister module Praga. Similarly, Praga's expander Hrad cannot be connected to Ostrawa. However it is possible to chain any combination of Ostrawas and Pragas, and each of them may have its corresponding expander attached.

Technical details

10hp, skiff friendly
Power drawn from Ostrawa: +50mA/-40mA

Notes: Part of Xaoc's Leibniz Binary Subsystem, the updated Drezno ADC/DAC module builds on the original with higher resolution converters, allowing you to use it for pitch quantisation.

Supplier's Notes:
Drezno II is an improved version of the original Drezno module. It is an essential member of the 8-bit Xaoc Devices Leibniz Binary Subsystem. The Leibniz subsystem is a family of modules that operate on 8 binary (two-state, on/off) signals. These signals are arranged as 8 bits of digital data and may represent analogue signals and voltages, or they may be whatever you want them to be (clocks, gates, rhythms, etc.).

Drezno features an ADC (analogue-to-digital-converter) and DAC (digital-to-analogue-converter), allowing it to act as an analog front-end of the system. In other words, Drezno allows one to convert analogue signals and CVs into digital numbers, as well as to obtain analogue signals back from some other digital numbers (or 8 binary signals). Between these two conversions there is a whole universe of digital shenanigans waiting to happen resulting in all kinds of signal transformations and modulations.

Both (ADC and DAC) sections of Drezno can work independently, or they can be linked. Input and output range of analogue signals may be adjusted using Gain and Offset sliders. Individual bit outputs (for the ADC) and inputs (DAC) allow for extensive cross-patching and the creation of complex waveforms and rhythms. A very fast clock (up to 2MHz) at which the conversions are performed may be replaced with any external clock (for each section separately).

Compared to its predecessor, Drezno II uses new converters of much higher resolution which results in much lower noise floor and higher accuracy. The lower bits are much more stable than before. It is easy now to use Drezno for quantizing pitch voltages with accurate results with 128 or 256 semitone steps. Potentiometer ranges are factory calibrated for precise chromatic scale. A new switch on the front panel allows the user to select the calibrated range of 10Vpp or 20Vpp, so that the lowest bit or the second bit correspond to 1 semitone.

Technical details

Eurorack synth compatible
12hp, skiff friendly
Current draw: +80mA/-50mA
Reverse power protection

Notes: Part of Xaoc's Leibniz binary system, the Rostock is a digital delay line capable of processing triggers, audio, CV and video signals. Another useful module from the unique Leibniz series.

Supplier's Notes:
Rostock is a component of the Leibniz Binary Subsystem. It is a data pipeline, a FIFO (first in - first out) shift register, or a very short digital delay. The module operates similarly to a BBD delay or an ASR (analogue shift register), except that it is digital. It consists of a chain of memory cells that pass bits from one to another at each clock cycle. The delay length is variable from 1 to 64 stages (with optional looping and scrambling). It works by processing data in the Leibniz bus and must be connected to other Leibniz modules using data ribbon cables at the back. Rostock may process data sequences representing rhythms, control voltages, audio-rate signals, and even video signals because the bits can change at extreme rates (up to 2MHz). In addition, its memory may be digitally looped. Delaying and looping is a fundamental building block for sequence automation, pattern and chaos generation, and various cybernetic modular patches. Thus, Rostock is a multi-purpose open-ended device that invites creative thinking.

Technical details

Eurorack synth compatible
8hp, skiff friendly
Current draw: +70mA/-40mA
Reverse power protection

Notes: On the surface, Xaoc Devices Berlin is a simple compact VCO offering square and saw waves with hard sync, FM input and octave switching. The most interesting part lies behind the panel and that is the Leibniz Binary Subsystem interface, namely LBZ out and LBZ in. The front panel LBZ LINK button and its corresponding gate input switch between the default saw wave and a signal that has been passed through any Leibniz module (or a combination of Leibniz modules) connected to Berlin. Add Xaoc Devices Jena for wave processing and the output is no longer a simple saw wave - you now have a vintage-style wavetable oscillator with a penchant for the experimental due to its open, hackable nature.

Berlin operates in a way similar to the classic PPG Wave and Fairlight CMI synths and employs a variable sample rate of an extremely wide-range internal clock. As the sample rate changes with the oscillator frequency, Berlin's internal square and saw waves exhibit no aliasing effect. The whole frequency range spans from 30 seconds in LFO mode up to 250 kHz (!) with the clock reaching an astounding 20 MHz. Add to that voltage control over all parameters and the result is a highly versatile module capable of creating a significantly diverse palette of unusual waveforms. To better understand the device and avoid common pitfalls, it is strongly advised that you read through the entire manual before using the module.

Technical details:

8hp, 30mm deep (including the ribbon cable and bracket)
Current draw: +40mA/-20mA
Reverse power protection

Connectivity:

Berlin connects to all modules compatible with the Leibniz Binary Subsystem: Drezno II, Lipsk, Gera, Jena, Erfurt, Poczdam, Rostock, Ostankino II, and Odessa.

Notes: Javelin is a module that is basically an ADSR envelope with integrated VCA. However, it has several features that make the module an expressive sound shaping tool.

Three level ranges determine the total amplitude of the envelope, additionally three different time ranges are integrated, which can be switched between.

The accent behaviour is also unique. If several gates are applied to the Accent input at the same time, the envelope rises slightly with each gate.

Features:

Attack-decay-sustain-release envelope
Integrated VCA
Unique accent behaviour for expressive sequences
Reset input
CV control over attack and release
Looping mode for LFO-like modulations
Mode switch for gate and trigger behaviour
Linear, moderate or steep exponential shape
Short hold in the peak of the attack for more punch
Power consumption: 93mA at +12V and 65mA at -12V

Depth: 38mm

HP : 6

Notes: AXXENT is an expander module for the METRON trigger and gate sequencer and adds 16 "accent" gate outputs. Each track is specifically tied to METRON tracks, making it a very intuitive addition to any METRON sequencing ecosystem.

Use AXXENT to send signals to additional envelopes, slews, drum accents, and other gate triggered functions.

METRON will need its Firmware updated to support AXXENT.

Dimensions:
Width: 4HP (20.32mm)
Height: Eurorack 3U (128.5mm Panel, 112mm PCB behind panel)
Depth Including Cables: 43mm

Do not connect power to expansion headers.

Notes: Another update for WMD's clever dual VCA, this time a little bigger to give more control. Digital control of CV and attenuation gives lots of creative options. Third time's a charm.

Supplier's Notes:
WMD have done several designs of this circuit over the years, the first one had no knobs, the second was too small, the MKIII is finally how this circuit should be packaged. This module does some really cool stuff and is super useful in any system.

The Digital VCA lets signal through like a normal VCA, but the CV and attenuation level is controlled digitally. This lets us do things like wait until there is a zero crossing to change the amplitude, resulting in clickless amplitude changes.

The Trigger mode causes the VCA to only update when a trigger is received. The addition of a noise circuit for each side let us do a very quick and easy sample and hold that never droops. With no input, 5V is normaled to the attenuator, so you get a 0-5V sample and hold. In Bipolar mode, you can get -5 to +5V.

Both sides have bipolar VCA mode (polarizer), which lets them invert the signal when negative CV comes in. Also known as ring modulation. With the zero crossing detector, this can produce some super wild wave shapes.

Features

Dual VCA Design
Unipolar or Bipolar Operation
DC Coupled Analogue Signal Path
Low Distortion / Low Noise
VCA Closes Completely
Zero Crossing Detector Mode
Trigger Mode
Two Independent Noise Sources
8 bit CV resolution
Great for Fast Envelopes and Sine Bass Sounds

Specifications

Power: +65mA, -45mA
Width: 8HP
Depth: 35mm with cables
Height: Eurorack 3U (128.5mm)
Board Height Behind Panel: 112mm
CV/Signal Input Impedance: 100k
Output Impedance: 1k
UPD in 3.3V Threshold Schmitt Trigger
ZCD produces 15us 5V pulse
5V CV to fully open VCA
Linear VCA response
20Vpp signal handling

Notes: PM DB25 MKII is an expander output for the MKII versions of the Performance Mixer and Channels.

Pre-fade and Post-fade connections are available for all channels. The DB25 has 16 outputs. All mixer channels are stereo, so one DB25 handles the main PM MKII (either pre or post), and the DB25 can handle 2x Channels (either pre or post).

Simply connect the cable to the Pre or Post headers on the back of the PM MKII or Channels MKII modules to choose pre/post.

The PM MKII has an additional header with both Aux Sends, Master Bus, and Submix Bus.

Connect a DB25 cable of your choice to the front connector and then straight to your DAW or recording interface.

For use with original WMD Performance Mixer, an adapter board can be added on. Please note that width behind panel is increased by 8mm when adapter board is added on. This may require some clever position in your case. The original Performance Mixer still only offers Pre Fader Outputs.

Notes: Tired of spending ages just to transfer 100 tracks to your USB from Rekordbox? Most USB drives aren't designed with DJs in mind. What really impacts speed isn't always advertised many drives handle large files well (like videos) but struggle with rapid updates of multiple small files, like track metadata, cue points, and analysis data.

For DJs, efficiency is everything. Your library needs to update, transfer, and sync seamlessly - because every second on stage matters.

These drives have been pushed to the limit with over 350 hours of nonstop DJ sets across two weeks, tested on Pioneer DJ and Denon DJ standalone units and media players. They've endured intense media recording, including DJ performances and 4K ProRes video capture, alongside rigorous Stressdisk tests to verify long-term memory durability.

Designed to withstand extreme conditions, they've been exposed to high heat and dust in the Black Rock Desert, and subjected to 500+ cycles of plugging and unplugging to simulate years of real-world use. Built for DJs who demand reliability in any environment.

This drive is pre-formatted in FAT32 to ensure seamless performance across all DJ equipment. While some newer setups support ExFAT or HFS, FAT32 remains the most reliable option for full compatibility even with gear that's a few years old.

To maintain optimal performance and prevent potential library issues, it's recommended to keep 10-15% of the storage free. This ensures smooth operation and a hassle-free DJ experience.

Notes: ***B-STOCK: Box opened, light surface marks, product in perfect working condition ***


The classic Pantheon pedal gets even better with this Deluxe version. Two independent overdrive circuits give you classic Blues Breaker-style tone plus modern boutique sounds.

Supplier's Notes:
The now legendary Wampler Pantheon provided a unique interpretation of the classic "Blues Breaker" style stomp box, by capturing all the tonal nuance of the original, but with added flexibility and style. In doing so, it found its way onto thousands of pedalboards across the world. Enter the new Pantheon Deluxe - a dual overdrive pedal that takes this evolution several steps further by offering a flexible design with two completely independent Pantheon circuits, one voiced as a classic blues breaker and one with a more modern boutique sound. This palace of tone delivers a staggering 200 combinations of gain settings, featuring dual Inputs and Outputs, and for the first time ever, Wampler have added MIDI channel switching to one of their gain pedals.

The Pantheon Deluxe lets you dial in two channels of organic creamy gain, gritty overdrive, or heavy distortion while retaining Wampler's famous ease of use and flexibility. Channel 1 delivers a classic Blues Breaker tone, Channel 2 is a recreation of the original Pantheon, a similar circuit to the Blues Breaker but with a modern boutique feel. Independent side mounted Voicing and Gain Level switches allow you to further shape your tone to perfection.

DOUBLE UP

The Pantheon Deluxe lets you dial in two channels of organic creamy gain, gritty overdrive, or heavy distortion while retaining Wampler's famous ease of use and flexibility. Channel 1 delivers a classic Blues Breaker tone, Channel 2 is a recreation of the original Pantheon, a similar circuit to the Blues Breaker but with a modern boutique feel.

ALWAYS THE RIGHT FIT

Each Channel of the Pantheon Deluxe Dual Overdrive feature independent Gain, Level, Treble, and Bass controls to enhance the shaping of your tone. The Baxandall-style active Bass control is neutral at noon but boasts an extremely powerful sweep as you move through the range. A single global Presence control simultaneously alters each channel to add just the right amount of top-end chime to suit different guitars and amplifiers - perfect for when playing live or when in the studio.

MAXIMUM CONNECTIVITY

With the addition of MIDI In and Out, you can now also switch the analog channels of each circuit on and off with a MIDI switcher - saving you valuable hardware loops on your loop switcher. With dual analog inputs and outputs, you can split both channels in a loop switcher, insert pedals between each side, or run in stereo.

BUILT FOR FOREVER

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Pantheon Overdrive. We're all tone-freaks, and we're always trying new things, but we hope this pedal finds its forever home on your pedalboard, so we built it to last that long.

TECHNICAL DETAILS

Built in the U.S.A
Dual Independent drive channels using Brian Wampler's classic Pantheon circuits; Channel 1 Classic Blues Breaker voicing, Channel 2 Modern Boutique voicing.
Independent Volume, Gain, Treble and Bass controls for both channels, global Presence control, front mounted Channel Order Switch, side mounted independent Gain Level and Voicing switches, MIDI In and Out (3.5mm TRS) and 2 sets of input and output jacks.
Top-mounted jacks make pedalboard placement effortless
Power draw: 55mA
9-18V power jack: DC supply only, do not exceed 18V DC, battery Included.
Includes Wampler's limited 5-year warranty
5" x 4.5" x 1.5" (88.9mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: ***B-STOCK: Box opened, product in perfect working order***


Introducing Catacombs - a pedal that eliminates the compromise altogether. It packs 11 of the most popular delay and reverb sounds into one intuitive, powerful package. Whether you're after a trusty digital delay and a plate reverb or a musical shimmer and a spaced out echo - Wampler have you covered!

The team at Wampler have worked for a long time on ensuring Catacombs will become an indispensable part of your rig. You can run one of six delay and one of five reverb programs together simultaneously. Each program offers tap-tempo control and can be saved into one of the pedal's eight onboard preset locations for instant recall. Delays and reverbs can be run in Mono, Stereo, in parallel or in series. It's like having a studio's worth of delay and reverb effects right at your feet.

But it doesn't end there - the pedal also comes with a complete software version as a plugin for your DAW in AAX, AU, and VST3 format for both Mac and PC. The Catacombs plugin is FREE to all customers that register their Warranty online (plugin suite is $49.99 if purchased separately).

Legendary Delays

With six delay programs, you can feel the warmth and depth of analogue delays (ANLG), the harmonic nuances of a Bucket Brigade Device delay (BBD), or the nostalgic modulated vibe of classic artisanal tape and mechanical delays (TAPE). Feeling adventurous? The other-worldly Echo-Space Delay (SPC) awaits. The favourite Wampler Faux Tape Echo (FTE) and an accurate recreation of the classic 2290 digital delay (DIGI) also feature.

Iconic Reverbs

The Catacombs houses five finely tuned reverb programs. With just a twist of a knob, you'll discover expansive halls (HALL), a warm vintage plate (PLT), and that classic spring reverb (SPR) with plenty of "drip." The shimmer reverb (SHMR) allows a whole new layer of sonic texture, especially when paired with an expression pedal, and the intimate ambiance of the ROOM setting creates that perfect studio reverb.

Stompbox-like Control

Like the Terraform and Metaverse before it, the Catacombs is designed to be as quick to dial in as possible. Wampler replaced confusing menus and fiddly touch screens with clearly marked knobs you can adjust on the fly. Controls for Time, Feedback, Modulation, and Level (with Alt functions for each effect type) put all the essential tools right at your fingertips. Each setting offers tap-tempo control and can be easily saved into one of the pedal's eight front panel preset locations for instant recall. It's like having a studio's worth of delay effects right at your feet.

Digital Power with an Analogue Soul

The Catacombs uses a high-performance DSP engine to bring each effect to life with authentic character and gives you eight front panel preset locations where you can save and instantly recall your favourite settings. If you're looking to expand even further, you can access up to 128 presets with full MIDI control, it has configurable mono and stereo routing, a parallel or series switch, and an assignable expression pedal input to control any parameter (or multiple parameters).

Notes: When Wampler decides to jump into the multiFX market, they do it in style. 11 custom designed effects blocks, from Flanger to Phaser, Chorus to U-Vibe, Harmonic Tremolo to Envelope Filter, you know everything about it is going to be perfect.

In one incredibly small package, you can control any of the 8 presets via midi, you can assign an expression pedal to control ANY of the main five controls, you can run it in full glorious stereo or keep it in mono - you can even split that mono signal to route some effects to go before your drive pedals, or amp gain, and have the rest follow behind or in your effects loop!

When you put the Terraform into your rig, you know that not only will you get that legendary Wampler tone, but you will get the most easy to use, hugely versatile and best sounding collection of modulations you could ever want.

Each of the 11 effect blocks have been designed and realized in-house by the tone chasing freaks at Wampler. Each one has been inspired by many individual stomps, both modern and vintage, to bring you the best version of them all.

There are 8 presets to store your favorite sounds - you can recall them via the fully mappable midi, via the button on the front and even from the stomps! The expression pedal can control ANY of the 5 controls and you can even set the heel and toe point!

If you want true Stereo, you got it - You want basic mono, you got it.. You can even split that mono signal so you can put some effects in front of your drive section and the others behind, or going into the front of your amp with the rest in the effects loop. However you like to route your signal, the Terraform has you covered.

Brian Wampler's attention to detail and commitment to bringing you the best-sounding & most usable Effects Boxes on the market is nothing new. Those qualities are on full display within the Terraform. We're all tone-freaks, and we're always trying new things, but Wampler hope this pedal finds it's forever home on your pedalboard, so it was built to last that long.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: How many times have you sat in front of your favorite ambient pedal and felt like you need weeks of training at NASA to use it? Knobs, switches, sliders - It's often SO hard and frustrating to find a usable tone on those things quickly - Keeping that firmly in mind, when Wampler first considered making an ambient pedal, ease of use was a top priority, right up there with top tier quality tone on par with pedals at twice the price.

How do you describe a pedal like the Wampler Ethereal? Does ambient heaven cover it? Is it the gateway between real life and the astral plane? Or is it just gorgeous? It's hard to know which phrase to use when talking about it, because they all match it perfectly - plus, of course, so easy to use you'll be getting those perfectly Ethereal tones instantly.

When designing the Ethereal these were the EXACT thoughts running through the mind of Brian Wampler. He wanted to make a delay that is as pure as you could want, with a time of up to 1s, a reverb that is thick and then have the option to mix them all up and put them together in one glorious effect that will send you away - all the way away while making it as easy to use and easy to find those perfect tones as possible.

It's been a bit of a secret, there isn't one delay lurking within the Ethereal, there are two! The first delay constantly sits there like a heartbeat, coming back at you at quarter notes, Wampler then layer another over the top - that one can be put into a triplet pattern, or a dotted 8th (so you can get that beautiful quarter + dotted 8th mix) and even a self-oscillating dotted eighth pattern that just takes you away and leads you over the edge and down the rabbit hole into perfect ambience - Things can get a little crazy when that one is selected, so you know, knock yourself out - it's there to make some incredibly strange yet beautiful sounds - See that little switch down there? Yep, that's the one, just to the right of the stomp - that's a trails button. When this is used the delay patterns and reverbs sing out after the pedal has been deactivated, so you can even control what you want to come back at you.

While you are enjoying the delay patterns, sitting underneath is that beautifully cavernous plate style reverb that is alive with character and shape, that can be brought in to exactly the right level (whether that be under your guitar, the same level - unity, or even considerably louder) to compliment the delay.

As you can imagine, this has been some feat of engineering (definitely worth waiting for) as we wanted all this to happen from a regular sized box, with the purity of tone and response you would expect from a Wampler. So, as with our other time pedals, we split the signal going in, the effected signal is then laid back on top of the original base tone, making sure that YOUR guitar sounds exactly how it does going in.

The Wampler Ethereal. Not only can it be used a stand alone reverb or delay pedal, it can be combined for you to worship, to get lost in, to even help you inspect your shoes - but most of all, it was designed to inspire.

Technical Details

Built in the U.S.A.
High grade components picked for their superior sound and response
Relay true bypass with soft switch (buffered bypass in trails mode)
Top mounted input and output jacks 9v power jack
Power draw: 64mA (at 9v) and 68mA (at 18v)
Allows for you to use reverb and two delays simultaneously
Maximum 1 second delay
Second delay can be layered on top in 3 different patterns
Relay True/Buffered Bypass
Includes Wampler's limited 5-year warranty
2.50" x 4.50" x 1.5" (63.5mm x 114.3mm x 38.1mm) - height excludes knobs and switches

Notes: Introducing Catacombs - a pedal that eliminates the compromise altogether. It packs 11 of the most popular delay and reverb sounds into one intuitive, powerful package. Whether you're after a trusty digital delay and a plate reverb or a musical shimmer and a spaced out echo - Wampler have you covered!

The team at Wampler have worked for a long time on ensuring Catacombs will become an indispensable part of your rig. You can run one of six delay and one of five reverb programs together simultaneously. Each program offers tap-tempo control and can be saved into one of the pedal's eight onboard preset locations for instant recall. Delays and reverbs can be run in Mono, Stereo, in parallel or in series. It's like having a studio's worth of delay and reverb effects right at your feet.

But it doesn't end there - the pedal also comes with a complete software version as a plugin for your DAW in AAX, AU, and VST3 format for both Mac and PC. The Catacombs plugin is FREE to all customers that register their Warranty online (plugin suite is $49.99 if purchased separately).

Legendary Delays

With six delay programs, you can feel the warmth and depth of analogue delays (ANLG), the harmonic nuances of a Bucket Brigade Device delay (BBD), or the nostalgic modulated vibe of classic artisanal tape and mechanical delays (TAPE). Feeling adventurous? The other-worldly Echo-Space Delay (SPC) awaits. The favourite Wampler Faux Tape Echo (FTE) and an accurate recreation of the classic 2290 digital delay (DIGI) also feature.

Iconic Reverbs

The Catacombs houses five finely tuned reverb programs. With just a twist of a knob, you'll discover expansive halls (HALL), a warm vintage plate (PLT), and that classic spring reverb (SPR) with plenty of "drip." The shimmer reverb (SHMR) allows a whole new layer of sonic texture, especially when paired with an expression pedal, and the intimate ambiance of the ROOM setting creates that perfect studio reverb.

Stompbox-like Control

Like the Terraform and Metaverse before it, the Catacombs is designed to be as quick to dial in as possible. Wampler replaced confusing menus and fiddly touch screens with clearly marked knobs you can adjust on the fly. Controls for Time, Feedback, Modulation, and Level (with Alt functions for each effect type) put all the essential tools right at your fingertips. Each setting offers tap-tempo control and can be easily saved into one of the pedal's eight front panel preset locations for instant recall. It's like having a studio's worth of delay effects right at your feet.

Digital Power with an Analogue Soul

The Catacombs uses a high-performance DSP engine to bring each effect to life with authentic character and gives you eight front panel preset locations where you can save and instantly recall your favourite settings. If you're looking to expand even further, you can access up to 128 presets with full MIDI control, it has configurable mono and stereo routing, a parallel or series switch, and an assignable expression pedal input to control any parameter (or multiple parameters).

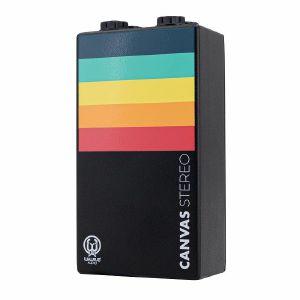

Notes: Consider this your clean slate. The Canvas Stereo is a Direct Box/LIne Isolator designed to remove any resistance between you and your audience by giving a pristine, sonic foundation to build your stereo masterpiece upon. From houses of worship to the dive bar downtown, Canvas Stereo is built to be the performance tool that goes wherever you are making your music.

Canvas Stereo is a Passive Line Isolator (LI) and Direct Injection (DI) device that converts your unbalanced signals into balanced signals for interfacing properly with your recording interface or mixer at front-of-house. If you're using an amp-in-a-box (DSP Guitar Rig), like our ACS1, keyboards, or any other instrument utilizing both left and right outputs, then the Canvas Stereo is your new bridge to the front-of-house. The Canvas Series DIs pack everything you need from a DI/LI into a standard pedal-sized enclosure designed to look great right on top of your board.

Direct Injection:
Use DI mode when connecting an unbalanced, high impedance source (Electric Guitar, Bass Guitar, etc). The signal will be reduced by -20dB (-35dB with pad engaged) and converted to a balanced signal via the transformer connected to the XLR output. Use the gain on your mixer or preamp to bring up to line level.

Line Isolator:
Use the LI when needing to connect your unbalanced, low impedance source (Amp + Cab Sim like the ACS1, keys, etc.). The signals will remain full volume and be converted to balanced signals via the transformer connected to the XLR output. Less preamp gain will be required in LI.

DI or LI?
When deciding between DI or LI, check with the manufacturer of your gear to find the output impedance of the device you are wanting to interface. For a general guide:High Impedance = anything above 1k = Use DILow Impedance = less than 1k = Use LI .

Troubleshooting:
This is a passive device, so you will not damage anything if connected improperly, but it could affect the signal level and frequency response if not connected properly. This is an easy thing to test since the LI/DI switch is built into Canvas. If you lose high-frequency information when using LI mode, then you should probably be in DI mode.

Notes: Delay and granular sampling combine to create unique ambience effects, creative reverbs and glitchy chaos. Hugely versatile pedal with five contrasting programs.

Supplier's Notes:
In the high woodlands of the north, undiscovered by most inhabitants, there ruled a clan of old, mystic Treefolk. On the first new moon of spring, these Treefolk could be heard grafting limbs to grow their young - splicing bits of branches from each generation to produce the next line of Treefolk. These new beings keep the lifeblood of all who came before in their new skin. These sounds are in part very old, but in part very new. They are referred to as... Fable.

Let your storybook adventure grows with the Fable Granular Soundscape Generator. The Fable gives you five all-new programs centered around sample and chop delay algorithms to create bizarrely beautiful networks of sampled and resampled sounds. The Fable uses a powerful dual DSP architecture to combine delay programs in series with granular sampling algorithms, each with its own analogue feedback path. Find unique soundscapes ranging from smooth, flowing ambience; to bizarre, organic reverberance; to chaotic, glitchy swarms.

So, what exactly is this granular effect and why is it a magical experience when combined with delay? Granular is a digital processing technique of micro-sampling, wherein short samples called grains are read from a delay buffer. In the Fable, players can adjust these grains by manipulating their sampling length, position, and buffer size from which they're read. They can be played at double or half speed for pitch shift and time stretching effects, play them in reverse, read from multiple positions, and more, in order to achieve different effects.

It's a powerful but complex technique and Walrus Audio created five streamlined programs in the Fable that explore different aspects of its sonic range.

Programs

I. Reverse Delay into Reverse Granular

Program 1 runs a reverse delay into a reverse granular algorithm, in which sampled grains are played backwards. Reversal and re-reversal build up in the feedback paths, creating a complex and organically shifting soundscape. Turn grain size down for long, smooth reversed transients, and grain size up for stuttering reverse glitch madness.

II. Forward Delay into Octave Up Granular

Program 2 runs a forward delay into an octave-up granular program, in which sampled grains are played at double speed. Swarms of double-speed grains build up in the feedback path for bright and airy cascades of sound.

III. Analogue Delay into Octave Down Granular

Program 3 runs a warm, dark analogue-style delay into an octave-down granular program, in which sampled grains are played back at half speed. Slowed down repeats combine with analogue-style processing to create deep, thunderous footfalls and thick, murky ambience.

IV. Multi-Tap Granular into Multi-Tap Granular (Grain-Verb)

Program 4 runs two multi-tap granular algorithms in series, in which multiple samples are played back from each granular buffer simultaneously. Multiple points of sampled sound build upon each other in the feedback paths to create glitchy clouds and unique organic reverberance. Time in this program controls time-stretching of both granular algorithms, changing both the length and tonal character of the granular effect.

V. Forward Delay into Randomized Pitch Granular

Program 5 runs a forward delay into a randomized pitch granular program, in which each grain is played back at a randomly selected speed and direction, varying between pitched up double speed, pitched down half speed, normal speed, plus forward and reversed playback from grain to grain. Pitch changes with each new grain, so play with the X knob in this program to control the rate of randomized pitch modulation.

Notes: Reverb and reverse delay go to the next level with this "ambient creation machine". Two DSP circuits with analogue feedback allow you to create epic soundscapes, time-stretching effects and more.

Supplier's Notes:
Once upon a time, in a fairy tale world, there stood a hidden forest. On the eve of every full moon, magical and delicate sounds of light were heard bouncing and reverberating through the trees. These sounds carry artifacts of notes moving backward and stretching through time. They are referred to as... Lore.

Create the soundtrack to your storybook adventure with the Lore Reverse Soundscape Generator. Made up of five different programs, each utilizes different combinations of delay and reverb that feed into each other for time-warping ambient creations. Featuring two DSP chips running in series, each with their own analogue feedback path, the Lore takes you on an adventurous journey rich with themes of reversing, time-stretching, pitch-shifting, and vast ambiance.

Having two analogue feedback paths allows each program to incorporate a unique mix of affected and unaffected feedback. The two feedback paths interact and build off of each other organically, offering the user a wide array of sounds and behaviours to experiment with.

Programs:

I. Reverse Delay into Reverse Reverb: Program 1 combines reverse delay with reverse reverb with a focus on organically interacting feedback paths. Space and ambiance build as the signal is reversed, re-reversed, reverberated, and reversed again within the feedback network. Experiment with the X knob to control how reversed your delay trails are with left being least reversed and right being fully reversed. Lots of fun with big, eerie minor chords!

II. Reverse Delay into Octave Up Reverb: Program 2 is a "light reverb" that combines octave-up harmonic feedback with an expansive, airy, reverb tank to create a breathy, spacious ambiance. Use the Regen knob to introduce a playful shimmer into the reverb decay. Increase the X knob to control the decay of the reverb. It sounds especially great with delicate fingerpicking parts.

III. Reverse Delay into Octave Down Reverb. Program 3 is a "dark reverb" that combines octave down harmonic feedback with heavy filtering and harmonic distortion, to create a sound that is thick, rich, and murky. Use the Regen knob to bring a lower octave into the reverb decay. Increase the X knob to control the decay of the reverb. Add in some high gain or fuzz to alter the time-space continuum.

IV. Reverse Reverb into Forward Reverb. Program 4 is a dual reverb program, featuring reverse reverb into forward reverb, Dual harmonic feedback paths allow the user to dial in octave up and octave down, and time stretching allows for control of the size and character of the space. Perfect for instantly transforming guitar into rich ambient pads. Use the Feedback knob to add a lower octave to the reverse reverb. Conversely, use the Regen knob to add an octave up to the reverse reverb decay. Control the decay of the forward reverb with the X knob. To channel all things ambient, experiment with dynamic picking and strumming techniques with the mix fully wet for ethereal drones and pads.

V. Pitch Delay into Pitch Delay. Program 5 features two "duelling" pitch delays, which shift the input signal up and down in complementary or opposing directions, allowing the user to create intricate harmonic patterns in the feedback network. Behaves like a sequencer at higher delay times and like a harmonizer at lower delay times. Use Feedback and Regen knobs to control various amounts of pitched delay repeats. Use the X knob to change the order of the 4th, 5th, and octave intervals that the pitch delay steps through. Experiment with short staccato notes to create some very interesting rhythmic parts!

Dive / Rise - Holding down the tap tempo switch will momentarily shift the clock rate of the pedal down or up and will hold it at that rate for as long as the switch is pressed. The direction of the dive can be changed by simply pressing bypass and tap simultaneously. A green LED over tap will indicate rise is set and a blue LED will indicate that dive is set.

The Mod knob will control the amount of modulation applied to the wet signal. Holding down bypass and adjusting the Mod knob will adjust the modulation rate. The bypass LED will blink to show your set mod rate.

Specs:

The Lore comes coated in a muted green enclosure with Cream, Orange, brown and dark green ink with art by David Huttner.
The die-cast enclosure's exact size is 3.62" x 4.79" x 2.25" including knobs.
Buffered bypass.
Power requirements are 9VDC, center negative (300mA minimum).
The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended.
Power supply not included.

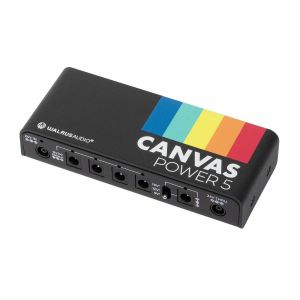

Notes: Canvas Power Supplies bring simplicity and modularity to powering your pedalboard. Delivering up to 500mA of silent, isolated, and clean 9V power to each output, these power supplies are perfect for the modern pedalboard. The Canvas Power series is built using modern switch mode supply architectures. This means each output is isolated, highly efficient, and heavily filtered ensuring they supply plenty of power with incredibly low noise.

Each model is available for purchase as a standalone power supply or as a linkable unit to another supply via 24v power link, allowing Canvas Power to grow with your power needs without adding another cable you need to plug into the wall.

Note: to purchase a Canvas Power 5 Link select the Link option AND 24v Link Cable option together before adding to your cart.

The super slim design allows Canvas Power Supplies to fit under nearly any pedalboard, and the included universal mounting brackets mean you don't have to worry about your power supply staying put when you're hustling to your next gig.

The onboard LED power meter lets you clearly see how much power consumption is remaining, and each output has its own LED indicator letting you know when it's sending power.

Walrus Audio have also developed custom 2.1mm barrel cables with a 90-degree plug on one end, and the all-new super short straight plug on the other, giving you the maximum flexibility for fitting these power supplies into tight spaces. Of course, they all accept standard 2.1mm barrel cables as well, but they won't be nearly as cool.

Canvas Power 5 Details

The Canvas Power 5 has 5 isolated power outputs delivering up to 500mA of clean power at 9v. One of the outlets is variable voltage, letting you switch between 9v, 12v, and 18v for powering high-voltage pedals.
What's in the Box?

If you purchase Canvas Power 5 Power Supply:

- 1 x Canvas Power Supply
- 18" Straight to right angle DC Cable - Qty. 5
- 48W, 24V DC 2A power brick and country specific IEC cable
- C style mounting bracket set
- M3 Hex Key

Dimensions: 133mm x 54mm x 25.5mm (5.23in x 2.12in x 1in)
Weight: 186g (.41lbs)
4 - 9VDC 500mA outputs
1 - 9V, 12V or 18V variable output
48W Power Brick Dimensions: 100mm x 57mm x 31.5mm (3.93in x 2.24in x 1.24in)

Notes: The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from the original Voyager and adds a wealth of features not seen before in a Klon-style pedal.

From its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing while retaining the clarity needed to break through solos.

The Voyager MKII breaks out of the traditional Centaur three-knob topography by adding a foot-switchable parametric mid-frequency EQ with a boost/cut range of +/-12dB. The Freq (Frequency) knob then controls the centre frequency of where the Mid knob is set, giving a range of 250Hz-2kHz. Great for accommodating any guitar and pickup combination and tailoring your tone to your own style of playing.

Further customize the Voyager's sound with the five-way rotary switch:
1. Classic 1N34A Germanium Diodes (most compressed). This is the original Voyager sound.
2. Classic 1N34A Germanium Diodes with bass boost (trust us).
3. Symmetric Silicon Diodes (more open and dynamic).
4. Asymmetric Silicon Diodes (least compressed, open & driven).
5. Asymmetric Silicon Diodes with bass boost (least compressed, open & driven with a bass boost.)

Think of each position as a different "flavour" of the pedal. Fine-tune each of these modes with the Mid/Freq EQ for a near-infinite supply of gain options.

Notes: Inspired by the vintage Bell and Howell 385 Filmosound projector that guitarists have modified and used as guitar amps, Walrus has created a dynamic and responsive overdrive modeled after the projector's tone.

The 385 was developed to have the same simple but effective tone control as it's older relative, but unlike the projector, the 385 breaks up the single tone control and integrates separate, boost and cut bass and treble, allowing the player to get more creative with mid-frequency scoops and bumps allowing for a much wider array of tones to be achieved.

The pedal is internally running at 18v, which helps us nail the same dynamic feel of the amp in a stomp box.

This means it is extremely sensitive to how hard you dig in - just like the amp.

Updated for 2023.

Controls:

Bypass: Soft touch, relay true-bypass. Press the switch to engage/disengage the pedal. LED indicates whether the circuit is engaged or not.
A/B: Soft touch switch. Press to swap between using either A (White) or B (Red) Volume and Gain controls. LED indicates which controls are being used - White for A, Red for B.
Volume A: Controls the overall volume in the A setting. Turn clockwise for more volume, counter-clockwise for less volume.
Gain A: Controls the overall gain in the A setting. Turn clockwise for more gain, counterclockwise for less gain.
Volume B: Controls the overall volume in the B setting. Turn clockwise for more volume, counter-clockwise for less volume.
Gain B: Controls the overall gain in the B setting. Turn clockwise for more gain, counterclockwise for less gain.
Treble: Used to adjust the level of the treble frequencies. Turn clockwise to increase the level of the treble frequencies. Turn counter-clockwise to reduce the level of the treble frequencies.
Bass: Used to adjust the level of the bass frequencies. Turn clockwise to increase the level of the bass frequencies. Turn counter-clockwise to reduce the level of the bass frequencies.
385+ Switch: When the switch is down, you are able to achieve classic 385 sounds. Flip the switch up to add an additional gain stage to the input of the pedal, achieving heavier gain sounds and driving the pedal harder.

Specifications

The 385 comes in a matte black finish with yellow and red ink featuring original artwork of a vintage Belle and Howell 385 projector by David Huttner ready to give you the dynamic tone you've been searching for.
The die cast enclosure's exact size is 12.1 x 6.6 x 3.5 cm
Power requirements are 9VDC (100mA minimum). The use of an isolated power supply is recommended for powering all Walrus Audio Pedals.
Daisy chain power supplies are not recommended. Power supply not included.
Input: 1/4" TS, Unbalanced, 1M impedance
Output: 1/4" TS, Unbalanced, 10k impedance
True Bypass

Notes: The Voyager MKII is a mid-focused overdrive/preamp that contains all the mythical magic from the original Voyager and adds a wealth of features not seen before in a Klon-style pedal.

From its lowest to highest settings, the Voyager provides a uniquely superb amount of clarity to any playing style. At lower gain settings, it brightens the signal and adds clarity to each note. With the gain turned up, the Voyager transforms into a thick overdrive, providing depth to chorded playing while retaining the clarity needed to break through solos.

The Voyager MKII breaks out of the traditional Centaur three-knob topography by adding a foot-switchable parametric mid-frequency EQ with a boost/cut range of +/-12dB. The Freq (Frequency) knob then controls the centre frequency of where the Mid knob is set, giving a range of 250Hz-2kHz. Great for accommodating any guitar and pickup combination and tailoring your tone to your own style of playing.

Further customize the Voyager's sound with the five-way rotary switch:
1. Classic 1N34A Germanium Diodes (most compressed). This is the original Voyager sound.
2. Classic 1N34A Germanium Diodes with bass boost (trust us).
3. Symmetric Silicon Diodes (more open and dynamic).
4. Asymmetric Silicon Diodes (least compressed, open & driven).
5. Asymmetric Silicon Diodes with bass boost (least compressed, open & driven with a bass boost.)

Think of each position as a different "flavour" of the pedal. Fine-tune each of these modes with the Mid/Freq EQ for a near-infinite supply of gain options.

Notes: Streichfett combines the best of the now extinct species of String Synthesizers of the 70s and early 80s. Its dual sound engine features a fully polyphonic strings section and a monophonic solo section, which is essential for recreating how adult movies sounded thirty years ago. The Ensemble Effect handles lubrication of the String Section, while the Effects section adds adjustable Phaser or Reverb. Alternatively, the Effect section can be used to animate the strings registration, allowing spectacular sound morphs.

The Solo Section offset presets named Bass, E-Piano or Clavi, and just like in your typical string machine, the sound has little to do with that name. Instead, these are shimmering and slightly percussive sounds that blend well with the string section.

Although the User Interface is simple and easy to comprehend, it controls a rather complex sound engine which is capable to delivers rich and creamy pads unlike any other instrument.

Twelve patches can be stored and selected in the Memory section, USB and MIDI are of course on board.

Notes: The LedPressor is a full stereo Diode-based compressor module.
Its unique core adds character and color to any signal passed through it.
The LedPressor can be used as a normal compressor with low input levels, but as the input volume increases and the "nuke" LED lights up, it enters a new territory that combines compressor and overdrive, creating a dynamic overdrive effect.

Get it pumping with the Side Chain
The module features an external sidechain input that accepts audio and CV signals. Only the sidechain signal passes through a high pass filter, which gives the user greater control over the sound shape. The audio signal itself is not affected by the filter.
Parallel compression
The module also includes a mix knob that can be controlled with a dedicated mix CV input, allowing for greater flexibility when blending dry and wet signals. Additionally, it features a momentary bypass button to easily adjust the levels of dry and wet signals.
Feed-Back Or Feed-Forward - it's your choice
The module can be configured with a feed-back or feed-forward topologies with a jumper in the back.
Reverse polarity protection
The module have proper reverse current and over current protection in its power input stage to protect the module in case it was connected the wrong way or connected to a faulty power supply.
Dimensions
Width
: 12HP
Depth
: 34mm
Current Draw
+12V
: 20mA
-12V
: 15mA

Notes: One of the hardest in the game. Dedicated kick drum synth from analogue experts Vermona. Shape your own sounds from scratch. Killer.

Supplier's notes:
The Kick Lancet generator is a handy analogue percussion synthesizer with priority to kick-drum sounds.

The heart of the Kick Lancet's sound structure is an analogue oscillator that produces sine and square waves, which can blend seamlessly from one to the other. 2 independent envelope generators with a decay/release phase can modulate the oscillator's frequency and the VCA. Additionally the VCO pitch can be modulated by the fast LFO (3Hz to 3 kHz, triangle). Noise and a pulse signal can be added in the mixer section. Vermona have a balls-controller for making it really big.

The Kick Lancet can be triggered by MIDI but beside that there are 3 different trigger inputs. A gate trigger, which impulse can trigger the Kick Lancet in normal way with additional accent or completely dynamical depending on the incoming voltage, a simply short current trigger (i.e. momentary foot switch) and an audio input, which offers the possibility to trigger the Kick Lancet by an audio signal statically or dynamically. Drum pads can also be connected here.
