Notes: The Wireless GO II Single is an extremely versatile and ultra-compact wireless microphone system consisting of a dual receiver and single transmitter. Featuring a high-quality microphone built into the transmitter for completely wireless operation, fl exible output for connecting to cameras, computers and smartphones, extended transmission range, over 40 hours of on-board recording and much more, Wireless GO II Single is the perfect microphone for a wide range of content creation applications.

RODE offers a 5-year warranty on this product.

This warranty will function just like any other RODE product warranty and the claim process remains unchanged - as long as the customer purchased an eligible product from an authorised dealer and can present proof of purchase, they can make a warranty claim within 5 years of the date of purchase.

Acoustic & electrical specifications

Acoustic Principle: Pre-polarised pressure transducer
Polar Pattern: Omnidirectional
Frequency Range: 50Hz - 20kHz
Maximum SPL (Mic): 100 dB SPL (1kHz @ 1m) dBu
Maximum Input Level (3.5mm): -20dBV
Equivalent Noise Level (A-Weighted): 22dBA
Power Requirements: In-built rechargeable lithiumion battery charged via USB 5V, 0.3A
Operating Time: Up to 7 hours
Analog Inputs: 3.5mm TRS (lavalier microphone input)
Analog Outputs: 3.5mm TRS
Transmission Range: 200m (line of sight)
Computer Connectivity: USB Type-C
Operating System
Requirements: macOS 10.11 above, Windows 10 and above


Mechanical specifications:

Weight (grams):
TX: 30g, RX: 32g

Dimensions (millimetres): TX: Length: 44, Width: 45.3, Height: 18.3
RX: Length: 44, Width: 45.5, Height: 18.3

Included Accessories:
2 x Fur Windshields
2 x USB-C Cables
1 x SC5 3.5mm TRS Cable
1 x Carry Pouch

Review: Amused To Death is the third studio album from Roger Waters outside of his work in Pink Floyd. As one of the fundamental creative forces in the prog behemoth, of course it's hard to separate his solo work from that most famous of bands, but this is indeed its own beast. At times it's an experimental space in which Waters uses space and minimalism to great effect, creating a foreboding sound peppered with speech samples and field recordings. There are of course plenty of more straightforward tracks too, like lead single 'What God Wants, Part 1'. This lavish issue of the 1992 album spreads the music out across four discs and comes in a box set format, a must-have for devoted Floyd and Waters collectors.

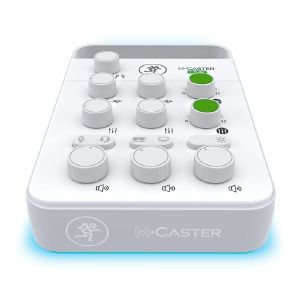

Notes: M-Caster Live is the ultimate portable audio solution for streaming on mobile devices. Plugin your mic, sweeten your sound with ContourFX and StreamFX, then stream in minutes. With ContourFX, your voice will reach new heights with studio-quality sound-shaping and enhancements. And with StreamFX, you can add fun voice-changing effects.

M-Caster Live is also packed with features like dedicated headset and media player inputs, USB connectivity, and user-selectable RGB lighting that looks amazing in any streaming setup.

On the go? Just plug in an external USB battery and you have an incredible mobile streaming platform. From streaming to podcasting, get pristine audio just about anywhere with M-Caster Live. Your followers will thank you.

Included accessories

USB Cable
1/8" TRS / Aux Cable
1/8" TRRS Cable (For Smartphones)
Power Supply

Notes: The Golden Master from Endorphin.es is a multi-band processor that takes inspiration from studio mastering and radio loudness units from the 1990s. It gives control over the EQ, compression, and mid/side processing of incoming audio.

Thanks to the 16-bit/96kHz audio fidelity, you'll get incredible processing power. It features three bands - low, medium, and high - each handling a distinct portion of the audio spectrum. These controls feature a single knob that both boosts and cuts signals. Set the overall loudness limit of your sounds, and the brickwall limiter ensures all your sounds stay in check. This multi-band effect is the perfect end-of-chain module, ensuring that anything you throw at it sounds dynamic and full.

Multi-band processor inspired by mastering tools from the 1990s: adds punch and dynamics to your sound

Compression, EQ, and mid/side processing

Three frequency bands with +7 db boost and -20 db cut

Brickwall limiter sets upper limit of signals

16-bit/96kHz audio I/O with 32 bits internal processing

Enhance/mute buttons

Available in 1U / 22HP version

Power consumptions:

135 mA +12V
25 mA -12V
0 mA 5V

Dimensions:
6 HP
30 mm deep

Notes: When you add drive, dirt or other sound manipulation devices to your signal, the trade-off is always noise. So, many players turn to noise gates to help tame these unwanted nasties. Unlike many noise gates on the market, the PYLON ATB Noise Gate seeks to not only drive back the hordes of fizz and hum, but also arms and reinforces your tonal attack, shutting down the noise and yet helping you enjoy your rig's true potential.

This advanced, multi-functional and super-versatile pedal not only features an ultra-fast Gate with a smooth trigger, an integrated Boost section, an External Trigger Input for external bypass switching or Gate-triggering, a relay-based Channel Switcher for your amp but also sports a built-in Audio Transformer to help enhance and balance your rig. Hear and feel the quiet in the eye of the storm!

"Deep within the solitude of the temple, the Sau's of the Per-Ankh assembled in silence. Their conclusion was self-evident. Only those pure of tone could be received in the temple and find sonic peace. From the centre of their silent circle, the Orb swelled and raised above the Pylons. Erupting in a rain of light and spewing forth daggers of lightning, their new God subdued and separated the chaotic ocean of noise from the perfect breeze of stillness. Peace reigned once more, the hordes of cacophony overcome."

When talking about signal gain, we all know drive circuits at full tilt can be noisy malice monsters. To help get a grip on your noise floor, PYLON's NOISE GATE is based on a high-performance Blackmerr VCA and provides lightning-fast and precise performance. To find the right spot, simply choose between one of the two detection-range settings and dial in the THRESHOLD to taste. With either softly decaying notes using HIGH mode or a fast-closing response in LOW mode, you're sure to be able to dial in super tight tones when you need it, but without interfering with your sonic signature. Fast palm-mutes? No problem. Decaying notes? Dead simple to accomplish and just so you know when it is operating, the white status LED will also turn blue as soon as the gate starts to act.

Providing up to 30 dB of gain, the integrated BOOST circuit can really help to fine tune your tone, but it can also serve as an attenuator too. Its CUT control will tighten up your low end and is selectable between 65-730 Hz to ensure a mid-focussed and cutting lead sound when pushing your amp's preamp into saturation. Choosing between three different modes for the boost's on/off state, gives you plenty of options on how you want to use it. Either leave it ON to always help shape your tone, OFF if you don't need it, or use SYNC mode so it is activated with the GATE. Both CUT & BOOST knobs are backlit, in order to show you the on/off status of the BOOST section at a glance.

Using transformers in pro-audio gear is nothing new, but while they help to easily match the impedance of low-level and unbalanced signals such as from guitar or bass instruments, PYLON's audio-grade-transformer also gives additional warmth with associated nice low-frequency harmonics. Your guitars, synths or in fact anything you put through the pedal will never have sounded so solid. The pedal gives more 'heft' and enhances the core tone, in a much finer way and without any of the phase issues that can happen when using EQ alone!

However, when the output transformer is boosted even further in level, it can overload many amplifier or pre-amp inputs and make things appear muddy, especially with high levels of additional gain. So, to help tame superfluous low end (especially for rhythm chugging and soloing), KMA Machines added a fixed built-in roll off that affects everything below 65 Hz when the internal BOOST section is activated.

Powered by an optional standard 9V DC (max.) PSU (negative center, 2.1mm, >160mA current draw)

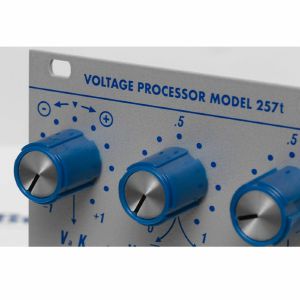

Notes: Yet more bargain Buchla collabs from TipTop Audio with this dual voltage processor. Generate CV outputs algorithmically based on multiple inputs, allowing for some seriously complex modulation.

Supplier's Notes:
Model 257 Dual Control Voltage Processor consistsof two identical sections, each of which permits several applied control voltages to define a single output voltage according to the equation:

(Va * K) + ((Vb * (1-M)) + (Vc * M)) + Voset = V_out

The algebraic manipulations possible with this module include addition, subtraction, scaling, inversion, and multiplication. Also incorporated is the capability of using one control voltage (M) to transfercontrol from one applied voltage (V_b) to another (V_c).

Functions

- Attenuverter
Va is the voltage input a for attenuverter (left jack on the panel)
K knob can scale the incoming Va voltage either positively or negatively

- Crossfader
Vb is the voltage input b for the left side of the crossfader (second jack from the left)
+.5 switch adds 5 volts to the input of Vb
Vc is the voltage input c for the right side of the crossfader (fourth jack from the left)
M scales Vb from 1 to 0 based on the position of M knob
M scales Vc from 0 to 1 based on the position of M knob
The middle CV input at M/M can crossfade between Vb and Vc (third jack from the left)
The M knob and M CV added together to control crossfade position

- Oset
Voset Adds 0 - 10 volts to any combination of Va + Vb + Vc

- Output
Vout is the combined voltage of the attenuverter, crossfader and oset (right jack on the panel)

Specifications:

Size: 14HP - Depth: 25mm
Power: +12V 45mA / -12V 22mA

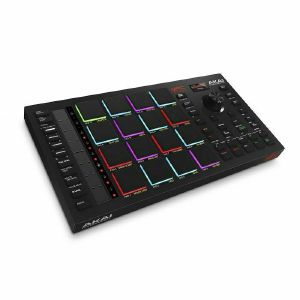

Notes: The entry-level option to get started with Akai's MPC workflow. Hardware controller for the MPC 2 software, which runs on Mac or PC. Features 16 MPC pads and a new assignable touch strip.

Supplier's Notes:
MPC Studio is a Complete MPC System

MPC Studio brings the total MPC experience to your computer by combining intuitive hardware control and innovative, inspiring software. Load a loop from the library, chop it into samples, lay down a beat, then play instruments over it to add more melodic textures. Add some insert effects to develop your song structure and arrangement, or to build drops and transitions. MPC Studio makes your workflow one continuous stream of non-stop creativity.

Premium Pads for Perfect Production

Pad performance is the top priority for any beat maker. With MPC Studio, you can be confident that every beat and note will be right on time, every time. Velocity-sensitive RGB pads mean maximum expression, whether you're playing soft melodies or booming kick drums with coloured visuals to keep track of your velocities and pad groupings. Switch from Note to Chord Mode quickly and build out your tracks right as inspiration strikes.

Assignable Touch Strip Control and Expression

Create your own signature sounds with the assignable Touch Strip. This fluid controller bends and shapes your sounds however you want. Make that pad synth more mysterious with a swell, control the roll of your hi-hats to fill your trap drumbeat, or make that guitar part more realistic by articulating the strum right where you need it. Assign any of the numerous knobs, sliders, and parameters to the Touch Strip for new and inventive manipulation of any track. Add dynamic and real-time Touch Strip effects for the ultimate live production and performance.

Colour Screen for Vibrant Feedback

When you're locked in the creative moment, the vibrant colour screen ensures you can keep your hands on the MPC Studio and your focus on the music. Whether you need to trim a waveform, browse through instruments, samples, and plugin presets, or adjust parameters on the fly, the screen gives you the visual feedback you need in a moment's glance without having to stop your workflow and reach for your laptop. When it comes to your musical efficiency, every moment matters, and every move needs to help you effectively capture your ideas to finish your songs faster.

World-Class Plugins & Effects

MPC Studio includes an extended palette of sounds, instruments, drum samples, loops, insert effects, and much more to both spark your creativity and complete any music project or task. With over 100 instrument and effects plugins combined, MPC Studio can tackle any style or genre of music with rich, inspiring sound. The modern-day beat making insert effects plugins are powered by award-winning AIR Music Tech. with powerful editing, arranging, and mixing tools including the AIR Vocal Suite. Create, record, and mix the perfect vocals with the Vocal Suite to add everything from pitch correction, to harmonising, to thickening your vocals and audio tracks with the AIR Doubler.

Includes MPC2 Software

Akai Professional's acclaimed MPC2 Software works seamlessly with MPC Studio for the ultimate beat making and music production experience. This cutting-edge production suite and DAW combines 128-track sequencing capability, real-time time stretching, advanced MIDI editing capability, VST compatibility, and numerous plugin instruments and Insert Effects for creating and mastering professional finished songs and tracks. MPC2 software has a dedicated set of plugins to record and produce the perfect vocal recordings with the AIR Vocal Suite including automatic vocal tuning, vocal doubling, and vocal harmonising. Legendary plugin instruments including AIR Hype, AIR Mellotron, AIR Solina, and WayOutWare Odyssey, among others, offer a plethora of world-class sounds and presets to sculpt the perfect master track. A massive suite of modern plugin Insert Effects powered by AIR Music Tech - including a Limiter for finalising tracks - rounds out the infinite music and beat making possibilities.

Includes Loop Content From: Decap, F9 Audio, Mvp Loops, Rawcutz, Snipe Young, and more.

Technical Specifications:
Pads: (16) velocity- and pressure-sensitive pads, RGB-backlit, (8) banks accessible via Pad Bank buttons Knobs
Knobs: (1) 360- push encoder for display navigation and selection
Touch Strip: (1) multi-function 5.5" (140 mm) touch-capacitive controller with LED indicators
Buttons: (39) LED backlit dedicated function buttons
Display: Full-colour LCD
Connections (1) 1/8-inch (3.5 mm) MIDI input, (1) 1/8-inch (3.5 mm) MIDI output, (1) USB Type-B port
Power: via USB
Dimensions (width x depth x length): 12.0" x 6.7" x 1.5"/305 x 171 x 37mm
Weight 1.8 lbs./0.83kg

Notes: 1U version of the excellent Golden Master, a surprisingly creative little output module which combines radio-style multi-band compression with brickwall limiting and mid-side stereo processing.

Supplier's Notes:
Golden Master is a multiband processor module in Eurorack format. Inspired from the studio mastering and radio loudness units from the 90's, this tool is a game changer for everyone who performs live with a Eurorack synthesizer.

The whole magic of Eurorack lies in its raw sound and simple analog mixes - processing through the Golden Master brings instant punch and sound pressure, as well as controlling the overall volume.

Features:

instantly improve your raw Eurorack mixes to sound balanced and powerful on stage or wherever you are
96 kHz 16 bit digital audio stereo processing
3-band compressor with intuitive adjustment and brickwall limiter
mid/side stereo field processing
Power consumption: 125mA at +12 V and 12mA at -12 V

Depth: 42mm

HP : 22

Review: 30 years on, the power of Nevermind has never dulled. Of course it's the most commercially appealing of Nirvana's albums, but it's no less daring for it no matter how many times you've heard it. Well, how to toast an album as world-changing as this one? By going all out on the lavish vinyl edition of course, which in this case means a mammoth eight-disc 180gm vinyl edition with a 40-page hardback book. If you want an altar at which to worship one of the definitive moments in popular music, this authoritative release is surely all the plinth you need.

Notes: The Erica Synths Black Ring-Xfade is an extremely versatile module for sound shaping. It consists of two unconventional ringmodulators/waveshapers, a crossfader that works both for audio and CV and a VCA. Unlike conventional ringmodulator that works only with a signal present on both signal and carrier inputs, the Black Ring-Xfade passes through the signal without alteration, if no carrier is present, but low level signals on the carrier input result in unique waveshaping. Add the crossfader between two ringmodulators (or as a separate unit) topped up with the VCA, and you have an amplitude modulation powerplant in 10HP!

Ring1 CV; Ring2 CV
These are the ringmodulator carrier (CV level) level controls. Unlike conventional ringmodulator, this one passes signal unaltered, if RING CV is turned down. With increasing Ring CV level a slight waveshaping turns into proper ringmodulation.

Xfade
This is a manual Crossfade control. This fades smoothly between signals patched into XFADE IN1 and XFADE IN2. The XFADE CV is added to the knob position.

Coupling
Set the Crossfader mode - AC is optimized for use with the audio signals, DC - for control voltages (but it will work fine with audio, as well).

Ring 1; Ring 2
The green LEDs give visual feedback on signal levels, applied to XFADE IN1 and XFADE IN2 respectively.

Vol CV
Select the VCA CV response. A 0-10V setting is intended for use with the envelope generator, a -5V - +5V setting - for nice tremolos with a LFO.

Xfade IN1; Xfade IN2
These are the Crossfader inputs. They are normalled to the Ringmodulator ouputs, so, if nothing is patched here, you can crossfade between two ringmodulated signals.

Xfade CV
This is the Crossfader CV input. The CV is added to the XFADE knob setting.

VOL CV
This is the VCA CV input. The VCA is post-crossfade - it controls the amplitude of a resulting signal after the crossfader. It will also work with low frequency control voltages applied to the XFADE Ins - nice for designing unconventional modulations.

Ring1 Out; Ring2 Out
These are the ringmodulator outputs.

Xfade Out
This is the Crossfader output and the main output of the module.

Ring2 In; Ring2 CV
These are the second Ringmoduator signal and carrier inputs respectively. These two are normalled to the RING1 inputs, and if no signal is patched here, the duplicate the first Ringmodulator. Interesting trick is to set RING CVs at different levels and crossfade between two ringmodulator signals.

Ring1 IN; Ring1 CV
These are the first Ringmoduator signal and carrier inputs respectively.

Fade L; Fade R
The red LEDs indicate the crossfader position.

Xfade CV LVL
This is a crossfade CV level attenuator. By adjusting it you can control a span of fading between inputs.

Specs:
Audio level 10Vptp
CV level (full span) -5V - +5V
Power consumption +38mA, -32mA
Module width 10HP
Module depth 35mm

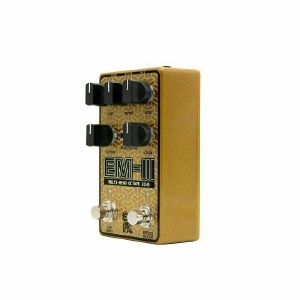

Notes: SolidGoldFX EM-III- Compact Delay Powerhouse

Welcome to the new SolidGoldFX EM-III Multi-Head Octave Echo; the smallest, most powerful and by far the most versatile SolidGoldFX delay pedal to date.

Building on SGFX's Electroman Delay legacy, the EM-III manages to both echo the past, present and future. With EM-III's wide-ranging yet ultra-intuitive control set, warm analogue-voiced echoes, precise and modern delay, as well as experimental and futuristic sound designs, are all just a single stomp away.

At your feet (or fingers) you have a multi-head tape style echo, with the ability to add in a signal an octave lower to the primary delay head. This can result in dancing, rhythmic delays with body and gravitas, as well as bold washy soundscapes. These two core features are controlled via a single mini-toggle. Flick it left to select between 1, 2 or 3 delay heads or flick it right to toggle the octave effect on and off. From there, just set your Delay Level, Repeats and Time via the knobs or tap in your preferred tempo via the soft-click tap tempo switch and let the good echo times roll.

The EM-III also sports delay modulation introduced via the Flutter control. Keep it at centre position for no modulation. Dial it left for a slow and dreamy chorus-like modulation or right for a faster vibrato, letting you create lush oceanic movement, tape-style crinkles, eerie tension and beautiful dissonance.

The colour knob allows you to engage both high-pass and low-pass filtering. Dead-centre you have a pristine full-frequency digital delay.

Dial it to the left and you cut the highs, creating warm, murky analogue-esque repeats. Dial it to the right and you suck out the lows for crisp and bright tape-style repeats or super thin lo-fi delays.

EM-III also brings interactive warp and glitch features to the tonal table by pressing and holding either Tap, Bypass or both at the same time. Hold Tap to increase the repeats until self-oscillation, creating a swelling wall of sound. Hold Bypass to replicate the sound of a tape motor on the fritz and a tape reel snapping, or hold both for glorious noise seances that will act as the perfect song/set closer.

Additional features include soft-touch, relay based, true bypass switching with the option of buffered trails, top jacks and up to a full second of delay time.

Designed to inspire and evoke emotion, EM-III can sound as pretty and cheerful or as dark and macabre as you wish.

Tune up, plug in and immerse yourself in the EM-III experience.

Notes: Open up your signal routing options with this neat and simple pedal. Split one signal into three, run effects in parallel, mix three signals together, set up ABY routing or set levels. Versatile.

Supplier's Notes:
The Signal Blender provides a number of parallel routing solutions through its use of a pair of send/returns, primary input and output, switching, and volume control.

Signal Blender can be used as a:
Parallel effect blender
3-to-1 mixer
1-to-3 splitter
Active ABY in either direction
Volume level setter

and more.

A courtesy 9V power outlet and phase correction switches for both Sends add further versatility to this box. Clever switching allows for latching or momentary on/off action.

The Signal Blender uses standard 9V center negative power, and has a current draw of 31 mA.

Notes: Forward-thinking controller designed to play nicely with Presonus's own Studio One DAW or Ableton Live. Velocity- and pressure-sensitive RGB pads, context-sensitive screen and eight rotary encoders.

Supplier's Notes:

Modern musicians, performers, and producers need to move quickly from programming drums and samples to playing synth lines and back again. ATOM SQ was designed as a versatile and expressive MIDI pad controller for contemporary music production. Its unique design is optimized for both classic TR-style 16-step beat sequencing and drum pattern editing in Studio One or playing instruments and launching clips in Ableton Liveiyet its staggered and RGB-lit pad configuration is instantly familiar to anyone who's played a controller keyboard. Advanced features let you change the keyboard scale, and a built-in arpeggiator makes the ATOM SQ the most expressive controller you'll ever use. In fact, it's the best PreSonus Studio One MIDI controller available.

A complete production toolkit.
Included with ATOM SQ, Studio One Artist music production software enables you to compose, record, and produce without getting distracted by the tools or hemmed in with track limitations. Easy to learn and intuitive to use, Studio One's unique drag and drop workflow and powerful tools will let you produce faster than ever before. Also included are two carefully-curated loop libraries with custom Impact XT kits. New to version 5: Studio One Artist now lets you use your favorite third-party VST and AU plug-in effects and virtual instruments. You also now have complete support for Studio One Remote to use as a second screen or as remote Studio One control on your iPadr or Android™ tablet. And with ATOM SQ, you have the most flexible PreSonus Studio One MIDI controller available. PreSonus Sphere users now have access to a new exclusive portal loaded with custom-designed tools and curated content by featured PreSonus artists.

Ableton Live integration and more.
ATOM SQ is also unique Ableton Live controller, designed for production and live performance. You can launch clips and scenes during a performance, select devices and edit parameters, navigate tracks and scenes, control each track's volume, panning, and send levelsiplus do all your drum programming in Ableton from the ATOM SQ! Ableton Live Lite is included, so you can get to creating right away. It comes with all of Live's essential workflows, instruments and effectsieverything you need to record songs, create hands-on with your controller, take music made in your apps further and so much more.

Navigation and transport control
ATOM SQ is more than an expressive pad controlleriit also lets you navigate many aspects of Studio One without a mouse and keyboard. You've got transport controls for stop, play, record, and a dedicated Click Track toggle. You can even zoom in and out of your timeline and navigate among your tracks, all without skipping a beat.

Deep control at your fingertips
Deep integration with Studio One's Pattern Editor allows for evolving step sequences that will bring your productions to life. Insert a pattern, change its length, add new variations, and change scalesiright from the ATOM SQ. Need to make changes on the fly? ATOM SQ lets you open the Studio One Pattern Editor, select and edit steps individually, and even copy, paste, duplicate, and delete events, all using tactile controls. You'll build compositions faster than ever before using the built-in step sequencer in Studio One and ATOM SQ. It's fast and easy for anyone who knows how to program a drum machine. And you'll find experimenting to yield particularly rewarding results, because ATOM SQ can constrain your performance to the scale of your choice. No more wrong notes!

However, wherever.
ATOM SQ is highly configurable. You can freely remap instrument parameters to different hardware controls, so your rotary encoders can control everything from filter cutoff to drum tuning, for the ultimate drum programming experience. You can colorize the RGB LEDs as you please to color-code your loops and samples. ATOM SQ's LCD screen is used to display context-sensitive information, and uses a dynamic button system that changes functions depending on the task at hand. Need to add more swing to your arpeggiator or change the CC assignment of a controller? The LCD screen details functions you need, right when you need them for the job at hand.
ATOMSQ

Wherever sound takes you...
With its unique staggered-pad layout, contextual screen design, and customization tools, ATOM SQ lets you stay in the moment of creation. Its small-footprint, USB bus-powered design means you can slip it right into your bag and produce anywhere you and your laptop might happen to go, and the complete suite of integrated software lets you start creating right out of the box. Whether you're in the studio, on stage, or on the road, ATOM SQ gives you the freedom to create, wherever sound takes you.

Notes: EME (Eloquencer MIDI Expansion) is the perfect companion for the Eloquencer, adding capabilities to sync with MIDI devices, control most of the eloquencer parameters with MIDI interfaces, generating MIDI voices from the eloquencer tracks, and converting MIDI signals to the eurorack world.

Description:
MAIN FEATURES
IN / OUT
DIN-5 MIDI Input, DIN-5 MIDI Output, USB Host.

BUTTONS
4 freely assignable buttons. They can be assigned to:

Next/previous pattern
Next/previous part
Direct access to Pattern mode, Play parts, Duplicate, Project, Gate REC, CV Key REC, MIDI key REC, Free Play...
Save current project
Random 1 to 3 layers of selected track
Reset LFO of selected track
On/Off LFO of selected track
Freeze
Revert
Fill A to H or selected track
Mute A to H or selected track
DJ Nudge FWD/BCK fine/coarse

MIDI CLOCK
Eloquencer can receive 24ppqn sync from MIDI device from its DIN-5 MIDI Input, and can send 24ppqn MIDI clock through its DIN-5 MIDI out.
When working as 'internal' it will send the internal clock to the MIDI output.
When working as 'external' will send the eurorack incoming clock to the MIDI output transformed into 24ppqn.

MIDI OUT
The Eloquencer tracks can be independently assigned to:
- Voice events (note on/off, velocity, ch pressure...) For example Track A can be assigned to Channel 1 Note on/off and Track B can be assigned to Channel 1 Velocity, so track A gates and CV control Channel 1 notes and pitch, and track B controls Channel 1 Velocity.
- Control Change (CC)
- Program Change (PC)

The gate and CV output will work as usual when a MIDI OUTPUT is assigned, so voices can be doubled using the modular and an external synth.

There's a particular execution order for MIDI out events, so the first to be launched is the Program Change, followed by the CC and then the voice events. This way, we can launch program changes before the note on message is received allowing preset changes for each step.

MIDI IN
Both, the DIN-5 MIDI in and the USB can be used to change eloquencer parameters using controllers or to introduce notes in REC MODE using a keyboard.

There are 3 different groups of controls associated to MIDI channels:
- Channel : 8 MIDI channels to control parameters of specific tracks from A to H
- Global : 1 MIDI channel to control Global parameters.
- Focus: 1 MIDI channel to control the parameters of the currently selected track (track in focus). That means that if Track A is selected and we send CC 38, we will be shifting track A, but if we select track B and we send the same CC 38, we will be shifting track B.

When using the USB host input, the EME can send feedback information in case the controller that is being used has LEDs to be updated.

There is a big amount of eloquencer parameters that can be controlled using an external MIDI interface / controller. For example:

Non-destructive track parameters addition/subtraction (CV, CVP, CVR, GL GLP, R...)
Track length
Step mode / Step mode DIV / Step mode REP
Track shift
LFO on/off / Type / Length / amplitude.
Fill
Mute
Random
CV Gate link
Scale group and root
Tempo
DJ Nudge
Shuffle
Clock out
Play / Stop
Direct access to modes (Pattern, Project, Live REC...)
MIDI INTERFACE

A MIDI Channel can be assigned to an Eloquencer Track, so the gate and CV outputs will stop listening to what is sequenced and start listening all note on/off messages coming from the chosen MIDI channel.

Notes: The CVx 1U expander module has eight user-configurable outputs and connects to the MIDI 1U module. Using the Intellijel Config app, you can assign each of the eight jacks to generate just about any type of voltage that can be derived from a MIDI signal; pitch, gates, triggers, clocks, velocity ... you name it! You can chain up to four CVx modules to a single MIDI 1U to add a whopping 32 additional channels of midi control to your modular.

Each CVx module can also allow you to generate 2 or 4 voice polyphonic controls with selectable voice allocation modes. The connectivity, feature set, expandability, and compact size make the MIDI 1U + CVx system ideal for integrating your modular gear with the rest of your rig.

Intellijel's MIDI 1U system comprises several elements, which work together to provide flexible, programmable MIDI-to-CV conversion to your Eurorack modules: The system comprises two mandatory components, and one optional component:

MIDI 1U module - This 14HP 1U module receives MIDI from an attached, external MIDI input connector (7U case, Palette case, or MIDI IN Jacks 1U module), and extracts (by default) Pitch, Velocity, Mod, CC, Gate, Trig, Clock and Reset messages - sending the proportional voltages to individual 3.5mm jacks for patching.If desired, the CC and MOD jacks may be configured to respond to either Channel Aftertouch or High Resolution CC, and the Reset jacks can be configured as a Run jack, instead. Additionally, MIDI 1U features an alternate Dual Mode, which maintains the Clock & Reset functionality, but uses the other six jacks to transmit Pitch, Velocity and Gate messages derived from two separate MIDI channels.

MIDI input connector - the MIDI 1U module does not have its own MIDI input jack. This enables you to use the MIDI/USB inputs built-in to your Intellijel 7U Performance Case or Palette Case. If you don't own one of these cases, you can purchase the MIDI IN Jacks 1U module to connect an external MIDI device.

CVx 1U module - This optional 14HP 1U module connects to the MIDI 1U module and adds an additional eight 3.5mm CV outputs. These outputs are fully programmable using the Intellijel Config app, and greatly expand MIDI 1U's ability to control your entire Eurorack system.

Width: 14HP
Depth: 32mm
Power: 55mA @ +12V
6mA @ -12V

Notes: Replacement stylus Nagaoka MP-150

JN-P150, Tonar article 6823

Cantilever: hardened tapered aluminum alloy

Stylus: 0.4 x 0.7

Mil naked elliptical block diamond stylus tip

Notes: The DS01 is the second-generation clone of the most classic dub siren in the known universe, old school transistors sound FX machine with unique feel and sound.

Audio output: impedance balanced 1/4" TRS Jack

DC Input: 12VDC, 500mA, centre positive, 2.1mm x 5,5mm barrel type connector

Dimensions: 120mm x 90mm x 40mm

12VDC 1A power supply included.

Notes: Instantly create matching harmonies to what you play.

The EHX Intelligent Harmony Machine instantly creates matching harmonies to what you play. It's like having one - or even two - guitarists jamming with you at the same time and always in perfect sync. The Intelligent Harmony Machine opens a door to the music of great multi-lead guitar bands and multi-part harmonized solos. Plus, its ability to apply harmonies ranging from simple to sophisticated will totally transform what you play. Of course, it also boasts EHX's renowned impeccable tracking and genuine musical tone.

Select your key and the Intelligent Harmony Machines will generate single note, diatonic harmonies* with a huge range of choices that includes both two- and three-part harmonies. Here are your choices:

1: 6th Down
2: Perfect 4th Down
3: 3rd Down
4: 3rd Up
5: Perfect 4th Up
6: Perfect 5th Up
7: 6th Up
8: 7th Up
9: 3rd Up + 5th Up
10: 3rd Up + 7th Up
11: Perfect 5th Up + Octave Up

These sound so cool that EHX have included them as extra options for the multi-harmony parts (selections 9, 10 and 11) to give you even more choices:

9 optional: 4th Down + 3rd Up
10 optional: 3rd Up + 6th Up
11 optional: Octave Down + 5th Up
9 optional: 6th Down + 4th Down
10 optional: 3rd Down + 3rd Up
11 optional: Octave Down + 4th Down
The Intelligent Harmony Machine also performs perfect polyphonic pitch shifts so the pitch shifts you dial up are applied to chords as well as single notes. We've even included a Major/Minor switch so you can select whether 2nds and 3rds will be major or minor. Here are the interval selections that are available:

1: Doubler
2: Perfect 4th Down
3: 3rd Down (minor on major)
4: 3rd Up (minor or major)
5: Perfect 4th Up
6: Perfect 5th Up
7: 2nd Down (minor or major)
8: 2nd Up (minor or major)
9: Octave Down
10: Octave Up
11: Perfect 5th Up + Octave Up

The Intelligent Harmony Machine's Moment Mode lets you instantly change pitch by simply depressing the pedal's footswitch. The pitch shift is engaged as long as you hold down the F/S. There's also an option so you can apply a user-set sweep time between dry and effect. Choose instant pitch changes or control the time it takes for the Intelligent Harmony Machine to sweep up and down between the set interval and the dry signal!

EHX Founder, Mike Matthews said: "We designed the Intelligent Harmony Machine for the player who craves maximum power, but in a minimal footprint. You'll dig its sweet, musical tone and spotless tracking!"

*Diatonic harmony means notes within a specific key that relate to each other.

Compact harmony generating, pitch-shifting powerhouse
Impeccable tracking and superb musical tone
Two distinct modes: Intelligent Harmony and Polyphonic.
Intelligent Harmony Mode generates diatonic harmonies in a set key based on the single notes you play. Key Selector and #/- switches provide access to all 12 keys.
In Polyphonic Override Mode you can play single notes and chords. The IHM's 11-position Interval Selector switch lets you select the harmony.
In Momentary Mode the effect is only active when the footswitch is depressed. Choose from instant shifts or set the time it takes the signal to sweep up and down.
Mix control sets the mix between your dry and shifted signals. Dry output adds signal routing and control options and flexibility
Comes equipped with an EHX 9 Volt power supply, can also run on 9 Volt battery

Specifications

Circuit: Digital
Bypass: Buffered Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included (optional 9V battery not included)
Dimensions (in): 4.5 x 2.75 x 2.1
Current Draw: 26mA
Year Released: 2021

Notes: The Zoom G2 Four is a compact, easy-to-use multi-effects processor that offers a huge range of sounds with new amp modelling, multi-layer IR technology and over 100 effects:

Features

22 amp/cabinet models with newly developed multi-layer IR technology
79 guitar effects including boutique pedal modelling
Use of up to 7 effects simultaneously
250 preloaded patches with sounds that recreate guitar sounds from the 50s to today
300 patch memories in total
Additional effects/patches can be installed, edited and saved via the Handy Guitar Lab app for iOS and Android.
An external expression pedal can be used to control effects such as volume, pitch and wah in real time
Lightweight and compact design that fits in the pocket of your guitar case
80-second looper function
68 rhythm patterns that can be played in sync with the looper
Output EQ for quick adjustment of the overall sound to the playing environment
AUX IN jack for connecting a music player, etc.
Autosave function that automatically saves effect settings
Tuner function that supports open tuning and drop tuning
USB connection for Handy Guitar Lab, 2-in/2-out audio interface and firmware updates
Can be powered via USB bus (computer or power bank) or via the supplied AC adapter (AD-16)

Sounds without end

Using all-new amp modelling and innovative IR technologies, the Zoom G2 Four gives guitarists more sound variations to choose from than ever before. You can create amazing sounds right out of the box.

Comprehensive amp models

Zoom G2 Four takes amp modelling to the next level. Carefully recreated emulations of classic amps are combined with speaker simulations using our new multi-layer IR technology. As a result, guitarists benefit from great sounds and always have the feeling of being on the "big stage", regardless of the environment.

Multi-layer IR

Each amp model is based on Zoom's innovative Multi-Layer IRs, which capture the sound characteristics as well as the feel of classic amps and speaker cabinets. These IRs have been sampled at three volume levels through legendary cabinets and can be crossfaded and activated depending on the volume of your guitar.

Historic guitar sounds

Preloaded in the form of 250 presets, these patches were designed to document the sonic evolution of guitar sound. Each patch recreates the sound of a legendary song from the 1950s to the present day.

Brimming with effects

The internal patches include over 100 effects, recreating a wide range of traditional and boutique sounds, from classic spring reverbs to extreme distortion and modulation effects to wah-wah and more. Mix and match up to 7 effects to create your own patches.

Controls

Zoom's new cross-key navigation concept helps you control the pedal with just your feet and make adjustments on the fly. In addition, four endless knobs allow you to quickly adjust effect parameters as well as output settings.

Programming

The redesigned control surface makes it even easier to edit effect parameters, rearrange effect chains, and access the looper and tuner.

The perfect addition to your pedalboard
The G2 Four's compact design and diverse effects selection make it a powerful addition to any existing pedalboard.

Optimised for amps, monitor speakers and headphones
The G2 Four is designed to connect to guitar amps, studio monitors, PAs and headphones. After switching on, you set up the G2 Four perfectly for your setup by selecting between LINE and AMP.

Looper

Use the built-in 80-second looper for songwriting or enhance your performance with additional sound layers.

Play to the beat

Play along to any of the 68 beats on the built-in rhythm machine. This rhythm section is the perfect accompaniment when practising, whether it's metal, blues or any other genre.

Audio interface

Record at home or in the studio with your favourite effects and amp models by connecting the G2 Four to your computer via USB-C.

Guitar lab

Thanks to the ever-growing library of patches and effects, every guitarist can expand their sound selection via the Guitar Lab app (for iOS / Android).

Notes: The Zoom G2x Four is a compact, easy-to-use multi-effects processor that offers a huge range of sounds with new amp modelling, multi-layer IR technology and over 100 effects:

Features

22 amp/cabinet models with newly developed multi-layer IR technology
79 guitar effects including boutique pedal modelling
Use of up to 7 effects simultaneously
250 preloaded patches with sounds that recreate guitar sounds from the 50s to today
300 patch memories in total
Additional effects/patches can be installed, edited and saved via the Handy Guitar Lab app for iOS and Android.
Expression pedal lets you control effects such as volume, pitch and wah in real time
Lightweight and compact design that fits in the pocket of your guitar case
80-second looper function
68 rhythm patterns that can be played in sync with the looper
Output EQ for quick adjustment of the overall sound to the playing environment
AUX IN jack for connecting a music player, etc.
Autosave function that automatically saves effect settings
Tuner function that supports open tuning and drop tuning
USB connection for Handy Guitar Lab, 2-in/2-out audio interface and firmware updates
Can be powered via USB bus (computer or power bank) or via the supplied AC adapter (AD-16)

Sounds without end

Using all-new amp modelling and innovative IR technologies, the Zoom G2X Four gives guitarists more sound variations to choose from than ever before. You can create amazing sounds right out of the box.

Comprehensive amp models

The G2X Four takes amp modelling to the next level. Carefully recreated emulations of classic amps are combined with speaker simulations using our new multi-layer IR technology. As a result, guitarists benefit from great sounds and always have the feeling of being on the "big stage", regardless of the environment.

Multi-layer IR

Each amp model is based on Zoom's innovative Multi-Layer IRs, which capture the sound characteristics as well as the feel of classic amps and speaker cabinets. These IRs have been miked at three volume levels through legendary cabinets and can be crossfaded and activated depending on the volume of your guitar.

Historical guitar sounds

Preloaded in the form of 250 presets, these patches were designed to document the sonic evolution of guitar sound. Each patch recreates the sound of a legendary song from the 1950s to the present day.

Brimming with effects

The internal patches include over 100 effects, recreating a wide range of traditional and boutique sounds, from classic spring reverbs to extreme distortion and modulation effects to wah-wah and more. Mix and match up to 7 effects to create your own patches.

Controls

Zoom's new cross-key navigation concept helps you control the pedal with just your feet and make adjustments on the fly. In addition, four endless knobs allow you to quickly adjust effect parameters as well as output settings.

Programming

The redesigned control surface makes it even easier to edit effect parameters, rearrange effect chains, and access the looper and tuner.

The perfect addition to your pedalboard
The G2X Four's compact design and diverse effects selection make it a powerful addition to any existing pedalboard.

Optimised for amps, monitor speakers and headphones

The G2X Four is designed to connect to guitar amps, studio monitors, PAs and headphones. After switching on, set up the G2X Four perfectly for your setup by selecting between LINE and AMP.

Looper

Use the built-in 80-second looper for songwriting or enhance your performance with additional sound layers.

Play to the beat

Play along to any of the 68 beats on the built-in rhythm machine. This rhythm section is the perfect accompaniment when practising, whether it's metal, blues or any other genre.

Express yourself

The G2X Four features an expression pedal for controlling volume, wah-wah and more.

Audio interface

Record at home or in the studio with your favourite effects and amp models by connecting the G2X Four to your computer via USB-C.

Guitar lab

Thanks to the ever-growing library of patches and effects, every guitarist can expand their sound selection via the Guitar Lab app (for iOS / Android).

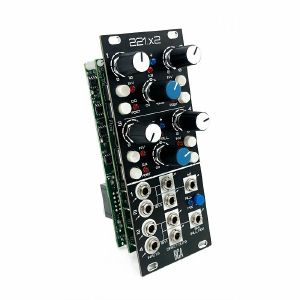

Notes: 221.x2 is a clean and precise utility module that is equally at home mixing Control Voltage as it is audio. At its simplest, it is two independent 2-to-1 mixers that offer per-channel attenuation and inversion, as well as +6dB of gain available at the summed outputs. With a tap of the "All Mix" button, these separate mixes can be combined into a 4-to-1 mix at the "All Mix" output - meanwhile, the first 1+2 mix is still available at its respective summed output. A rear expansion input and output allows for combining multiple modules into larger systems.

In addition, each channel also offers a Direct Output that can be taken pre or post attenuation/inversion.

A 6-volt offset is normalled into the input jacks of channels 2 and 4. This voltage is available at the channel's Direct Output, as well as added to the mixed outputs. Useful as an offset for mixing with another CV signal, or simply as a voltage source.

Each summed output group has two blue LEDs for displaying the shape of the summed CV, and can also serve as signal present indicators for audio. Peak LEDs trigger at ~9.6V, allowing for a bit of headroom before things get out of hand.

Specifications:

Width: 10HP
Depth: 3.3 cm
Power: 133 mA @ 12V
129 mA @ -12V
Inputs/Outputs: All I/O is unbalanced
Input Impedance: 10 Mohms
Output Impedance: Mix Outputs: 330 ohms
Direct Outputs: 10 ohms

Notes: Make quick changes to signal routing manually or with CV control. Any audio or CV signal can be routed via two outputs in series, parallel or reverse series. Quick, clever and easy to use.

Supplier's Notes:
Signal flow is an essential concept in modular synthesis: the path taken by audio or control voltages (CVs) may be long or short, branching or linear, intuitive or highly complex.

While the patch programmability of a modular system is its greatest strength, it can also be a weakness: quick experimentation is often hampered by the need to repatch the synthesiser to change the signal flow.

Pivot 2 offers a unique solution: a compact, fully voltage controlled variable signal router. At the turn of a single knob, any signal can be routed through two external modules in series, parallel or reverse series, as well as any combination in between.

Experiment with patching wavefolders before, after or alongside filters, shuffle multiple delay lines, precisely dial in two-stage audio compression or easily control intricate feedback patches.

Looking beyond the basic signal routing application, Pivot 2 will also function as a complementary pair of counter-acting linear voltage controlled amplifiers (VCAs), a voltage controlled crossfader or a voltage controlled panner.

Analogue voltage controlled send/return router.
Seamless transitions from series, through parallel on to reverse series effect routing.
Also functions as a complementary VCA pair, voltage controlled crossfader or panner.
Impedance-compensated outputs with dual-colour LEDs.
Premium mounting hardware: black screws, black nylon washers and matching hex key.
High-quality components and assembly; designed and made in Belgium.

4 HP | +12: 60 mA, -12: 60 mA

Notes: Amp Academy Pedal

The Amp Academy is a complete valve amp modelling rig in a compact stomp box format. 3 storable scenes with 2 channels, selectable from 6 separate classic amplifier models. Each patch has Gain, Master and Boost for overdriven tones and 3-band EQ + Presence control. As with a real professional tube amp, there is an effects loop and internal rever effect. The addition of a noise gate helps to keep everything silent when no notes are played. Balanced or unbalanced outputs give flexible options for live performances via FRFR speakers, mixing console, or even for direct recording. All settings are fully editable via USB using the proprietary Amp Academy software and even self-made or third party IRs can be loaded for custom amp modelling. Next time you are carrying your heavy valve amplifier around, consider this incredibly flexible and pocket-sized alternative.

Power supply: 9Vdc, 100mA (min) pin-negative (not included)
Controls: Gain, Master, Boost, NR, Bass, Middle, Treble, Presence
Connections: Guitar in/out (6.3mm), Loop (6.3mm TRS), Aux (3.5mm), DI (XLR)
Dimensions: 115 x 105 x 58mm
Weight: 440g

Notes: Multi-format turntable case

One size fits all! The new MULTI-FORMAT TURNTABLE CASE is a heavy-duty road case that was especially designed to fit the popular Technics SL-1200/1210 Turntable. It includes several foam pads to accommodate various new models such as a Pioneer PLX-1000, Mixars LTA and other models from Stanton, Vestax, Reloop, American Audio or Numark.

Fits

Audio Technica LP120-USB
Audio Technica LP1240-USB
American Audio Power Drive 2.2
DJ-Tech SL-1300MK6
Mixars STA
Numark TTX
Numark CDX
Pioneer DJ PLX-1000
Pioneer DJ PLX-500
Reloop RP-8000
Reloop RP-7000
Reloop RP-6000
Reloop RP-2000
Roland TT-99
Stanton ST-150
Technics 1200/1210 G
Technics 1200/1210 GR
Technics 1200/1210 MK2
Technicsc 1210 MK5
Technicsc 1210 MK7
Vestax PDX 3000

Basics

Heavy duty construction of 9 mm vinyl laminated plywood
Solid aluminum profiles and spring loaded latches
Secure stacking due to stackable ball corners
Full padded interior keeps equipment well-protected
Incl. adjustment foams to accommodate different turntable models

Specs

Outer measures: 52 x 43 x 22 cm
Inner measures: 45,5 x 36,5 x 9 cm
Weight: 8 kg

Notes: Configuring a streaming setup from scratch can be a daunting task, particularly for users with little or no music production experience. The minimalist design of the AG01 takes this into account by combining a high-quality condenser microphone with DSP effects, a LOOPBACK function, flexible input connectivity, and a simple, intuitive mixer for stress-free streaming operation.

Simply connect to your computer or iOS/Android device along with the headphones of your choice, then set your levels and you've got a fully operational streaming station that can be up and running within minutes. If you're an aspiring live streamer that requires a compact yet comprehensive, high quality all-in-one solution, the AG01 is ready when you are.

In most streaming applications your microphone is likely to feature prominently onscreen so it is important for it to complement your overall vision. With a unique and iconic design that blends classic and contemporary aesthetics, the AG01 looks as good as it sounds, offering both black and white-based models to suit your preference.

In addition to the condenser microphone audio input, the AG01 is equipped with a mini stereo line input jack, and an upgraded 4-pole mini jack (TRRS) for smartphones that allows input and output. You can also add audio from devices connected via USB in LOOPBACK mode. Combined with these features, this microphone-type model can cover a wide variety of streaming styles that could not be achieved in the past without a separate mixing device.

The AG01's high-performance condenser microphone utilizes a cardioid polar pattern that captures your voice or musical instrument performance precisely, and converts it into high resolution audio (192kHz, 24bit) while blocking out unwanted ambient noise from the rear or sides.

The AG01 features high-quality DSP effects, allowing you to easily add COMP/EQ and REVERB to color and hone your audio and get the best sound possible to broadcast to your audience. What's more, these tools are processed by the internal DSP chip so there is no delay, making the AG01 particularly valuable for live streaming, when real-time accuracy is required.

You can also turn these effects off completely to capture pure, raw recordings of the AG01's condenser microphone for music/audio production that will be edited by an engineer later.

There are many situations in live streaming where you may need to make audio adjustments on the fly. The carefully configured physical controls of the AG01 respond to these needs providing a simple operating experience that won't detract from your live content or performances.

AG Controller offers two modes, "Simple" and "Detail," which allow users with varying degrees of audio engineering experience to easily and precisely check and adjust the AG's DSP processing from any Windows/Mac or iOS device connected via USB.

The AG01 can be easily placed on a desk or any flat surface with its dedicated stand, or mounted on a desk arm, making it adaptable to almost any environment.

It can also be used in combination with a mobile battery allowing you to take your fully functioning streaming station anywhere you like.

*For stable operation of the AG01, a power supply of DC 5V 900mA or more is required.

AG01 comes bundled with Cubase AI music production software, as well as WaveLab Cast for audio production and editing. The AG01 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.

Specifications

Microphone Unit: Back electret condenser type
Polar Pattern: Cardioid
Adress Type: Side
Frequency Response: 30 Hz - 20 kHz
Max Input SPL: 110 dB (THD - 1.0% at 1 kHz)
Sensitivity: -34 dB i 3 dB (0 dB=1 V/Pa, at 1 kHz)
Connector: USB Type-C

Input Channels
Microphone: 1 (Mono condenser microphone)
AUX: 1 - Stereo mini
Smartphone: 1 - 4-pole mini input/output (TRRS)
USB: 1

Output Channels
PHONES: 1 - Stereo mini
Smartphone: 1 - 4-pole mini input/output (TRRS)
USB: 1
Bus: 1 Stereo
Functions: MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)

On-board processors
DSP: COMP/EQ, REVERB (SPX Reverb) *Detail is Controlled on AG Controller
USB Audio: 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C
USB DC Power Input: 1 - Type-C, 5 V DC, 900 mA

General specifications
Power requirements 5 V DC, 900 mA
Power consumption Max. 4.5W
Dimensions: W: 116 mm (4.6") H: 281 mm (11.1") D: 118 mm (4.6")
Net weight: 1.2 kg (2.6 lbs)
Included accessories: USB 2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information
Others: Operating Temperature: 0 to + 40C

Review: Every Steely Dan album is a world within itself - part of a broader galaxy of planets that share the same energy source, but ultimately unique and never interchangeable. Can't Buy A Thrill was the very beginning of Donald Fagen and Walter Becker's revered project, fabled for its exacting studio prowess and ruthless commitment to perfection. There's immediacy to the likes of stone-cold pop classics 'Do It Again' and 'Reelin' In The Years', but this is still sublime and subversive music from a band who flew out of the gate fully realised. Giving a classic like this the treatment it deserves, Analogue Productions have gone all-out for this deluxe edition, with half-speed remastering and pressing onto a hefty 200 gram platter, all presented in a lavish box.

Notes: Get glitchy with it.

The 2hp Slice is a compact beat repeat/glitch engine built to add clickless stutters, digital glitches, and more to your patch. With an onboard Triplet button, seamlessly switch between straight beat repeats to offset triplets, perfect for those trap style fills you can't live without. With massive repeat range, and CV/Gate inputs for complex glitch sequencing, Slice is everything you need to get glitchy with it, all in 2HP.

Tech Specs

Width: 2HP
Depth: 45mm
Power Consumption: +12V=83mA, -12V=8mA, +5V=0mA

The 2hp Slice will be available in both Silver aluminium and Black PCB front panels.

The 2hp Slice ships with a 10-16 power cable and 2 Silver M3 mounting screws.

Notes: An 8hp version of the retired Mutable Instruments Grids. It is an identical functional clone, so it will behave in the same was as the full size version, and will run any firmware that runs on the full size version.

Notes: The BETA-V from SolidGoldFX is a Bass Preamp pedal that kicks! This latest incarnation of SGFX's top selling Beta Series is designed to capture the warmth and grit of favorite vintage tube amps. You know, that distinctive drive and tone that seems to be lacking from much of today's modern bass amplification.

Yes, we all know the convenience of a lightweight "sub 10 lbs" bass head that pumps out 500 watts and a neo cab that doesn't require a roadie crew or chiropractor is great, but there is something extremely satisfying in the way that big, old Ampeg-style tube setups compress, clip and round out your signal. However, with the BETA-V you can finally have the best of both worlds - bone-shaking mojo-packed dirt, all wrapped up in modern and easy to use convenience.

Solid Gold FX's classic Beta bass architecture has been reworked and expanded, delivering a wider range of tones. The low-pass filter now has 2 settings for bumped or scooped-mids as well as a centre bypass setting for a more transparent experience. Plus, the Drive control has been reworked for lower gain applications or hotter basses.

Most importantly, the BETA-V sports an active 2-band post gain EQ allowing you to boost or cut your highs and lows with a flat response in the centre. Dialling in anything from punchy overdriven Lemmy tones to the fattest, deepest soul shaking dub is only a few knob twists away. Complete with top-mounted jacks, soft touch true bypass switching and 9-18 V DC operations, the BETA-V is a true thump machine, ready to rock your world.

Notes: Dual channel analogue overdrive with real tube-like compression featuring 3 clipping options with carefully hand picked germanium diodes, smooth and sensitive to picking strength.

3 different gain levels from clear boost with a touch of dirt to high gain overdrive, full EQ with air control to manipulate the presence of your pickups, a MOSFET boost circuit lets you push your amp into natural breakup.

Order toggle switch to add volume or an extra gain stage.
Side A: BB style circuit with bass, air, treble, drive and volume control
Ge, Si and LED asymm clipping toggle
3 level gain toggle.
Side B: MOSFET boost +20dB with level control
A > B or B > A stack order toggle
Top mounted jacks

Notes: Seeking to unapologetically tear apart the definition of a chorus pedal, Old Blood Noise Endeavors have created the BL-82 Chorus. An ode to delay time, this is a device with a variable clock control to shift between recognizable shimmering chorus and chaotic modulated delays.

Two delay lines, modulated by opposite synchronized LFOs, are combined in parallel and the timing of the delay lines, as well as the speed and depth of the LFOs, are all determined by one tactile slider. This allows you to instantly open up the modulated floodgates on the fly and go from well-known waves, to deeply unknown oceans of sound.

BL-82 is a chorus pedal, technically. It creates a swirling shimmery sound somewhere between chorus and flanger from a mono instrument signal. Its two delay lines are stretchable, and that's where the pedal's genre blurs from chorus into modulated delay into trailing pitch bending uncertainty.

The control set for BL-82 is dead simple. A Clock slider sets the timing of the entire system. The sample rate that determines signal fidelity, the centre delay time and the speed of the delay modulation are all affected as the slider slides. The interface is rounded out with feedback, volume, and mix add to an immediate experience that breaks open the boundaries of what it means to be a chorus and allows you to further craft the undulations of this mesmerizing device.

Notes: This is an exact hardware replica of the Mutable Instruments Veils 2020 module. After Later used the "hard-to-find" OPA1679 opamps, but we did switch the package from TSSOP to SOIC, to keep costs down. It is the same part/specs, just a different package.

Based on open source designs by emilie gillet under Creative Commons (CC-BY-SA) license.

Width: 10hp
12V: 50mA
-12V: 50mA

Notes: Module A-147-4 is a dual voltage controlled LFO (Low Frequency Oscillator). Each LFO has the five waveforms triangle, sine, rising and falling sawtooth, as well as rectangle available. The rectangle output features manually adjustable pulsewidth and pulsewidth modulation by means of an external control voltage. The core waveform is triangle. The other waveforms are derived from triangle by means of waveform converters. The frequency of each LFO can be adjusted manually and modulated by means of an external control voltage with associated attenuator and polarity switch. By means of a jumper the basic frequency range of each LFO can selected: about 0.02 Hz (~ 50 seconds) ... 2.5kHz or about 0.0017 Hz(~ 600 seconds) ... 220Hz. That way each LFO can be used also as a VCO with a max. frequency of about 2.5kHz. Each LFO features a reset input which can be used to reset the triangle signal.

The module has these controls and in/outputs available:

Control F : manual control of the frequency, for each LFO the frequency range can be selected by means of a jumper from two values (see technical notes)

frequency coverage of control F in the high frequency range: about 0.075 Hz (~ 13 seconds) ... 1,4kHz

frequency coverage of control F in the low frequency range: about 0.007 Hz (~ 140 seconds) ... 125Hz

Control CV: attenuator for the signal applied to the CV socket, by means of a jumper a small positive voltage can be applied to the switching contact of the /CV/ socket, as long as no patch cable is connected to /CV/ socket the CV control then works as fine control for the frequency

Switch CV Pol.: polarity switch for the signal applied to the socket /CV/

Control PW/PM: combined control for manual and CV control of the rectangle pulsewidth:

when no patch cable is connected to socket /P/ the control is used to adjust the pulsewidth (PW) manually

when a patch cable is connected to socket /P/ the control works as attenuator for the external CV signal with a basic pulsewidth of 50:50.

Socket /CV/: frequency control voltage input, in the factory the module is adjusted so that the sensitivity of this input is exactly 1V/octave when the CV control is fully CW.

Socket /R/: reset input, according to the associated jumper the reset input is edge triggered or level controlled (see technical notes for details)

Socket /P/: pulsewidth control voltage input

Sockets with waveform symbol: output of the waveform in question (triangle, sine, rising and falling sawtooth, rectangle)

The output voltage ranges are about -5V ... +5V (10Vpp), except the rectangle output

For the rectangle output one can choose by means of a jumper if the range is about -5V ... +5V or 0...+10V.

LED: visual control of the LFO (triangle)

The inputs of the module are labelled with white characters on black background (in the text included into two slashes). The outputs are labelled with black characters.
Technical notes and special features:

The basic frequency range of each LFO can be selected by means of a jumper. The settings correspond to two different capacitor values for the VCO circuit. The relation between the two ranges is about 1:11. When the upper range is selected frequencies from about 0.02 Hz up to 2.5kHz can be generated. For the lower range the values are about 0.0017 Hz ... 220Hz. To obtain these full frequency ranges external control voltages are required. With the frequency control F only the frequencies mentioned above are possible.

Apart from that the range for the manual control F can be reduced to obtain a finer resolutuion. For this a jumper has to be removed. The range of control F is then reduced to about 1:4.5 only.

In the factory the starting voltage of the triangle output after a reset is adjusted to 0V, i.e. the triangle starts from 0V with the rising slope after a reset. By means of a trimming potentiometer the starting voltage can be adjusted to another value (e.g. to -5V).

Another jumper is used to set the reset behaviour to edge triggered or level controlled. When set to edge triggered the rising edge of reset signal is used for the reset (independent of the duration of the "high" state of the reset signal). When set to level controlled the triangle output remains at the starting voltage as long as the reset signal is "high". Only when the reset signal turns "low" the triangle starts.

Dimensions
8 HP
45 mm deep

Current Draw
80 mA +12V
70 mA -12V

Notes: Module A-135-5 is a combination of a voltage controlled polyphonic mixer and a polyphonic suboctave generator. It is made of 12 voltage controlled amplifiers (VCAs) which are arranged in form of a 4x3 matrix. Herewith up to three four-voice polyphonic signals (e.g. the outputs of three polyphonic VCOs A-111-4) can be mixed. The level of each of the three polyphonic channels (A, B, C) with four voices each can be controlled manually or by means of an external control voltage with associated attenuators.

In addition the module features four frequency dividers which derive the suboctaves from the four input signals of channel A. The suboctave signals are wired to the switching contacts of the sockets of channel B. As long as the sockets of channel B are not patched the suboctave signals of channel A are used as inputs for channel B. The suboctaves are symmetrical rectangle waves with half the frequency of the corresponding signal A. For example two polyphonic VCOs A-111-4) can be used and patched to the channels A and C. Channel B then provides the suboctaves of channel A.

As the module is fully DC coupled it can be used also for the mixing of control voltages in a polyphonic environment (e.g. for envelopes, LFOs or other control voltages).

The switching contacts of the 12 input sockets and the four outputs are internally connected to pin headers. That way the module can be internally pre-patched to other polyphonic modules (e.g. the four inputs A to an A-111-4, the four inputs C to another A-111-4 and the outputs to the polyphonic filter A-105-4). As the switching contacts of the sockets are used for the internal pre-patching the internal patch can be overridden by using the sockets at the front panel.

The module has these controls and in/outputs available:

Controls Lev.A, Lev.B, Lev.C: manual level adjustment of the channels A, B and C

Controls CV A, CV B, CV C: attenuators for the corresponding control voltage inputs

Sockets A1...4: inputs channel A

Sockets B1...4: inputs channel B (if the sockets are not patched the suboctave signals are used for the inputs B)

Sockets C1...4: inputs channel C

Sockets CV A. CV B, CV C: control voltage inputs for the channels A, B and C

Sockets Out 1...4: outputs

Dimensions
10 HP
55 mm deep

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***

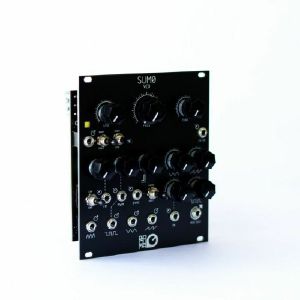

Introducing SUM0, a voltage-controlled oscillator with expanded harmonic possibilities, in a Eurorack format.

The 4 classic waveforms are generated by a meticulously designed oscillation engine.

You can modulate its frequency and its pulse width thanks to its integrated LFO, capable of reaching audible frequencies to achieve expressive modulations with the simple touch of a switch.

Expand the voice of your system by creating complex waveforms and high harmonic content thanks to its output mixer. This mixer also has an input to integrate an external signal to the mix output.

Of course, all its parameters (FM, PWM, SYNC, V/OCT) are at your fingertips through its patch points on the front panel.

And of course, assembled with a load of passion in Bocuma's studio-workshop in Guadalajara.

Nerdy-specs:

22HP
+12V > 12mA -12V > 12mA

Notes: The Flexshaper is a highly versatile module when it comes to modify evolving voltages in other directions and levels.

Five settings allow you to fold/expand/clip/compress/invert partially or completely any CV or audio signal.

The module can act as an envelope-shaping tool, frequency multiplier, waveshaper, clipper, distortion, limiter, curve changer, and more.

Five CV inputs offer limitless control over the placement of the voltage points for dynamic signal sculpting.

Birth of the product

The idea of the Flexshaper comes from a feature in the Oberheimr Matrix synthesizers called Tracking Generator.

This signal processor was part of the modulation matrix and meant to be virtually inserted between modulation sources and destinations in order to change the shape of the controlling signal.

The Flexshaper applies the same concept using the same 5 shaping points. However, it goes beyond Oberheim's implementation on two main aspects:

It goes fast enough to process signals at full audio rate
The 5 points are dynamically adjustable (CV) in real-time
Besides, the Flexshaper can process adequately bipolar and unipolar Eurorack signals, even changing them one another.

Dimensions
6 HP
21 mm deep

Current Draw
6 mA +12V
7 mA -12V
32 mA 5V

Notes: Mixer & CV/clock-controlled Switcher

Focused versatility seems an oxymoron when describing the features that led to the design of the Mixwitch.

With only a pinch of mixing, inverting and controlled switching, Klavis Electronics brew up a plethora of combinations and uses.

This is voltage processing magic!

The Mixwitch design comes from a frustration with attenuvertors (bipolar attenuators-inverters) whose off (neutral) position is difficult to retrieve, especially in live situations.

Klavis went for a digitally-controlled analogue path where polarity inversion would be at the touch of a button. So, the usefulness of attenuating/inverting can be realized by turning the pot down, swiftly pressing the inversion button and reopening the level. The zero level is where you expect it, with the pot full down.

Once a clean polarity control was established, a mute function was added, offering the benefit of pre-adjusted pot settings ready to be activated at will.

The next step was to bring something extra, useful and creative. There are plenty of analogue switches controlled by a clock; but arbitrarily selecting an input with a voltage is less known. Having both control capabilities combined with Klavis' specific mixer features creates a unique fusion: welcome to the Mixwitch!

Dimensions
8 HP
25 mm deep

Current Draw
39 mA +12V
24 mA -12V
0 mA 5V

Review: The vast array of Depeche Mode originals cover plenty of ground and many years of hard and critically acclaimed work. As such they're a gold mine for artists looking to add their own spin and plenty of the most ear-grabbing of those radio, dub and club mixes are collected together here on a rather epic seven slabs of wax in one bumper box set with a poster and digital download. Works by contemporary artists like Trentemoller and Justus Kohncke sit next to techno titans like Ben Klock, trance mainstays such as Sander Van Doorn and even EDM stars like Laidback Luke. A varied mix with something for everyone.

Review: Made and released way back in 1958, Somethin' Else is a classic jazz album by the American alto saxophonist Cannonball Adderley, notably his only ever album for the esteemed Blue Note label. It famously hears Adderley enlist the help of trumpeter Miles Davis as one of its sidemen, and this was an ongoing relationship that later paved the way for popular jazz as a whole; without Somethin' Else, we wouldn't have Kind Of Blue, for which Adderley would contribute his sax playing just a year later. Though it is a testament to the unity of two great core musicians, we also hear the piano stylings of Hank Jones, bassist Sam Jones and drummer Art Blakey.

Notes: UDG have further finetuned what was already a great design concept of a flight case into one especially for the most discerning DJ/ producer. Constructed from solid 9mm thick plywood, the outside is laminated in a black finished honeycomb/ hexagonal "Stage Grip" pattern. The inner sides are protected with high density diamond embossed EVA foam protective padding. This extremely robust padding protects the equipment against scratches, dust or other damage, creating a unique stylish & practical finish.

Extra wide black finished aluminium profile & massive UDG logo embossed ball corners are incorporated to ensures longevity & maintaining a permanently attractive, professional design. The UDG Ultimate Flight Case Denon DJ SC LIVE 2 Black Plus (Wheels) also features roller wheels with high quality in-line skate bearings for convenient transport and heavy-duty, spring-loaded handles for a secured lift & load.

UDG Ultimate Flight Case Denon DJ SC LIVE 2 Black Plus (Wheels) not only transports your complete set up easily & securely, but also facilitates devices to be setup within minutes. With these premium features incorporated, the UDG Ultimate Flight cases provide premium professional quality in a very stylish modern black coloured combination.

Specifications:

Colour: Black
Weight: 14,50 kg / 31.9 lbs
Outer Dimensions (W x H x D): 72.4 x 47.3 x 23.3 cm | 28.5 x 18.6 x 9.2 inch
Inner Dimensions (W x H x D): 65.4 x 33.5 x 14.2 cm | 25.8 x 13.2 x 5.6 inch
Material: Heavy duty construction of 9 mm thick plywood
Protection: Improved powder coated and anodized hardware
High density diamond embossed EVA foam & carpeted protective padding
Dual anchor rivets with included washer
Extra-wide silver solid aluminium profiles
Secure stacking due to stackable ball corner

Extras

Convenient 80 mm space at rear for connections & PSU storage
Cable access hole with removable UDG emblem cover
Removable front access panel
Roller wheels with high quality in-line skate bearings for convenient transport
Fits: Denon DJ SC LIVE 2

Notes: Customized to hold the new Denon SC Live 2 controller. Crafted from 9 mm vinyl laminated plywood, sturdy aluminum profiles and heavy duty butterfly latches, this case provides ultimate protection for mobile use on the road.

Fits:

Denon SC Live

Basics:

Heavy duty construction of 9 mm vinyl laminated plywood
Solid aluminium profiles and spring loaded latches
Secure stacking due to stackable ball corners
Full padded interior keeps Controller well-protected
Detachable front cover/panel

Specs:

Outer measures: 74 x 50 x 22,5 cm
Inner measures: 65,2 x 33,5 x 5,6 cm (Controller-compartment)
Weight: 11,1 kg
Color: black/silver

Notes: *** Updated to v3 in February 2024 with improved hardware and circuitry ***

The Omen is a dual LPG with a bit more than you might be used to. This module was born out of the realisation that it was possible to make far more interesting LPG designs than the standard we've become so accustomed to.

In a convergence of old-school LPG design and more modern components, the Omen boasts two -6dB resonant filters, custom built vactrols, built in CV attenuation and no less than three cutoff modes per filter. Filter 1 is soft and light, imparting a gentle, naturally gated touch of filtering on your sound, while Filter 2 is darker and more resonant, and can turn downright growly and distorted when left wide open.

Designed to give you as many creative options as possible, the Omen has the unique ability to function as either two discrete LPG, or as one 4-pole resonant LPG. When plugging a signal in to Input 1, and with no signal plugged into Input 2, the output will be present at both Output 1 and Output 2, with Output 2 producing the signal as it passes through both filters. Tweaking both filters independently will generate a wide array of soft and sometimes harsh tones, ranging from Buchla bongos to early synthesis brass and organ sounds. There is much to love here.

CV is similarly handled, by plugging in only one CV source, it will act on both channels - this is useful for creating musically similar outputs as well as when using the dual filter operation. However, the dual filter mode greatly benefits from having two CV inputs: use an envelope in CV1 to act as a VCA, and an LFO in CV2 to create tremolo, for instance.

Using custom designed, hand built vactrols, care has been taken to mitigate the less desirable aspects of passive LPGs - in most modules, the user can expect zero bleed through on the LPG channels, and signal attenuation is minimal even with the 4-pole filter settings engaged. Of course, many of the natural features of vactrols remain, such as subtle memory effect when engaging the vactrol for long periods.

Finally, you receive maximum blinkenlights as LED's on the front panel simulate the action of the vactrols, so you'll always know what's going on under the hood. No collection of fancy LPG's is complete without the Omen.

Dimensions
4 HP
36 mm deep

Current Draw
Module does not draw current

Notes: GITGUD is a pack of 9 chained LFOs.

Why:

To move stuff all around.
To creatively trigger drums and voltage-controlled gates.
To change the whole vibe of a composition with just a slide on the skin-sensitive panel.
To create dependencies on a group of modulations and defuse them un-chaining the LFOs on the fly.

With:

Filters - create a relation between the cutoff and the resonance.
Drums - send a pulse to the trigger input and a ramp to modulate another parameter.
LPGs - squares to make them BONG and ramps for slow linear increments.
FM or any other CV inputs you want it to take care of.

Dimensions:

8 HP
18 mm deep

Current Draw:

135 mA +12V
