Rides In The Storm Modules

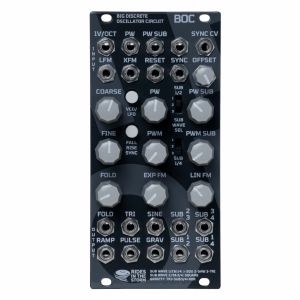

Notes: BOC

Discrete VCO/LFO with stabile tune, tracking and wide spectral range

Full sound with defined low end and superfast edges for best brilliance

SINE, TRIANGLE, RAMP, PULSE and TRIANGLE-WAVEFOLD OUTS

FOUR SUBOSCILLATOR OUTS: Fifth below: 2/3 (SQU) Fourth below: 3/4 (SQU) One Octave below: 1/2 (PW, SAW, TRI) Two Octave below: 1/4 (PW,SAW,TRI) GRAVITY OUT (TRI and SUB 3/4 with XOR)

PW, PWM for core VCO and SUB 1/2 & SUB 1/4 RESET (SYNC)

Voltage Controlled SOFTSYNC (FALL & RISE edge SYNC)

WAVEFOLDER CV IN

Linear FM and exponential FM with ATTENUATORS

Jumper at the back to switch from BUS CV to PATCH CV and BUS RESET to PATCH RESET

Screwed metal shaft potentiometer

Rackspace: 12HP
Depth: 25mm
Power consumption: +/-100mA

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


BOC

Discrete VCO/LFO with stabile tune, tracking and wide spectral range

Full sound with defined low end and superfast edges for best brilliance

SINE, TRIANGLE, RAMP, PULSE and TRIANGLE-WAVEFOLD OUTS

FOUR SUBOSCILLATOR OUTS: Fifth below: 2/3 (SQU) Fourth below: 3/4 (SQU) One Octave below: 1/2 (PW, SAW, TRI) Two Octave below: 1/4 (PW,SAW,TRI) GRAVITY OUT (TRI and SUB 3/4 with XOR)

PW, PWM for core VCO and SUB 1/2 & SUB 1/4 RESET (SYNC)

Voltage Controlled SOFTSYNC (FALL & RISE edge SYNC)

WAVEFOLDER CV IN

Linear FM and exponential FM with ATTENUATORS

Jumper at the back to switch from BUS CV to PATCH CV and BUS RESET to PATCH RESET

Screwed metal shaft potentiometer

Rackspace: 12HP
Depth: 25mm
Power consumption: +/-100mA

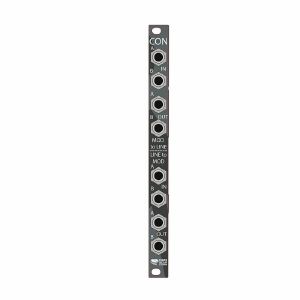

Notes: Two channels from line level to modular level and two channels from line level to modular level. Very low noise and low distortion circuit while preserving the transients.

Rackspace: 2HP

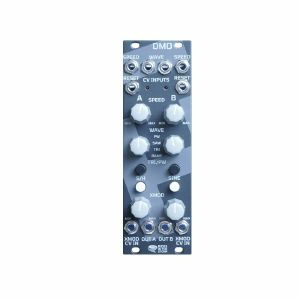

Notes: DMO Voltage controlled Dual Modulator

Dual LFO with crossmodulation

SAW, RAMP, PULSE, SINE, TRIANGLE and Random Waves

RESET

CV IN for SPEED, Xmod and Crossfade Waves

Power consumption: +/- 120mA

Rackspace: 8HP

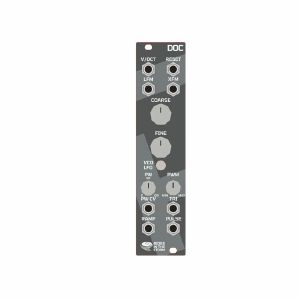

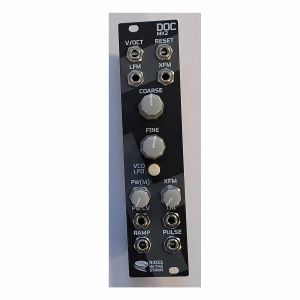

Notes: DOC Discrete VCO with stable tune and wide spectral range

Wide Range with stable tuning

Incredible warm sound with low end and superfast edges for best brilliance

SAW, PULSE and TRIANGLE Wave

PW, PWM and RESET (SYNC)

Linear FM and exponential FM

Rackspace: 6HP

Notes: Eurorack Module

Discrete Oscillator
Controller for rough and fine tuning and pulse width (0 - 100 %)
CV input with attenuator for pulse width modulation
VCO/LFO mode switchable
Inputs for pitch CV (1 V/oct.), linear FM, exponential FM and sync
Waveform outputs for triangle, sawtooth and pulse
Current consumption: 60 mA (+12 V) / 60 mA (-12 V)

Width: 6 U
Depth: 25 mm

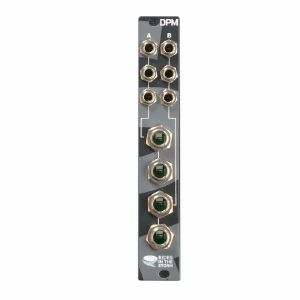

Notes: DPM Dual Passive Multiple Module

Three 3.5mm inputs and two 6.3mm outputs or vice versa.

Rackspace: 4HP

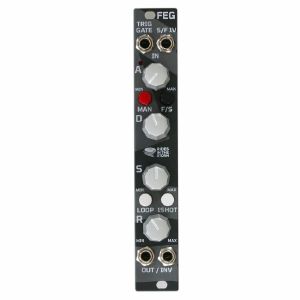

Notes: Great value from this compact envelope module. Loopable, with short and fast modes and designed with snappy exponential curves for a "compressed 'bonky' sound".

Supplier's Notes:
Very exponential "snappy" course and rounded edges for a compressed "bonky" sound.

Two time zones are offered.

Rackspace: 6HP

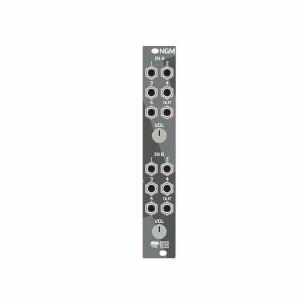

Notes: NGM - 2×5 Passive Mixer with active Gain

For audio signals and control voltages.

Mixer A and Mixer B with 5 inputs each and level control knob per channel.

Width: 2 HP

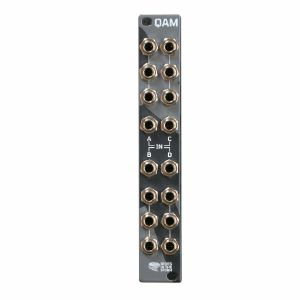

Notes: QAM Quad Active Multiple

One input on three outputs.

Usable for audio and CV signals, very distortion- and low noise circuit.

Power consumption: +/- 10mA

Rackspace: 4HP

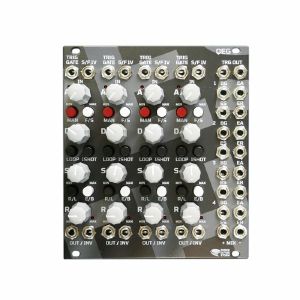

Notes: QEG Quad Loopable ADSR Envelope Generator with 16 Trigger and Mix Outs

Quad Version of FEG plus Trigger Outs

Mix Out ( normal and reversed) of all envelopes for multistage applications

Very exponential "snappy" course and rounded

Edges for a compressed "bonky" sound

Two time zones are offered

Remote control via CV of two time zones

Loopzone from Attack to Release

One shot mode for trigger signals

Jumper at the back for reset mode

Manual Trigger button

Normal and Inverse Output

Trigger Outs for each section: Begin of Attack, End of Attack, End of Sustain, End of Release

Power consumption: 120 mA (+12 V) / 100 mA (-12 V)
Rackspace: 20HP
Depth: 25mm

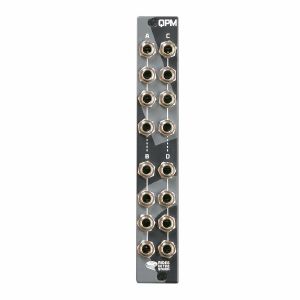

Notes: QPM Quad Passive Multiple Module

A IN is normalized to B IN, C IN is normalized to D IN normalized. Each channel has one input and three outputs or one output and three inputs.

Rackspace: 4HP

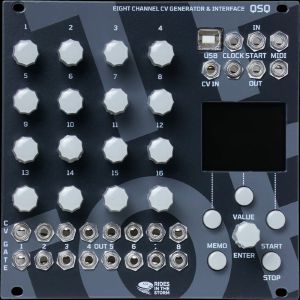

Notes: QSQ - Eight Channel Eurorack Sequencer and MIDI/CV Interface

SEQ with 16 endless Pots, Graphic Display and many functions, Step-, Realtime-, Song, Tune, MIDI/CV Modes.

Track parameter
Various configurations (8 CV & 8 Gate outs), MIDI to CV Interface
Track length 1-64 (Polymeter)
Clock Divider von 1/4-8 (Polyrhythm)
Swing mode (Groove quantisation) for each track
Play mode (FFW, REV ALT, RND)
CV quantisation (Scales)
CV scaling
Euclidean Rhythm

Step parameter
CV Value (0-10V) and Gate length
Glide and Retrigger
Random and Probability
Static CV or Envelope/LFO
Easy access to all tracks/parameter and good overview
Colour mode Display
Updatable via USB

Rackspace: 26HP
Depth: 25mm

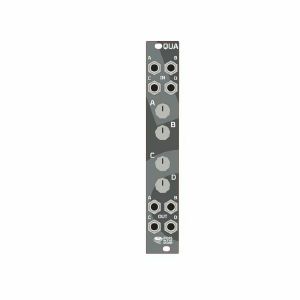

Notes: QUA Quad Attenuator

without CV In each Channel generates 0-10V

Power consumption: +/-10 mA

Rackspace: 4HP

Notes: ***B-STOCK: Box opened, product in perfect working order***


QUA Quad Attenuator

without CV In each Channel generates 0-10V

Power consumption: +/-10 mA

Rackspace: 4HP

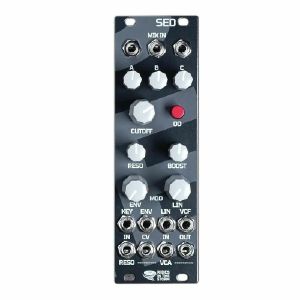

Notes: SED - Discrete VCF and VCA plus 3 Channel Mixer

Low Noise and creamy Lowpass Filter with 24 dB

Jumper at the back to switch to 24 dB Highpass

Three-Channel Mixer

Overdrive Button and Resonance Boost level

Discrete VCA with low noise and low distortion

Four CV INs for VCF and two for VCA

Power consumption: tba

Rackspace: 8HP

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


SED - Discrete VCF and VCA plus 3 Channel Mixer

Low Noise and creamy Lowpass Filter with 24 dB

Jumper at the back to switch to 24 dB Highpass

Three-Channel Mixer

Overdrive Button and Resonance Boost level

Discrete VCA with low noise and low distortion

Four CV INs for VCF and two for VCA

Power consumption: tba

Rackspace: 8HP

Notes: Analogue discrete Synthvoice with two VCOs, three SUB-VCOs, Wavefolder, Noise, Ring Modulator, two loopable ADRS, two LFOs/VCOs, MIXER, 24db Lowpass VCF, VCAOur new Eurorack flagship hits stores this summer. Very compact (pre-patched) discrete synth voice module with excellent analogue technology for endless soundscapes at a reasonable price.

Two discrete VCOs with highly stable tracking

Three analogue Suboscillators (3/4-1/2-1/4 with SQUARE, SAW, TRI) + Gravity Mix -Sync

Wavefolder (VCO 1 TRI WAVE)

White Noise

XOR Ringmodulator

Discrete VCA

24dB LP VCF with overdrive

Dual analogue LFO (one also usable as VCO) with incredible range and keytracking -Two superfast and punchy analog ADSR sections with LOOP function and four TRG outputs (End of ATT, End of DEC)

Mixer section with Master level -Glide presets and huge Patchfield to communicate with other Eurorack Modules.

Screwed metal shaft potentiometer

Rackspace: 36TE
Depth: 25mm

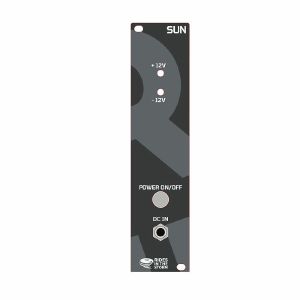

Notes: Protection circuit, very stable voltage, +/- 12Volt supply,
+ 3000mA / -2500mA power and optionally front panel or
Housing installation incl. External 8amp power supply unit.
Release end of 2023

Dimensions
6 HP
40 mm deep

Notes: TUL Dual Attenuator/-verter and Offset Generator

Temperature stable and accurate circuit design. The attenuator is exponential and can be regulated more precisely in the initial range.

As an attenuverter, the fader describes an S-curve, i.e. it is in Range +/- 0 finer adjustable. The AC gain is 1, so there is no loss at maximum Att/Attv settings.

The offset potentiometer shift by +/- 5 volts and can be switched to another mode on the back of the PCB using jumpers.

Here the attenuation is towards zero made until it is zero.

The normal mode leaves the voltage at the specified offset value.

Channel A is normalized to channel B so you can get two different CVs.

On the rear side of the PCB, you have a jumper to switch from offset pre fader (good for ADSR) and post fader.

Power consumption: +/- 20mA

Rackspace: 6HP

CV out is (-/+5Volt) if nothing is patched to IN A/B, so you can use it as a manual CV source.

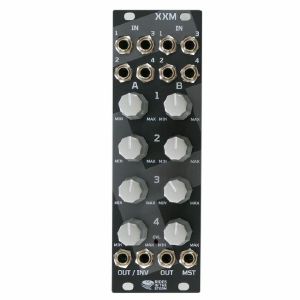

Notes: XIM 2x4 or1x8 Channel Mixer

High Quality precision Audio Op Amps for Audio and DC

Two Sections with Single Outs and Master Out

A Section is DC coupled and has reverse out

B Section is DV or AV via jumper

All of them are suitable for Audio

Rackspace: 8 HP

Depth: 25mm
