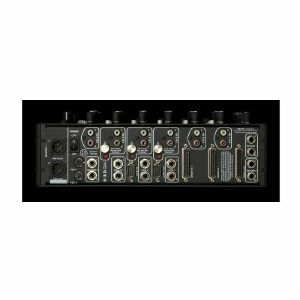

Notes: Updated version of WMD's exceptional performance mixer. Full stereo design with improved sound quality, revised layout and increased expandability. An even better version of what was already one of the best mixing solutions in Eurorack.

Supplier's Notes:
Enter the WMD Performance Mixer MKII - Eight years after the MKI was released, the MKII builds on all the valuable feedback received. This is a serious upgrade, with feature enhancements and engineering improvements affecting every bit of the design.

Decisions, decisions, decisions!

If you recall, WMD showed a previous version of the PM MKII a year ago. That version was very similar to the original, with a few enhancements. Primarily focused on manufacturability and overall noise floor with some great recording features. WMD moved to an 8-layer board, replaceable channel strips, developed the MIDI and bootloader, pre/post fader headers, and made it work on both AUXs simultaneously.

Noise Performance - The MKI was alright with noise, there was a little bleed too. Going to 8-layer boards meant I could put ground planes between trace layers, and spread the traces out triple the spacing of what they were on the MKI, this reduces bleed/crosstalk by a factor of about six.

Noise Performance 2 - On the Original, the Level VCA was before the Panning VCAs, which saved on parts/power, but it meant that the Panning VCAs were always connected to the mix bus, adding noise floor that couldn't be attenuated. Making all the channels stereo and putting the Pan circuit first eliminated this problem, now the noise add is controlled by the fader. This did force WMD to make every channel stereo, so the design got simpler through figuring this out.

Panning / Crossfader - The above panning/level improvement made it possible to convert the Pan control into a crossfader, buy simply routing the post pan signals through a switch to the opposing channel, summed at the Level control. This huge improvement allowed the A/&/B input switching scheme to still work on the PM MKII, a bit differently, but it's there in spirit.

Modular Design - The channel strips are all now stereo, and identical, which makes assembly much easier, and lowers the cost. It also makes replacing them easier should a mechanical part fail or get spilled into. Further, the Patchbay, Power board, and Master section are all separate parts, so if there's a failure, they can be quickly swapped without having to RMA the whole unit.

Patchbay - The MKI and rev E MKII still had jacks misaligned with channels. This was a source of frustration for d many users of the PM MKI. And I decided to just be done with it. It didn't make sense to try to put jacks over the channel, it wasted too much space on the panel... So all the jacks go left, keeping the mixer clear of cables, this let me space the knobs out a bit to take up all 3U. It's cleaner, simpler to make, and intuitive to use.

Expandability - It's super modular now, the DB25 can connect to any two headers that spits out audio, they're all the same format across PM MKII and Channels MKII. Pre, post, mixes, connect it however you want. And the connectors can't be hooked to power, meaning no more blown opamps and RMAs to the factory. They're all shrouded too so they won't get bent in shipping!

Features Overview:

Everything is stereo. Inputs, Busses, Auxes, and Cue Mix.
INPUTS: IN LEFT is normalled to IN RIGHT.
GAIN: Each channel has a Gain trim range of -12dB to +20dB, this will let you use line level devices easily.
GAIN CLIP LED: lights red 1dB before clipping the input stage.
LVL FADER: smooth intuitive curve for easily adjusting the mix level on the fly. A yellow indicator shows the level.
MUTE: Press the channel button and the channel will soft mute with a red LED indicator.

Notes: 12-voice version of Waldorf's Iridium Core, a compact synth from the same range as the Quantum. Running on the Waldorf OS, the Iridium features a versatile selection of Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator synth engines.

Supplier's Notes:
The Core

Iridium Core provides the core synthesis engine of the Quantum / Iridium platform. It is the heart of Waldorf's most advanced hardware-based synthesis. The essence of forward-looking sound. The Core.

Sonic Explorer

Iridium Core contains 5 synthesis engines: Wavetable, Multi- & Granular-Sampling, Waveform, Kernel FM and Resonator. Combined with a broad selection of digital filter and processing options Iridium Core lets you explore a huge sonic universe of electronic sound. Iridium Core's intuitive and easy graphical interface helps you to keep your flow of creativity.

Wave Traveller

The compact form factor makes Iridium Core an ideal companion to travel with you to all your sonic explorations and performances. It fits well into laptop size bags and in carry on-baggage it leaves enough space to all your other devices you need for your performances.

Driven by Inspiration

Iridium Core comes with a huge collection of more than 1700 factory presets and samples to drive your sonic Wanderlust. Get inspired what the broad and diverse array of sound designers have created to fuel your musical endeavours.

Team Player

Iridium Core integrates into various live performance and studio setups. Its connects with your modular synths, drum machines, sequencers and computers. The compact form factor fits well into your tabletop or space limited setups.

Family Member

Iridium Core shares the same software platform like Quantum, Iridium Desktop & Iridium Keyboard. All instruments are powered by the Waldorf synthesiser OS and will receive joint updates. Thus, the whole family participates from future enhancements and developments.

Specifications

Compatible with the Waldorf Quantum synth engine
Software: Waldorf Synthesis Platform OS

Oscillators
3 Oscillators each capable of 5 synthesis modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM, AM or Wavetable-position at audio rate)

Dual Stereo Filters per voice
True stereo path Dual Digital Filter with independent modes:
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Analyzer displayed in Filter view
Filter curve animation when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Digital Former
Filter models like State Variable, Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filters, Bit-Crusher, various Drives, Ring-Modulation

Modulators
6 Envelopes
6 LFO
Komplex Modulator (LFO/Envelope combination with user-definable shape and morphing)

Mod Matrix
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Effects
5 slots per layer
Various parallel and sequential routing options
Reverb, Delay, Chorus, Phaser, Flanger, Drive, EQ, Compressor, Tremolo

Performance features
Advanced Arpeggiator
Step-sequencer with up to 64 steps for notes and parameters
2x4 button pads assignable to notes or chords
4 user-assignable potentiometers
6 user-configurable macro buttons
Favourites screen for quick patch recall
XY control on touchscreen
Wheels touchscreen for MIDI controls like mod wheel, pitch bend, aftertouch and velocity
MPE capable

Screen
Industrial-grade highly responsive touch screen with Brightness control
1024x600 pixels

Voices
12 voice polyphony
Duo-timbral
Mono, Legato and Unisono modes

Patches
Over 1700 factory patches
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum and other Iridium variants can be loaded and vice-versa
Category filter for patch list
2.6 GB sample flash memory preloaded with 2 GB factory samples

Connections
Stereo Audio Out: 2x TS jacks
Stereo Audio In: 2x TS jacks
Headphones TRS output with level control
DIN MIDI IN & Out, mini-TRS Type A (two adapters to DIN MIDI sockets included)
USB Type B (device) for MIDI connection to computer
USB Type A (host) for storage media and MIDI devices
MicroSD slot
2 high-resolution CV Inputs which can be used as modulation sources in the Mod-Matrix
Analogue clock In & Out with clock divider settings

Overall
Sturdy metal case
Dimensions: 346 mm wide by 200 mm depth by 64 mm height (including controls)
Weight: 2.2 kg
External Power Supply: Input 100-240 V / AC 50-60 Hz, Output 12 V DC / 3 A

What's In the Box?
Iridium Core Synthesizer
Two MIDI adapters: mini TRS to DIN sockets
Power Supply
Printed Quick Start Guide

Notes: A true powerhouse of a synth, packaging the Quantum synth engine into a more manageable four-octave design. Five synthesis modes, powerful stereo filters, performance features and outstanding playability.

Supplier's Notes:
Waldorf Iridium has made the impossible possible. The mighty synth engine from Quantum is now available in a compact form. Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:
12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.

The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Specifications
16-voice polyphony, duo-timbral
Compatible with the Waldorf Quantum synth engine

3 Oscillators
Oscillator Modes:
Wavetable
Waveform (VA)
Particle (Sampling and Granular Sampling)
Resonator
Kernels (up to 6 sub-oscillators which can be interlinked through FM at audio rate)

3 Stereo Filters per voice
True stereo path
Dual Digital Filter:
Two filters with independable modes
12/24dB LP/HP/BP in all combinations
Nave, Largo, PPG, Quantum and StateVariable models
Digital Former:
Filter models from Waldorf Nave, Largo and PPG in HP/LP/BP/Notch
Comb filter
Bitcrusher
Drive
RingMod
StateVariable mode
Analyzer displayed in Filter view
Filter curve moves when modulated (optional)
Sophisticated filter routing options with modulatable panning and levels

Modulators:
6 Envelopes
6 LFOs
Komplex Modulator (LFO/Envelope combination with user-definable shape)

Mod Matrix:
40 slots
Fast assign mode
One additional control amount per slot
Identical Sources and Destinations can be used multiple times until the matrix is full

Pads:
4x4 silicon pad matrix with RGB backlights
Pads can play notes, chords, arpeggios and sequences
Latch mode

Performance features:
Arpeggiator
Step sequencer with up to 32 steps for notes and parameters
Favourites screen for quick patch recall
Onscreen Mod Wheel, Pitch Bend and Aftertouch

Screen:
Industrial-grade highly responsive touch screen

Patches:
Over 1000 factory sounds
Capacity of 7000 patch memory slots (numbers 0000-9999 can be used)
Patches from Quantum can be loaded and vice-versa
Category filter for patch list
2GB user sample flash memory

Connections:
2x TS output
2x TS input
Headphones output with Gain control
DIN MIDI In/Out/Thru
USB MIDI
USB host for storage and MIDI devices
MicroSD slot
Kensingtonr lock

CV connections:
4 CV inputs plus Gate In, Trigger In, Clock In, Clock Out
Inputs can be used as modulation sources in the Mod Matrix

Overall:
Sturdy metal case with aluminium knobs

Dimensions: 440mm wide by 305mm depth by 85mm height (including controls)
Weight: 5.4kg
19" rack assembly parts available

Notes: Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.

Contributing another entry in Waldorf's rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridium for each of the three oscillators:

Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels

Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.

Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.

Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:

12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.

All filters retain a true stereo signal throughout the entire structure of the instrument.

Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.

Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.

Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.

Iridium's large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:

Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points

Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.

Once again, Waldorf have underlined their status with a new and exciting synthesizer.

Notes: The new PerFourMer is a real analog synthesizer, through its simple control surface and very flexible sound production it is able to offer a near inexhaustible variety of Bass, Lead, Pad and Effect sounds. Additionally, with its total of six filter inputs, the PerFourMer is also perfectly suited as a complex filter-bank. Even though the PerFourMer is not considered a modular system, it can still be described as a modular or at the very least a semi-modular. The basic concept is reminiscent of classics such as the Oberheim 4 Voice or the Korg Monopoly.

The PerFourMer is a 4 voice synthesizer, consisting of completely independent synthesizers, which can be adjusted and played independently from each other. These four synthesizer channels can be linked with each other and be played in 3 different operating modes.

Next to the already mentioned filter inputs, each channel has a single output, which can also be used as an insert for external effect devices, and make it possible to easily integrate the PerFourMer with already established equipment. It is also possible to transmit the unedited VCO signal. Additionally the opportunities of the PerFourMer can be expanded through internal patching between the channels, for example; you can route a VCO through multiple filters and VCAs, or use 2 channels to create 1 voice with 2 ADSR envelopes (1 for VCA and 1 for VCF). Use the PerFourMer as a filter-bank and the slope envelope can be doubled by interconnecting the filter in series. The PerFourMer is controlled via MIDI and additionally via CV/gate (1V/octave) inputs for every synthesizer channel.

Notes: Vintage FM synthesis meets analogue character in the TWISTfm. Eight-voice polyphonic sound engine with superb versatility thanks to 15 filter modes including Heat saturation and adjustable resonance.

Supplier's Notes:
Unleash the full potential of FM synthesis with TWISTfm, a cutting-edge polyphonic synthesiser that blends vintage FM synthesis with advanced analogue filtering and modern control. Designed to offer a rich, dynamic sound palette, TWISTfm is the perfect tool for musicians and sound designers looking to push the boundaries of sonic creativity.

At the core of TWISTfm are two legendary Yamaha OPL-3 YMF262 FM chips paired with dual YAC512 stereo DACs, providing 8 discrete voices. Each voice is equipped with its own analog multimode filter for an unparalleled range of sound design possibilities.

With HEAT and Dual Resonance Modes: Featuring 8 individual analogue filters, inspired by the iconic designs of Mutable Instruments, TWISTfm gives you precise control over sound shaping with 15 filter modes, including low-pass, high-pass, band-pass, phaser, notch, and more. The HEAT parameter adds anything from warm, subtle saturation to harsh analog distortion, allowing you to push the filters to their limit. Additionally, you can switch between two resonance flavors-LIQUID, for smooth and subtle resonance, and MS20, for more aggressive, cutting tones. With digital control over resonance and cutoff, the filters offer flexible modulation and the ability to store settings with presets.

TWISTfm's MPE mode fully supports three dimensions of control-pitch (X), timbre (Y via CC74), and pressure (Z)-offering precise per-note modulation for unparalleled expressiveness and depth in your sound.

Whether you're composing in the studio or performing live, TWISTfm's robust feature set and intuitive design make it a powerful addition to any setup. Its combination of vintage FM tones and modern control capabilities offers a unique, versatile sound engine capable of producing everything from smooth ambient pads to aggressive basses and leads.

Notes: A thing of beauty. Teenage Engineering channel the vibes of vintage open-reel tape recorders mashed up with modern tech. A proper all-round recording solution, from voice memos to studio work.

Supplier's Notes:
There are thoughts, ideas and fragments that - for the sake of humanity - we need to record and be able to return to as a reference, as a seed for new thoughts or just to remember another time. TP-7 is built for just that, to record sound, music, interviews and important ideas with zero friction in the highest possible quality. A device engineered in every detail to do only one thing and to do it well. A dedicated piece of hardware for ideas, or just a dirty riff.

The ultra-portable audio recorder. Record and listen back using the internal mic and speaker, or use any number of the 3x two-way jacks for external mics, headsets or other signal sources. Multiple connectivity options include USB-C, MFi and Bluetooth. Instant voice-to-text transcription available via the IOS app. Included in the box: 6.35 mm jack adapter, textile USB-C cable, user guide and reusable plastic storage box.

Intuitive muscle reflex control.

TP-7 fits perfectly in the palm of your hand and lets your fingers naturally adopt the controls. The index finger triggers fast forward and the middle finger rewinds. Your thumb records a memo, the pinky selects the mode. It's a genuinely rewarding experience.

Tape reel sensation.

The centre piece of the TP-7 is the motorized tape reel. A delicately engineered brushed motor with ball bearings, and a highly sensitive hall sensor that lets you virtually grab your recording. the reel is also used for scrubbing, to pause, menu navigation and as gentle visual feedback during playback and recording.

The rocker.

The side-mounted rocker allows you to quickly scrub through your audio.
just press on the top edge to fast forward, and down to rewind. watch the wheel spin around and hear your tracks scrub in 'hyperspeed'.

Transcription hell turned into transcription heaven.

We've all experienced the process of transcribing recorded speech to text by hand. A key feature of the TP-7 is its ability to streamline the process of turning audio into text. simply connect your phone to TP-7 via BLE or USB, open the TP-7 app and press transcribe. Job done!

(* Additional languages, text-to-audio edit and other useful features will be added over time.)

Off the record.

Picture yourself in an interview situation. The reel on the TP-7 is spinning slowly, the bright red record lamp is lit. Both the reel and the lamp indicates that a recording is taking place. The interview is going quite well. The situation gets heated, you're suddenly asked some personal questions. In that moment, you gently place a finger on the reel and pause the recording, allowing you to continue the interview 'off the record'.

The importance of zero friction.
(or how to remove steps from thought to action.)

Let's compare TP-7 to the most common recorder today - the smartphone:
Once you've turned on and unlocked your phone, found the recording app and started recording, you've probably forgotten whatever you had in mind. When recording on TP-7: press the memo button and start talking.

Inputs, outputs and 20 years of ideas.

TP-7 features three stereo two-way jacks to be used as either inputs or outputs, for connecting external mics, headphones, studio monitors, or any other audio equipment like OP-1 field or TX-6, recording with all 6 stereo channels. Use USB-C for multi-channel audio interface, MIDI, data transfer and charging, and BLE and MFi for wireless connectivity. TP-7 also includes a 6.35 mm to 3.5 mm jack adapter. Add to that 128 GB of internal storage and you can preserve 5 minutes of ideas a day for 20 years..

Applications.

Interview

Let you, and your subject, focus on the job at hand. When conducting interviews, TP-7's discreet size and dedicated function makes for an unobtrusive recording device.

Podcast

Whether you're in the studio or out in the field, TP-7's high quality audio is perfect for podcast recording. Connect up to 3 external mics, or use the internal mic in a pinch. Keep an eye on your levels with the VU meter and headphones.

Voice memos

Think out loud, tape does the rest. Let TP-7 capture your thoughts, then convert them into accurate text using the TP-7 app. For professionals, and avid thinkers and writers.

Field recording

Inspiration can strike when you least expect it. With an internal mic, 3x inputs, and a 7 hr rechargeable battery, you can use tape to record samples and demos on the go. Never lose an idea again.

Live performance

Use TP-7 in a live performance or recording scenario. Track all the instruments in your studio, or record your live set when performing. You can even use TP-7 as turntables and TX-6 to mix.

The field system.

TP-7 is part of Teenage Engineering's ultra-portable sound recording and performance system. All battery-powered, rechargeable via USB-C and with full interconnectivity (MIDI and high resolution audio). Compatible with iOS, macOS, and windows it's the most powerful, highest quality, portable system in the world 'as we know it'.

TP-7 specifications

Highlights
3x stereo two-way jack input/output/headset connectors
1x stereo headphones connector with 3.5 to 6.35 mm jack adapter
Internal microphone and speaker
Motorised 'tape reel'
128 GB internal storage
24-bit/96 kHz usb audio interface
Bluetooth low energy
Rechargeable battery
7 hr battery life
64x32 pixel monochrome display
LED VU meters
Companion transcription app

Dimensions and weight
96 mm x 68 mm x 16 mm
170 g / 5.6 oz

Electrical characteristics
Two-way jacks (3.5 mm TRRS)

Stereo input:
Input impedance 9.5 kOhm
Analogue gain 0 - 42 dB
Max level 8 dBu (2 Vrms)
SNR 105 dBA

Headset:
Max level out 2 dBu (1 Vrms)
SNR 110 dBA
Microphone SNR 98 dBA

Headphone output (6.35 mm TRS)
Max level 8 dBu (2 Vrms)
SNR 120 dBA

Notes: Part of Teenage Engineering's high-end Field series, the OP-XY is best seen as a pro groovebox, combining polyphonic synthesis, sampling and sequencing. More music-focussed than its OP-Z predecessor, the OP-XY represents a new flagship for TE.

Supplier's Notes:
No-compromise, dual-CPU boosted and fully rebuilt sequencer, sampler, and performance instrument, based on the much-loved workflow of the OP-Z. Now including built-in cv, effect sends, and a best-in-class DAC. with 8 individual instrument tracks and 8 auxiliary tracks for controlling any external synthesizer, modular or otherwise, and adding effects. It's probably the most complete, portable sequencer ever built. It's here. It's real. it's black.

And it's got so much more than you've wished for.

The exterior is all black, and matches the exact dimensions of OP-1 field. A distinct grayscale gradient is at its centre, making it clear that OP-XY is all about serious sequencing. Hands-on graphics on the high-resolution display are all grayscale, with a bright red to indicate recording and parameter locks. all vital keys have LEDs to stay in full control.

Experience the ultra fast sequencing workflow. Punch-in FX lets you add quick, rapid-firing, unique, live variations and adding individual step components creates an extra dimension and deep rhythmic patterns. randomize note timing, velocity and pitch, or use live automation to alter filters. Use brain to create chord progressions, generating tracks that reinvent themselves. Literally.

Run every track, independently, at different speeds and lengths to form powerful polyrhythms. create new sequences every time with step components, variations that can be added to any step on the sequencer, controlling everything from altering pitch to bending, skipping or even multiplying steps.

Main audio-out

Multi-out, featuring:
MIDI
CV/gate
Sync
Aux audio
MIDI IN
AUDIO IN
USB-C

The 2 Vrms main output drives any sound system, real loud. Keep everything locked in sync and sequenced with the multi-out and take control with MID IN. process and sample external audio with the audio-in. control, record and charge with the audio/midi host over USB-C, plus a complete wireless experience with midi over Bluetooth LE -keine bedingungen [no strings attached].

Compose your album, head off to the gig, plug and play immediately, then keep everything locked-in with all the I/O you could ask for. 16-hour, battery-powered freedom lets you perform for hours on-end. create, produce and perform anywhere. Mit allen bedingungen [all strings attached]

The bottom left side features a pressure sensitive pitchbend

Instrument tracks:

8 individually sequenceable instrument tracks
8 unique synth engines
3 samplers
independent send levels per track

Step components
14 unique step components for advanced step sequencing
Apply up to all 14 to every step screen
480 x 222px IPS TFT display

Patterns
9 patterns per track
up to 64 bars per pattern
spread across 4 pages
presets per pattern

Effects: reverb, delay, chorus, distortion, lo-fi, phaser

Hardware
Dual blackfin processing cores
Dual DDR memory
Triple-core dsp co-processor
2x controller MCU's for wireless & low power IO domain

Sensors: 6-axis IMU accelerometer

Microphone: immediate, high quality sampling with the built-in microphone.

Connectors: 3.5 mm stereo line-out with headset mic support
3.5 mm multi-out
3.5 mm midi in
3.5 mm stereo line-in

Tactile input
2 octave musical keyboard
68 ultra low profile mechanical buttons
Pressure sensitive pitch bend
4 x multi purpose grayscale encoders

USB
USB type C connector
USB MIDI host & device
USB audio host & device

Notes: Updated version of the ground-breaking synth, sampler and sequencer. Better than ever, with legendary sound quality and portability.

Supplier's Notes:
The beauty of evolution.

Louder, thinner and 100 times better.

Introducing the all new OP-1 field. Injected with more than a decade of ideas, refinements and improvements. Just to mention a few: stereo throughout the whole signal chain, Bluetooth MIDI, USB type-C, a new speaker system with a passive driver for detailed, fat and loud sound, a massive 24 hour battery life, multiple tapes and recording formats, new great sounding reverb and the 'dimension' synth engine, an all glass, flush, high resolution display. The graphics have also been meticulously reworked, screen by screen.

Reworked, refined, reborn.

Think of OP-1 field as the natural continuation of its predecessor. Updated with the latest technology, improved design and finely tuned with professional musicians, recording artists and sound designers in mind. Higher quality in all aspects, from its circuitry to connectivity and flexibility, it's tailor made for professionals in the field.

The new stereo sample engine is just one of the features that takes the OP-1 field to a higher level. With increased sampling time up to 20 seconds and dual layer mode for instant mixing of the a and b channels or via an assigned LFO.

Four new recording formats: Studio 4-track, vintage 4-track, porta and disc mini.
All with their own unique characteristics and graphics. Now with multiple tapes or discs, up to 8 in total.

If it feels thinner, it is.

By lowering the aluminium body around the keyboard, the new OP-1 field feels lighter, thinner and more precise. with 2k moulding Teenage Engineering have also managed to fit a dual 2.4 GHz antenna system inside the aluminium body.

The back is warm, velcro and bass.

Two soft velcro rings have been added on the back for fastening covers and accessories. Perhaps you want to stick your op-1 field on top of your full size keyboard, or slap it on a guitar? Use the included adhesive looped back and start experimenting. On the right you'll find an additional passive loudspeaker for hugely improved bass. And for a 'no-more-cold-metal-on-your-lap' experience, the aluminium body has been folded in a warm, soft touch, hard cover.

The first accessory out using the velcro rings is the Bill Amberg leather wrap that attaches to the back and wraps around the op-1 field and locks around the encoders.

Dimensions: 28.8 cm x 10.2 cm x 2.9 cm

Notes: A tiny studio microphone with a large-diaphragm capsule and groundbreaking features.

CM-1; the latest addition to Teenage Engineering's field system.

A versatile studio quality, ultra-portable microphone that comes with a built-in professional SUB-C audio interface with built-in preamp. Add a 3.5 mm jack and a 48v phantom powered mini XLR, and you have a truly one-of-a-kind battery-powered studio microphone.
A rarity in the field.

Large-diaphragm capsules are preferred for professional recording, but are rare within the world of portable equipment. CM-15 features an ESS sabre analogue-to-digital converter, preserving high-fidelity sound and capturing exceptional detail in any recording situation.

Clean, mean and lean mic-machine.

Clean, rich, transparent and natural sound. Period.

Use the gain switch on the back for padding those mean drums, or the other way around. Battery-powered with an integrated audio interface and preamp, cm-15 is always ready to use wherever you like to record. In other words: 'lean operation'.

CM-15 includes a standard 1/4" and 3/8" adapter, making it universally compatible with standard mic stands and tripods.

The included adapter allows for a 90- to 110- tilt, so you can mount the mic onto a boom arm or to better record overheads. Use tripod mini for portable setups (available separately).

Dynamic sound for any occasion.

Teenage Engineering's first microphone also means a unique sound quality to discover.

Rich, transparent and natural, cm-15 captures clear and clean sound for professional audio productions, always ready to set up wherever you like to record.

Pure craftsmanship.

CM-15 is an incredibly versatile microphone, both inside and outside the studio. The large-diaphragm condenser capsule essentially means you get a better signal, so there is less noise and better depth of sound.

Vocal recording

As a directional mic, CM-15 is perfect for the vocal booth, focused on picking up sounds in front of it.

Instrument recording

With the flattest frequency response at a 50 cm distance, CM-15 is perfect for capturing a variety of instruments, including your drum kit.

Interview/podcast

CM-15 is great for podcasts and interviews, where high audio quality and portability is necessary.

Field production

With a compact form factor and 10 hour rechargeable battery, it's a great tool for every 'trip'.

Camera mic

When filming with a video camera, connect CM-15 through the line out to record synced audio directly.

Multi-use connectivity.

CM-15 has multiple outputs that can be used simultaneously:

mini XLR, 3.5 mm jack and USB-C. It can also be powered three ways, through phantom power, battery or USB-C, instantly detecting the right power source for your connected device.

On the bottom side of CM-15, you will find three audio outputs: mini XLR, 3.5 mm jack and USB-C. The built in table stand can be used to rest and angle the microphone on a surface.

CM-15 includes a mini XLR to XLR cable for connecting to your recording console. The 3.5 mm jack can be used with headphones, while USB-C is used for digital audio interface connection, firmware updates and charging.

Technical specifications

CM-15 highlights

1-inch large-diaphragm capsule
10 hour rechargeable battery
48 V phantom power compatible pseudo-balanced mini xlr output
dual mono 3.5 mm jack line output
USB-C class compliant device with high performance
ESS sabre ES9822Q PRO analogue to digital converter

Dimensions and weight

90 mm x 65.5 mm x 19 mm
132 g / 54.6 oz

Audio characteristics

Self noise: 14 dBA

Max SPL for 0.5% THD: 138 dB
USB SNR dBA FS: 120 dB
Polar pattern: supercardioid
Polarity: positive

The field system.

CM-15 is part of Teenage Engineering's ultra-portable sound recording and performance system. All battery-powered, rechargeable via USB-C and with full interconnectivity (MIDI and high resolution audio). Compatible with iOS, macOS, and windows it's the most powerful, highest quality, portable system in the world 'as we know it'.

Notes: ***B-STOCK: Missing dust cover and original internal packaging but otherwise in perfect working condition***


The streamlined hi-fi option of the new Technics SL series, based on similar technology to the SL-1200 GR model but with no pitch control, just rock solid Technics sound at a good price.

Supplier notes:
The technologies acquired through the development of the SL-1200 Series and the high-end SL-1000R model were lavishly inserted into the motor drive unit, a key part of the turntable. The motor exclusively tunes the single-rotor, coreless direct drive motor adopted by the SL-1200GR in order to read the high rotation accuracy and high-precision signals of the record. Optimal motor control is conducted for the inertial mass of the two-layer structure platter on which the vinyl record is placed with deadening rubber on the entire back surface to eliminate unwanted resonance in the aluminium die-cast platter to eliminate the rotation irregularity called cogging. The aluminium die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fibre to achieve a two-layer construction. The insulator is comprised of a spring and rubber to provide optimal vibration-damping characteristics. The tonearm is a static-balance universal S-shape tonearm, another Technics tradition. By adopting a high-precision bearing using the same gimbal suspension construction and machined housing as the SL-1200 Series, high initial sensitivity is achieved. In addition, reliability has been improved by incorporating a removable power cable and gold-plated terminals, which have less sound quality degradation, for the PHONO and LINE terminals.

Complete Turntable with a Built-in Phono Equalizer and Cartridge In order to enjoy playing analogue records more comfortably, the SL-1500C features a built-in phono equalizer and bundled cartridge. There is no need to separately prepare either one, making it easy to link with a wide range of audio equipment. The shield structure of the built-in phono equalizer suppresses the effects of external noise and noise from the power supply. It is also equipped with a switch to turn the LINE output off when it is not being used. The turntable has been designed to thoroughly shut-out adverse effects to the PHONO output. The dedicated power supply for the PHONO output terminal is isolated from the power supply for the LINE output terminal, and has been designed to prioritize sound quality by minimising the wiring of the PHONO signal. The isolated terminals also prevent wiring mistakes. An Ortofon 2M RED cartridge, which is highly acclaimed as an MM cartridge, has been selected for the bundled cartridge. Combining this high-quality cartridge with the performance of the SL-1500C will maximise the sound quality of vinyl records.

When the tonearm reaches the end of the record, the Auto Lifter function automatically raises the cartridge. This prevents unnecessary wear on your valuable vinyl records and stylus. By embedding the Auto Lifter function in the base portion of the tonearm, it eliminates impacts to the tonearm. Due to a simple design that doesn't use motor power, there is no electrical or vibrational impact and it will not prevent the movement of the tonearm. In response to requests from many users regarding the Auto Lifter function, a design that prioritises sound quality was adopted. The functions required to playback records were kept to a bare minimum, achieving simple and easy-to-use operability.

The SL-1500C sports a simple design without unnecessary frills, while retaining the superb operating feel that is a Technics tradition. The attractive appearance lets you enjoy playing records to your heart's content.

Notes: A serious mixer from a legendary name. Tascam's 2400 combines analogue mixing with a 24-track recorder, built-in USB interface and DAW integration. Exceptional versatility in a convenient package.

Supplier's Notes:
Streamline Your Mix Process with Advanced Onboard Processing

The Model 2400's versatility doesn't compromise its mixing capabilities one bit. With per-channel compression, multiple sub groups, and master stereo bus processing including compression and EQ, you'll have the pro-level mix control you need in any scenario. Taking your project from tracking to a final master on the Model 2400 couldn't be simpler.

22 Channels and 24 Tracks, One Solution

With comprehensive 22-channel mixing capabilities, the Model 2400 is an ideal studio and live mixer for everything from larger combos and jazz ensembles to orchestra and choir ensembles. And when it comes to recording, no additional interface or computer are required.

Insert Professional Processors and Effects

Insert points on channels 1-12 allow you to easily integrate a studio rack full of processors and effects units. And, in addition to the onboard Master Bus processing, a send/return loop on the Main output allows you to connect external mastering gear such as compressors, EQs, stereo imagers and sonic exciters.

Ample Aux and Sub Outputs

With 5 Aux sends and 4 stereo sub groups, Model 2400 handles advanced mixing duties with ease. Create more monitor mixes without sacrificing an aux for effects. Connect multiple pairs of studio monitors for checking your mixes. In your studio or on stage, Model 2400 delivers the comprehensive connectivity and routing you need.

Professional Recording Capabilities

Model 2400 seamlessly integrates multitrack recording with studio and live mixing. With the ability to record 24 channels (22 inputs plus the stereo master) of high-quality audio direct to SD card media, Model 2400 is a powerful recording solution even if you're a DAW-less producer.

Sound with Excitement

TASCAM Ultra HDDA (High-Definition Discrete Architecture) mic preamps give Model 2400 the vibrant analogue sound that makes harmonics come alive.

With Ultra HDDA, any sound source will be represented with the utmost clarity and richness, and with an ultra-low noise floor.

Monitor Your Signal Virtually

With the Model Mixer Settings Panel app, users can take advantage of a digital meter bridge across by connecting the Model 2400 via USB to a PC or Mac. Set peak hold times, monitor the input, MTR or USB signal all while being able scale the GUI from a small window to full screen. Take it a step further by porting the app from your computer to a dedicated monitor of your choosing.

Ready to Be Your Studio Centrepiece

Model 2400 delivers the classic analogue console experience in the studio, with an onboard 24x22 audio interface that's ready to meld with modern production workflows. Insert points on channels 1-12 allow you to integrate studio processors and effects. And with the ability to return 22 DAW tracks through Model 2400's mix path and processing, it's also the most versatile analogue summing mixer you'll find.

MIDI Interface

Model 2400's comprehensive MIDI functionality allows full integration with MIDI-based production setups. From controlling drum machines and synthesizers from your DAW software, to synchronizing external effects processors to the tempo of your music and creating click tracks, Model 2400 offers the MIDI functionality you need to make it happen.

Specifications
Recorder
Recording media: SD (Class 10 or higher), SDHC (Class 10 or higher), SDXC (up to 512 GBytes, Class 10 or higher)
File system: SD: FAT16, SDHC: FAT32, SDXC: exFAT
Recording file formats: WAV (BWF), 44.1/48 kHz, 16/24 bit (maximum file size: 2 GBytes)
Playback file formats: WAV, BWF (44.1/48 kHz, 16/24 bit)
Recordable tracks: 24 (22 tracks + stereo mix)

Audio inputs and outputs

Microphone inputs (MIC, 1-12, 13,15,17,19): XLR-3-31 (combo jack), balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level: +10 dBu
Nominal input level: -8 dBu
Minimum input level: -58 dBu
Gain adjustable range: 0-50 dB
Input impedance: 1.9 kO (1-12), 2.4 kO (13, 15, 17, 19)
Line/Instrument inputs (LINE/INST, 1-2): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: LINE: +22 dBu, INST: 19.8 dBV
Nominal input level: LINE: +4 dBu, INST: 1.8 dBV
Gain adjustment range: -10 dB to +40 dB
Input impedance: LINE: 22 kO, INST: 1 MO
Line inputs (LINE, 3-12): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4 dBu
Gain adjustable range: -10 dB to +40 dB
Input impedance: =22 kO
Stereo line inputs (LINE L/MONO, R, 13/14 to 21/22): 6.3-mm TRS phone jack, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level: +22 dBu
Nominal input level: +4 dBu
Gain adjustment range: -20 dB to +30 dB
Input impedance: =11 kO (mono), =22 kO (stereo)
Inserts (1-12): 6.3-mm TRS phone jack, (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level: +18 dBu
Nominal input level: 0 dBu
Input impedance: 15 kO
Maximum output level: +18 dBu
Nominal output level: 0 dBu
Output impedance: 100 O
Talkback input: XLR-3-31, balanced (1: GND, 2: HOT, 3: COLD)
Maximum input level: -22 dBu
Minimum input level: -65 dBu
Gain adjustable range: 52 dB
Input impedance= 2.6 kO
Main output (MAIN OUTPUT L/R): XLR-3-32, balanced (1: GND, 2: HOT, 3:COLD)
Maximum output level: +22 dBu
Nominal output level: +4 dBu
Output impedance: 200 O
Main inserts (MAIN SEND/RETURN L/R): 6.3-mm TRS phone jack (Tip: Send, Ring: Return, Sleeve: GND)
Maximum input level: +18 dBu
Nominal input level: 0 dBu
Input impedance= 9 kO
Maximum output level: +18 dBu
Nominal output level: 0 dBu
Output impedance: 100 O
Control Room outputs (CONTROL ROOM L/R): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Aux outputs (AUX OUTPUT 1-5): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Sub group outputs (SUB OUTPUT 1-2, 3-4, 5-6, 7-8): 6.3-mm TRS, balanced (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum output level: +16 dBu
Nominal output level: -2 dBu
Output impedance: 200 O
Phones output 1/2: 2 × 6.3-mm stereo phone jack
Maximum output power: 45 mW + 45 mW (at 32 O)

Control inputs/outputs

USB port: USB Type-B
Protocol: USB 2.0 High Speed (480 Mbit/s)
Click output
6.3-mm standard TS jack: (Tip: HOT, Sleeve: GND)
Footswitch connector: 6.3-mm TRS phone jack (Tip: FOOTSW1, Ring: FOOTSW2, Sleeve: GND, unlatching switches required)
MIDI input and output: 5-pin DIN connector
Format: Standard MIDI

USB audio

Sampling rate: 44.1 kHz, 48 kHz
Bit depth: 16 bit, 24 bit
Maximum number of audio channels: 24 inputs, 22 outputs

Bluetooth
Version: 5.1
Output class: 2 (approximate transmission distance: 10 m)
Supported profile: A2DP
Supported A2DP codecs: SBC, AAC
A2DP content protection: SCMS-T

Audio performance
S/N ratio: (22 kHz LPF, A-weighted), Main mix off: -100 dB, Main mix 0 dB: -80 dB
Equivalent input noise (EIN): -128 dBu (Rs=15 O, MIC IN to INSERT SEND, GAIN knobs at max., A-weighted)
Total harmonic distortion (THD+N): (GAIN knobs at min., 1 kHz), 0,01 % (mic input to main output), 0.004 % (mic input to main output, +2 dBu, BYPASS switches on)
Frequency response: (all gain knobs at min., 1 kHz) 20 Hz to 30 kHz, +0.5/-1 dB (analogue), 20 Hz to 20 kHz, +0.5/-1 dB (digital)
Crosstalk: (PAN knobs fully left or right, 1 kHz), Between channels: -80 dB, Between input and output: -80 dB
Maximum gain: (all GAIN knobs at max., PAN knobs fully left or right, BYPASS on, MASTER BUS IN off), 74 dB (MIC to MAIN OUT), 54 dB (MIC to INSERT OUT), 74 dB (MIC to SUB OUT), 75 dB (MIC to AUX OUT), 24 dB (USB/SD to MAIN OUT)

Computer system requirements

Windows: Windows 11, Windows 10 (64-bit)
Compatible computers: Windows-compatible computer with a USB 2.0 (or higher) port, using Tascam driver, operation not guaranteed with ARM64 CPUs
Display requirements (settings panel software): 1280 × 720 or higher, True colour recommended
Mac: macOS Sonoma (14), macOS Ventura (13)
Compatible computers: Apple Mac computer with a USB 2.0 (or higher) port
Display requirements (settings panel software): 1280 × 720 or higher, True colour recommended
iOS/iPadOS devices: iOS 17/iPadOS 17, iOS 16/iPadOS 16

Power supply and other specifications

Power: AC 100-240 V, 50/60 Hz
Power consumption: 65 W
Dimensions (W × D × H): 681 mm × 568 mm × 133 mm (overall), 639 mm × 568 mm × 133 mm (without side panels)
Weight: 14 kg
Guaranteed operating temperature range: 0-40 -C
Guaranteed operating humidity range: 5-85 % (without condensation)
Included items: AC power cord, Startup Guide, Registration Guide

Notes: The iconic Synclavier brand returns with this digital powerhouse, based around FM synthesis but also offering additive and subtractive methods. Super versatile, with up to 98-voice polyphony and MPE support.

Supplier's Notes:
The new buck in the Synclavier stable

Synclavier Regen is the newest in an auspicious line of Digital FM synthesizers. Designed for desktop use, it contains the power of the Synclavier II DSP engine, enhanced and optimised. Full colour screen, liquid-like touch controls, high fidelity audio output coupled with a sound design powerhouse makes this the synth you always dreamed of.

Regen supports additive synthesis for full control of 24 harmonics. Synclavier have now added subtractive synthesis to the Synclavier synthesis engine, especially for Regen, allowing creation of super saws, PCM square waves, and noise generation. Or you can use samples for your carrier waveform.

And these different waveform generators can be mixed. You have up to 12 partials to use in your sound design creation with crossfades assignable to inputs such as velocity, pressure, mod wheel, and of course, keyboard.

Regen is loaded with content to get you inspired fast. There are over 550 timbre presets across 10 newly commissioned timbre libraries. On top of that, there are over 2000 royalty-free samples built-in, including over 350 selected original samples from the NED era and 2 exclusive artist sample libraries.

When you're done exploring the factory content, you'll have fun with the sound design possibilities. You can layer up to 12 partials with different sound generators (additive, subtractive, samples) then apply dynamic effects per partial. It's truly an expressive instrument, both to program and to play. Polyphonic aftertouch and MPE is fully supported and there's a sophisticated modulators section where you can apply responsive curves to properties driven by pressure, velocity, mod wheel position, and so on.

Synclavier Regen is a desktop unit measuring 310mm wide by 260mm tall and 42mm deep.

Housed in aluminium, finished with a sand-textured black and Synclavier red surround. It has rubberized plinths.

User interface consists of many silicone buttons with multi-colour backlighting, a virtual knob capacitive-touch slider with epoxy-coating. A VK display is included as well as a main modal display that shows current parameters, user settings, timbre library, etc.

Over 40 years of synth design has led to this product. It's a sound-designer's dream in a timeless desktop package.

Sound-design Capabilities

Advanced DSP synth engine, as used on Synclavier II, has been extended for Regen.
12 separate tracks of multi-timbrality, assignable to MIDI tracks and keyboard ranges.
Up to 98 simultaneous voices. Voice count is dependent on system load and is likely to be much higher in typical scenarios.
12 partials per timbre. Each partial can be 1 of 3 oscillator synth modes: additive, subtractive, or samples.
Additive mode supports coefficient and phase control of 24 harmonics.
In samples mode, up to 128 samples can be placed on the partial's patchlist.
Subtractive can have a noise generator or up to 9 de-tunable continuous sawtooth waveforms.
Hybrid (resynthesized samples)
Timbre-level effects, including:
Stereo reverb algorithm with pre-delay and library of presets.
Highly-optimised multi-mode filter with sophisticated filter envelope.
Bit-crusher (for use with additive, sample, and hybrid modes).
Frequency modulation (FM) controllable per partial (all modes) with envelope.
Sophisticated modulation system that allows many Regen parameters to be controlled via MIDI, LFOs (24 per timbre), or driven by envelopes (24 per timbre).
Approx 300MB of sample space in memory = 100 mins @ 48Khz 24-bit mono shared across all active tracks and partials.

Hardware

Balanced stereo output through XLR connections at pro-level 4dBu. Designed for studio and home use. These are DC-coupled for maximum bass impact.
Single-ended TS stereo outputs, also DC-coupled.
Convenient headphones TRS jack for monitoring master audio with independent volume
control. For headphones in range 32O - 300O.
DAC circuit is designed for ultra-low noise floor. 11dB of headroom over nominal level. A
measured 130dB of dynamic range. 24-bit, 50kHz sample rate, as per Synclavier II.
Hybrid sound design engine: original Synlcavier II hardware is modelled in software.
High quality audio components throughout, including a precision temperature compensated crystal oscillator for jitter-free digital audio.
Two glorious full-colour sunken displays.
Responsive silicon back-lit parameter buttons.
The vertical value swiper is touch accurate to 128 levels of resolution for precise control
of every parameter.
12 selector buttons are touch-sensitive and can handle gestures to quickly select
multiple partials or tracks.
SD Card reader for unlimited user timbre and sample libraries.
4 USB accessory ports for MIDI keyboards, sequencers, and audio interfaces. Plus 1 USB Host port for connecting to a computer for MIDI input from a DAW.
Take it on the road. Rugged, full metal enclosure.

Notes: Building on Supercritical's back catalogue, the Redshift provides a range of characters, based around the Demon Core Oscillator and Neutron Flux Filter. Six-voice analogue design with multitimbral options, MPE control and DSP effects.

Supplier's Notes:
Supercritical Synthesizers introduces their first desktop instrument, Redshift 6 - six voice analogue Variable Character Synthesizer

Supermassively dense analogue oscillator combined with a chameleon analogue filter with versatile gain staging. Now sixfold.

Redshift 6 combines technology from the company's previous products, the Demon Core Oscillator and the Neutron Flux Filter. Each of the six voices features a DCO with analogue waveforms generated under digital control. The filter core is an analogue 4-pole state variable filter also digitally controlled to act like almost any classic vintage synthesizer filter and more. In addition to the oscillators and filters, Redshift 6 has all the features expected of a modern synth - plenty of modulators, flexible voice routing, multitimbrality, MPE, and DSP effects.

Redshift 6's idea is something that is wrapped in the moniker "Variable Character Synthesizer". Each voice's analogue path regarding tuning, gain staging, filter, and more is under strict digital control. Redshift 6 has as lush and warm sweet spot inspired by the analogue polysynth tradition, but it can also cover the full range from almost digitally sterile and clean to distorted misbehaviour and beyond. No modelling here - it's all analogue until the bypassable stereo DSP effects processor.

The oscillator, already road-tested in the Demon Core Oscillator eurorack module, is featured in each of the six voices. The oscillator has multiple tricks up its sleeve, each one wrapped as an Engine for the user to choose between. Traditional twin oscillator engines, supersaw engines, flanging phase sync engines, and transistor organ engines are all powerful modes in user-friendly ways that are easily controllable and modulatable.

Redshift 6's six voices can be configured in plenty of ways. Choose between true six-voice polyphony, classic vintage poly dual layer mode with 3+3 voices, six individual voices each with their own patch and physical output, or any combination of the above. Each of the six voices can also operate as a paraphonic voice with up to 16 note paraphony. Additionally, multiple filters can be chained by routing audio from one voice to another.

The form factor of Redshift 6 is a modern, compact desktop device with a 2.7-inch colour screen. Menu diving is reduced to a minimum, with quick navigation via the shortcut button grid. A selection of familiar synth controls are featured on the front panel. A macro mode is included with six user-assignable controls. The back panel features main audio outputs with a DSP effects processor and four auxiliary voice outputs.

One of the major design principles of Redshift 6 is to have a versatile and capable analogue platform and a flexible UI for new Engines, easily updateable via software updates.

Supercritical Redshift 6 Desktop synthesizer module

Technical specifications

Six voices each featuring:
Full analogue signal chain
Digitally controlled analogue Supercritical Demon Core Oscillator
Analog four pole Variable Character Filter
Flexible gain staging with an analogue boost circuit
Physical audio output per voice (2 main outputs and 4 aux outputs)
Optional voice chaining
Bypassable digital effects in main outputs 1-2
2.7" TFT IPS colour screen with a bank of 8 endless clickable potentiometers and quick navigation via button grid
Quick powerful controls for oscillators and filters.
Six user-assignable macro controls
Six parts multitimbral
Modern MIDI implementation with USB-B connection and DIN IN/OUT
MPE
12V power supply
Physical dimensions: 378 mm x 254 mm x 63 mm

Notes: A true MIDI powerhouse, based around a 128-pad matrix and 16-track MIDI sequencer with slick programming workflow and Ableton-style pattern mode for live performance.

*** Firmware update- February 2025 ***

HapaxOS2.10

Squarp are very pleased with this version, which is both creative and packed with new features, as well as numerous bug fixes that make HAPAX more stable than ever.

Up to 16 pattern per tracks
Arranger fonction
Mix / mute performance mode
Pattern follow actions
Midi import / export
Multi track recording
Track latency compensation
STEP-INPUT REC mode (SH101 style)

Supplier's Notes:
Professional standalone sequencer

Genuine centerpiece of a setup, it offers every tool needed to compose songs in the studio and perform them on stage. From vintage to modern synths, from modular systems to your favourite DAW, Hapax can sequence and synchronize all your gear, while bringing you carefully crafted tools, designed for maximizing creativity.

The midi powerhouse.

Up to a million notes and events

16 tracks per project, 8 patterns per track.

Thanks to its dual-processor architecture, Hapax can record and transform tremendous amounts of data in no time, without a hitch.

Express yourself.

MPE compatibility

Hapax is the first hardware sequencer that fully supports MIDI Polyphonic Expression. Record the finest gestures, slides and articulations of your playing, without compromising quality.

Around the clock performance.
Dual-project architecture



Hapax can handle two separate and independent projects, that can be played simultaneously. This lets you compose or load an entire project while the first one is already playing, enabling endless sets and seamless transitions.

Dawless is more.

Hapax offers broad connectivity options for perfect integration in any setup.

Adaptive workflow.
Several ways to write music
Writing a melody: use a polyphonic or MPE track and take advantage of the advanced step sequencer to quickly lay down notes or edit your live recording.

Composing a beat: control up to 8 different instruments with a single track. The drum sequencer is tailored for very easy rhythm writing and jamming.

Real-time midi effects.

Bring your synths to life

Hapax embeds multiple real-time, polyphonic, non-destructive midi effects, as well as project-wide assignable LFOs. Each parameter of these effects can be automated in the dedicated mode, and processed in the mod matrix, which provides even more ways of routing and modulating.

Powerful composition tools.

Algorithms

Powerful tools for offline note transformation and generation, right at your fingertips. Harmonically invert your motive, generate a controlled-random counter-melody, slowly ramp up the velocities, emphasize every fifth 8th note...

Hi-res recording

Hit the red button, and record from the encoders and 128 pads of Hapax, external midi instruments (included MPE controllers) or any incoming analogue signal, at a high resolution of 192 ppqn. Looper style recording, count-down and metronome options, punch-in mode, you'll certainly find the options that best suit your workflow.

Time elasticity

Each track has an elasticity value which changes its playback speed, expressed in percentage of BPM. Quickly double or halve the speed of a track, or create slightly shifted tracks that will slowly drift out of phase with each other.

Fluid editing

Using hardware should never get in the way of creative flow. The undo/redo button lets you go back in time as needed, thanks to its extensive history. Additionally, the snapshot function enables you to save the state of a pattern and recall it with a single press. Together with dedicated copy, paste and delete buttons, Hapax offers a complete toolbox for the prompt editing of your tracks.

Harmony, simplified

For fast and intuitive chord building, the chord live mode brings harmonic capabilities to anyone, with or without deep theoretical knowledge. With its colourful interface, the chord mode displays a synesthetic melding of hearing, vision and touch.

Simple by design.

Trimmed to perfection

Squarp designed Hapax from the ground up, deconstructing everything you thought you knew about sequencing- aiming for a high-end product, with dual arm processors for computation power and a rugged yet minimalist housing.

As music-making should remain an enjoyable process, dedicated buttons were over key combinations and imagined a clear-cut interface as well as a simple architecture. Squarp have striven to minimize the importance of screens for live performing, but the dual grayscale display helps keeping track of things in a studio context.

Hapaxos
Evolving firmware.
The Hapax Operating System has been written with extra care, prioritizing stable and fast operations. New features and parameters will be added regularly.

Specifications
Model name: Hapax
Hardware: 128 RGB MATRIX pads
52 clic pads
9 sturdy clickable encoders
2 OLED greyscale displays
SD card for saving projects
CPU: dual ARM design
RAM: 32MiB
Housing: machined aluminium 2mm
Housing (back): unibody ABS

Sequencer
Dual Sequencer (2 Projects)
16 tracks per project
8 patterns per track

Input
2× midi in (DIN + TRS)
2× CV in [-5V to +5V] (16bit)
Stereo pedal (footswitch)

Output
4× midi out (3× DIN + TRS)
4× CV out [-5V to +5V] (16bit)
4× GATE out [+5V]

Bidirectional I/O
USB Host (link a controller)
USB Device (link a computer)
Power supply: 15V, 1.2A, 18W (included)
Dimensions: 358 × 206 × 48 mm
Weight: 1.855 kg

Notes: The kind of instrument Soma Labs do so well: weird but wonderful. Based around 32 complex digital synth algorithms and 12 note velocity- and pressure-sensitive sensors, transposition techniques allow you to play the full range of a grand piano.

Supplier's Notes:
TERRA is a new SOMA Labs synth.

TERRA is a highly conceptual device. The core idea is unity of nature and technology, and a perfect balance between simplicity and versatility. Behind the extremely simple interface hides a complex polyphonic, microtonal synthesizer with a broad and flexible sound palette that ranges from classical beautiful tones to complex atonal noise, and offers smooth and fast transitions between these extremes.

The innovative keyboard design invites new playing techniques and covers the full range of a grand piano with the possibility to tune each note with an accuracy of 125 steps per semitone. To achieve this range with such a simple keyboard we designed a unique system of pitch shifting using four additional sensors. Pressing different combinations of them will result in 16 variations of keyboard transposing, including up to 3 octaves up and down, fifth, fourth, third, tone etc.

Not only do you get the full range of a grand piano in a very compact design, TERRA also offers an entirely new and different approach to playing melodies and chords.

The keyboard consists of 12-note sensors with velocity and pressure sensitivity allowing for the manual creation of slow attack and vibrato, 4 dynamic sensors for timbre modification and control, 4 pitch-shifting sensors and 2 hold sensors for holding the state of the timbre and note sensors.

Inside TERRA there is a three-axis motion sensor for creating a variety of different modulations by simple intuitive movements of your hands and body.

TERRA is digital and contains 32 complex synthesis algorithms. Each algorithm has been carefully designed to be a complete and flexible musical instrument on its own, ready for learning and playing in its own unique way. The goal is to free the musician from long exhausting programming, setting hundreds of parameters for creating one timbre, and instead putting the focus directly on music and performance and following your imagination and inspiration.

TERRA offers the best of both worlds: the direct intuitive tactile connection from acoustic instruments and the flexibility and versatility of synthesizers. TERRA inherits design principles from LYRA-8 and also contains application of the new principles that were announced for ReFLEX, exploring the future of synthesis.

TERRA has an extremely simple interface that gives you instant access to all its functions in several touches, including saving and loading the 96 presets that are stored directly on the playing sensors. TERRA has no display. Instead it shows and lets you dial all necessary data on the 6 LED-sensor triangle in the centre.

TERRA has a built-in FX processor so the stereo output is ready to use, making it a perfect stand-alone performance instrument. While the sound generation is digital, TERRA has a unique custom-built and top quality analogue part that makes it sound rich, natural, clear and powerful at the same time.

The housing of TERRA comes from a solid piece of wood, making each instrument unique and slightly different. In the photo above and in the announcement demo video you can see the prototype of the synth. The final design is in development and we intend to make several different versions.

TERRA is a sanctuary for a natural soul right in the middle of the rumbling plastic world, a ground where you can breathe in and out slowly, and hold on to your roots.

TERRA is our dream about a bright future where we will be both technologically advanced and more connected to nature, where machines and technology are not a prison for our feelings and spirit but their extension.

Synthesis algorithms: 32
Polyphony: 1-12 voices (depending on the algorithm)
Presets: 96
Pitch Shifter presets: 24
Line out: L, R TS/TRS 1/4-inch jacks / 6.35 mm jacks
Maximum line output signal: 13 V peak-to-peak
Nominal line output signal: ~1.5 V (volume 100%)
Headphone output: TRS 1/4 inch jack / 6.35 mm jacks
Headphones impedance: 6-64 ohm
CV-clock input voltage: 3-15 V
Power supply voltage: DC 12 V *
Consumption current: 0.2 A
DC jack: 5.5 x 2.1 mm, "+" in center
Dimensions: 405 x 365 x 57 mm
Weight: 2.2 kg
* TERRA comes with a high quality power supply . If it gets lost, use a high-quality modern switched-mode power supply with 12 V output voltage, at least 0.4 A maximum current, 5.5 x 2.1 mm DC jack, center "+".

What's included:

TERRA - 1 pc.
Power supply - 1 pc.
CV clock adapter (DIN5 - 3.5 mm mini-jack) - 1pc.
Short interface reference manual - 1 pc.
On-table mounting pads - 4 pcs.

Notes: Arguably the best experimental drum synth in the world. Unique semi-modular, 'organismic' design with over 100 patch points and extensive controls for the four drum channels. Immense.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analogue FX processor.

The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.

Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes in a special HQ bag with 30 alligator clips cables and PSU.

Specifications

Range of input and output CV and audio signals: 0 to + 10V
(Pulsar inputs are protected against overloads and can receive signals in the range of -20 + 20
volts for a long time without problems)
Main output voltage swing: 2V
1/4 inch jack: 7 total
Mini-jack (for Eurorack connection): 8 total
MIDI input: standard DIN socket
Headphone output: 3.5 mm mini-jack
Supply voltage: 12 volts (plus in the center)
Consumption current: 0.3 amperes

Only a well-stabilized power supply must be used! If the supplied PSU is out of order, it is recommended that you modern switch mode power supplies with excellent stabilization for replacement.

Watch the polarity!

Weight: 4 kg
Dimensions: 380 x 280 x 80 mm

What's in the box

Pulsar-23
Power Supply 12V
20x65 cm patch cables with alligator clips
10x30 cm patch cables with alligator clips
Protection and transportation soft bag

Notes: Pink version of Soma's typically creative drum machine. Four channels of analogue drum synthesis, unique looping trigger generators, pseudo-random 'Shaos' generator and DSP-based effects.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analogue FX processor.

The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.

Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

Please note that Pulsar is an experimental analogue synth that means that it has some small noise and bleeds that can't affect your studio production or live performance but can be hearable in some modes. If you need a perfect silence and isolation of sound modules, it is recommended that you use 100% digital hardware.

What's in the kit:
PULSAR-23
PSU
22 multi-colour cables with alligator clips 65cm
8 multi-colour cables with alligator clips 30cm
High-quality handmade bag for transportation

Notes: Typically creative stuff from Soma Lab, here in a fresh light green colourway. Four channels of analogue drum synthesis, unique looping trigger generators, pseudo-random 'Shaos' generator and DSP-based effects.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analogue FX processor.

The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.

Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

Please note that Pulsar is an experimental analogue synth that means that it has some small noise and bleeds that can't affect your studio production or live performance but can be hearable in some modes. If you need a perfect silence and isolation of sound modules, it is recommended that you use 100% digital hardware.

What's in the kit:
PULSAR-23
PSU
22 multi-colour cables with alligator clips 65cm
8 multi-colour cables with alligator clips 30cm
High-quality handmade bag for transportation

Notes: Typically creative stuff from Soma Lab. Four channels of analogue drum synthesis, unique looping trigger generators, pseudo-random 'Shaos' generator and DSP-based effects.

Supplier's Notes:
Pulsar-23 is a multi-functional analog synthesizer and generator of complex rhythmic patterns.

The Pulsar consists of 23 different modules, including four flexible sound generators with completely different structures, four envelope generators, four looper-recorders, a clock generator with dividers, a controlled chaos generator, an LFO, a two-channel CV-controlled effects processor, distortion, two controlled amplifiers, an inverter, a controlled inverter and two controlled analog switches. In addition to these 23 main units, the Pulsar also contains 13 auxiliary units, such as a four-channel MIDI to CV converter, a noise generator, four attenuators, two dynamic CV generators with sensory control, two impulse converters and single passive electronic components for live circuit bending.

Pulsar-23 can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage. The Pulsar functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination. Additionally, Pulsar offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations.

Pulsar continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes in a special HQ bag with 30 alligator clips cables and PSU.

Notes: PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. - 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. - 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: Orange version of arguably the best experimental drum synth in the world. Unique semi-modular, 'organismic' design with over 100 patch points and extensive controls for the four drum channels.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. - 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: Black version of arguably the best experimental drum synth in the world. Unique semi-modular, 'organismic' design with over 100 patch points and extensive controls for the four drum channels.

Supplier's Notes:
PULSAR-23 is an organismic drum machine designed by Vlad Kreimer. It has a semi-modular structure and consists of 23 independent modules. PULSAR can be used for the synthesis of percussion instruments and rhythms, bass and melodic lines, effects and sound landscapes, as well as a source of control voltage and powerful analog FX processor.
The PULSAR functions in three different modes: stand-alone, MIDI control and CV control. Moreover, all the above features and control modes can work simultaneously in any proportion or combination.
Additionally, PULSAR offers live circuit bending capabilities and the use of the artist's body conductivity to create patches and cross modulations. PULSAR continues the line of organismic synthesizers begun by LYRA-8, but now in the area of percussion instruments.

PULSAR-23 main features:

- 4 drum channels: Bass drum, Bass\Percussion, Snare drum, Cymbals\Hi-Hat
- 4 envelope generators with the unique ability to generate a sustain for the drum channels, turning them into noise\drone synthesizers. - 4 independent loop recorders with the option for individual clocking. They record triggering events, not audio.
- Clock generator with an array of dividers as a very powerful tool for rhythm synthesis.
- Wide range LFO (0.1 - 5000Hz) with variable waveform.
- Shaos - a unique pseudo-random generator based on shift registers with 4 independent outputs, sample and hold and other cool features.
- FX processor with CV control incl. CV control of the entire DSP's sample rate.
- Distortion.
- 2 CV-controlled gates.
- 2 CV-controlled VCAs.
- 2 controllable inverters.

Also, it has MIDI control and synchronization and a lot of smaller modules such as 4 assignable attenuators and 2 dynamic CV sensors for CV generation etc. In general, there are 55 knobs, 11 switches and over 100 inputs and outputs for patching, Eurorack integration, external mixing and processing, live circuit bending!

It comes with 30 alligator clips cables and PSU.

The PULSAR-23 Screw has the same functionality as the PULSAR Turret, but at a much lower price, because we used screws instead of expensive custom turrets (on the first photo the black one with turrets, and the white one with the screws)

Notes: Typically experimental stuff from Soma, the Enner is a five-voice synth with an array of filters, electro-acoustic noise options, analogue effects and huge creative potential.

Supplier's Notes:
ENNER is a very expressive sound tool that can generate bits, pads, FX, noises, clicks, glitches, but also function as a cool vocal mic with built-in analogue FX and much more! A musician with a rich imagination and who's experienced in playing ENNER can perform an entire exciting gig using just this synth.

As an instrument, ENNER is a unique analogue synthesizer with the key principle being that all signals that make sound pass through and are managed by your body. Your hands become the central part of the circuitry. Touching different contact pads with different parts of your fingers and palms with different amounts of pressure, letting signals pass through your body defines the mixing, volume, timbre, feedback and other parameters of synthesis. Human skin has much more complex electric properties than we think. The skin provides not just resistance but also some capacitive properties and even nonlinear dependence of conductivity from current, its direction and time during which the current was applied. All of this affects the sound, making you the key part of the synthesis process.

All pots of ENNER are metallic and also function as inputs or outputs. Touching a pot can change not only the parameters but also patch the audio signals.

ENNER consists of:

The array of filters with fixed frequency properties (the triangle in the centre): the stereo high pass filter (HPF), the stereo bandpass filter (high mid - BPFH), the stereo bandpass filter (low mid - BPFL), the stereo lowpass filter (LPF). Stereo means that the filters have separate inputs for left and right channels as well as separate outputs. Sliding on the filters' pads with your fingers you can create a rich stereo image where each channel may have not only individual volume properties but also timbral ones. The outputs of the filters are mixed together and connected to the main output. Also in the triangle, you have a stereo direct input (DIR) that lets you bypass the filters.

The modulated stereo delay. The input of the delay is the two pads on the top of the triangle (DLY blue). The output of the delay is mixed with filter output and connected to the main output. Also, you have delay output connected to the pads placed on the left and right sides from the top of the triangle (DLY orange) that lets you create feedback and other interesting effects. The delay has two separate lines (left and right) with individual TIME controls (BPEMR pots), common FEEDBACK and the common pot that defines the amount of self-modulation (BIZZARE). The BPEMR pots are also touch inputs for delay time modulation.

On the right side of ENNER, there is a five-voice synthesizer with individual adjustment of frequency for each voice (TUNE knobs) with the possibility to change the pitch of all voices simultaneously (PITCH knob). TUNE knobs are also the outputs of the voices, so by touching them you can patch the voices to the filter's inputs. The synthesizer has separate output pads for each voice (pads OUT 1-5), individual modulation inputs (MOD 1-5) and ring modulation outputs (the RING 12, 23, 34 numbers indicate which voices are sources for the ring modulation). Connecting MOD and OUT pads of one voice with your fingers will pitch it up. The fifth voice has an additional modulation pad MOD 5- which can shift the pitch of the fifth voice down (connect it to +12 pad or any pad that has some positive signal including the output of the fifth voice).

On the left side of ENNER, there is the second synth that has one master generator, the output of which is divided six times by two with individual outputs for each stage of division (PULSE 1-6). This synth is aimed at creating rhythmical clicks, basses and octave tones. The frequency of the master generator is defined by the TEMPO knob. The output pads &1,2,3 are logical multiplications of different PULSE outputs giving additional and more complex rhythm combinations.

ENNER is also an electro-acoustic noise instrument. It has a piezo pickup attached to the front panel that captures sound from the casing itself. There is metallic spring and you can attach rubber bands to the panel to create various acoustic sounds. The piezo mic can capture clicks and scratches you make with your fingers, and it also allows you to create filtered feedback. Not only that, it can even capture your voice singing over the panel! To get sound from the piezo you have to connect the PIEZO OUT pad with some filters or delay inputs. Applying filters and delay on the piezo out while the panel works as a mic, catching the audio signal from the speakers connected to the ENNER output lets you create very cool acoustic feedback-based effects. PIEZO GAIN adjusts the piezo sensitivity.

The bottom of the triangle (NOISE pad) is the output of static pink noise.

External in (EXT socket and EXT pad) lets you send an external audio signal to ENNER and process it through the array of filters, delay and other ENNER stuff.

All of these features make ENNER a simple yet powerful kit of sound sources and FX that give you a rich and diverse sound palette with many possible playing techniques that you can change very fast as there is no other control over the sound other than your touches.

Specs

Array of filters

Pads DIR - direct input (no filters)
Pads HPF - highpass filter in
Pads BPFH - bandpass filter high mid in
Pads BPFL - bandpass filter low mid in
Pads LPF - lowpass filter in
(L - left channel, R - right channel)

Pink noise generator

NOISE - noise output

Delay

Pads DLY(blue) - delay in
Pads DLY(orange) - delay out
(L - left channel, R - right channel)
Pots BPEMR - delay time (L and R) also time modulation inputs
The UROBOROS pot - feedback (both channels)
Pot BIZZARE - delay self-modulation

Piezo

Pad PIEZO OUT - the output
Pot PIEZO GAIN - piezo amplification (also piezo output)

The five-voice synth

Pads OUT 1-5 - outputs of the voices
Pads MOD 1-5 - modulation inputs of the voices (try to connect them with OUT)
Pads RING 12, 23, 34 - outputs of ring modulators that multiply outputs of different voices
Pad MOD 5- - an additional modulation input for the fifth voice (try to connect it with +12)
Pots TUNE 1-5 - frequency of the voices (also voices outputs)
Pot PITCH - transposing all voices at once.

Rhythm\Bass synth

Pads PULSE 1-6 - output of binary dividers
Pads &1, 2, 3 - additional outputs that are logical AND of different PULSE outputs.
Pot TEMPO - the frequency of the source generator

External

Socket EXT - external in
Pad EXT - connected to EXT socket tip

Power

+12V center + 0.2A. ENNER requires a good stabilized and filtered PSU. We recommend contemporary switching mode PSUs with a wide input range. The PSU is included.

Grounding

In order that when playing on ENNER there would be no hum from the electricity grid interferences, the device must be properly grounded! A normal grounding connection at the electric socket, which is carried through the power cord to your audio equipment to which the ENNER is connected, is sufficient.

What's in the kit:

ENNER
12V center plus PSU
Several rubber bands

Notes: ***Now featuring Assimil8or Software Version 2.0! Available to download here: http://www.rossum-electro.com/products/assimil8or/

The ASSIMIL8OR is a CV/Gate-controllable sampler with eight independent channels. Each channel is not only its own voice, but also has a separate audio output and a gate/trigger and three CV inputs. Given ever get two sample inputs and main outputs. Thus, Stereo Sampling and playback is possible. Mixed operation of stereo or mono is possible and is limited only by the maximum number of eight channels or parts.

The ASSIMIL8OR works with high-quality 24-bit AD and DA converters. Internally, however, sample and bit rate for lo-fi sound can be lowered, the latter is even CV-controllable. The samples can also be otherwise manipulated in many ways. Thus, the phase of a sample via CV or a different sample can be modulated. Likewise, the loop points can be controlled and the sample can be traversed with CV control (scrubbing), whereby wavetable similar effects could be achieved. The following parameters can be addressed via the gate / trigger and CV inputs:

- Pitch
- Level
- Bit Depth
- Phase Modulation
- Pan
- Scrub
- Sample Start
- Sample Length
- Loop Start
- Loop Length
- Release Decay

Samples and presets are stored on an SD card, which is easily accessible plugged into the module front.

Notes: Sampler legend Dave Rossum's ultra-powerful Assimil8or module gets a black makeover. Eight-channel multi-timbral design with extensive CV control and clever sound manipulation options.

Supplier's Notes:
Designed to provide a powerful, flexible sampling engine for modular synthesis, the ASSIMIL8OR Multi-Timbral Phase Modulation Sampler module is the latest incarnation of Dave Rossum's decades-long pioneering of affordable professional sampling technology.

ASSIMIL8OR provides eight independent channels of sampling with sound quality that can range from extremely hi-fi to low fi, all with extensive real-time CV control.

Assimil8or Specifications

Sample memory
2,300 seconds at 48kHz mono, freely allocatable between the 8 channels

Sample rates
48kHZ, 96kHZ, 192kHZ

A/D & D/A
24 Bits

Internal processing
32 Bits

Latency
100 microseconds at the Mix Outputs
180 microseconds at the Individual Outputs

Inputs

Sample L/R
2x 3.5mm mono socket
100kO Input Impedance

Gate/Trigger 1-8
8x 3.5mm mono socket
100kO Input Impedance
1.6V threshold

Control Voltage A 1-8
8x 3.5mm mono socket
100kO Input Impedance
96 kHz sample rate
Anti-alias filtered to 20kHz bandwidth

Control Voltage B&C 1-8
16x 3.5mm mono socket
100kO Input Impedance
48 kHz sample rate
No anti-alias filtering

Outputs

Mix Outputs L/R
2x 3.5mm mono socket
1kO Impedance

Individual Outputs
8x 3.5mm mono socket
1kO Impedance

Power requirements: +/-12V via 16-pin, Doepfer-style connector
Current draw: 220mA +12V, 30mA -12V
Dimensions: 28HP (W); Panel to power connector (with connector plugged in) 25mm (D)

Supplied accessories:
1x Micro SD card
1x 16-pin, Doepfer-style cable
4x M3 screws
4x M2.5 screws
4x Nylon washers
1x Quickstart Guide

Notes: *** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

The Fireface UCX II is a highly integrated pro audio solution in an ultra-compact format. Designed for use in studio and live recording, the UCX II continues RME's tradition of producing powerful and flexible interfaces for the professional audio market, packing the kind of connectivity and features into a half-rack size unit that is often spread over two - or even three - 19 inch panels.

With up to 20 channels recording and 20 channels playback; RME's stellar SteadyClock FS digital clocking technology; high performance microphone inputs; TotalMix FX mixing and routing software (complete with Parametric EQ and Dynamics processing on every channel, plus Echo and Reverb sends); stand-alone hard disk recording to external USB hard drives or pen drives via 'DURec' (Direct USB Recording); MIDI I/O; a powerful headphone output; and full stand-alone operation, the Fireface UCX II excels with the highest feature to space ratio ever from an RME device.

Developed in time to celebrate the company's 25th anniversary, the RME Fireface UCX II represents the culmination and refinement of 25 years of digital audio innovation.

Throughout its 25 year history, RME has been fully committed to a principle of flexibility - the more flexible a product, the more easily it can be adapted to new requirements. For company founder Matthias Carstens, this lies at the heart of RME's success: "The Fireface UCX II makes us proud and enthusiastic as it represents a natural evolution of our product range."

"Boasting up to 20 recording and 20 playback channels, SteadyClock FS, high-performance microphone inputs, built-in parametric EQ, USB direct recording plus full stand-alone functionality, the brand-new Fireface UCX II truly represents the essence of freedom, flexibility, and passion. At present, no existing audio interface offers more connectivity and functionality in a half-rack package."

The Fireface UCX II houses two mic/line preamps in XLR combo configuration on the front panel, along with two digitally controlled line/instrument inputs, followed by a headphone jack, various control buttons, a display, and the main volume knob. At the rear is a set of ten analogue balanced line inputs and outputs, MIDI I/O, ADAT I/O, AES/EBU and SPDIF I/O, USB 2.0 as well as a switchable word clock I/O.

The RME Fireface UCX II is the first half-rack interface from RME to feature RME's Direct USB Recording (DURec) functionality. Previously only found on RME's Fireface UFX, UFX II and UFX+, any of the Fireface UCX II's input or output channels can be recorded directly to a USB storage device - in any combination, up to and including all 40 channels simultaneously - via the dedicated USB port found on the back panel of the device.

Powered by the integrated DSP, DURec also enables the Fireface UCX II to be used for standalone recording and playback (i.e. without the need for a computer). Suggested applications include creating instantaneous backups of studio, live and rehearsal recording - acting as a fail-safe against a computer hardware failure - as well as for strand-alone field recording, or for use in virtual soundchecks (using DURec for playback of a previous night's live show recording).

The Fireface UCX II also features a Class Compliant / Plug 'n' Play mode, enabling the interface to be used for high-quality, mulit-track recording with an Apple iPad, and providing iPad users with a full set of professional analogue I/O connections.

Additionally, the optional TotalMix FX for iPad app adds full control over the TotalMix hardware mixer, giving users the ability to create, store and load complete mixes directly from the iPad.

Most audio interfaces are traditionally designed with what is called 'AC-coupled outputs', where capacitors are used to filter out any extreme low frequencies.

Whilst these frequencies are generally considered undesirable for audio - eating into headroom and potentially causing damage to other equipment - one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs.

All of the Fireface UCX II's line-level outputs are fully DC-coupled, allowing for the sending of control voltages (CV) or Gate information to modular synthesizers (such as the popular Eurorack and Moog/MOTM/Synthesizers.com formats) and other studio hardware.

General Specifications:

Power supply: external power supply
Typical power consumption: 13 Watts
Current at 12 Volt operating voltage: 910 mA (11 Watts)
Dimensions incl. rack ears, full depth (WxHxD): 265 x 44 x 155 mm (10.5" x 1.73" x 6.1")
Dimensions without rack ears, body depth (WxHxD): 215 x 44 x 130 mm (8.5" x 1.73" x 5.1")
Weight: 910 g ( 2.0 lbs)
Temperature range: +5- up to +50- Celsius (41- F up to 122-F)
Relative humidity: < 75%, non condensing

Notes: Based on the Digiface Dante but with the added benefit of low-latency Ravenna audio-over-IP, the Digiface Ravenna offers 128 Ravenna channels and 64 MADI channels.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's Notes:
The Digiface Ravenna is a lightweight, portable audio interface, based on the proven Digiface Dante equipped with a RAVENNA module developed by DirectOut and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.

Mobile RAVENNA Solution via USB

The combination of RME's renowned drivers (Mac/Windows) and DirectOut's RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RAVENNA & MADI

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

Additionally RME's latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process - simply enter the IP address of the computer you would like to control with TotalMix Remote and get going - users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

TotalMix FX - Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME's audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for RME products. RME Audio develops its own interface core, it's not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay."

DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

Specs

Digiface Ravenna
Gigabit Ethernet Port

RJ45

100 Mbit/s, 1 Gbit/s
Standard port LEDs: yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)

RAVENNA Modul

Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes: Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources: PTP, Internal
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing: Channel-based routing matrix
Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05

MADI Input

Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz - 54 kHz

MADI Output

Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length: up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz

Output Analog Phones 129/130

Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD @ -1 dBFS: - 96 dB, 0.0016 %
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Word Clock In

BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed

Word Clock Out

BNC
Max level: 5 Vss
Level with termination 75 Ohm: 4.0 Vss
Internal impedance: 10 Ohm
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD@-1dBFS:-96dB,0.0016%
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Digital

Clocks: Internal, RAVENNA (PTP), word, MADI
Supported sample rates: 44.1 kHz up to 192 kHz

Notes: Based on the Digiface Dante but with the added benefit of low-latency Ravenna audio-over-IP, the Digiface Ravenna offers 128 Ravenna channels and 64 MADI channels.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's Notes:
The Digiface Ravenna is a lightweight, portable audio interface, based on the proven Digiface Dante equipped with a RAVENNA module developed by DirectOut and features with everything that RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and stand-alone operation.

Mobile RAVENNA Solution via USB

The combination of RME's renowned drivers (Mac/Windows) and DirectOut's RAVENNA implementation offer a reliable and flexible networked computer audio interface. Equipped with the latest TotalMix FX it can not only route, but also mix as many independent submixes as outputs are available. The included high quality phones output offers a quick listen to any audio channel, but can also be used as line output to provide an additional analog stereo mixdown.

RAVENNA & MADI

RME made the two BNC sockets for word clock I/O switchable to MADI I/O, with up to 64 channels. The total sum of Ravenna and MADI, 128 channels, are transferred via USB 3.0 and handled via the included RAVENNA web server or RME's TotalMix FX, for full and struggle-free control of all audio.

On the network side, the interface features a full-fledged RAVENNA stack with AES67 and ST2110-30/31 support and redundant audio-over-IP streaming as per ST2022-7. In addition, the interface can also be used as a mobile 64-channel RAVENNA/MADI converter without a USB connection to a computer. The coaxial MADI I/O connectors may also be configured to work as word clock sync I/O.

TotalMix FX and TotalMix Remote

Like all the latest RME interfaces, the Digiface Series also includes the powerful digital real-time mixer TotalMix FX. It allows for practically unlimited mixing and routing operations, with all inputs and playback channels simultaneously, to any hardware outputs.

The Digiface Series includes a dedicated Control Room section with Talkback, Main/Phones, fader groups, mute groups, complete remote controllability via Mackie or OSC protocol, and much more. The Digiface Series does not support DSP based effects (FX) like EQ or reverb.

Additionally RME's latest software, TotalMix Remote, enhances the power of RME interfaces by enabling remote control via iOS, PC or Mac. With a straightforward set up process - simply enter the IP address of the computer you would like to control with TotalMix Remote and get going - users can quickly adjust any aspect of TotalMix FX on a host system while walking around the studio with their tablet, or from a control room located elsewhere in the facility.

TotalMix FX - Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME's audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for RME products. RME Audio develops its own interface core, it's not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay."

DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

Specs

Digiface Ravenna
Gigabit Ethernet Port

RJ45

100 Mbit/s, 1 Gbit/s
Standard port LEDs: yellow connected, green data transmission
Supports straight and crossover cables (Auto MDI-X)
Network-based remote control of the unit (TotalMix Remote)

RAVENNA Modul

Supports RAVENNA, AES67, ST 2110-30 / -31, ST 2022-7
Network Layer 3
Modes: Switched and Redundancy according to ST 2022-7
32 streams
128 channels Single Speed, 64 channels Double Speed, 32 channels Quad Speed
Clock sources: PTP, Internal
Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz, +/-12.5 %
Routing: Channel-based routing matrix
Configuration: Browser GUI, globcon control, NMOS IS-04 / IS-05

MADI Input

Coaxial via BNC, 75 Ohm, according to AES10-1991
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz - 54 kHz

MADI Output

Coaxial via BNC, 75 Ohm, according to AES10-1991
Output voltage 400 mVpp
Cable length: up to 50 m
Generates 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX / 96k Frame: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz

Output Analog Phones 129/130

Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD @ -1 dBFS: - 96 dB, 0.0016 %
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Word Clock In

BNC, not terminated (10 kOhm)
Switchable internal termination 75 Ohm
Automatic Double/Quad Speed detection and conversion to Single Speed

Word Clock Out

BNC
Max level: 5 Vss
Level with termination 75 Ohm: 4.0 Vss
Internal impedance: 10 Ohm
Output Analog Phones 129/130
Dynamic range (DR): 110 dB RMS unweighted, 113 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 0 Hz - 20.8 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz - 45 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz - 89 kHz
THD@-1dBFS:-96dB,0.0016%
THD+N @ -1 dBFS: -95 dB, 0.0017 %
Channel separation: > 100 dB
Output: 6.3 mm TRS jack, unbalanced
Output impedance: 2 Ohm
Output level at 0 dBFS, 1 kOhm load: +9.5 dBu
Max power @ 0.1% THD: 50 mW

Digital

Clocks: Internal, RAVENNA (PTP), word, MADI
Supported sample rates: 44.1 kHz up to 192 kHz

Notes: ***B-STOCK: Box opened, product in perfect working order***


Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.

Notes: Serious mastering-grade kit. Stereo interface with high-end converters and headphone amp circuit for pristine sound quality. Proper clarity for critical listening.

*** Complimentary warranty on this product for 5 years if purchased from Juno- UK warranty only***

Supplier's notes:
The RME ADI-2 Pro FS is a two channel 24-bit / 768kHz AD/DA converter and USB 2 Digital Audio Converter, audio interface and high-end headphone amp with new jitter rejection SteadyClock FS technology.

The RME ADI-2 Pro FS is the most flexible converter available with balanced and unbalanced I/O, two headphone outputs, DSP-based signal processing and RME's latest Steady Clock FS jitter rejection technology. It offers Class Compliant USB compatibility, sample rates up to 768kHz as well as DSD record and Direct DSD playback.

It boasts a raft of analogue and digital I/O, including two servo-balanced analogue XLR/TRS Jack inputs, two separate balanced and unbalanced outputs on XLR and TS as well as two headphone outputs. Digital I/O include optical ADAT, Optical and coaxial SPDIF and AES accessible via a breakout cable.

Furthermore, its Class Compliant UAC 2 USB 2.0 port offers iOS compatibility and is necessary for firmware updates. It can also work as a 6-in / 8-out audio on Mac OSX and Windows via WDM and ASIO.

Using the latest in A-to-D technology the ADI-2 Pro FS offers best possible sound with highest signal-to-noise ratio, super low THD and noise. It supports sample rates up to 786kHz PCM and DSD recording in dual mono design, with 3dB improved signal to noise ratio. Two digital-to-analogue converters are used for the separate stereo outputs. The latest Integrated Sample Rate converter takes care of clocking issues between S/PDIF and AES thanks to RME's latest SteadyClock FS technology.

A high-resolution display shows controls for the ADI-2 Pro FS unique features including DSP effects like 5-band parametric EQ, binaural crossfeed, adjustable loudness filter, selectable AD/DA filters and four analogue reference levels. Furthermore, M/S processing is provided with stereo width control as well as phase loop. The display also shows RME's famous Spectral Analyser and 30-band bi-quad filtered analysis tool.

Notes: Mid-range model in the Resor two-channel series, the 2525 M features three-band EQ (as opposed to two-band on the standard 2525) and master isolator.

Supplier's Notes:
Resor 2525 M has a 3-band EQ per channel designed around their discrete class-A Op-Amp. The Bass control with a range of +/-18 dB at 100 Hz is great for sculpting the low-end frequencies, providing ample flexibility for enhancing or attenuating bass elements in the mix. The Mids control with a range of +/-12 dB at 800 Hz, and the Treble control with a range of +/-12 dB at 10 kHz enables adjustments to the high-frequency content, helping to add sparkle or tame any harshness.

Resor have encased the 2525M in a slim wooden chassis, which encompasses the faceplate, following the ethos of the four-channel models. Moreover, Resor have redesigned and improved the internal circuitry even further.

For a unique and personalised touch, among the extensive range of custom options, Resor offer Metallic Red, Metallic Blue, and Metallic Green faceplates; a Satin Dark wooden enclosure; as well as Urei, Matte Black, and Matte Silver Premium Aluminum Knobs.

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

3-band Baxandall: Bass +/- 18 dB (at 100 Hz), Mids: +/- 12dB (at 800 Hz), Treble: +/- 12dB (at 10 kHz)

Master isolator

3 Band, 24 dB /Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON/OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other
2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Satin Dark
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Resor Standard, Urei; Premium: Silver Matte Aluminum, Black Matte Aluminum
*Microphone Input: a TRS jack on the rear panel, with a separate volume control

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: Part of Resor's two-channel mixer range, the 2525 offers a classic setup of two-band EQs per channel, three-band master isolator, large VU meters and discrete class-A electronics.

Supplier's Notes:
Resor 2525 features the same discrete class-A circuitry as Resor 2500, but it's equipped with a Master Isolator with a bypass toggle switch.

*** Please note: the wood is thinner than displayed in the picture. ***

Inputs

Channel ONE & TWO: selectable sources between LINE and PHONO (Stereo RCA)

Outputs

Master 1: Balanced XLR
Master 2: Unbalanced RCA
Booth: Balanced TRS
Rec: Unbalanced RCA

Channel EQ

2-band Baxandall: Bass +/- 18 dB (at 150 Hz), Treble: +/- 12dB (at 10 kHz)

Master isolator

3-band, 24 dB /Oct, Linkwitz-Riley filters, crossover frequencies at 310 Hz and 3100 Hz Full-cut to maximum +12 dB, ON/OFF true bypass with Audio Grade Relay

Master insert

Out: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)
In: Stereo TRS (Tip - Left, Ring - Right, Sleeve - Ground)

Other

2 x Analog VU Meters (1VRMS = 0db)
Cue/Mix Switch for the VU Meters, to display either the Cue or Mix signals
Rotary Switch to CUE between Channels ONE & TWO
Cue/Mix Blend potentiometer
External Power Supply Unit with lockable DC cable (both ends)
Travel Case (Dust and Water Proof)
3 Years International Warranty

Customisations

Wood: Natural Oak, Matte Black, Premium: Walnut
Faceplate: Black, Silver, Bronze; Premium: Metallic Red, Metallic Blue, Metallic Green
Knobs style: Standard, Urei; Premium: Silver Matte Aluminium, Black Matte Aluminium

Technical specifications

Line Inputs

Discrete, Class-A Op-Amps
Measured Line In to Master Out:
Frequency response +/- 0,3 dB, 20 Hz to 20 kHz
THD+N better than 0,004 %
SNR better than -95 dB

Phono Inputs

Discrete, Class-A Op-Amps, Gain 40 dB
Passive RIAA Equalization, polypropylene capacitors, close tolerance
Input impedance is 47 kohm
Input capacitance is 47 pF
Measured Phono In to Master Out:
RIAA accuracy within +/- 0,3 dB (20 Hz - 20 kHz)
THD+N better than 0,02 %
SNR better than -77 dB
Maximum input signal level before distortion 100 mVRMS

Master Output

Balanced XLR
Unbalanced RCA L and R
Impedance < 300 ohm

Booth Output

Balanced TRS
Impedance < 300 ohm

Record Output

Nominal level -10dBV
Impedance < 300 ohm

Crosstalk

Channel Fader offness < -100 dB
Channel L/R separation <-70 dB
Isolator offness < -90 dB

Dimensions

250 mm (W), 250 mm (D), 98 mm (H) - (please note that this does not include Knobs, Headphone Jack on the front side, RCA's and Sockets on the rear side of the mixer)

Weight

Mixer: 4 kg
Power Supply: 1 kg
With travel case: 8 kg

Notes: Designed for Serato and Algoriddim Djay, the long-awaited Mixon 8 Pro is a four-channel hybrid controller with detailed jogwheel displays. Standalone mixer and four FX paddles give versatility for creative mixing.

Supplier's Notes:
Enhanced jog wheels with real-time displays

Boasting sleek, touch-sensitive gun metal platters and high profile rims, the enhanced jog wheel design of the Mixon 8 Pro allows you to control your music precisely. And thanks to the new vivid on-jog displays, DJs are kept well informed with real-time track information, including virtual needle illumination, a playhead position indicator, and track time remaining or elapsed.

Four FX pedals for instant effects

As an industry first, the Mixon 8 Pro features 4 sturdy onboard FX Paddles, providing instant tactile control of all your effects. Each channel also has a 3-band EQ and dedicated sound colour filters to shape your music even more (LPF/HPF).

Stand-alone mixer inside

The powerful inbuilt standalone mixer with independent level meters for inputs and outputs gives you flexible connections to either turntables or media players so you can mix digital and analogue sources simultaneously (2x Phono/4x Line). For even more convenience, you can also route the dual Mic inputs (XLR/Jack) with dedicated talk-over functions into the mixer channels to perfectly EQ your live vocals with onboard controls.

Technical data

In- & outputs: XLR Master-Output, 6.3 mm jack Booth-Output (TRS), RCA Master-Output, 2x RCA-Input (Phono/Line), 2x RCA-Input (Line), 1x Combo-Mic-Input (XLR/jack (TRS)), 1x Mic-Input 6.3 mm jack (TRS), 1x USB-B, 1x USB-C/USB-B, 2x Headphones (6.3 mm/3.5 mm jack)
Dimensions: 657 x 68 x 391 mm
Dimensions docking station: 320 x 9 mm
Weight: 5,7 kg
Minimum system requirements: Please refer to the manufacturer's specifications for the system requirements of your DJ software.
Incl.: Controller, manual, USB cable (USB-A to USB-B), power supply (12V/3A)

Notes: ***B-STOCK: Box opened, but product is in excellent condition and in perfect working order***


Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: ***B-STOCK: Box opened, product in perfect working order***


Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: Co-developed by the late Chris Huggett, the Mantis is PWM's flagship synth, a duophonic hybrid design with high-performance digital oscillators and state-variable analogue filters. A fitting tribute to a legendary synth designer.

Supplier's Notes:
Mantis is a unique, duophonic hybrid synthesizer that was co-developed by the late Chris Huggett (of EDP Wasp, OScar & more fame) and is dubbed as a spiritual successor to the OSCar, sporting precision digital oscillators, dual state variable filters and more.

Mantis is a premium synthesizer, sporting a high quality 37-note velocity and pressure sensitive keybed, SSI2164 IC's for the VCF's and VCA's, custom high performance processors for the oscillators coupled with a pristine analogue signal path, which features a twice amplified gain structure for maximum clipping capabilities plus lush stereo digital FX.

The modulation capabilities are vast with:
Two unique ADSR's that feature "sustain fall" that allows you to create a drop before release...even while a key is held for greater sound design possibilities. The envelopes can also be set to cycle.
Two tempo-syncable LFO's with four waves, fade in and fade out parameters and a seriously wide operating range.
Ring modulation available at the mixer
And a unique modulation routing controller with 6 choices of modulation parameters, 6 choices of modulation sources and scale control, which used to scale the effect of the modulation.

In development over the last period of his life Chris threw everything into Mantis. Although incomplete when he sadly passed away in 2020, he handed the project over to Paul of PWM to carry on and continue the project.

PWM, with the support of Chris' estate, think this synthesiser deserves to be born into the world for everyone to enjoy!

PWM MANTIS Key Features:
Hybrid-Analogue Synthesiser, powerful digital oscillators with dual analogue filters
With Mathematically Generated Oscillators with a Pure Analogue Signal Path
A Modernised Design Architecture based on the WASP with an OSCar style filter designed by the late, great Chris Huggett
Duophonic - Two Fully Independent Voices each with 2 Oscillators plus Sub-Oscillator per voice
Dual Filters - Multi-Mode State Variable VCF's with Overdrive per voice that can be combined in Series or Parallel with Width Control
Keyboard - 37-Note Full-Size Semi-Weighted Keybed with Aftertouch plus Joystick
Fully featured Keyboard, Joystick and USB-MIDI Control for Easy Integration with any Studio or Live Environment

Specifications

200 Patches
All patches in RAM so can be overwritten
Bank A: 100 Factory presets
Bank B: 100 User presets (all set to initial patch)
Compare function
Initialise patch function

Duophonic with 2 analogue signal paths
Mathematically generated oscillators designed by Chris Huggett
Analogue signal path designed by Chris Huggett

2 Oscillators plus sub-oscillator per voice
Sine / Triangle / Saw / Pulse plus additional wave types
Shape control and shape modulation input
Will create pulse width modulation on the pulse waveform with perfect square at the centre
Pitch modulation control
Octave selects per oscillator
OSC 1 SUB follows oscillator 1 parameters

Oscillator Drift
Creates random pitch variations between oscillators

Multi-mode state variable VCA filters with overdrive
2 Analogue filters - 1 per signal path
Low Pass / Band Pass / High Pass in 12dB and 24dB configurations
Additional WBAND (series) and WSTOP (parallel) types
Filter Cutoff
Filter Cutoff Modulation
Filter Resonance
Filter Width
Filter Width Modulation
Filter Keytrack

LFO (Low Frequency Oscillator)
2 LFOs
4 waveshapes per oscillator
Fade In / Fade Out parameter
SYNCable
Rate control

Envelopes
2 Independent envelopes
ENV 1 normalised to amplitude
ADSR
+ Sustain Fall parameter for shaping during key-down
+ Repeat which can be used to create looping envelopes
Velocity positive and negative control

Ring modulation

Mixer
First mix: OSC1 and OSC2
Second mix: OSCillators and noise
Third mix: OSCillators + noise and Ring modulator

VCA (Voltage Controlled Amplifier)
All amplification is done in the analogue domain in multi-stage VCAs

Modulation Routes
Control - 6 choices of modulation parameters
Source - 6 choices of effectors from envelopes and LFOs
Scale - choices of controls used to scale the effect of the modulation

Glide
Glide amount
Auto-glide mode

Indicator LEDs
Two LEDs for Voice
LED for Keyboard activity

Master tune

Master volume

Triggering
ENV 1 Legato
ENV 2 Legato
LFO Keytrig
LFO Keytrig

Connections
Master power switch
DC 9V input
USBC
MIDI IN / OUT / THRU
Sustain pedal input (switch)
Pedal input (continuous)
Stereo 1/4" line Outs: L/Mono and R
Stereo 1/4" headphone out

Multi-function Joystick control
Left / right for pitch bend
Performable vibrato
Latching hold mode

Arpeggiator
6 arpeggiator types
- Up, Down, Up/Down 1, Up/Down 2, Played & Random
Sync rates control from 2nds to 32nds
Tap tempo button
Swing including positive and negative swing
Auto clock sync
- Detects MIDI or USB-MIDI clock and synchronises the arpeggiator automatically
Latch via joystick HOLD
6 Octave range

Dedicated tempo control

Duophonic mode control
Duo mode
Duo mode with simple filter
Pan control for duophonic voicing

Digital Effects
Reverb time
Reverb level
Reverb High Pass Filter
Reverb Low Pass Filter
Chorus level
Chorus type

Keyboard Control
37 Full-size semi-weighted velocity-sensitive keys
Channel aftertouch
Octave shift

Weights and Dimensions (product unboxed)
620 x 320 x 110 mm
5.3 kg

Includes:
Power Supply (9V 600mA)
USB C lead
Getting Started Guide

Notes: Four-channel version of Richie Hawtin-designed Play 1 mixer, engineered by music tech royalty Andy Rigby-Jones. Immense sound quality and performance features, including analogue filters, overdrive and DualCue system for back-to-back sets.

Supplier's Notes:
With MODEL 1, PLAYdifferently hit the apex of pure analogue DJ mixer design. MODEL 1 brings performance to an ultra-compact 4-channel design, ideal for home studio use, or as the ultimate tour-able analogue mixer- so you can take your analogue core wherever you go.

Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin with feedback from artists, clubs and engineers, MODEL 1.4 features the same uncompromising approach to build quality, precision and detail that set MODEL 1 in a class of its own.

MODEL 1.4 can be used standalone or paired with a MODEL1 using unique mixer-link functionality to deliver an unrivalled 10-Channel Live mix experience.

Technical specifications:

Maximum output level: +28dBu Balanced, +23dBu Unbalanced
Output Impedance: 50R Balanced, 68R Unbalanced
Residual Noise: -100dBu Un-weighted, 22Hz to 20k
Dynamic range: > 112dB
Frequency Response: 20Hz - 40kHz +0/-2dB
Distortion (THD+N): 0.008% Line In to Mix 1 out, 0dBu Unity Gain
Inter-channel Crosstalk: < -100dB
Left/Right Crosstalk:-80dB 1kHz
Power consumption: 45W maximum
Weight: 5.00kg
Dimensions: L 368mm x W 248mm x H 111mm

Notes: ***B-STOCK: Box opened, product in perfect working order***


Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: ***B-STOCK: Item refurbished, repaired and in perfect working order.***


Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: Co-designed by Richie Hawtin, the Model 1 is an obvious choice for DJs who want great sound and creative performance options. Easily one of the best high-end mixers on the market.

Supplier's Notes:

MODEL 1 is a performance instrument providing new creative possibilities to artists, and empowering them to PLAYdifferently.A mixer of uncompromising build quality, intuitive tactile controls and beautifully warm analog circuitry. Engineered by Andy Rigby-Jones and co-designed by Richie Hawtin, with two years of testing, insight and refinement with artists, clubs and engineers from across the electronic music community.

MODEL 1 has a unique offering of six fully featured input channels plus two stereo returns in a small format frame. It has many features not currently available on any comparable device, such as Input pre-amplifier drive control, hybrid filter/swept bell EQ, dual cue system, dual mixer linking system, and a fully balanced Tascam DB25 connector system. It's a purely analogue mixer featuring technology normally found in the finest studio consoles, such as a fully balanced mix buss, zero crossing detection for seamless filter & master EQ routing along high voltage differential power rails.

Features:
2 stereo sends
2 stereo returns
3 high performance phono preamps
3 high performance turntable inputs, optimized for the club environment in order to minimise the tonal imbalance between vinyl and Digital audio, and to eliminate sub frequency feedback. Each phono input has it's own Individual Turntable Earth Binding for greater flexibility.
Custom TKD 60mm faders. These twin rails faders have been carefully chosen to ensure long life and smooth operation and feature a heavy feel for greater precision.
Precision Sculpting EQ
Contouring low & high pass filters
Analog overdrive
Two independent Cue systems, A and B.
Mixer Link, allows multiple mixers to be linked together
Balanced Mix Bus
Master high & low pass resonant filters
Three-band master EQ
Two-band Booth EQ
100% analog

Notes: Typically creative stuff from Pittsburgh Modular, the updated Voltage Lab is the pinnacle of the brand's synth output. Dual oscillator design with a 16-note touch controller, built-in sequencer and MIDI control.

Supplier's Notes:
The Pittsburgh Modular Voltage Lab 2 is a cutting edge synthesis laboratory that offers a new palette of analogue textures and waveforms to sonic researchers. Newly developed wave shaping capabilities paired with powerful synthesis tools, and a deep, performance oriented controller join together to create a complete sound design laboratory. This instrument has a very physical sound. The tones it creates feel natural and alive, with traditional waveforms becoming the seeds of unique new shapes and sounds that shift between analogue physical modeling and more unfamiliar, abstract timbres.

Laboratory Oscillator 1

Voltage Lab 2 includes a pair of Laboratory Oscillators. Each with a unique set of newly invented waveshaping tools designed to expand the sonic potential of analogue synthesis. Laboratory Oscillator 1 introduces Center Clipping to analogue synthesis. Center clipping unlocks independent control over the top and bottom of the waveform, allowing for detailed manipulation of harmonics and timbre without affecting pitch. It does this by processing waveforms from the center out as opposed to traditional methods which work from the peaks inwards.

Laboratory Oscillator 2

Laboratory Oscillator 2 introduces a host of new sonic possibilities with two new waveshapers. Pulse Symmetry and Reflection. Pulse Symmetry creates a new species of pulse wave that adds a step between the top and bottom of the waveform. The resulting wave looks like a set of stairs where the depth of the center step can be adjusted in addition to the pulse width. Wave Reflection takes the bottom half of the waveform and reflects it onto the top half. Each waveshape responds to this differently. For example, a saw wave morphs into a triangle while triangle and sine waves lose their fundamental harmonic and jump up an octave.

Pittsburgh Dynamics Controllers

The new Dynamics technology imparts Voltage Lab 2 with a uniquely organic depth and presence. By simultaneously managing both amplitude and harmonic content, the Pittsburgh Dynamics Controller expands beyond the one dimensional VCA found in other synthesizers. It does this by utilizing new advancements from traditional low pass gates to add additional definition and dimension to the voices of the Voltage Lab 2.

When used in low pass gate mode, sounds shed harmonic content and become warmer as they decrease in volume. This mimics how sound waves react to their environment. Because of this connection, the Voltage Lab 2 sounds more natural or complex compared to other instruments.

Touch Controller 2

The Touch Controller 2 enables artists to blend traditional pitched performances with the freedom to openly experiment, creating a flexible playground for music creation. Two independent channels offer a combination of real time, expressive playing and in-depth sequencing. Assignable scales, step conditions, jumps, chance effects, generative sequencing, and a host of other tools, come together allowing musicians to both create and interact with complex systems.

A Florist and Echos

The Voltage Lab 2 includes a set of analogue time based effects, Florist and Echos. The Florist is a flanger/chorus hybrid that focuses on brighter, short time shifts with highly controlled feedback allowing for maximum ringing before self oscillation. Echos is a more traditional, darker analogue BBD delay that also utilizes highly controlled feedback to provide a larger number of repeats before falling into self oscillation. Both effects are perfect for traditional workflows and unconventional experimentation.

Complete Set of Modular Tools

The Voltage Lab 2 includes a host of fully modular, analogue and digital synthesis tools to support and enhance it's core functionality. Analog tools include flexible mixers, a pair of complex function generators, noise, sample and hold, and an LFO. Digital tools cover external MIDI, arpeggiator, and a robust chance sequencer. The Voltage Lab 2 toolset is deep enough for all types of sonic experiments.

Notes: Which live performer doesn't know this situation: You build the tension to immeasurable heights, add another filter here, three more effects there, hands go up in the air, everyone's waiting for the big drop and then you realize: You can't find your way out of the chaos you've created!

The sweat on your forehead drips onto your equipment, and in a firework of spraying sparks, your devices and your fans say goodbye forever.

This doesn't have to happen!

With Drop, you can now map your MIDI equipment across devices and easily store different controller positions as snapshots. During performance, you can jump back to these snapshots at any time (JUMP mode) and trigger them. All of this can be quantized and with variable fade time, allowing you to use a snapshot for slowly building tension and automatically have multiple controllers move simultaneously.

A particularly useful feature, is firing snapshots in DROP mode at exactly the right moment, precisely at the end of a pattern of, for example, 8 bars. For this purpose, Drop features an integrated master clock that counts any number between 1 and 32 bars (= cycle). In DROP mode, you can schedule a snapshot to trigger at the end of a cycle, build tension and go crazy on effects until then, and lean back as the snapshot automatically turns the controllers at exactly the right moment, bringing your live set back to solid ground.

Saving and recalling snapshots is quick and simple even during live situations, allowing you to work spontaneously with new snapshots on-the-fly during your performance. The LED buttons always provide clear visual feedback about what's happening. If you want to plan further ahead, you can prepare sequences of DROP snapshots according to your song arrangement in the studio. Then use CHAIN mode to automatically trigger them sequentially on stage. Multiple chains and banks of snapshots are available, allowing you to configure your live set according to a song-by-song structure.

As with our Warp Synthesizer, Drop has two main operating levels: The PLAY level with direct hands-on access to the most important parameters, and the MENU level for studio configuration. The PLAY level is reduced to the essentials, such as the clear progress display (how many bars until the DROP at the end of the cycle), similar to a countdown clock. The buttons can be used for beat jumps, allowing you to spontaneously extend or shorten a break. Also, the number of bars per cycle and the quantization behavior can be changed on-the-fly. Everything is easily and directly accessible without submenus or hidden button combinations.

Mapping is done in the MENU level, directly on the device. No additional software is required, ensuring Drop isn't dependent on outdated operating systems in the future. Copy/paste/move functions and MIDI-Learn help with quick setup. Furthermore, an integrated MIDI monitor allows recording and analyzing incoming and outgoing messages. All possible MIDI commands are supported, including 14-bit CCs (NRPN), Program Change, Bank Select, Aftertouch, Pitchbend, and of course CCs and Notes.

Each controller enables macro mapping by sending up to eight different MIDI messages simultaneously to any MIDI output port. Individual curves can be assigned to each destination. This allows you to control multiple devices simultaneously with one knob, giving you a manageable number of highly expressive controls for your live set.
MIDI messages can also be assigned to snapshots, so that, for example, device programs and banks can be changed automatically in sync with a snapshot DROP.

On the output side, four MIDI In/Out ports via TRS jacks (types A and B) and two USB-C ports are available. Device and host modes are automatically detected, allowing connection not only to synths and grooveboxes but also to external keyboards, two laptops, or other MIDI controllers via USB.

Thanks to the multiple outputs, each connected device gets its own dedicated MIDI port with full data rate and all 16 MIDI channels, plus its own independent MIDI clock. This can even be adjusted individually for each output down to the millisecond, ensuring all devices run in perfect sync. Additionally, there are two CV outputs that can also be used for clock signals or as freely assignable 0-5V CV voltages. If one of the receiving devices accidentally falls out of sync, e.g., by accidentally pressing the stop/play button, Drop offers a quickly accessible resync button that resynchronizes all devices at the beginning of the next bar. As a master clock generator, there's also a nudge function for manual beat matching (DJ-style), or you can simply synchronize Drop to an incoming MIDI clock or a 0-5V clock from your modular system.

Another function is the reception and forwarding of incoming MIDI signals. Via the MIDI merge function, incoming messages can be filtered by channel and distributed to the connected devices. This allows a master sequencer that outputs sequences for all devices on multiple channels to be connected and appropriately routed through Drop. Drop adds the MIDI messages from its own controllers (MIDI merge), so the receiver gets the sum of both signals. You can go even further and integrate an external MIDI keyboard, allowing you to play some of your own notes in addition to the sequencer. Such routing was previously mainly reserved for software solutions, but now you can save having a laptop on stage, as Drop takes over this hub function.
The silicone buttons for snapshots can also be used as a 4x4 clip launcher for Ableton Live integration, parallel to snapshot control. Simply load the corresponding script from below into the appropriate folder on your computer. Drop now offers navigation through Ableton clips with RGB LED feedback, play/stop functionality for clips and tracks, scene triggering, and even the ability to start a scene in sync with a snapshot DROP.

Even without Ableton, the button matrix doubles as a convenient mini keyboard, allowing you to trigger notes on your favorite synth without lugging around extra gear. It includes practical features like customizable scales and transpose functions to enhance your playing flexibility.

Drop can be powered via USB-C, allowing it to be elegantly connected to a laptop with just one USB-C cable. However, an external power supply is also included to effectively prevent the notorious ground loops in branched USB setups. The power supply also contains globally compatible power adapters (EU, UK, US, AU), making it ready for global tours. The package also includes a USB-C cable, a USB-C to USB-A adapter, and two MIDI-TRS cables with 3.5mm stereo jacks.

The solid metal housing, metal faders and encoders, and high-quality soft-touch buttons guarantee long-lasting enjoyment and professional touring reliability.

Notes: ***B-STOCK: Box damaged, shows signs of use, no software included***


Experience a new way to mix and perform with Traktor Kontrol S8 - a 4 channel stand-alone mixer, professional audio interface, and enhanced performance decks for ultimate control over the included Traktor Scratch Pro software. Touch-sensitive controls and high-res displays deliver DJ workflow that is truly cutting-edge.

Get physical with the music. Touch-sensitive knobs, faders, and LED-guided touch strips bring Traktor software to life on vivid full-color displays, keeping you focused on performance - not on your laptop. The S8's touch-and-see workflow means you connect with your music - and with your crowd.

Two high-res colour displays put Traktor software in plain sight. Browsing, track info, effect, and filter values come into view directly in front of you. Keep an eye on the running track's ultra-crisp vector waveform. Or access Remix Decks in full view.

Create your signature sound with responsive Remix Deck controls. Intuitively mix in sounds with 4+4 channel Remix Deck faders. Plus, live capture and trigger your own samples and loops using 16 color-coded performance pads.

Your style. Your sound. This is enhanced DJ performance.

Connect anything your setup needs - Traktor Kontrol S8 boasts the most expansive connectivity on a DJ controller yet. The on-board 4-channel mixer features unique wear-resistant faders that offer unprecedented durability.

Plus, Traktor Mode buttons on every mixer channel switch between Traktor and stand-alone mode - ideal for handing the night over to the next DJ.

Traktor Kontrol S8 is built for seamless control of the included Traktor Scratch Pro 2* - the choice DJ software of countless professionals worldwide. Get in-depth control of your music with up to four software decks, customizable interface, timecode media, and advanced track library management.

Notes: A revolutionary keyboard controller that puts the world's best sound library at your fingertips. Get direct, hands-on control of virtual instruments from NI and thousands more from developers like Arturia, Heavyocity, Korg, Output, Spitfire Audio, and u-he.

Browse and tweak everything from synths and drums to orchestral libraries and scoring tools - all seamlessly integrated with Kontrol's tactile controls and large, high-res screen. Then play with a new level of expression and freedom thanks to a best-in-class keybed, polyphonic aftertouch, Light Guide, and Play Assist features. And with a comprehensive package of included software, featuring the industry-leading sampling platform Kontakt 7, you'll be ready to go from day one.

Polyphonic aftertouch

Take expression one step further with the slightest pressure on individual keys. Bring new layers of nuance to your playing with cutoff, pitch, vibrato, and much more, without reaching for an extra encoder or dial. All three models come complete with polyphonic aftertouch on an industry-leading keybed developed in collaboration with Fatar.

Thousands of instruments made real

Kontrol brings the world's best virtual instruments to life in a genuinely immersive experience. Whatever you're playing, get in-depth control thanks to an unparalleled direct connection to Kontakt. Find sounds quickly with intuitive on-screen navigation, then adjust and play them with intelligent auto-mapping that understands the parameters.

Included software

Kontrol comes with a host of creative music production tools - all fully integrated with the hardware, to give you everything you need to start making music straight out of the box.

Included software
Kontakt 7
A free Kontakt instrument of your choice
Komplete 14 Select
Komplete Kontrol Software
Stradivari Cello

An internet connection and a graphics card that supports Direct 3D 11.1 (feature level 11_0) or higher are required to download and activate this product. Once installed and activated, the product can be used offline.

NKS 2 NKS (Native Kontrol Standard) is NI's technical standard for virtual instruments and effects. It's used across the industry and ensures that all compatible plugins are precisely mapped to controls. Kontrol marks the launch of NKS 2, which powers the unmatched software integration experience.

S88 MK3 Dimensions: 1353 × 347 × 120 mm
Weight: 6kg

Hardware specifications:
1 high-resolution colour screen with glass surface (1280 × 480)
CNC machined, bead blasted and anodized aluminum, 8 × encoder caps, 1 × 4D encoder cap, 2 × wheels (pitch and mod)
RGB illuminated pitch and mod wheels
New button-islands that form a continuous dustproof control surface and are grouped by function

System requirements

MIDI 2.0 compatible
Intel Core i5, Apple M1 (and equivalent or higher)
macOS 13 (Ventura) or higher (compatible with macOS 12 in MIDI 1.0 mode)
Windows 10 (latest service pack) or higher
8 GB RAM

Notes: Komplete 15 Ultimate is an expansive collection of creative tools for professional production, scoring, performance, and sound design. It features over 150 premium instruments and effects, including cutting-edge synths, cinematic sample libraries, advanced sound design tools, and more than 80 Expansion sound packs.

Komplete 15 Ultimate sees the addition of Kontakt 8 with new intelligent Tools and Leap features, Guitar Rig 7 Pro, iZotope Ozone 11 Standard, Alicia's Electric Keys, Session Guitarist - Acoustic Sunburst Deluxe, Action Woodwinds, Schema: Dark & Light, Vocal Colors, and many more.

System requirements

Windows 10 or 11 (latest Service Pack)
macOS 12, 13, and 14 (latest update)
Intel Core i5 or equivalent CPU, or Apple Silicon, 4 GB RAM (6 GB recommended), graphics hardware support for OpenGL 2.1 or higher
60 GB free disk space (850 GB for complete installation)
Supports ASIO, Core Audio, and WASAPI
Runs in 64-bit VST, AU, and AAX hosts
An internet connection is required to download, install, and activate the products in this collection. Once installed, all products can be used offline. Certain products may require additional free downloads. Massive X requires an AVX compatible CPU or Apple Silicon processor.

Specifications

The ultimate production suite: Over 150 premium instruments and effects, more than 80 Expansion sound packs, and over 100,000 sounds
Save over 93% of the combined cost of all included products
Save $600 on a future upgrade to Komplete 15 Collector's Edition, which includes the full Symphony Series - Collection, Choir Omnia, Kithara, Fables, Arkhis and more, plus over 40 additional Expansion sound packs
Kontakt 8 - the latest and enhanced version of the industry-leading sampling platform, now with new Tools and Leap features
Guitar Rig 7 Pro - a creative multi-effects rack and amp simulator
iZotope Ozone 11 Standard - an all-in-one mastering plugin with AI-powered features
Massive X - a next-generation wavetable synth for cutting-edge sound design
Alicia's Electric Keys - Alicia Keys' personal electric grand piano
Acoustic Sunburst Deluxe - strummed and plucked tones from a premium jumbo acoustic guitar
Vocal Colors - an expressive vocal engine for unique sonic textures
Action Woodwinds - the true-to-life sound of a full orchestral woodwind ensemble
Spotlight Collection: Ireland - explore the genuine sound of 11 traditional Irish instruments
Schema: Dark - dark, driving patterns and pulses from 4-layer engine
Choir: Omnia Essentials - an intuitive 40-piece choir with four independent sections
iZotope VocalSynth 2 - a vocal synthesizer plugin with stompbox-style studio effects

Established favorites like Reaktor 6, Massive, FM8, Monark, and many other instruments and effects
Simple setup, activation, and updating via Native Access 2
Seamless integration with Kontrol keyboards and Maschine
Works with any DAW
Register your bundle and receive a $25 e-voucher for the NI Online Shop
Includes over 80 Expansion sound packs

Komplete 15 Ultimate features more than 80 genre-specific Expansion sound packs filled with synth presets, drum kits, one-shots, samples, and loops. Crafted by leading artists and sound designers, these Expansions are compatible with any DAW and integrate seamlessly with Native Instruments products such as Kontakt 8, Massive X, Battery 4, Monark, and Massive.

Notes: Komplete 15 Collector's Edition offers an extensive and unparalleled collection of tools for professional production, scoring, performance, and sound design. This edition extends your creative palette with over 165 premium instruments and effects, over 125 Expansion sound packs, and more than 150,000 sounds.

Komplete 15 Collector's Edition sees the addition of Kontakt 8 with new intelligent Tools and Leap features, Guitar Rig 7 Pro, iZotope Ozone 11 Standard, Kithara, Fables, Action Woodwinds, Valves Pro, and many more.

System requirements

Windows 10 or 11 (latest Service Pack)
macOS 12, 13, and 14 (latest update)
Intel Core i5 or equivalent CPU, or Apple Silicon, 4 GB RAM (6 GB recommended), graphics hardware support for OpenGL 2.1 or higher
60 GB free disk space (1100 GB for complete installation)
Supports ASIO, Core Audio, and WASAPI
Runs in 64-bit VST, AU, and AAX hosts
An internet connection is required to download, install, and activate the products in this collection. Once installed, all products can be used offline. Certain products may require additional free downloads. Massive X requires an AVX compatible CPU or Apple Silicon processor.

The definitive production suite - get total creative freedom with almost everything we've ever released, including the full Symphony Series - Collection, Kithara, Fables, Action Woodwinds, Valves Pro, and over 40 additional Expansions
The largest Komplete bundle yet: Over 290 products and more than 150,000 sounds
Save over 92% of the combined cost of all included products
Kontakt 8 - the latest and enhanced version of the industry-leading sampling platform, now with new Tools and Leap features
Guitar Rig 7 Pro - a creative multi-effects rack and amp simulator
iZotope Ozone 11 Standard - an all-in-one mastering plugin with AI-powered features
Massive X - a next-generation wavetable synth for cutting-edge sound design
Kithara - a premium collection of guitars and plucked string instruments for cinematic sound design
Fables - an evocative orchestral library for evolving cinematic textures
Valves Pro - warm and mellow brass tones with an expanded range of articulations
Action Woodwinds - the true-to-life sound of a full orchestral woodwind ensemble
Session Percussionist - an intuitive percussion library with an advanced step sequencer
iZotope VocalSynth 2 - a vocal synthesizer plugin with stompbox-style studio effects

Established favorites like Reaktor 6, Massive, FM8, Monark, and many other instruments and effects
Simple setup, activation, and updating via Native Access 2
Seamless integration with Kontrol keyboards and Maschine
Works with any DAW
Register your bundle and receive a $25 e-voucher for the NI Online Shop
Includes over 125 Expansion sound packs

Komplete 15 Collector's Edition features more than 125 genre-specific Expansion sound packs filled with synth presets, drum kits, one-shots, samples, and loops. Crafted by leading artists and sound designers, these Expansions are compatible with any DAW and integrate seamlessly with Native Instruments products such as Kontakt 8, Massive X, Battery 4, Monark, and Massive.
