Home DJ Equipment Portable audio recorders | Handheld recorders Zoom Corporation Zoom H5studio Handy Recorder
Zoom H5studio Handy Recorder FORTHCOMING
Click for better price or call
+44 20 7424 1960
(quote 1080762)
Delivery
Despatched as soon as released
Features
Specs
Returns & refunds
Finance
- Inputs: 1x Mic capsule, 2 MIC/LINE (mono)
- Outputs: 1 LINE OUT, 1 Headphone, 1 Built-in speaker (mono)
- XY mic: XYH-5s, 90° XY stereo format
- Pickup pattern: Unidirectional
- Sensitivity: -41 dB/Pa at 1 kHz
- Maximum sound pressure input: 140 dB SPL
- LINE IN: XYH-5s
- Connector: 1 stereo mini jack
- Input gain: -infinite - +60 dB
- Input impedance: 2 kO or more
- MIC/LINE (mono)
- Connectors: 2 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
- Input gain: - infinite - +60 dB
- Input impedance MIC: 3 kO or more, LINE: 3 kO or more
- Maximum input level MIC: +4 dBu, LINE: +24 dBu
- Phantom power: +48 V
- Equivalent input noise: -127 dBu or less (IHF-A) at 150O input
| Audio Editing | Yes |
| Battery Type | 4 x AA |
| Bit Rate | 32 |
| Built-In Speaker | Yes |
| Dimensions (mm) | 86 x 206 x 55 |
| Inputs | XLR, Jack |
| Internal Memory Size (MB) | 2 |
| Key Control | No |
| Limiter | Yes |
| Low-Cut Filter | No |
| Micro SD Card Slot | Yes |
| Microphones (number) | 4 |
| Multitrack Recording | No |
| Outputs | XLR |
| Overdub Facility | No |
| Pitch Control | No |
| Power Type | Battery |
| Records MP3 | No |
| Records WAV | Yes |
| Remote Control | No |
| Reverb Effect | No |
| Sample Rate | 44.1 |
| SD Card Slot | No |
| Self-Timer | No |
| Timecode | Yes |
| Track Markers | Yes |
| Tripod Mount | No |
| Weight (g) | 410 |
If you decide an product is not suitable within 14 days of delivery, you can return it to us for a replacement or refund. Returns must be unused and in their original, undamaged packaging.
Some items are excluded from our money back guarantee:
- Computer software that has been unsealed or registered
- Any item that comes directly into contact with the nose, ears or mouth
To arrange a return, just contact our customer service department on 020 7424 2800 or via our customer support form.

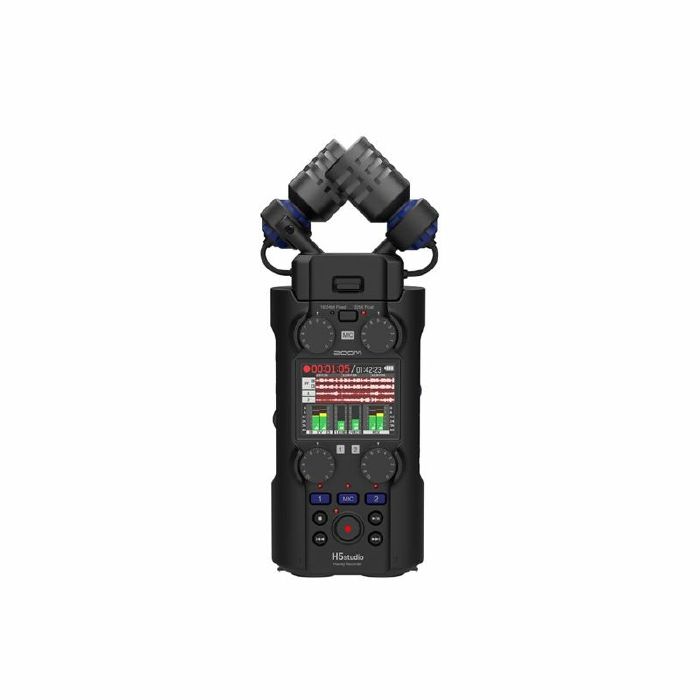

Zoom H5studio Handy Recorder
The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.
The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and clarity.
The H5studio features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN). With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range, capturing everything without noise or distortion.
32-bit float and 16 / 24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16 / 24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping. The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs - no clipping and no need for post-production.
The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.
Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.
The H5studio features "advanced look-ahead" limiters which anticipate potential overloads and prevent distortion before it reaches your track.
The two locking XLR / TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.
The H5studio's 3.0 capsule system supports 32-bit float and gives creators more options to use the right mic for their recording.
Monitor input levels and real-time waveforms with the full color LCD, making it easy to adjust and monitor audio in real time.
Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.
Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.
The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.
The H5studio is a 4-in / 2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16 / 24-bit recording. Stream live and simultaneously record a backup to microSD.
The 19.4mm microphones capture audio with incredible frequency response, 140 dB max SPL, and an expansive dynamic range. Their increased size captures recordings with unmatched depth and clarity.
The H5studio features Zooms F-series preamps, giving your audio unmatched clarity (-127 dBu EIN). With dual AD converters and 32-bit float, it delivers an impressive 132dB dynamic range, capturing everything without noise or distortion.
32-bit float and 16 / 24-bit formats each have their advantages. 32-bit float prevents clipping but requires post-production. 16 / 24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping. The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs - no clipping and no need for post-production.
The H5studio captures up to six tracks (four iso-tracks plus a stereo mix) with sample rates up to 192 kHz.
Carefully engineered RF shielding keeps interference from smartphones and Wi-Fi routers out of your recordings, anywhere you go.
The H5studio features "advanced look-ahead" limiters which anticipate potential overloads and prevent distortion before it reaches your track.
The two locking XLR / TRS inputs support +48V phantom power and +4dBu line level. There is also a 3.5mm stereo jack with plug-in power.
The H5studio's 3.0 capsule system supports 32-bit float and gives creators more options to use the right mic for their recording.
Monitor input levels and real-time waveforms with the full color LCD, making it easy to adjust and monitor audio in real time.
Use the loud 20 mW headphone output to monitor or listen back to your recordings in any environment.
Use the 3.5mm stereo LINE OUT to connect directly to a camera, easily syncing your audio and video.
The built-in speaker has a maximum output of 250mW for previewing recordings on the spot.
The H5studio is a 4-in / 2-out USB audio interface for Mac, Windows, iOS, and Android, supporting 32-bit float and 16 / 24-bit recording. Stream live and simultaneously record a backup to microSD.
Read moreRead less
Specifications
| Audio Editing | Yes |
| Battery Type | 4 x AA |
| Bit Rate | 32 |
| Built-In Speaker | Yes |
| Dimensions (mm) | 86 x 206 x 55 |
| Inputs | XLR, Jack |
| Internal Memory Size (MB) | 2 |
| Key Control | No |
| Limiter | Yes |
| Low-Cut Filter | No |
| Micro SD Card Slot | Yes |
| Microphones (number) | 4 |
| Multitrack Recording | No |
| Outputs | XLR |
| Overdub Facility | No |
| Pitch Control | No |
| Power Type | Battery |
| Records MP3 | No |
| Records WAV | Yes |
| Remote Control | No |
| Reverb Effect | No |
| Sample Rate | 44.1 |
| SD Card Slot | No |
| Self-Timer | No |
| Timecode | Yes |
| Track Markers | Yes |
| Tripod Mount | No |
| Weight (g) | 410 |
